The 10mm 2oz FPC handles heat better than slim tapes, and 12V keeps wiring simple. Cut every 50mm, cascade with SPI/SD/DMX/Artnet controllers, and choose IP20–IP68 by environment. Smooth, tough, and reseller-friendly.
Breakpoint Continue / Dual Signal: DI + BI backup; one bad pixel won’t stop downstream pixels.
12V 20 Pixels/m: 3 LEDs/pixel, smoother than 10px/m strips, still easy to power.
5050 RGB Bright: 60 LEDs/m, vivid full color for entertainment and retail spaces.
10mm 2oz FPC: better heat dissipation and pad strength than 8mm tapes.
Controller Ready: SPI / WS2811-class / SD / DMX / Artnet; IP20/IP65/IP67/IP68 optional.

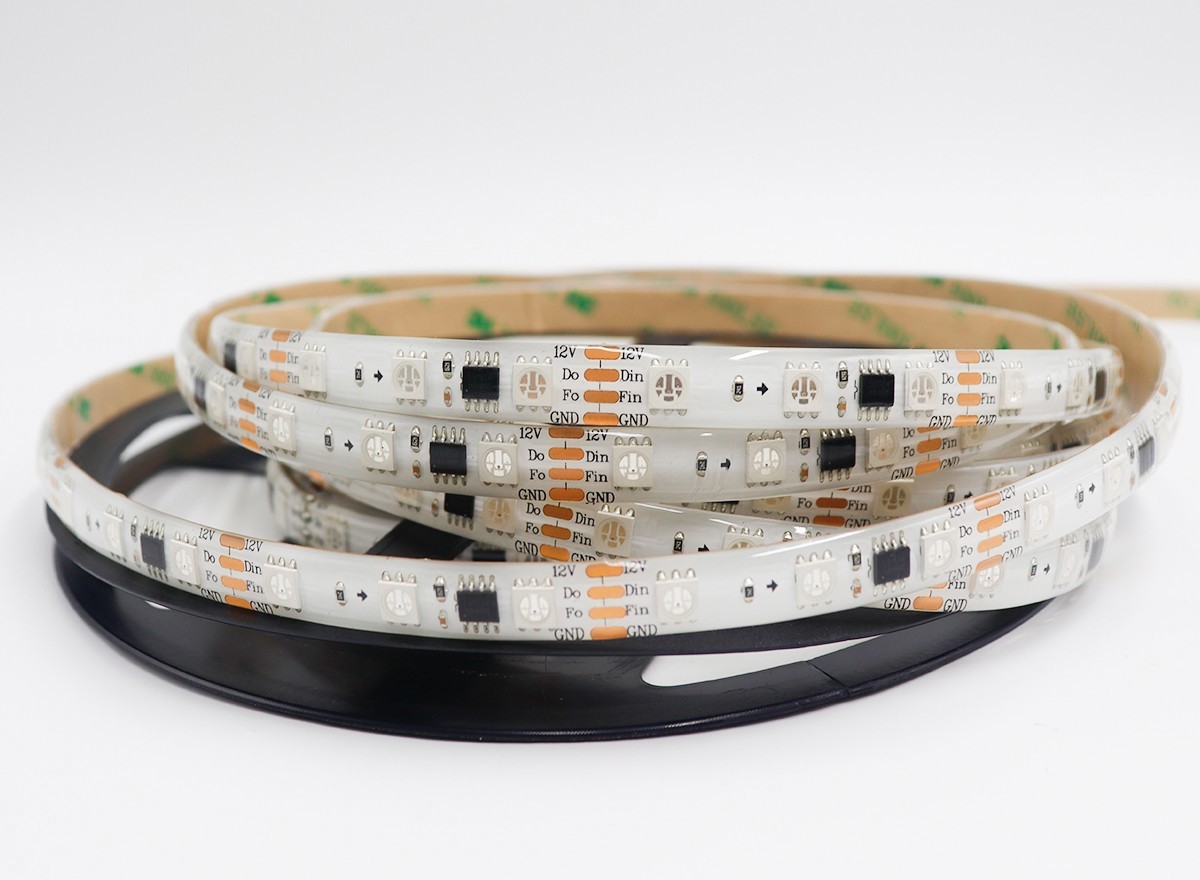

Product Specification: LB1934 5050 RGB 12V Dual-Signal Addressable LED Strip
|
Item |
Specification |
|---|---|
|
Model |
LB1934-5050RGB-60D-12V-10mm |
|
LED Type |
SMD 5050 RGB |
|
IC Type |
LB1934 / LB1934A, external IC |
|
Signal |
Dual data: DI + BI (breakpoint continue / backup signal) |
|
Input Voltage |
DC 12V (do not exceed 13V) |
|
LED Density |
60 LEDs/m |
|
Pixel Density |
20 pixels/m (3 LEDs / pixel) |
|
Cutting Unit |
3 LEDs ≈ 50 mm |
|
PCB Width |
10 mm FPC, 2 oz copper |
|
Power |
≈ 14.4 W/m |
|
Current |
≈ 1.2 A/m @ 12V |
|
Gray Scale |
8-bit × 3CH (256/CH) |
|
Data Rate |
800 kbps |
|
Connector |
4-pin: VCC / GND / DI / BI (DO/BO cascade) |
|
Controller |
LB1934 / WS2818 / WS2811-class SPI, SD/DMX/Artnet |
|
Beam Angle |
120° |
|
PCB Color |
White / Black |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Length |
5 m/reel |
|
Life Span |
30,000–50,000 h |
|
Application |
KTV, bar, signage, aisle, retail, hotel, stage trim, architecture outline |
