Utilizing a single-wire data transmission protocol, it simplifies complex wiring while supporting cascading for large-scale installations. Perfect for edge-lit signs, backlighting, and creative lighting projects, it offers excellent color consistency and low power consumption. The compact 4.0x2.0mm footprint makes it ideal for high-density applications where traditional top-view LEDs won't fit. Whether you're designing smart wearables, architectural accents, or dynamic displays, the SK6809SIDE provides reliable, stunning visual effects with minimal setup. Elevate your lighting design with OPSCO's cutting-edge technology.
Integrated Control IC: Built-in 4020 driver chip eliminates the need for external controllers, simplifying circuit design and reducing overall BOM cost.
Space-Saving Side-Emission: Unique 4020 side-view package (4.0x2.0mm) is perfect for edge lighting, narrow profiles, and applications with strict height limitations.
Single-Wire Data Protocol: Features a single-line return-to-zero (NZR) communication mode, allowing for easy cascading and individual addressability of thousands of LEDs.
Vibrant Dream Color: Delivers 24-bit true color (256 levels per channel) for smooth gradients, dynamic chasing effects, and rich, saturated RGB output.
High Compatibility & Stability: Fully compatible with mainstream 5V WS2812/SK6812 ecosystems and operates reliably in harsh environments (-40°C to +85°C).

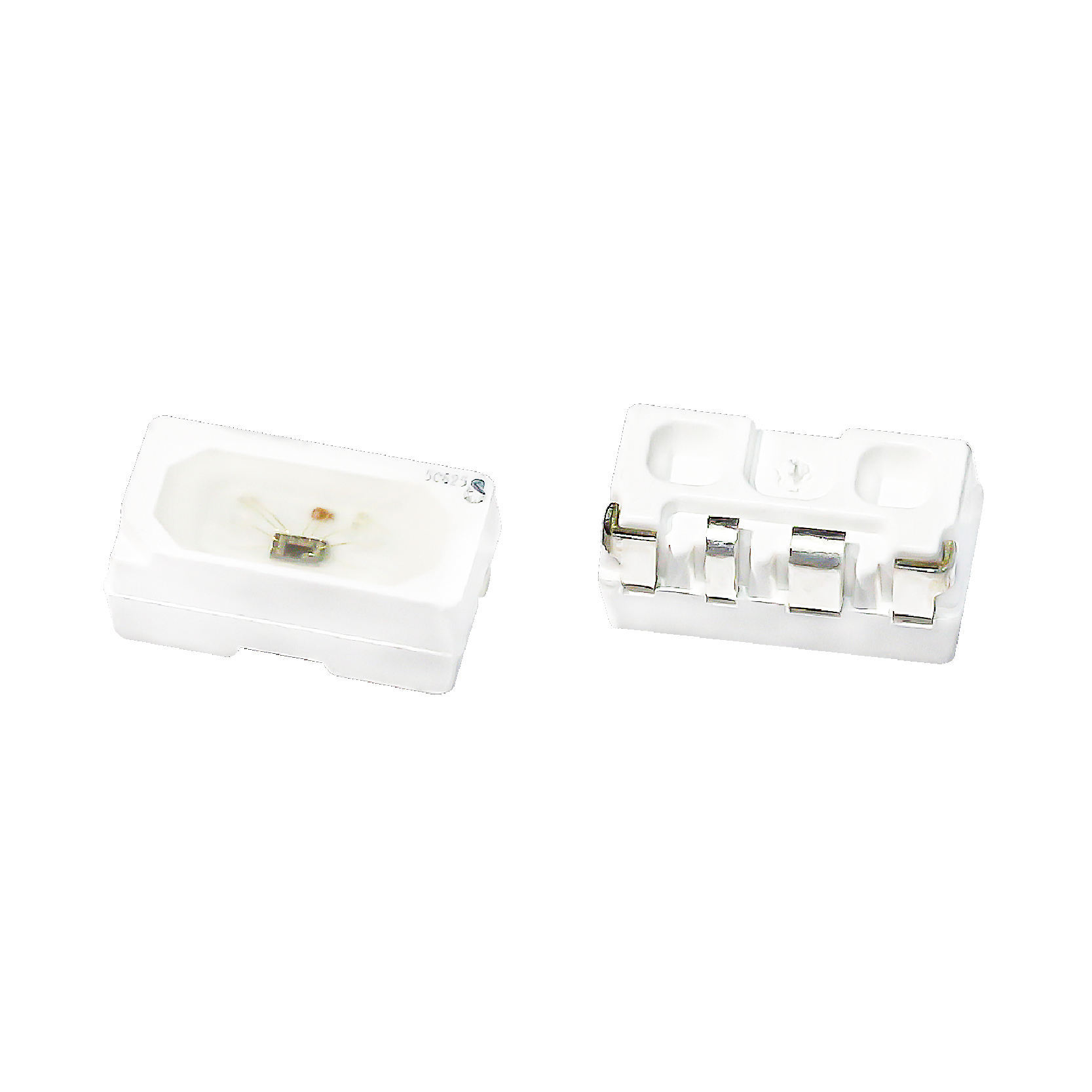

OPSCO SK6809SIDE 4020 SMD Built-in IC RGB LED Specification Sheet
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|
|
Electrical Characteristics (Ta=25°C) |
|||||
|
Supply Voltage |
VDD |
3.7 |
5.0 |
5.5 |
V |
|
Input Current |
IDD |
- |
1.5 |
2.0 |
mA |
|
Logic Input Voltage High |
VIH |
0.7VDD |
- |
VDD+0.5 |
V |
|
Logic Input Voltage Low |
VIL |
-0.3 |
- |
0.3VDD |
V |
|
Optical Characteristics (Ta=25°C, IF=20mA) |
|||||
|
Luminous Intensity (Red) |
IV-R |
300 |
400 |
500 |
mcd |
|
Luminous Intensity (Green) |
IV-G |
800 |
1000 |
1200 |
mcd |
|
Luminous Intensity (Blue) |
IV-B |
200 |
300 |
400 |
mcd |
|
Wavelength (Red) |
λD-R |
620 |
625 |
630 |
nm |
|
Wavelength (Green) |
λD-G |
515 |
520 |
525 |
nm |
|
Wavelength (Blue) |
λD-B |
460 |
465 |
470 |
nm |
|
Communication & Control |
|||||
|
Data Transfer Rate |
- |
- |
800 |
- |
Kbps |
|
Color Resolution |
- |
- |
256 |
- |
levels/channel |
|
Mechanical & Environmental |
|||||
|
Package Size |
- |
4.0 x 2.0 x 1.5 |
mm |
||
|
Operating Temperature |
Topr |
-40 |
- |
+85 |
°C |
|
Storage Temperature |
Tstg |
-40 |
- |
+85 |
°C |
|
Soldering Temperature |
Tsol |
- |
260 |
(10s) |
°C |
Pin Configuration:
DIN: Data Input
VDD: Power Supply (5V)
DOUT: Data Output
GND: Ground
Application Notes:
Use a 100nF decoupling capacitor between VDD and GND for each LED or every few LEDs.
Data input line should be kept as short as possible to avoid signal reflection.
Ensure proper heat dissipation for high-density applications.
