Parameter |
Specification |
|---|---|
|

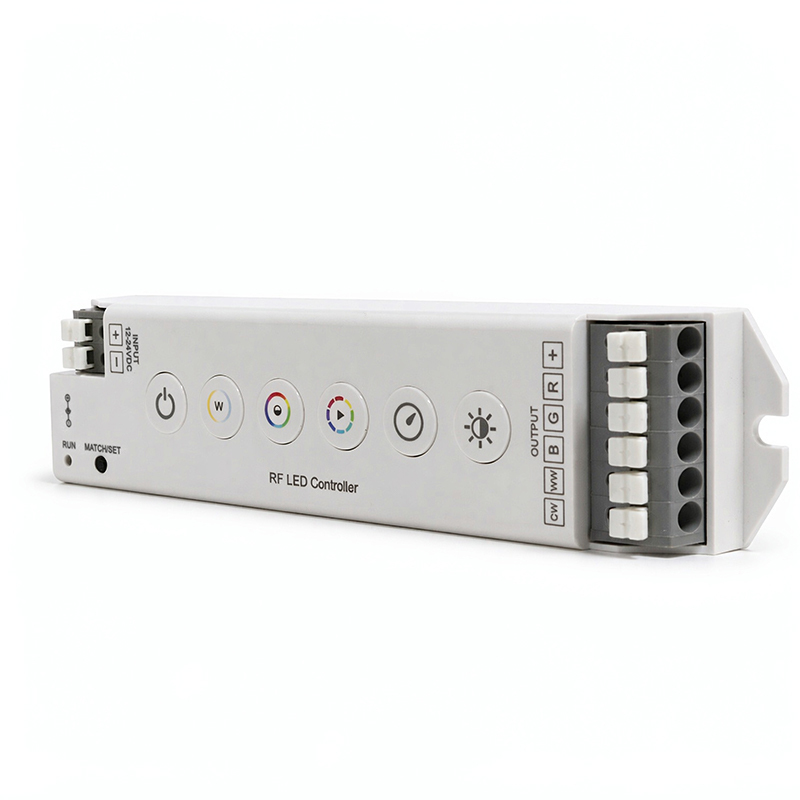

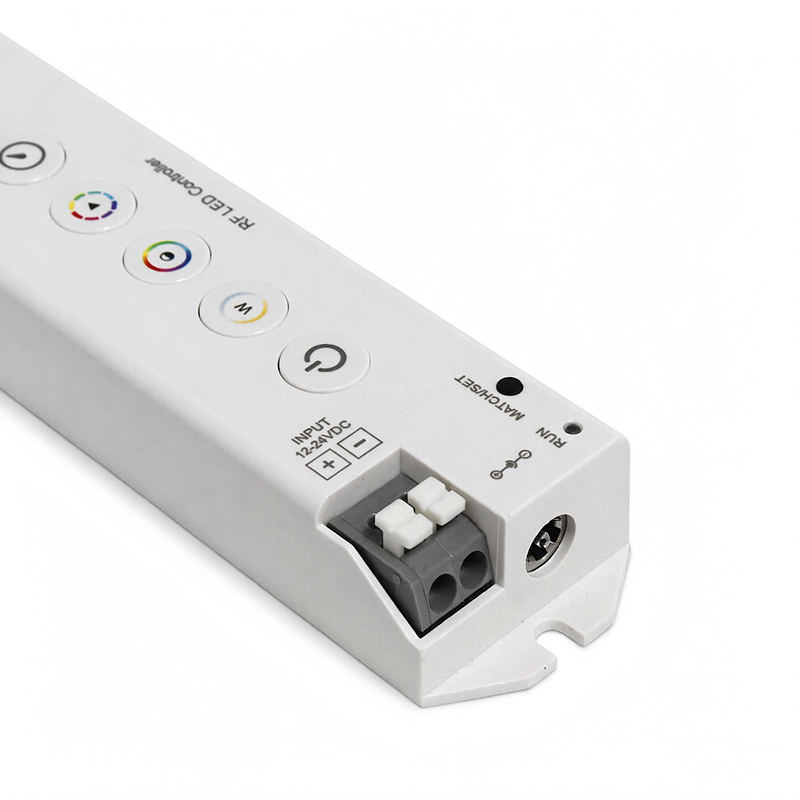

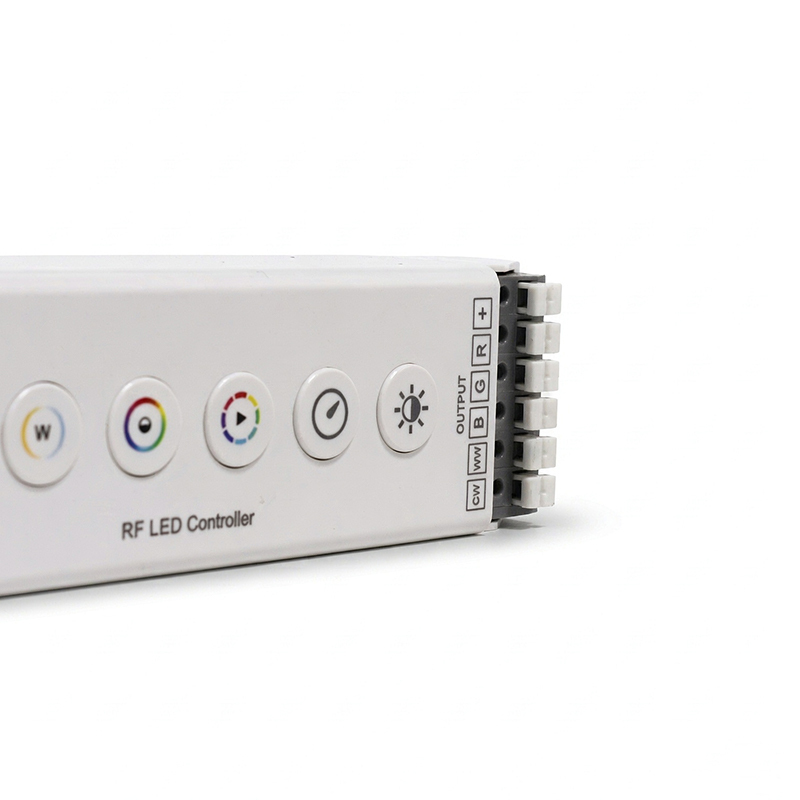

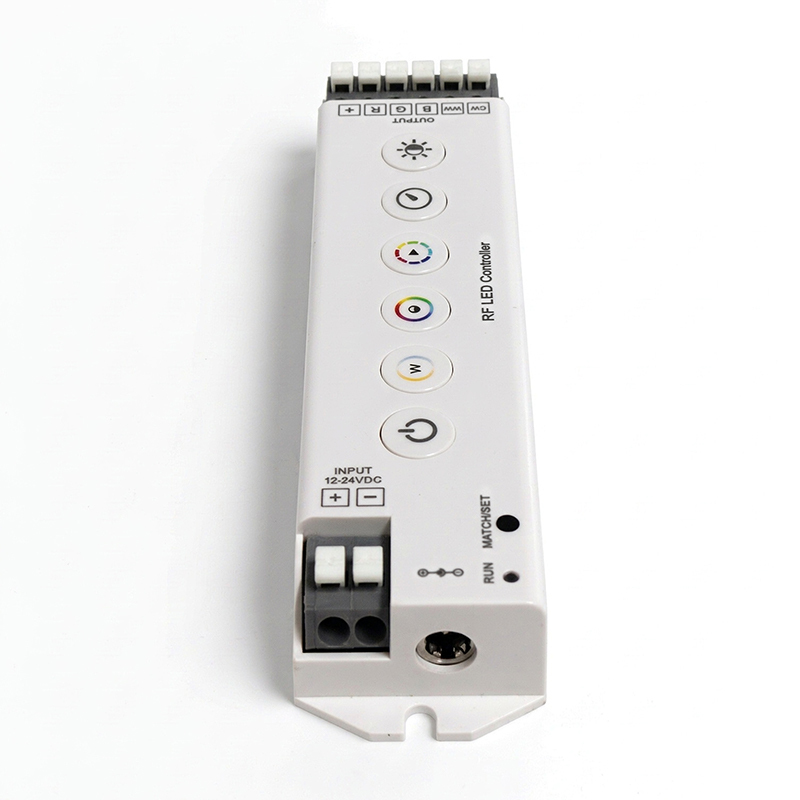

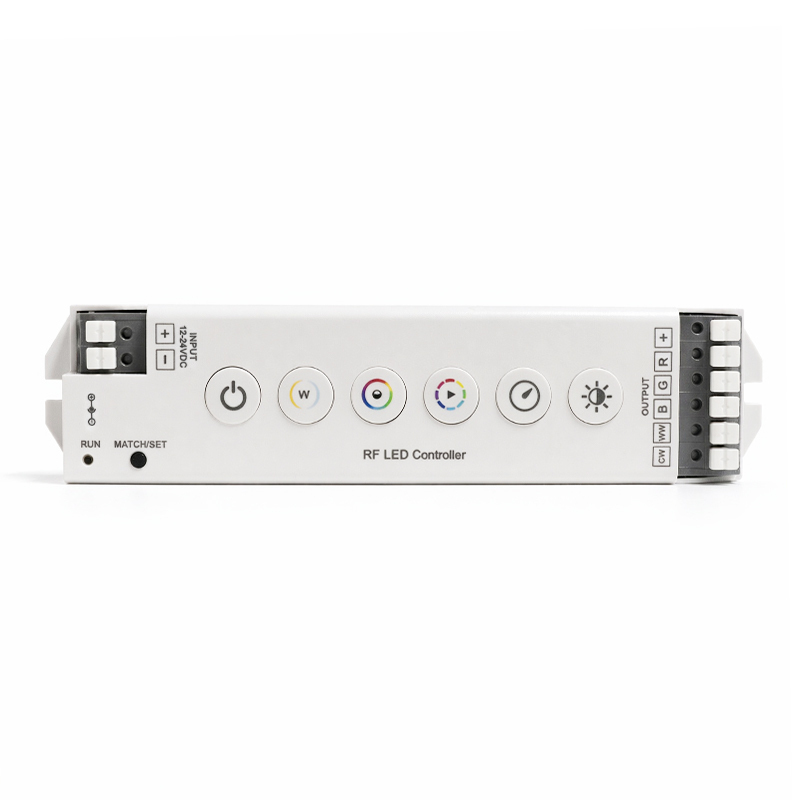

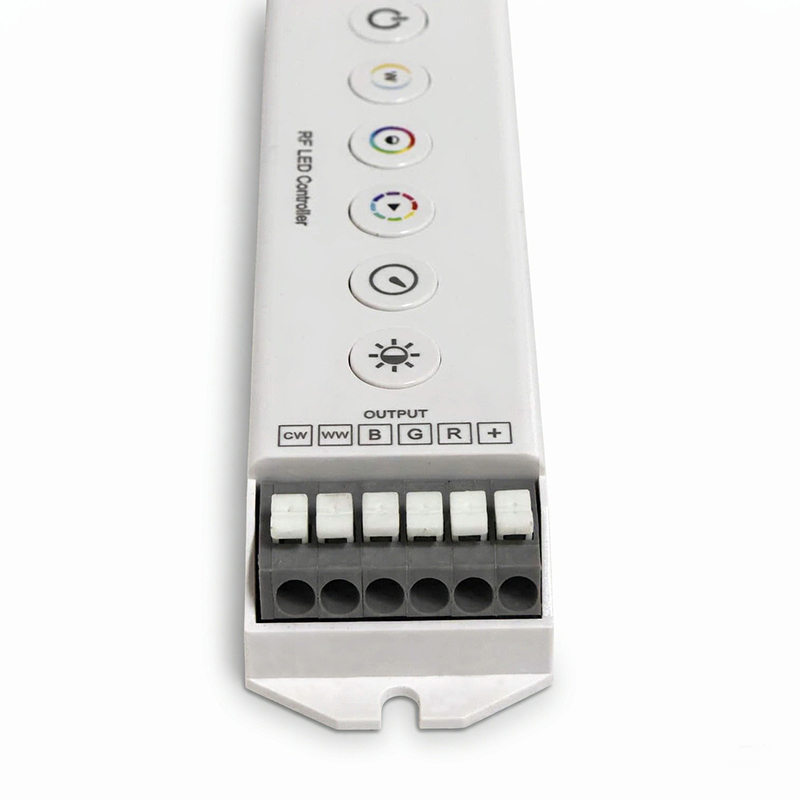

Model |
M5 / V5-M (RF) · M5(WT) adds WiFi |
|
Input Voltage |
DC 12–24V |
|
Output Type |
Constant Voltage, 5CH |
|
Output Current |
3A per channel (15A total max) |
|
Output Power |
5 × (36W@12V / 72W@24V) = 180–360W |
|
Output Channels |
R, G, B, WW, CW |
|
Input Signal |
RF 2.4GHz (WiFi 2.4G on WT version) |
|
Control Distance |
30m (barrier-free) |
|
Dimming |
0–100%, 4096 steps (12-bit) |
|
PWM Frequency |
1000 / 2000 / 4000 / 8000Hz (selectable) |
|
Dimming Curve |
Logarithmic |
|
Light Modes |
RGB / RGBW / RGB+W / RGBCCT / RGB+CCT |
|
Dynamic Modes |
10 built-in (jump, gradual, etc.) |
|
Manual Control |
6 buttons: on/off, brightness, color, CCT, mode, speed |
|
Remote Pairing |
Up to 10 RF remotes per controller |
|
Protection |
Reverse polarity, short circuit, over-load, over-temp |
|
IP Rating |
IP20 (indoor) |
|
Operating Temp |
-20°C to +55°C |
|
Size |
~162×42×26 mm (WT version ~140×35×21 mm) |
|
Certification |
CE, RoHS, RED, EMC |
|
Warranty |
5 Years |
