Universal SPI + DMX512 Compatibility – Works with WS2811, WS2812B, WS2813, SK6812, SK6812RGBW, UCS1903, TM1804, APA102, WS2801, LPD6803 and DMX512 fixtures; auto IC recognition with on-device chip/color-order (RGB/GRB) setup.
Up to 1000 Pixels per Unit – Drives up to 1000 addressable IC pixels (TTL mode); supports IC-count setting, breakpoint-resume ICs, and multi-port/cascade sync for large installs without frame drop.
SD-Card Programming + Standalone Play – Load LEDEDIT effects (*.led) to microSD (128MB–32GB); 20+ built-in test effects, play/pause/speed/brightness keys, no PC needed after programming.
Smart Control: APP + RF Remote + Mic Music – Bluetooth app for iOS/Android (color, chase, brightness, speed, timers), 24-key RF remote, and built-in mic for sound-reactive music sync in bars/KTV/stage.
Pro-Grade I/O & Cascade Sync – RJ45 network IN/OUT, DMX XLR, 8 TTL/DMX ports, AC 85–264V or DC wide input option, -20~65℃ operation; signal-only output (LEDs powered separately) for safe engineering use.

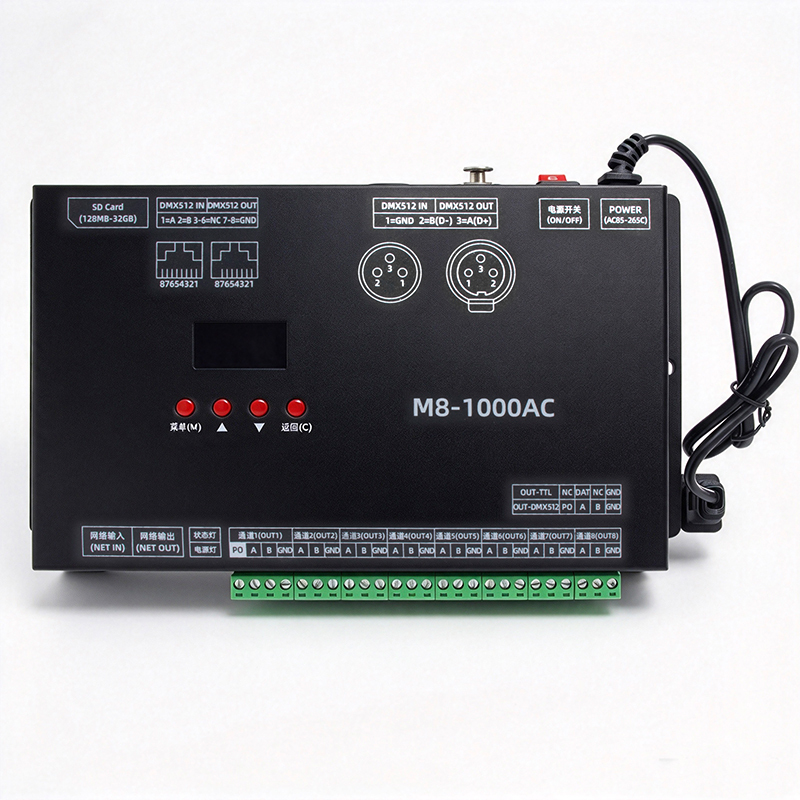

M8-1000C – Magic Color Pixel LED Controller
|
Item |
Specification |
|---|---|
|
Model |
M8-1000C |
|
Control Type |
Addressable SPI (TTL) + DMX512 |
|
Max Pixels |
1000 px (SPI mode, single unit) / 512 px per DMX universe |
|
Supported ICs |
WS2811/2812B/2813/2815, SK6812/SK9822, UCS1903/2903, TM1804/1914, APA102, WS2801, LPD6803/8806, SM16703, DMX512 (UCS512/SM512) |
|
Output Ports |

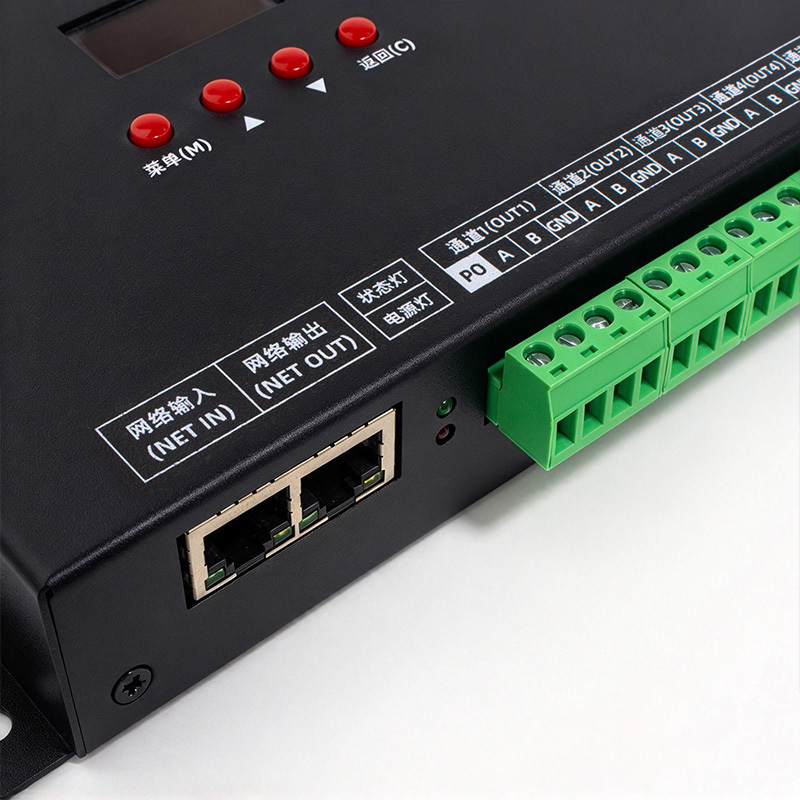

8 × TTL/DMX ports (RJ45 or screw terminal, by variant) |
|
Input / Sync |

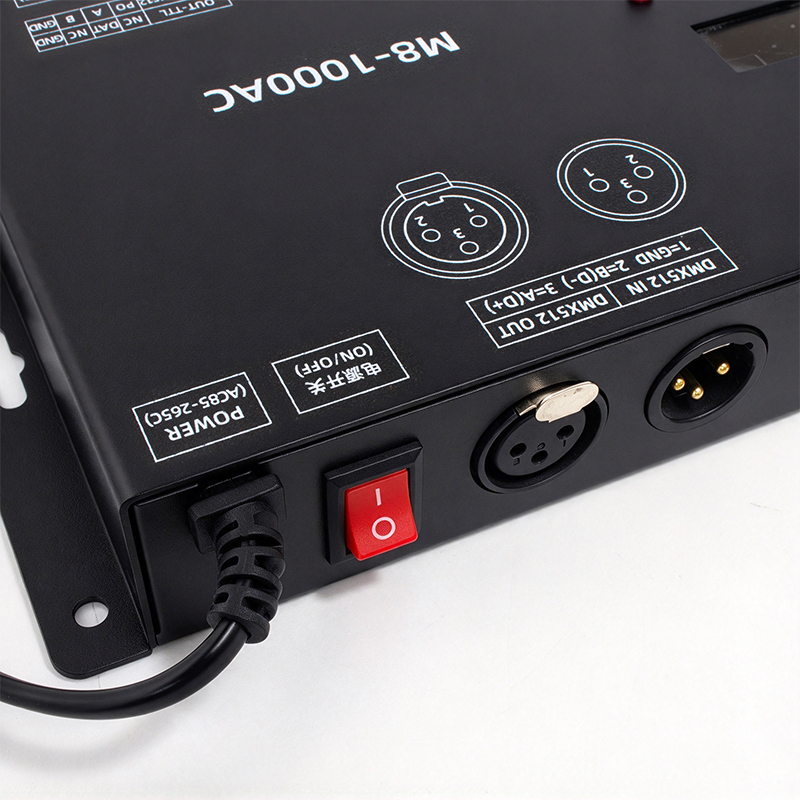

RJ45 network IN/OUT, DMX512 XLR IN, cascade sync |
|
Storage |

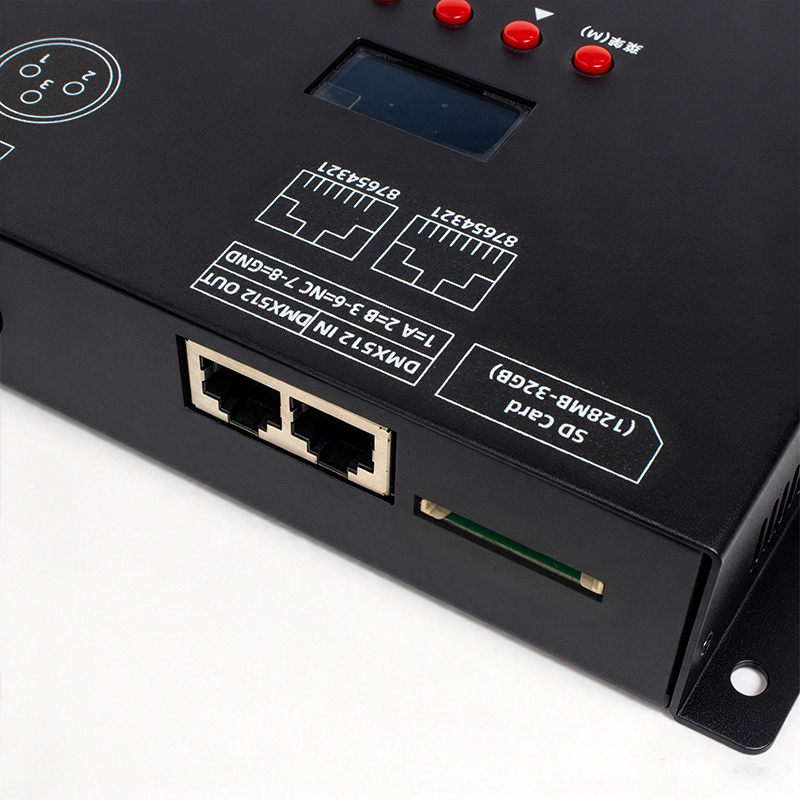

MicroSD 128MB–32GB (FAT32), effect files via LEDEDIT |
|
Control Methods |
On-device buttons, Bluetooth APP, 24-key RF remote, mic/music mode |
|
Output Signal |
5V TTL SPI + DMX512 (differential) |
|
Power Input |
DC 5–24V (logic board) / AC 85–264V variant available |
|
Power Consumption |
< 2W (controller only, excludes LEDs) |
|
Grayscale |
32–65,536 levels (software gamma) |
|
Frame Rate |
~30fps @512px / ~25fps @1024px (IC-dependent) |
|
Working Temp |
-20℃ ~ 65℃ |
|
Housing |
Metal case, wall-mount |
|
Dimensions |

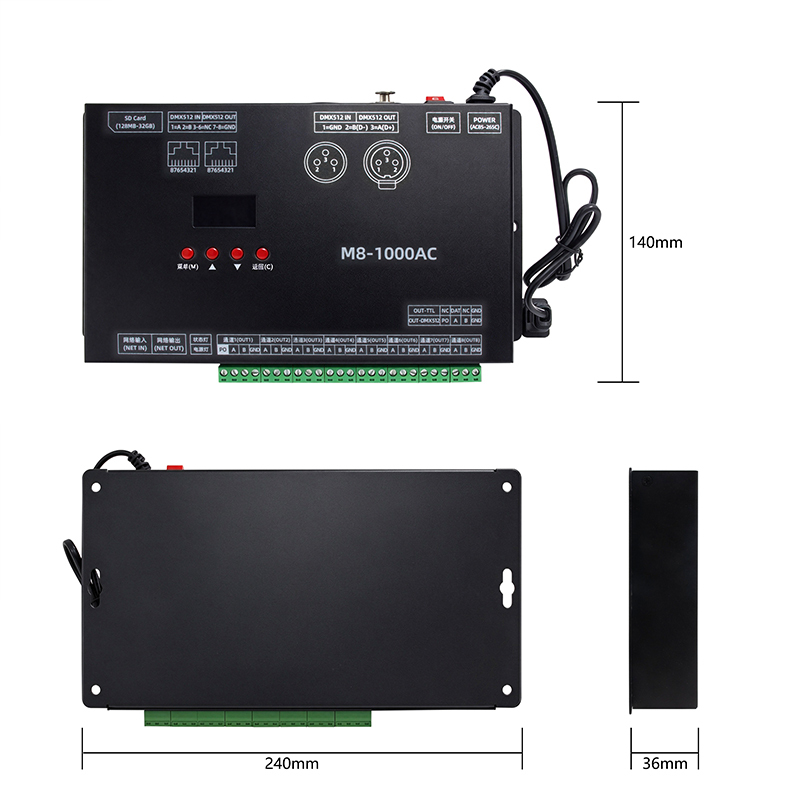

≈ 240 × 130 × 36 mm (AC version) / compact DC version available |
|
Certifications |
CE/FCC/RoHS (typical) |
|
In the Box |
Controller, RF remote, SD card (preloaded), manual, screws |
Notes:

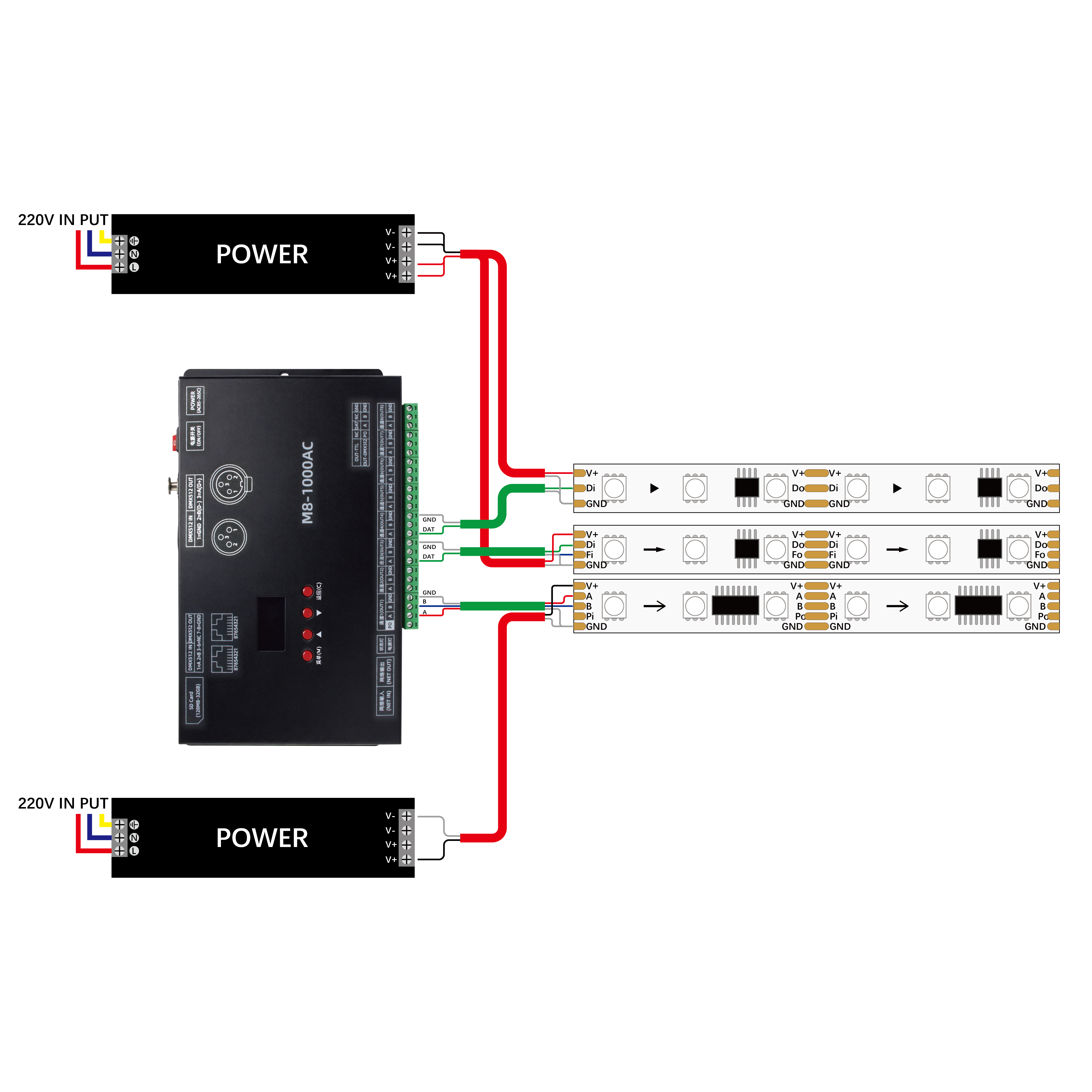

Controller outputs signal only; LED strips must use a matched 5V/12V/24V power supply.
Never mix 5V strips with 12V/24V power.
Indoor/dry-location use; seal properly for outdoor installs.
