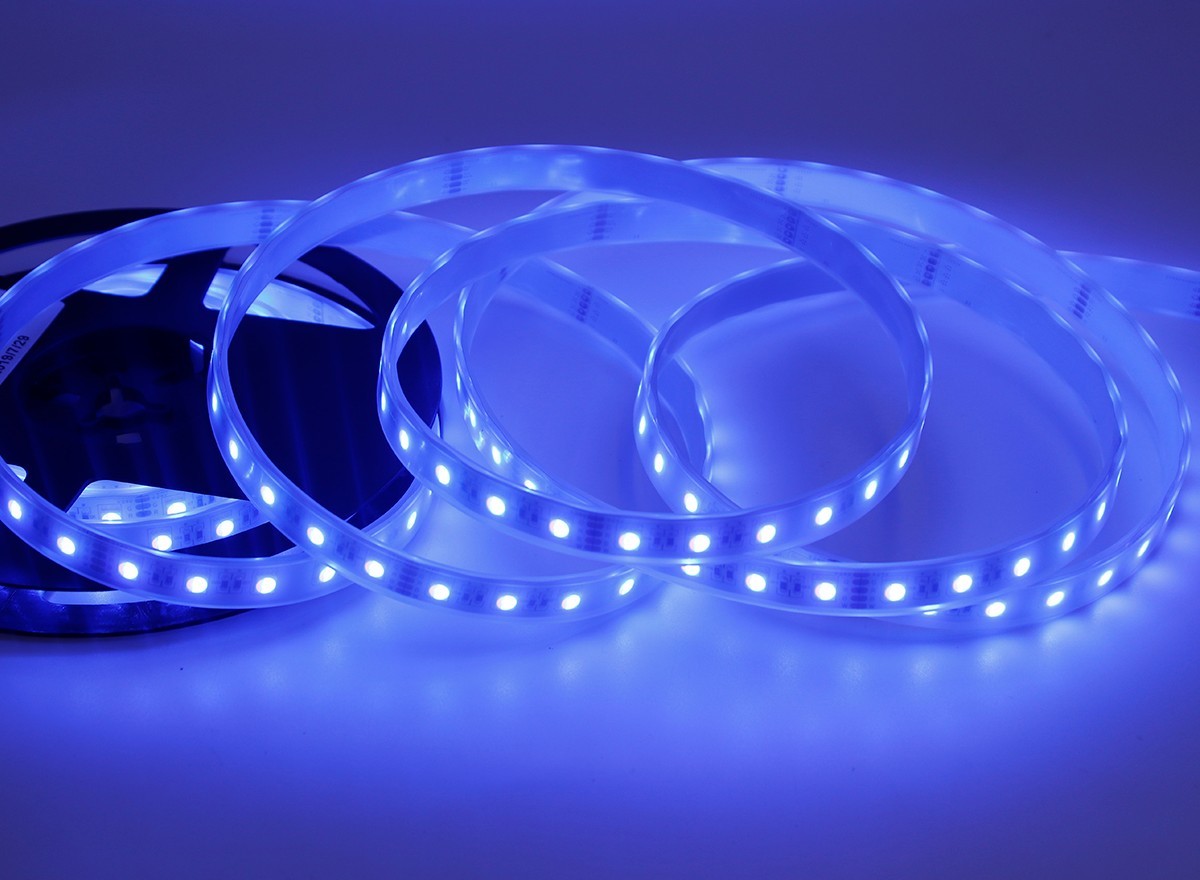

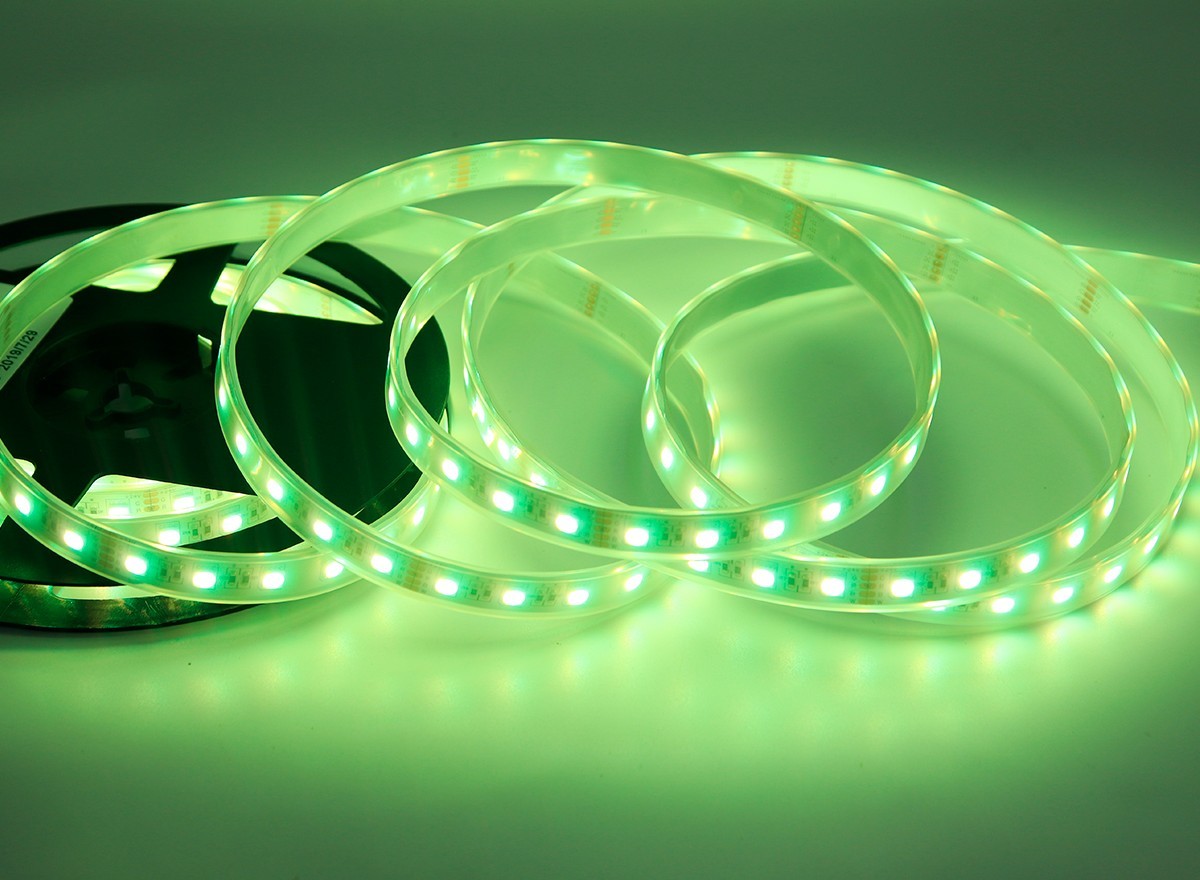

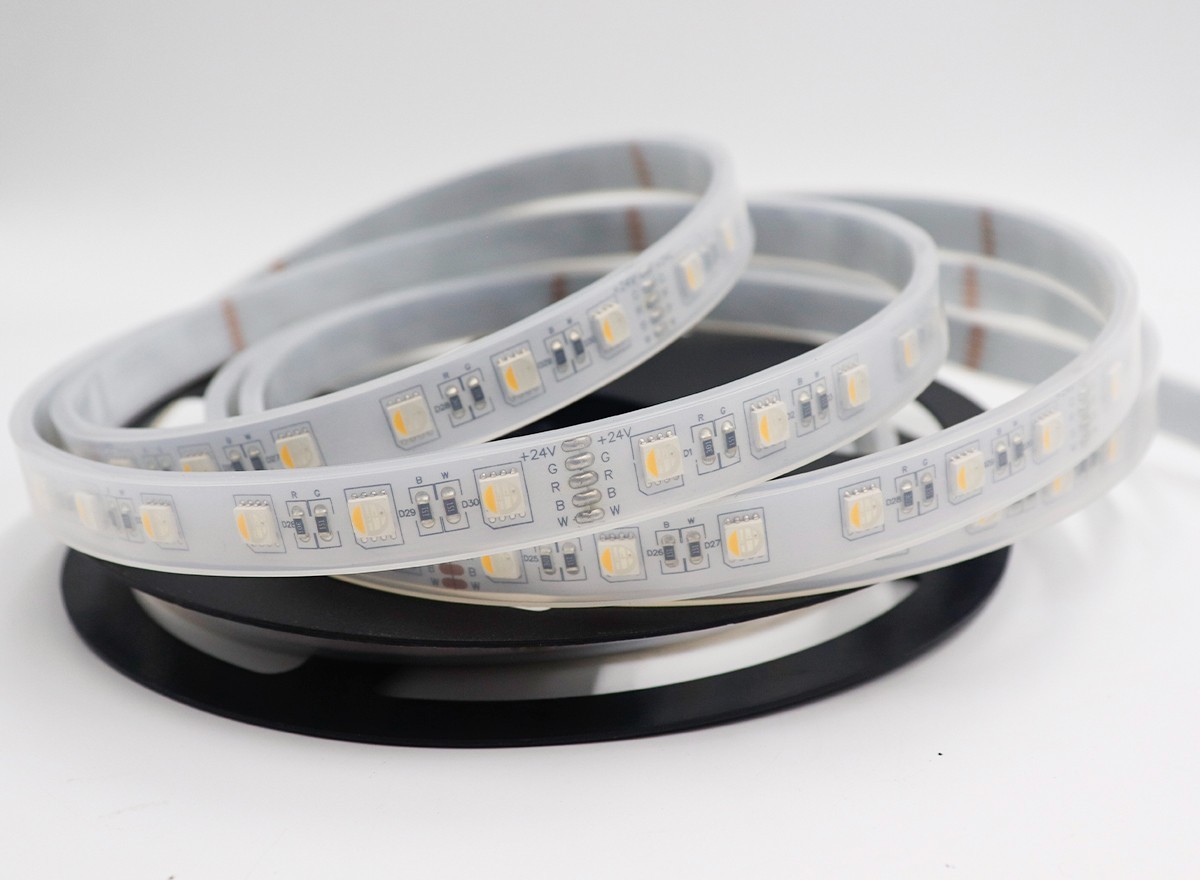

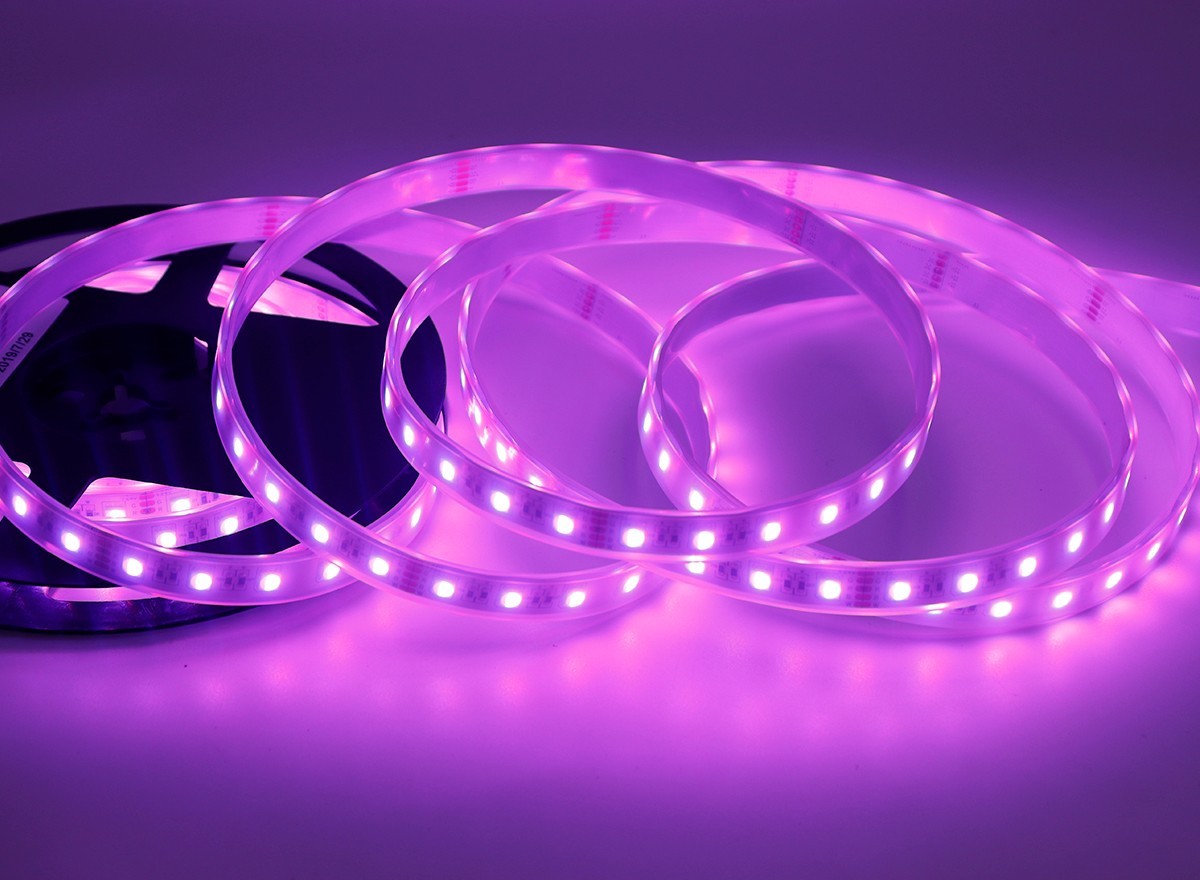

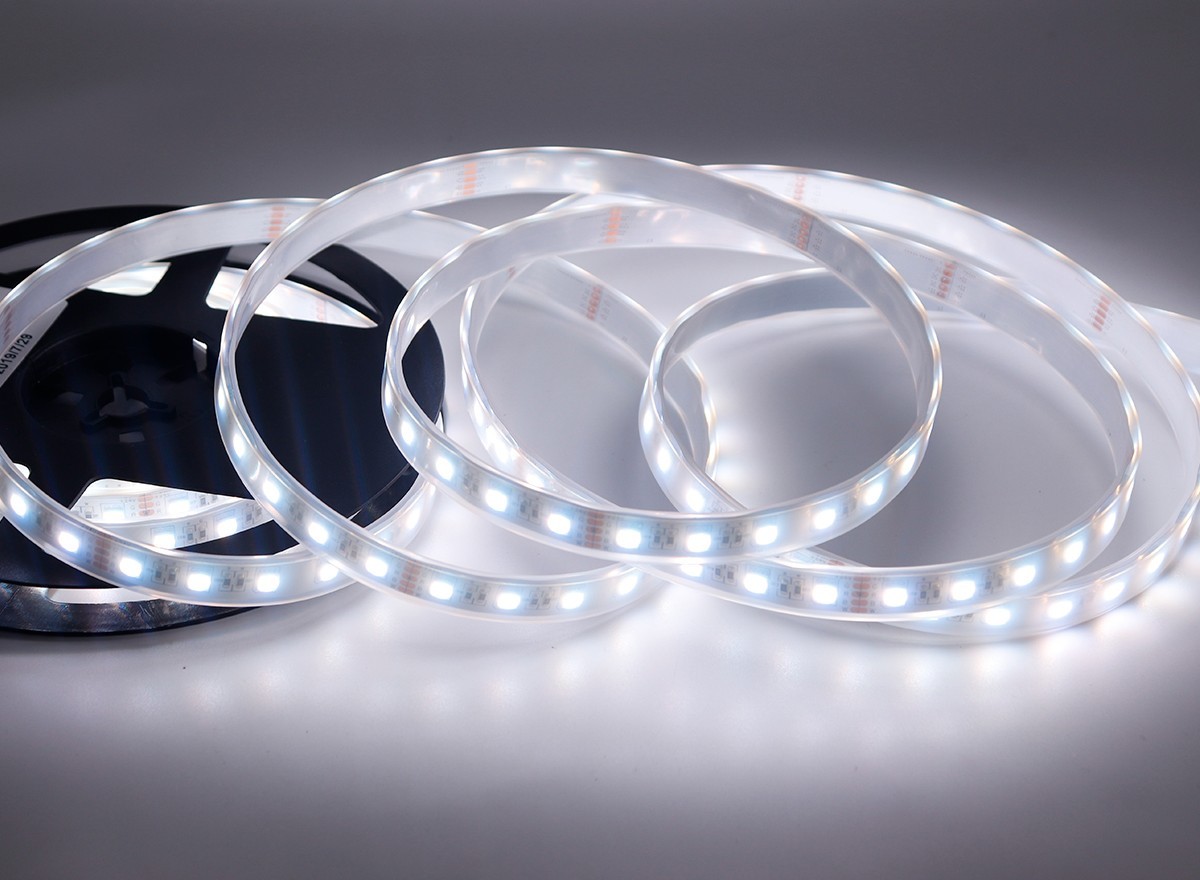

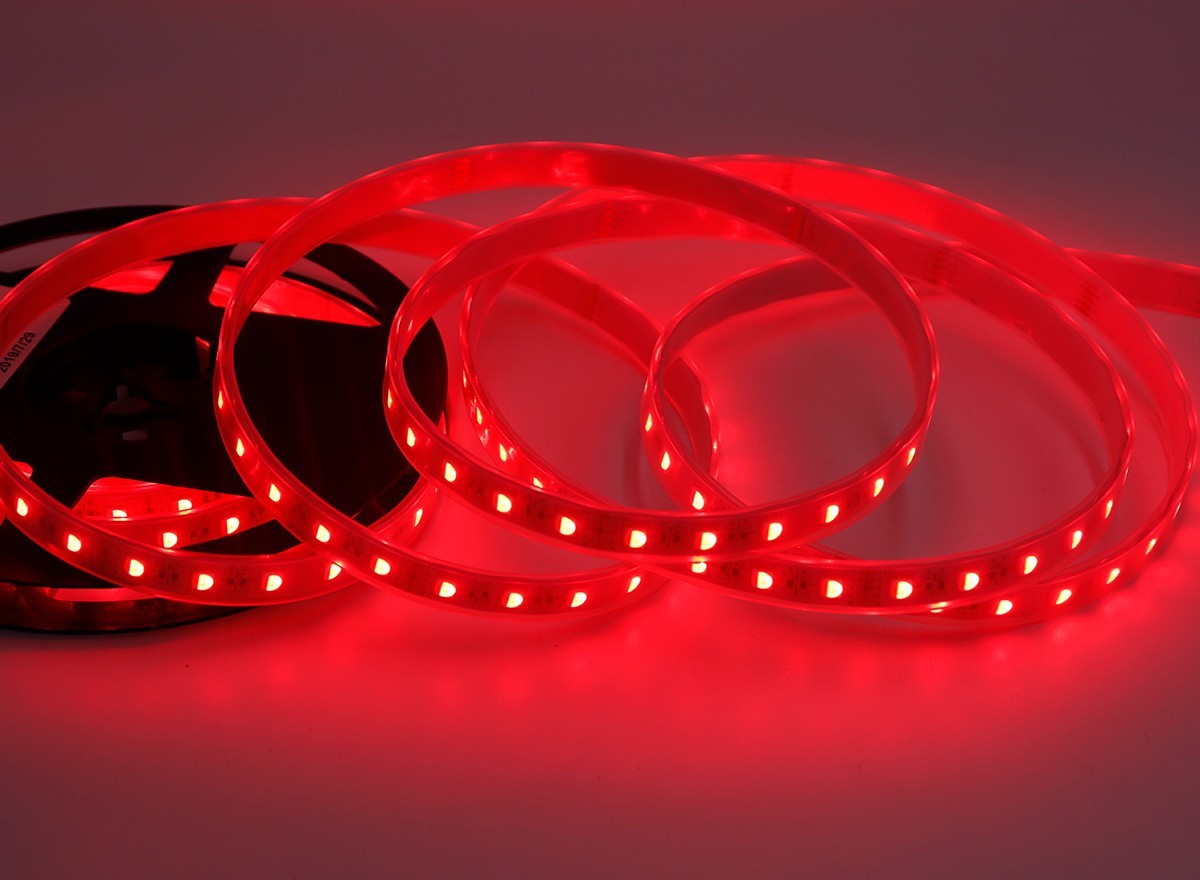

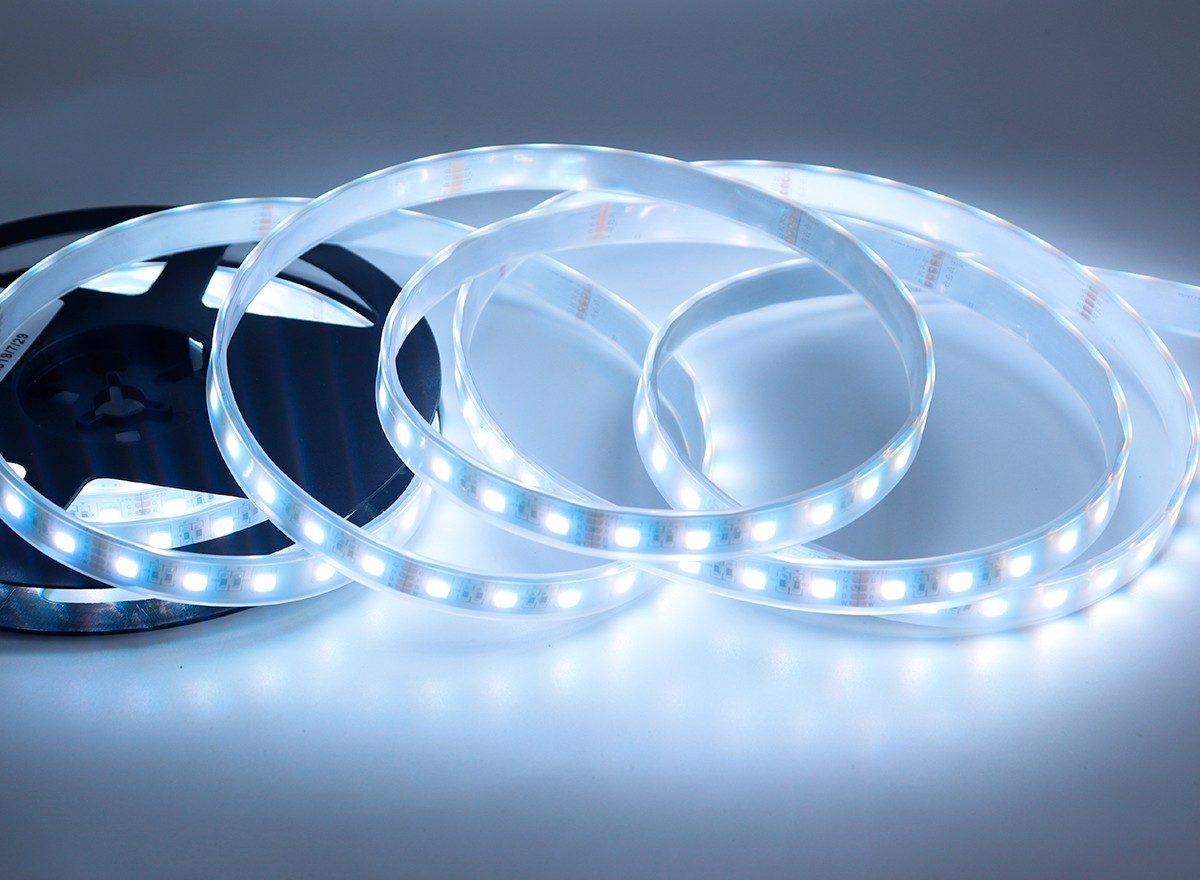

This 24V 5050 RGBW strip uses 60 four-in-one 5050 LEDs per meter on a 12mm PCB, giving vivid RGB colors plus a real white channel for clean warm/cool white. Unlike RGB-only tapes, it avoids muddy “RGB white” and supports millions of mixed colors with smooth PWM dimming. 24V operation keeps current low, heat down and voltage drop small—great for longer cabinet, cove, shelf and retail runs. Cut every 6 LEDs (100mm), 3M adhesive backing, common-anode 5-wire connection, compatible with IR/RF/WiFi/DMX RGBW controllers. Ideal for interiors, signage backlight, bars, hotels and smart-home ambiance where true white matters.
True RGBW 4-in-1: R+G+B+White in one 5050 package; pure white (3000K/4000K/6500K optional) instead of fake RGB white.
24V Stable Run: Lower current than 12V RGBW strips, less voltage drop, longer continuous runs with stable brightness.
60 LEDs/m / 12mm PCB: Balanced brightness and width; fits standard aluminum profiles and narrow furniture edges.
PWM Dimmable & Sync: Whole strip changes together; supports RF/IR/WiFi/0-10V/DMX RGBW controllers, 16M-color mixing.
Easy Install & Cut: Cut every 6 LEDs = 100mm, 3M tape, IP20/IP65/IP67 optional, common-anode 5-pin wiring.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGBW 4-in-1 |
|
LED Density |
60 LEDs/m |
|
Voltage |
DC 24V |
|
Power |
~14.4–19.2 W/m |
|
Cut Unit |
Every 6 LEDs / 100 mm |
|
PCB Width |
12 mm |
|
White Option |
WW 3000K / NW 4000K / CW 6500K |
|
Control |
Non-addressable PWM RGBW |
|
Channels |
R / G / B / W (common anode) |
|
CRI |
Ra ≥80 / Ra ≥90 optional |
|
Beam Angle |
120° |
|
Lumen |
~1000–1200 lm/m (depends on white temp) |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Adhesive |
3M tape |
|
Controller |
RGBW PWM / RF / WiFi / DMX decoder |
|
Working Temp. |
-20°C ~ +60°C |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
Synchronized color only; not pixel-addressable, no breakpoint resume |
