The independent white channel delivers pure white and richer color mixing than RGB-only bars. Parallel DMX architecture keeps the rest of the bar working if one pixel fails. Ideal for stage trusses, bar coves, facade lines, signage outlines and rental video bars where robust DMX control matters.

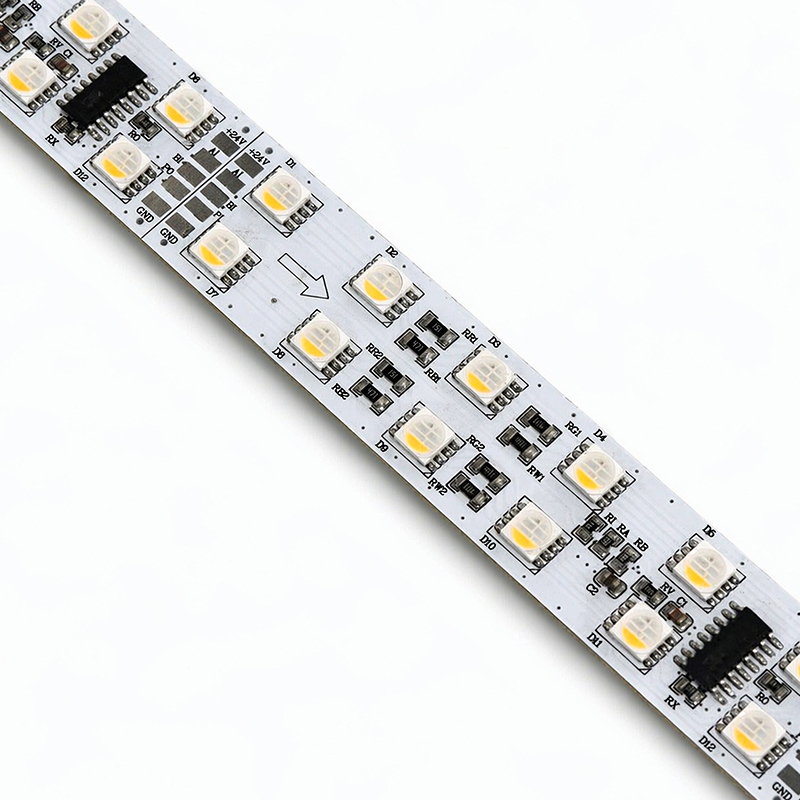

Native DMX512: UCS512C4 / TM512AC4 IC, DMX console ready, no SPI decoder needed.
True RGBW: Independent white chip for pure white, warm/cool white and better color rendering.

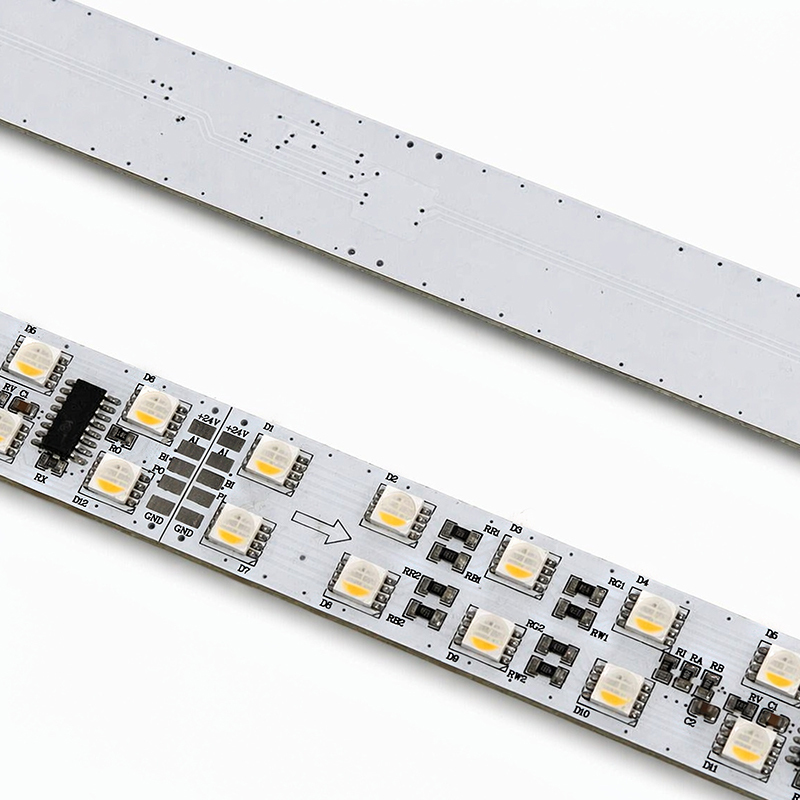

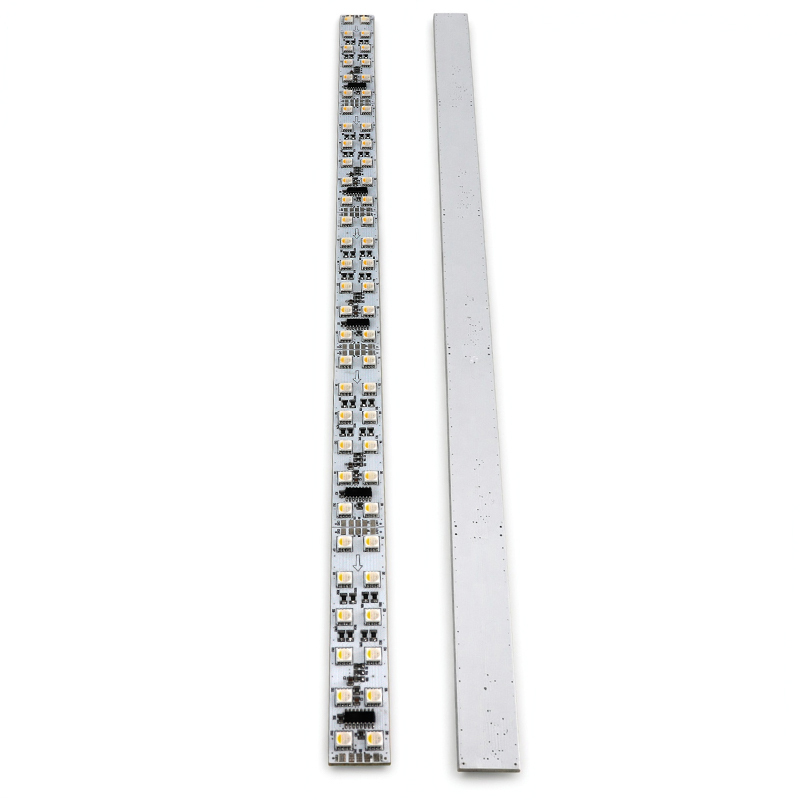

24V Hard Bar: 17.5mm rigid PCB/aluminum bar, lower current, stable for long engineering runs.

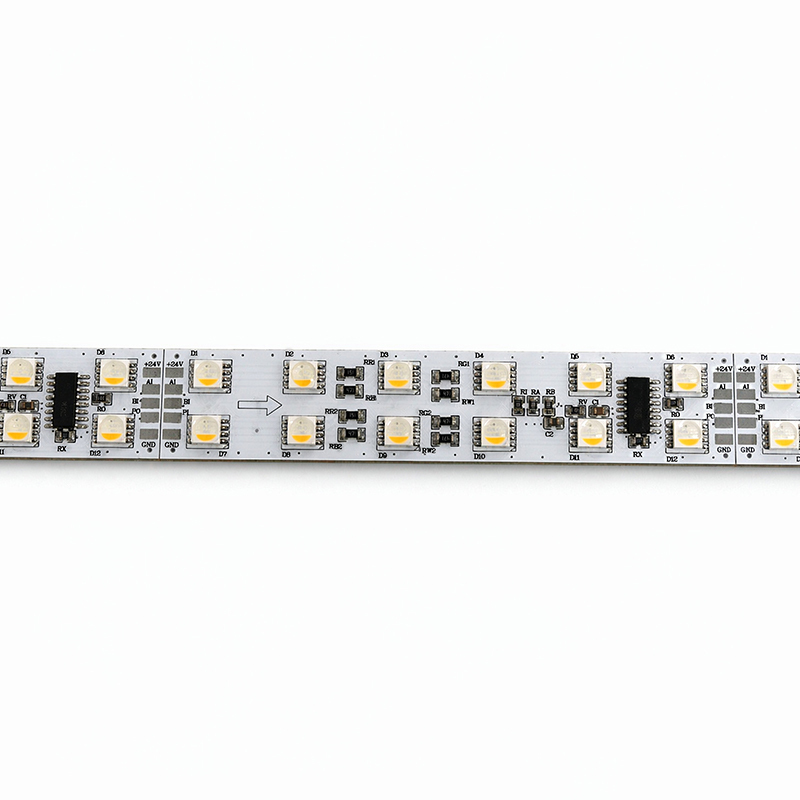

120 LED / 10 Segment: 12 RGBW LEDs per DMX pixel; smooth linear pixel effect.
Fail-Safe Parallel Signal: One pixel fault does not break the whole DMX chain.
Product: 24V DMX512 RGBW Rigid LED Bar
Board Width: 17.5mm
Board Type: Hard PCB / aluminum-backed bar（custom）
Voltage: DC24V
LED Type: SMD5050 RGBW（RGB + W）
LED Qty: 120 LEDs/m
Segment / Pixel: 10 DMX pixels/m（12 LEDs/pixel）
or 20 pixels/m（6 LEDs/pixel）— confirm IC mode
IC Type: UCS512C4 / TM512AC4 / HI512E（DMX512）
UCS2904 version = SPI, 60 LED/m = 10 px/m
Channels: 4 ch/pixel → 10 px = 40 DMX ch/m
Gray Scale: 256 / 65536（IC dependent）

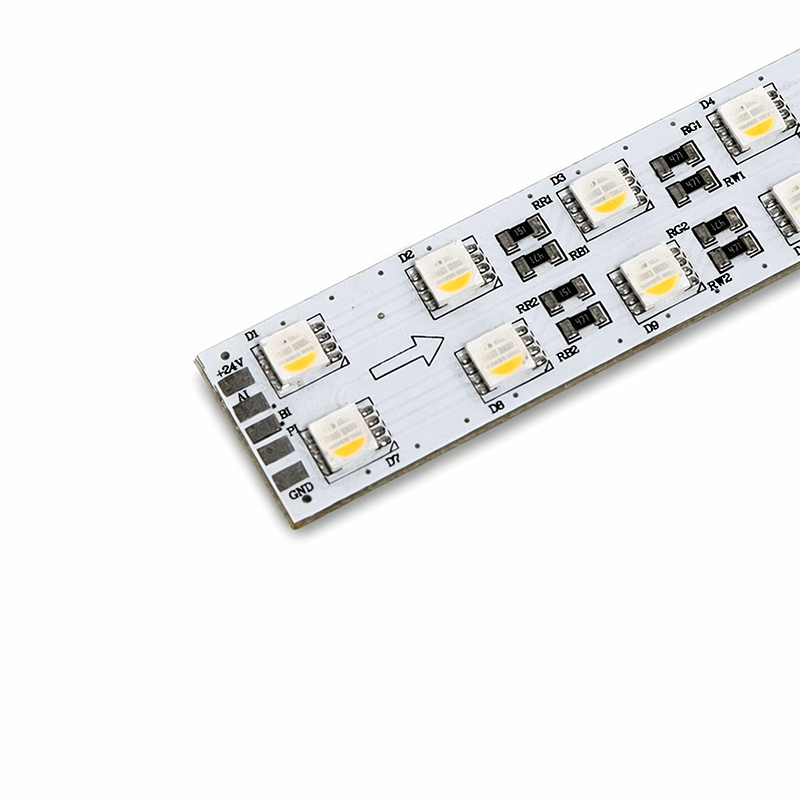

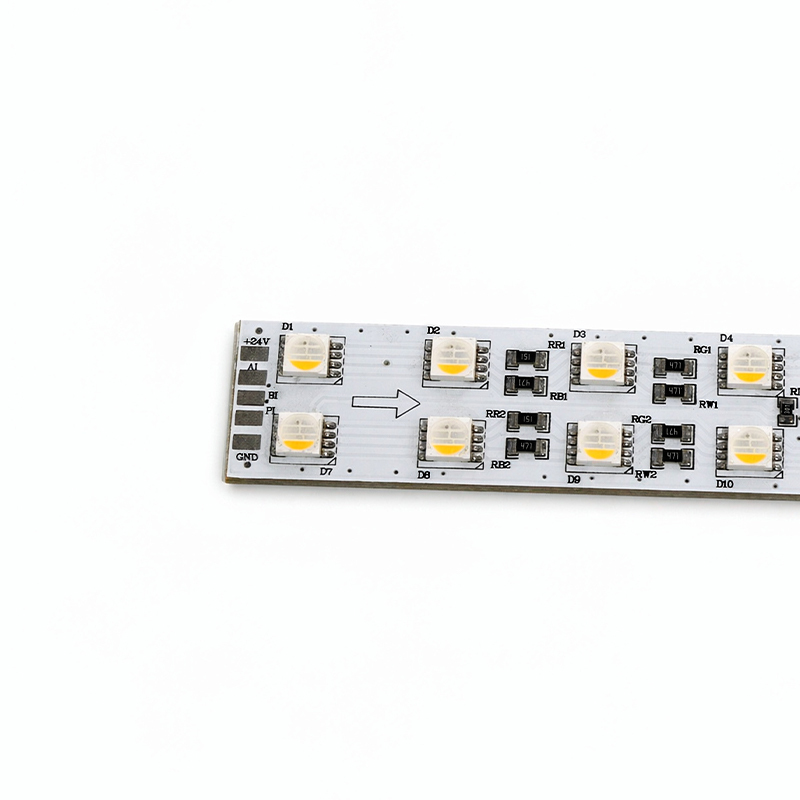

Signal: DMX512 differential A(+)/B(-)/GND + VCC
Address: DMX address writer / controller
Power: ≈ 28.8–38.4 W/m（120×5050 RGBW 24V）
Cut Unit: 100mm（10 px/m）or 50mm（20 px/m）
Beam Angle: 120°
White Option: 3000K / 4500K / 6500K
IP Rating: IP20 bare / IP65 / IP67 finished bar
Controller: DMX512 console, Art-Net, Madrix, BC-216
Temp.: -25℃ ~ +60℃
Life: 30,000–50,000h
Use: Stage bar, truss light, facade line, cove, signage, 3D video bar
