Trigger via WiFi APP, UDP, RS232, calendar, RF, sensors, or 8 dry contacts. Fits a standard 86mm box—ideal for malls, museums, bars, hotels, offices, and villas where design and control power must meet.

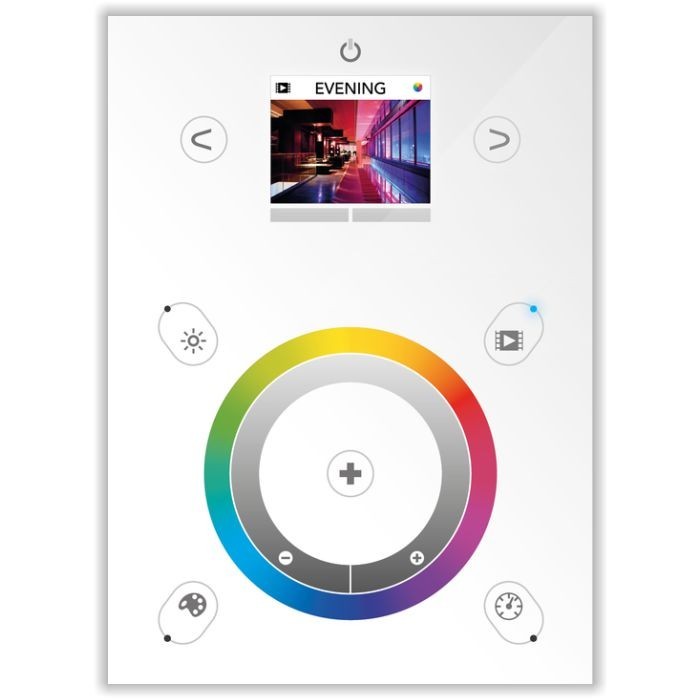

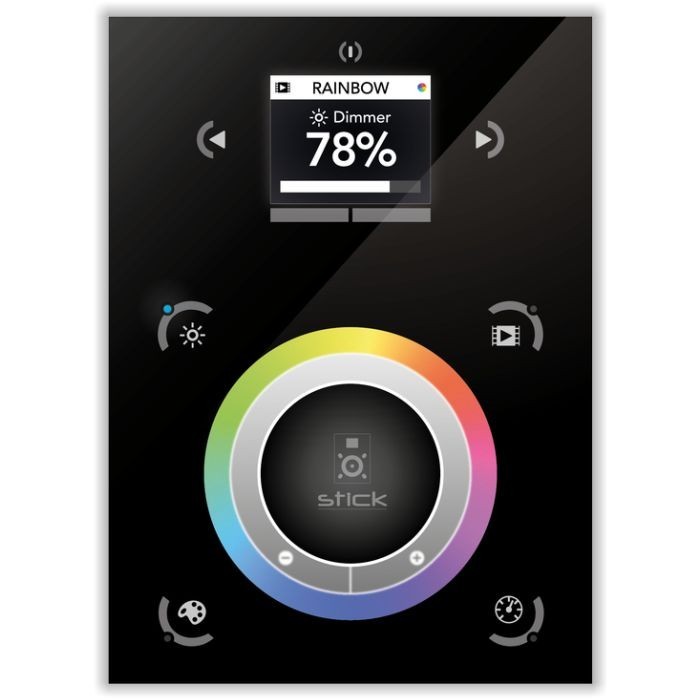

Flagship LCD Touch Panel: Color LCD visually confirms scene, zone, color, and speed—far beyond blind button panels; premium glass faceplate suits high-end interiors.
10 Zones / 500 Scenes: Double the zoning of KE2 and 2.5× the scene capacity—built for multi-floor retail, museum galleries, hotel public areas, and mixed-use buildings.
Full Pro-Control Stack: UDP, RS232, WiFi APP, time/calendar, RF remote, sensors, and 8 dry contacts integrate with BMS, AV matrices, and luxury smart-home systems.
2×512 Standalone DMX: Offline control of 1024 channels after one-click download; master-slave cascade expands to large architectural networks with no PC on site.
Universal Fixture Engine: Drives single-color, CCT, RGB, RGBW, RGBWY LEDs and all DMX fixtures—wash, laser, gobo, fountain, DMX music players—from one wall-mounted controller.
STICK-DE3 Network / USB DMX Touch Panel — Flagship
|
Category |
Specification |
|---|---|
|
Model |
STICK-DE3 |
|
Type |
Glass Touch Panel with Color LCD — Network / USB DMX Controller |
|
DMX Output |
2 × 512 channels |
|
Zones / Scenes |
10 Independent Zones, 500 Scenes |
|
Display |
Color LCD (scene preview, zone, brightness, color, speed) |
|
Panel UI |
Touch keys + faders: scene, brightness, color, speed; on/off; zone select |
|
Trigger Inputs |
UDP, RS232, WiFi APP, Schedule/Calendar, RF Remote, Sensors, 8 Dry Contacts |
|
Programming |

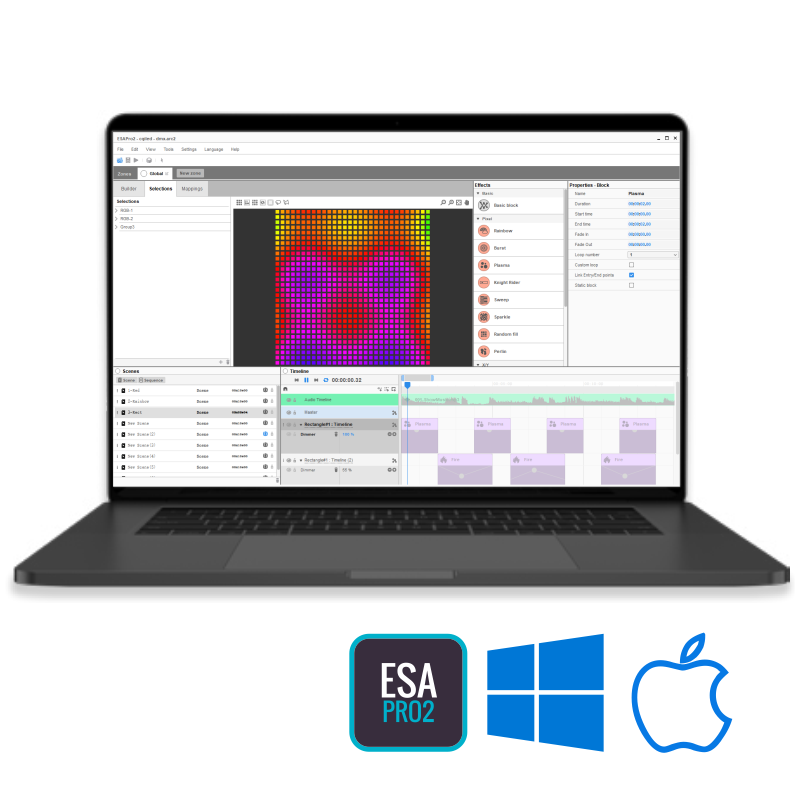

ESA Pro 2 (Win/Mac), Real-time Preview |
|
Storage |
TF Card |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Remote Control |

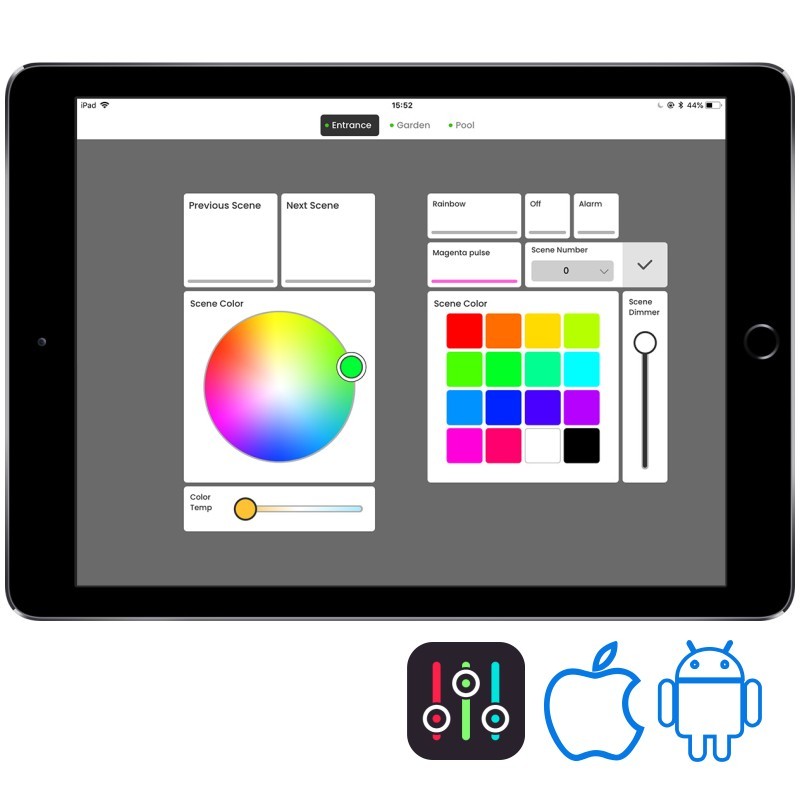

iPhone / iPad / Android APP |
|
Topology |
One-Master-Multiple-Slave, Multi-Unit Cascade |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain, Music Player |
|
Power Supply |
5–6V DC (USB / Terminal / RJ45) |
|
Mounting |
Standard 86mm Wall Back Box |
|
Target Use |
Mall, Museum, Villa, Bar, Office Tower, Shopping Center, Hotel |
