No complex soldering required—just connect signals via terminal blocks for fast, stable and reliable deployment in live sound, theater, broadcast and control system setups.

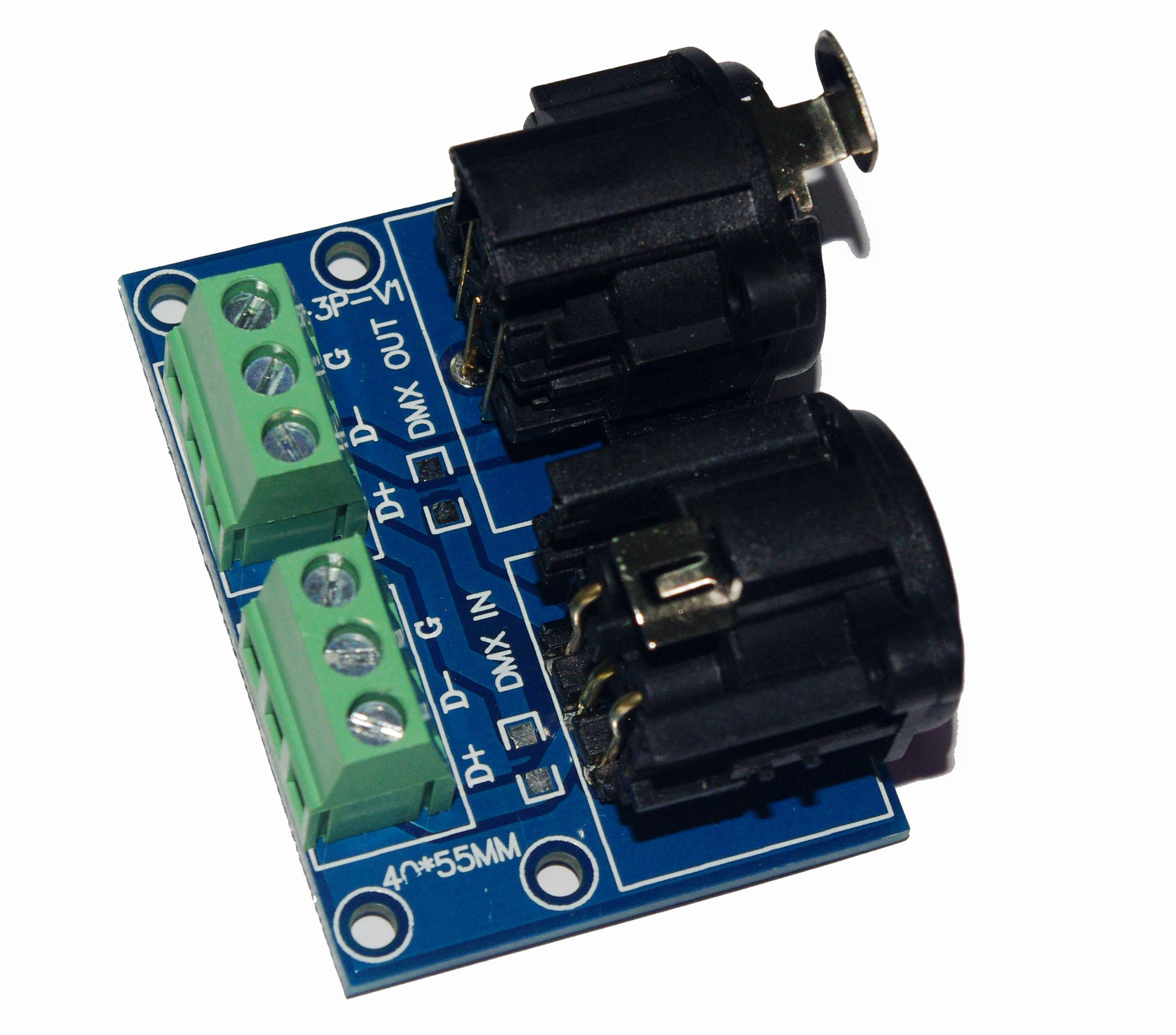

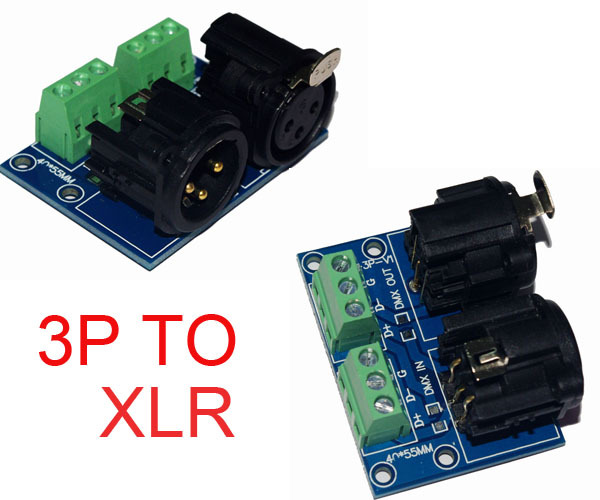

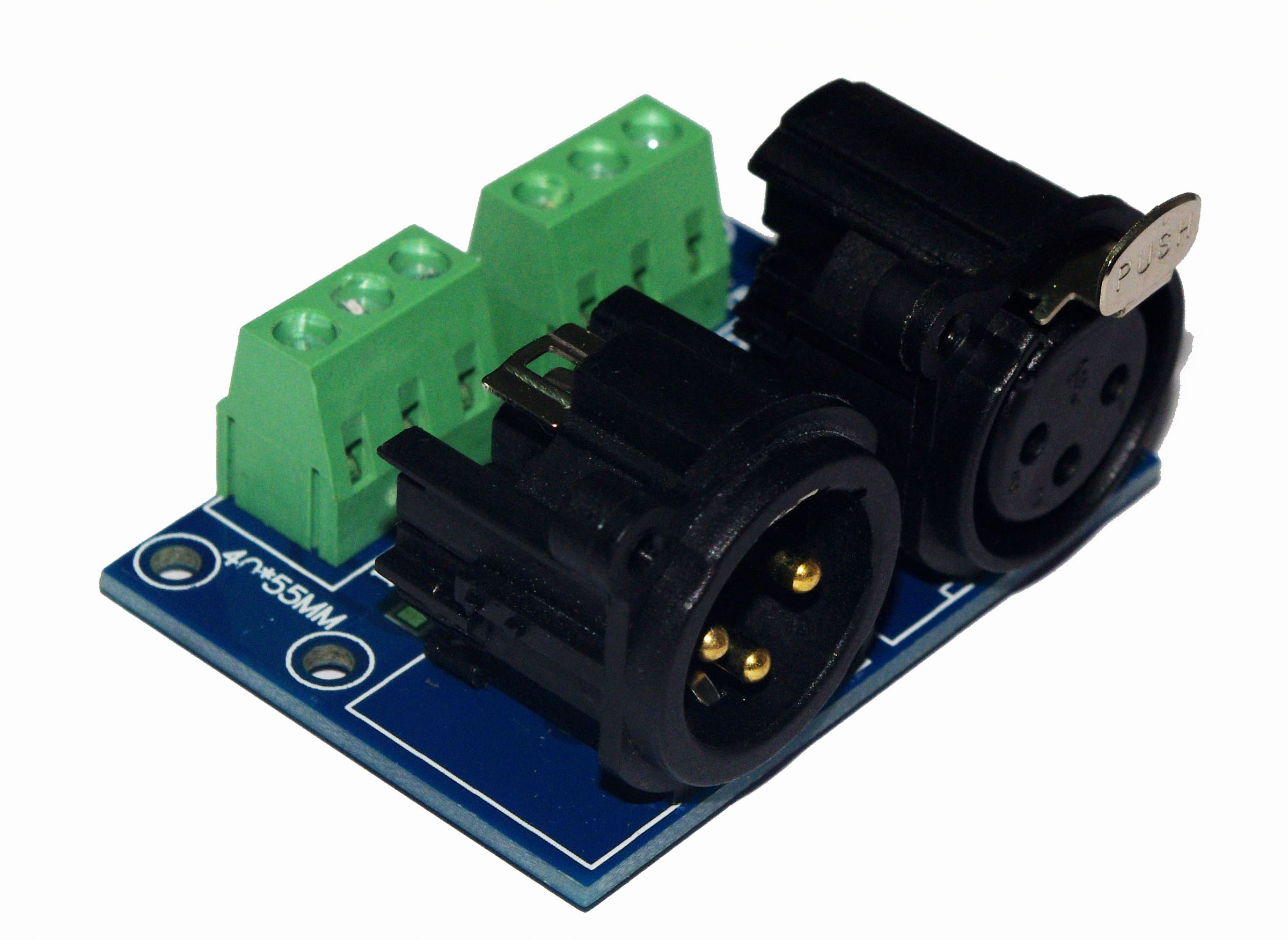

XLR 3-Pin Breakout Design: Converts XLR3 IN/OUT to screw terminals for quick, tool-friendly wiring.
Standard Pin Mapping: Pin1 GND, Pin2 D-, Pin3 D+ for DMX512/balanced audio/RS485 use.
IN/OUT Pass-Through: Supports daisy-chain or signal distribution in lighting/audio systems.
Compact & Lightweight: 40×55×35mm, 40g, easy to mount in panels or equipment cases.
Wide Application: Ideal for stage lighting, microphones, mixers, DMX controllers, broadcast and industrial control.
|
Parameter |
Specification |
|---|---|
|
Product Model |
XLR3-3P |
|
Interface |
XLR 3-Pin (IN / OUT) |
|
Pin Definition |
Pin1 = GND, Pin2 = D-, Pin3 = D+ |
|
Terminal Type |
Screw Terminal Block |
|
Application Signal |
DMX512, Balanced Audio, AES/EBU, RS485 (diff. signal) |
|
Dimension |
40 × 55 × 35 mm |
|
Weight |
40 g |
|
Mounting |

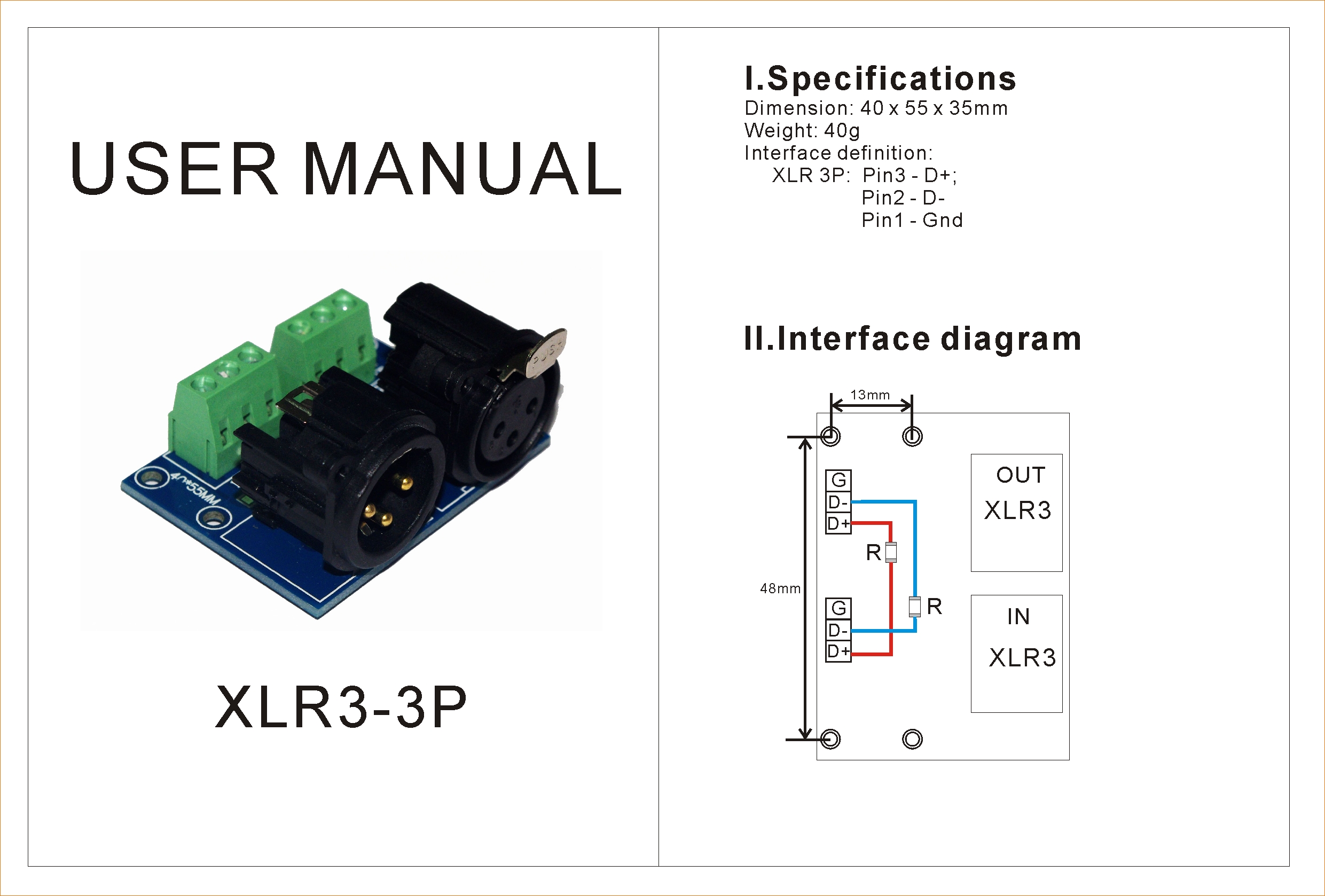

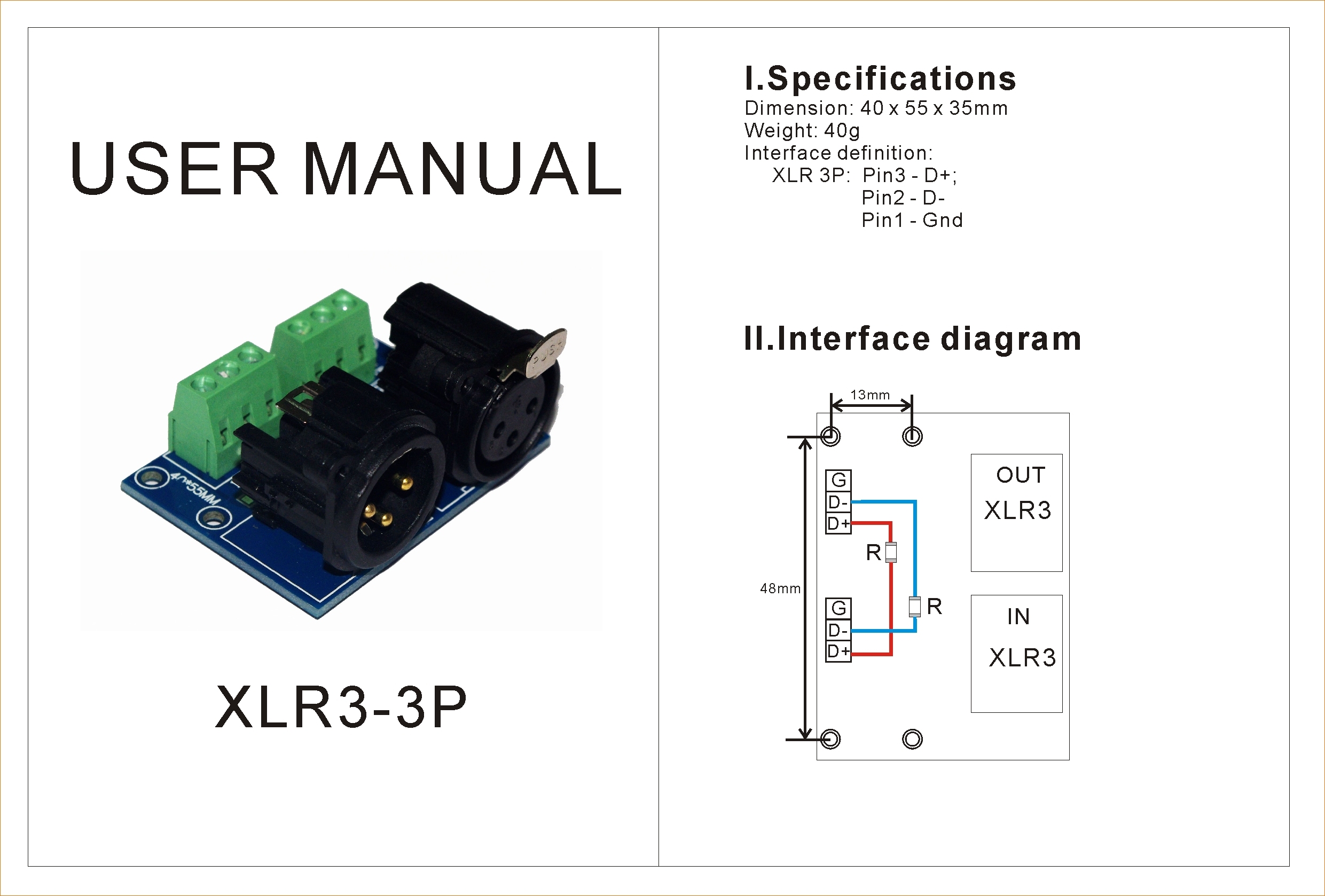

PCB/panel mounting holes (see diagram) |
|
Wiring Method |
Screw-fix / no-solder field wiring |
|
Operating Use |
Stage, AV, broadcast, lighting control, audio install |
