Playback files are stored on an SD card (FAT/FAT32, up to 32GB) with 16 built-in test effects for quick debugging. Multiple units can be cascaded up to 150 meters using optically isolated sync, ensuring stable signal transmission even in large-scale installations. Whether for architectural façades, stage lighting, or creative displays, the S-8000L offers reliable, flexible, and high-quality control.
High-Precision Grayscale Control: Features 32 to 65,536 levels of grayscale with software Gamma correction, ensuring ultra-smooth color transitions without flicker.
Dual-Signal Output (TTL & DMX): Equipped with 8 output ports supporting both TTL (SPI) and RS485 (DMX512) signals, compatible with a wide range of LED chips (1903, 2811, SK6812, etc.).
Versatile Shape Support: Freely map and control various point, line, surface, and irregular-shaped (异形) lighting fixtures for creative designs.
Stable Multi-Unit Cascade: Optically isolated cascading allows up to 150 meters distance between units, using pure copper power cables to ensure strong anti-interference and synchronization.
Flexible Offline Playback: Supports SD cards up to 32GB (FAT/FAT32) with 16 built-in test effects, enabling easy offline operation and quick on-site debugging without a computer.
|
Model |

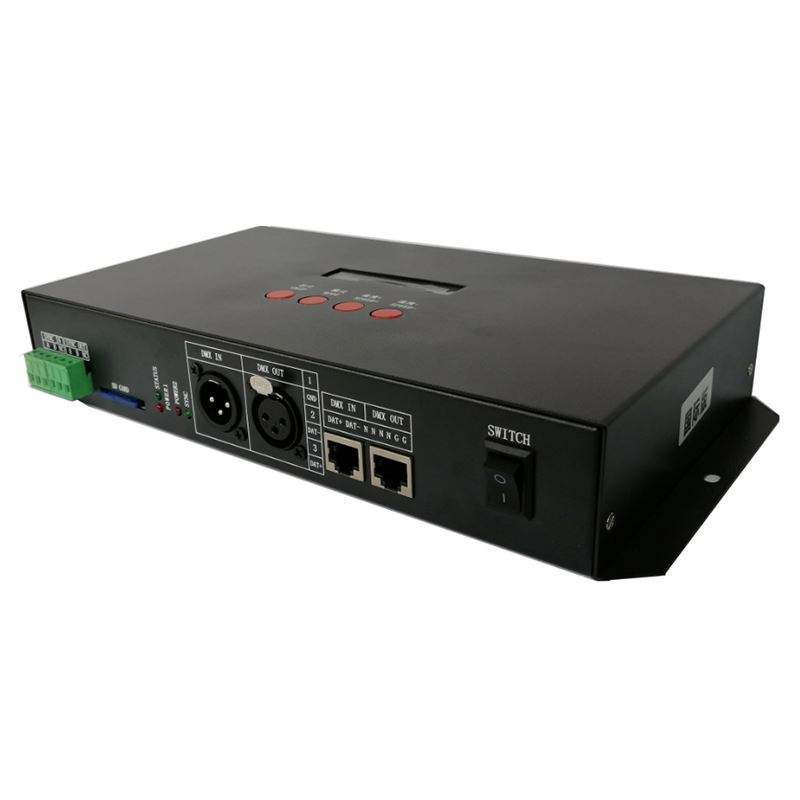

S-8000L LED Pixel Controller |
|---|---|
|
Output Ports |
8 Ports (TTL / DMX512 Switchable) |
|
Max Load Capacity |
TTL: 1024 pixels/port (Total 8192) |
|
Grayscale |
32-bit to 65,536-bit |
|
Signal Type |
Enhanced TTL (SPI) & RS485 Differential (DMX512) |
|
Supported IC |
UCS1903, WS2811, WS2801, SK6812, LPD6803, P9813, DMX512, etc. |
|
Color Channels |
Supports 4-channel (RGBW) or split into single-channel pixels |
|
Storage |
SD Card (128MB - 32GB, FAT/FAT32 format) |
|
File Capacity |
Up to 16 effect files (Standard) / 32 programs (Firmware dependent) |
|
Cascade Function |
Supported, Optical Isolation, Max 150m distance |
|
Built-in Effects |
16 Test Effects (Default IC: UCS1903) |
|
Power Requirement |
DC 5V-24V (Check label) |
|
Application |
Point/Line/Face/Irregular LED lights, Architectural & Stage lighting |
