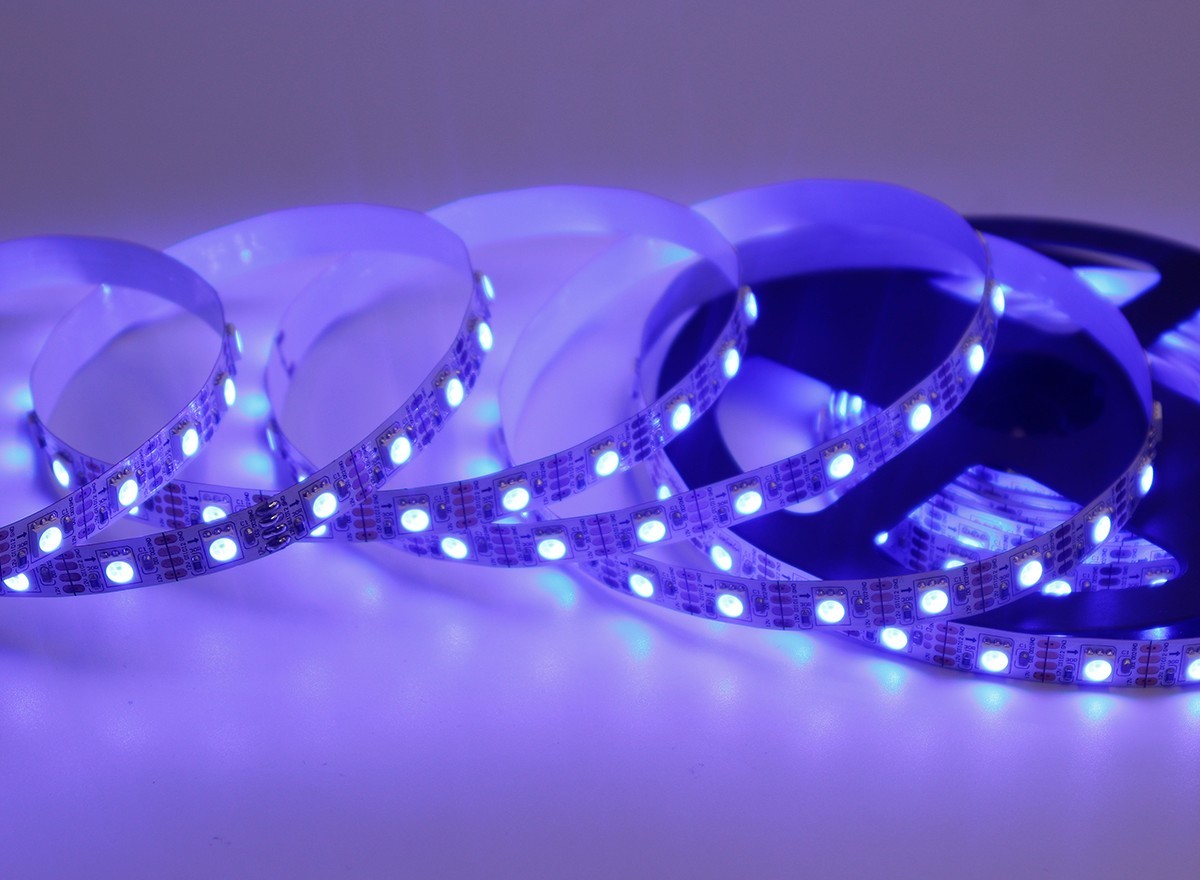

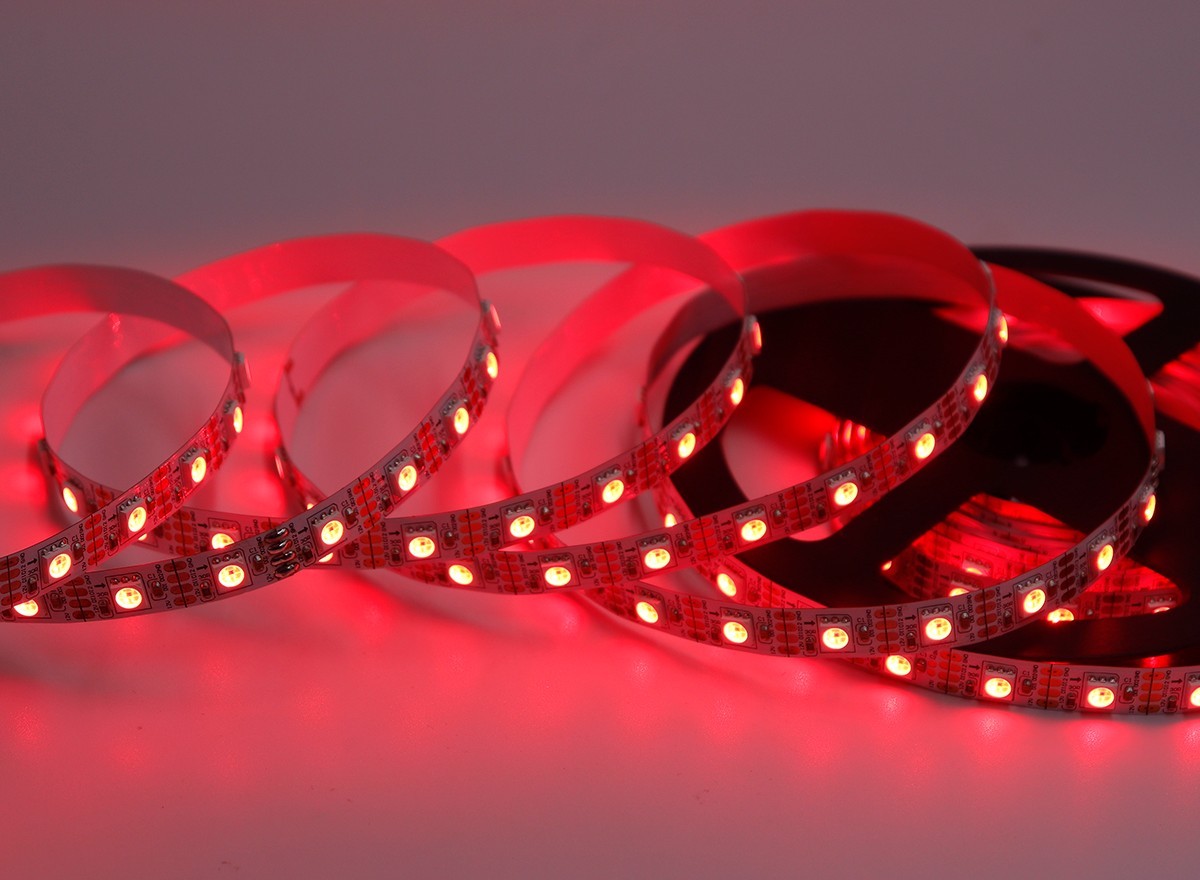

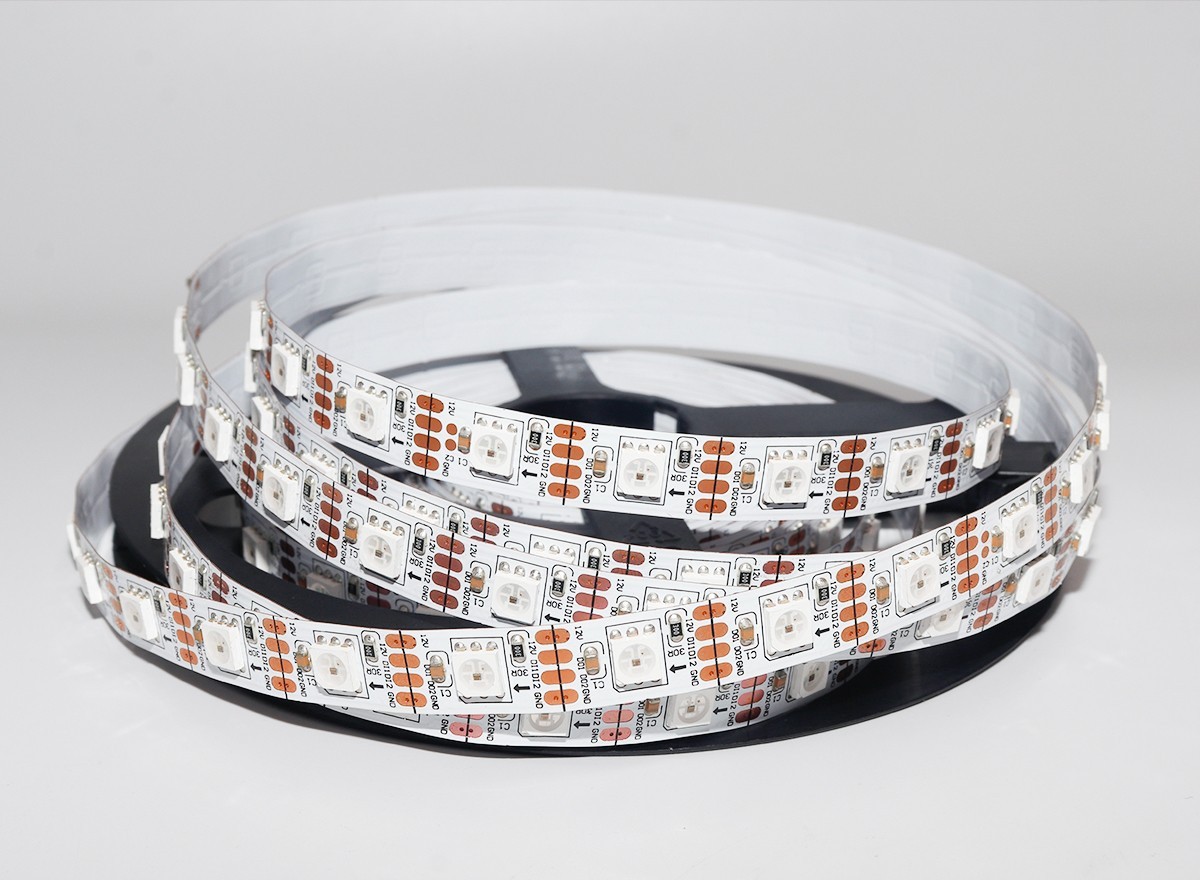

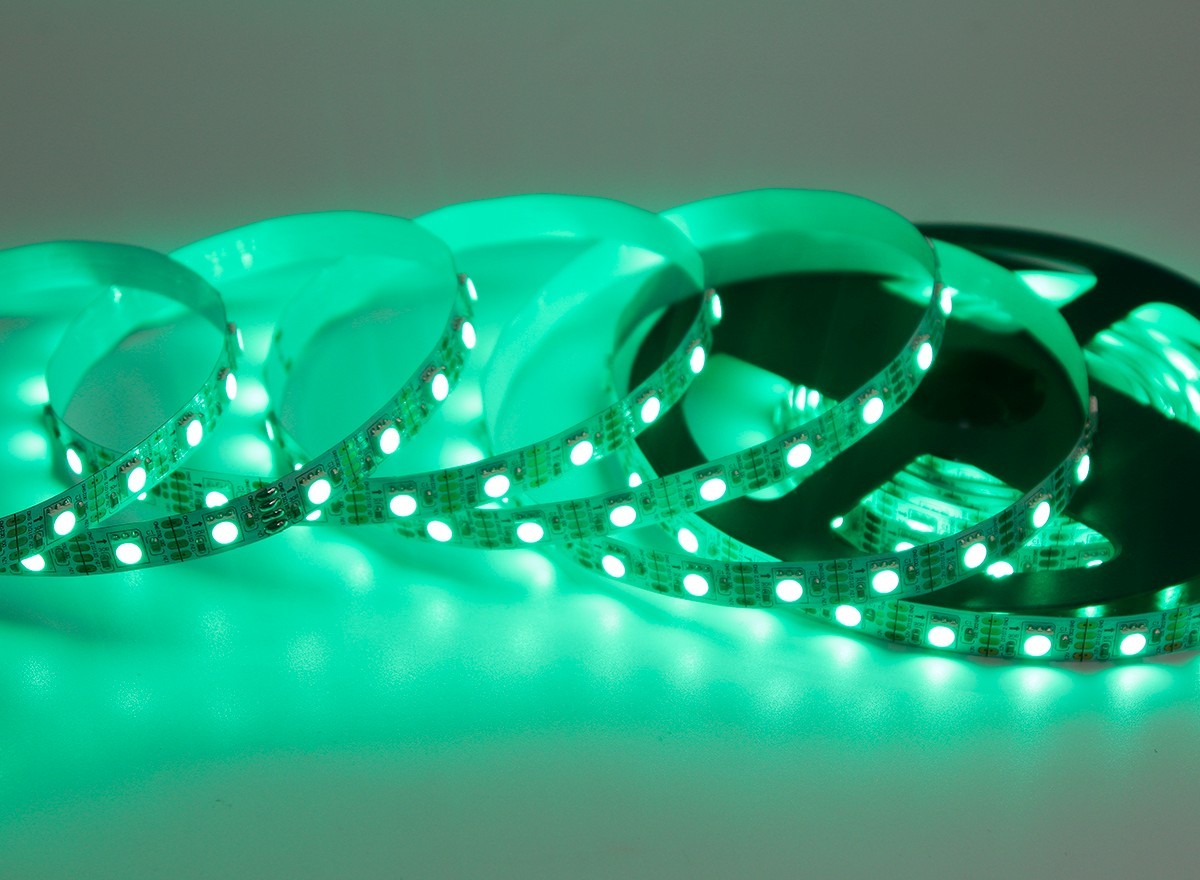

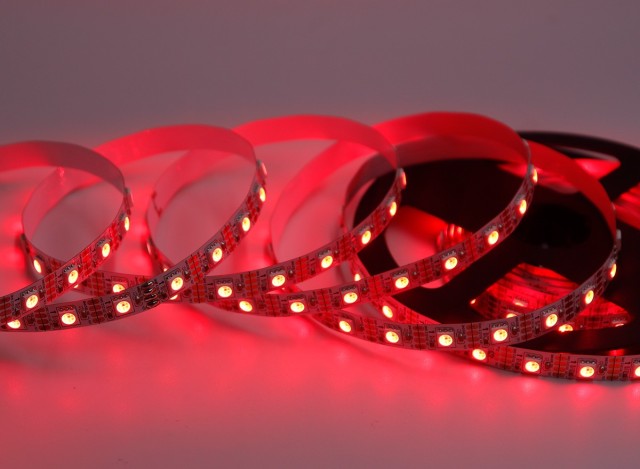

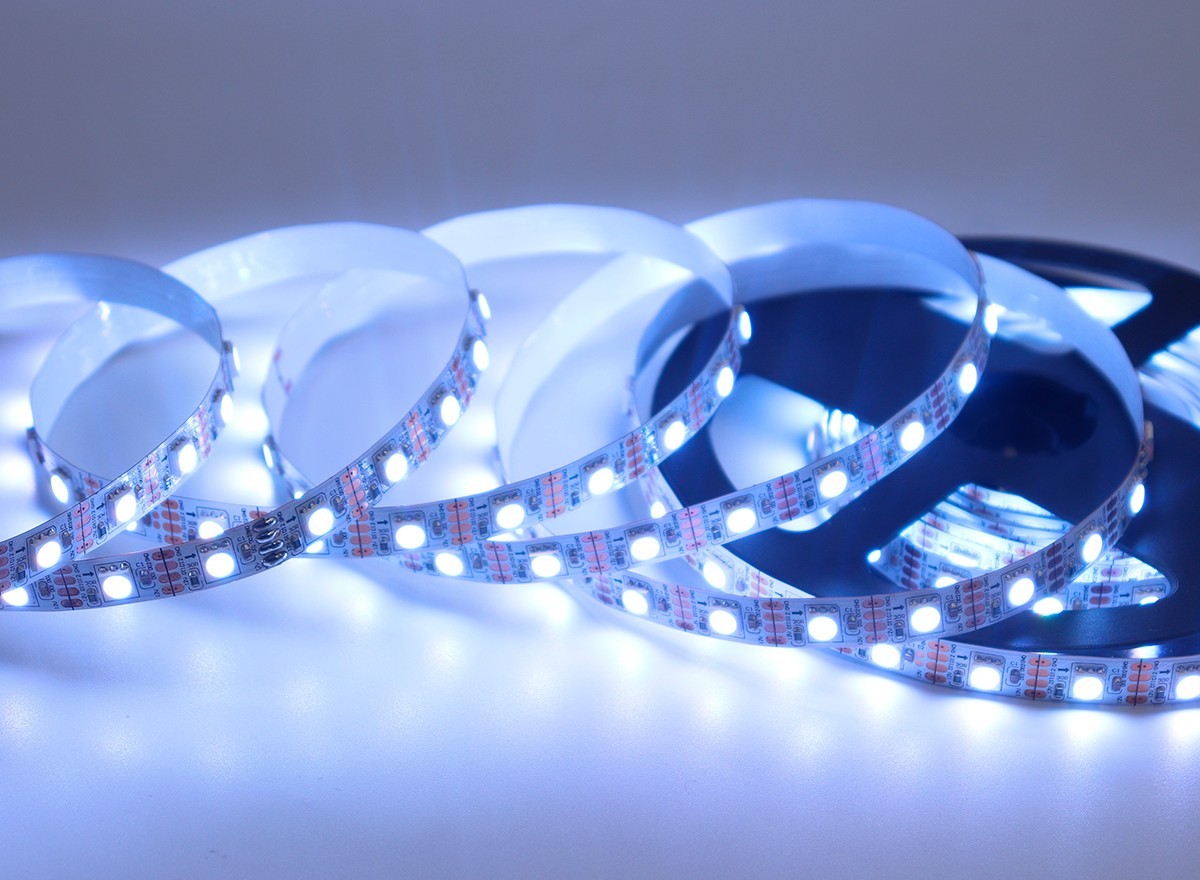

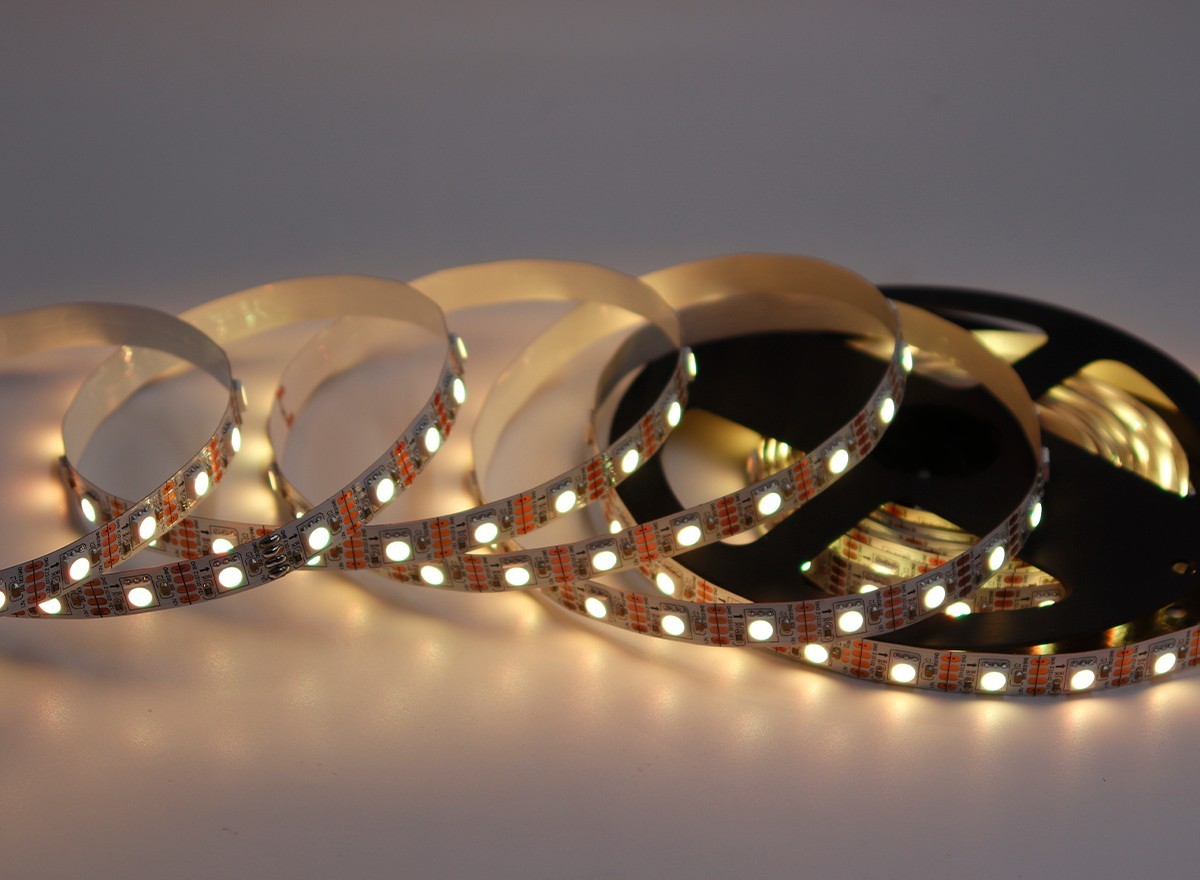

This DC12V WS2815 5050 RGB strip gives 60 addressable pixels per meter with built-in IC in every 5050 LED. Unlike 5V WS2812B, it runs on 12V for far less voltage drop and longer stable runs, and adds a backup data line so if one pixel dies, the rest keep animating. Each LED shows any of 16.7M colors with 256-level grayscale and ~2kHz PWM refresh. Cut every 16.6mm, 10mm flexible PCB, IP20/IP65/IP67 options. Drive it from Arduino, ESP32/WLED, K-1000C, T-1000S or Madrix. Ideal for building outlines, bars, KTV, retail signs, stages and permanent installs where reliability matters more than cheapest 5V strip.
Individually Addressable: 1 WS2815 IC = 1 5050 RGB LED, 60 pixels/m, 24-bit color, chase/gradient/text/rain effects.
Breakpoint Resume: Dual data lines DI + BI; one dead pixel won’t kill the run (two consecutive dead pixels will).
12V Long-Run Friendly: Much less voltage drop than 5V SK6812/WS2812B; 5m roll usually fine from one end-feed.
WS2812B-Class Protocol: Single-wire NZR timing, works with FastLED/WLED/Madrix/T-series; just pick “WS2815 / WS2812B 12V” in firmware.
Installer Grade: 10mm PCB, cut every 16.67mm, 3M adhesive, IP20–IP67, 256 gray / ~2kHz refresh, 120° beam.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGB |
|
IC |
WS2815 (built-in) |
|
Density |
60 LEDs/m = 60 pixels/m |
|
Voltage |
DC 12V |
|
Power |
~14.4 W/m max (common list 13.2–18 W/m by batch) |
|
Cut Unit |
Every 1 LED / 16.67 mm |
|
PCB Width |
10 mm (white/black) |
|
Color |
Full-color RGB, 256 gray/channel, 16.7M colors |
|
Signal |
Single NZR data + backup data (DI/BI), 800 kbps |
|
Refresh |
~2 kHz PWM |
|
Wiring |
12V / GND / DIN / BIN (4-pin) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Controller |
Arduino, ESP32 WLED, K-1000C, T-1000S, Madrix, SP series |
|
Run Length |
≤5m one-end feed typical; longer = mid power injection |
|
Lifespan |
50,000 hrs |
|
Note |
Single-pixel addressable + breakpoint resume; not RGBW, no CLK line |
