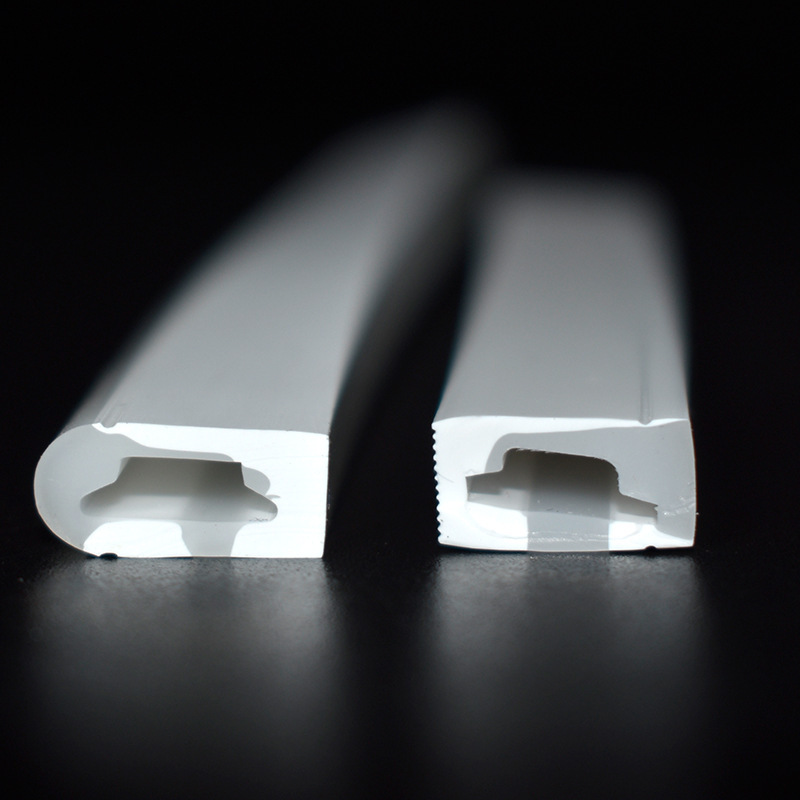

Made from food-grade, platinum-cured silicone, it offers excellent UV resistance, anti-yellowing properties, and IP67 waterproofing when properly sealed. Compatible with 8mm and 10mm PCB LED strips (COB, SMD2835, 5050, RGB), it transforms harsh LED dots into a smooth, dot-free neon glow. Flexible and cuttable, it bends to follow curves and corners. Supplied in 1m to 50m rolls with end caps and clips, the 0612/0613 is the ideal solution for discreet, professional-grade linear lighting in residential and commercial interiors.
Side-Emitting Design: Projects light at a 90° angle from the strip, ideal for wall washing, stair edges, and recessed groove lighting.
Ultra-Slim Profile: At only 6mm tall (0612/0613), it fits into narrow gaps and shallow recesses where standard profiles cannot.
Dual-Color Silicone: Combines a clear light-guide core with a frosted/milky diffusion layer for uniform, dot-free illumination.
Flexible & Recessable: Soft silicone bends for curves; installs via recessed groove, surface clip, or adhesive backing.
Durable & Safe: Food-grade silicone, IP67 waterproof, UV resistant, anti-yellowing, -30°C to 200°C operating range.
|
Parameter |
Specification |
|---|---|
|
Product Model |
0612 / 0613 |
|
Shape |
Side Emitting / Edge Lit |
|
Dimensions |
6mm (H) × 12mm / 13mm (W) |
|
Inner Width |
10.5mm – 11.5mm (fits 8mm / 10mm PCB) |
|
Max LED Strip Width |
10mm |
|
Material |
Food-grade / Platinum-cured Silicone |
|
Surface Option |
Clear + Milky / Frosted / Black |
|
Light Direction |
Side / 90° Emitting |
|
Beam Angle |
120° |
|
Waterproof Rating |
IP67 (with sealed end caps) |
|
Temperature Range |
-30°C ~ 200°C |
|
Min Bending Radius |
≥30mm (0612) / ≥40mm (0613) |
|
Length Options |
1m / 2m / 5m / 50m roll |
|
Accessories |
End caps, mounting clips, pull cord |
|
Compatible Strips |
COB, SMD2835/5050, RGB, RGBW, RGBCCT, Addressable |
|
Applications |
Stair nosing, shelf edge, display case, cove, recessed groove, signage |
|
Certification |
RoHS / REACH / CE (factory-dependent) |
|
OEM/ODM |
Color, hardness, size, logo customizable |
