Lower pixel count means fewer DMX channels per meter—great for long facades, bridges, fences, and signage borders driven by DINA / SLESA / Art-Net / Madrix. Cut every 166.7mm on 24V and install with confidence.
6 Pixels/m, Coarse & Readable: 6 LEDs/segment, 166.7mm cut—big visible blocks for outlines, bridges, fence lines, and long-run architecture where 10px/m is overkill.
UCS512C3 DMX512: Differential A/B parallel bus, 256-step grayscale, 200–750kbps auto-decode, 4096-channel addressing, E2PROM online addressing, breakpoint-tolerant.
24V Low-Current Architecture: Less voltage drop than 12V pixel tape; longer runs between power injection—classic “building outline DMX strip” topology.
Low Channel Load: 3 ch/pixel → only 18 DMX ch/m; one universe drives ~28m of strip, cheap on console channels.
Pro Desk Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix / K-1000C after DMX addressing; IP20/IP65/IP67/IP68 options.

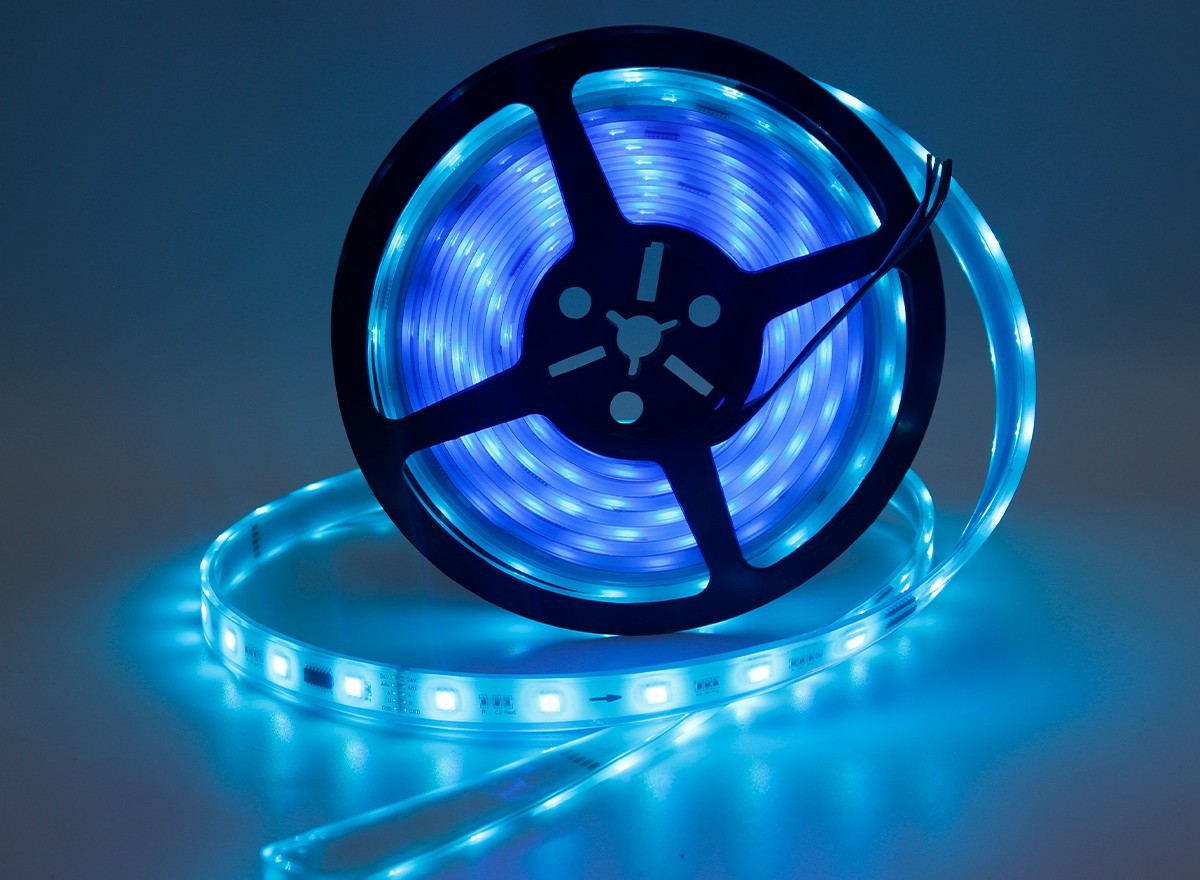

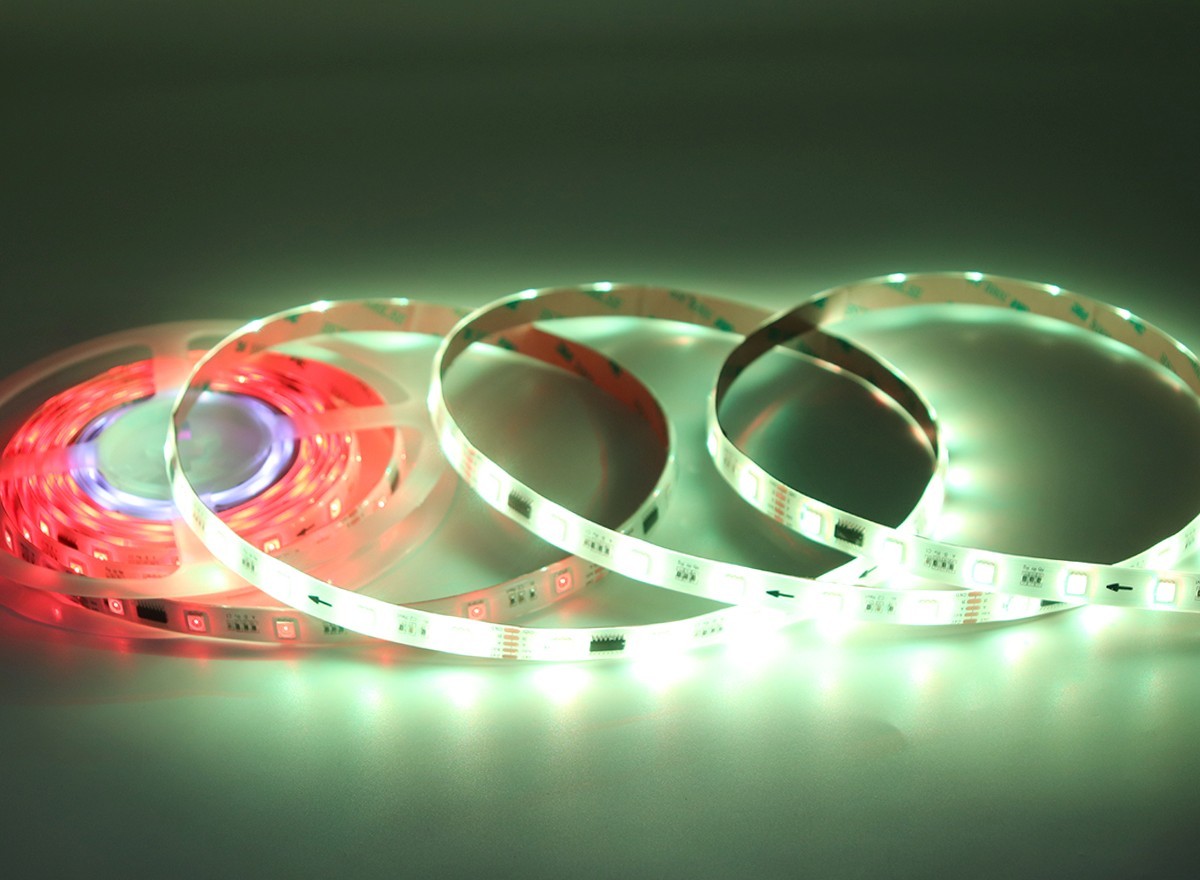

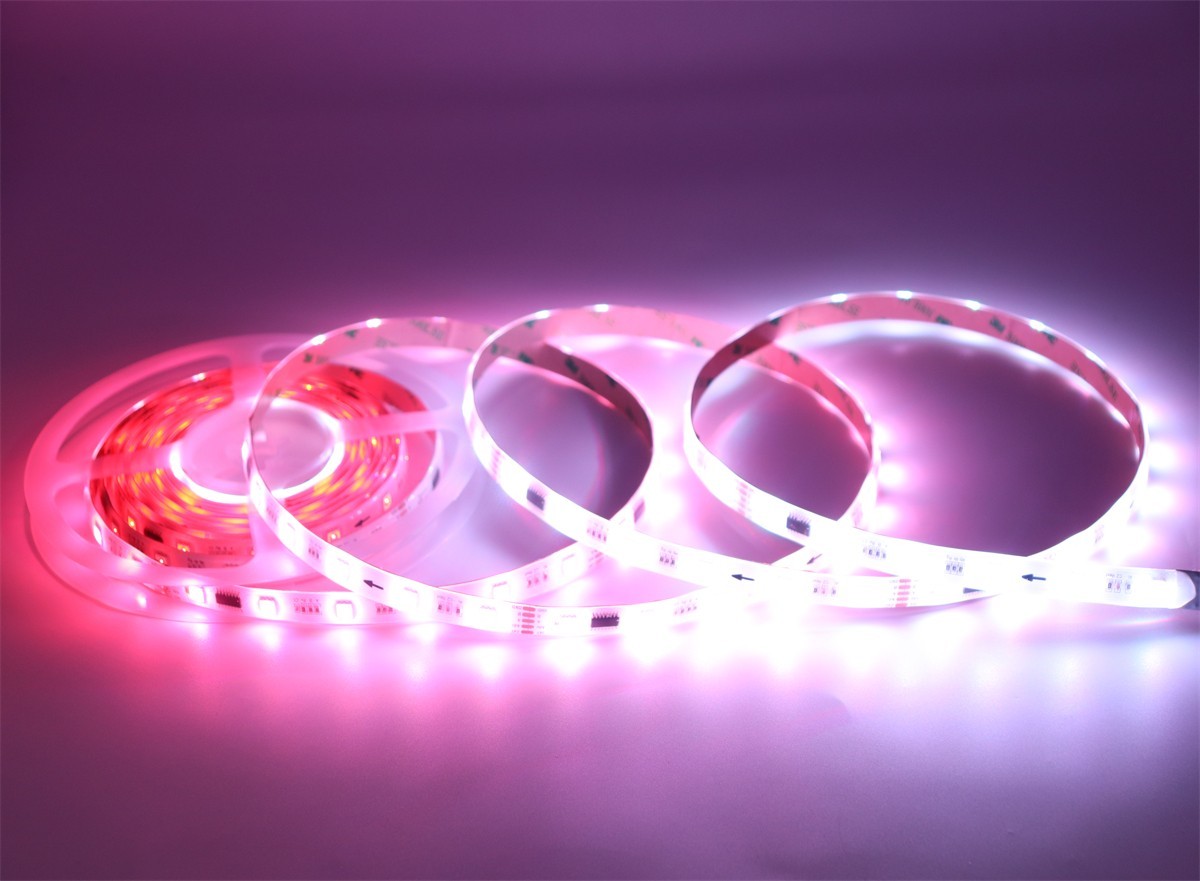

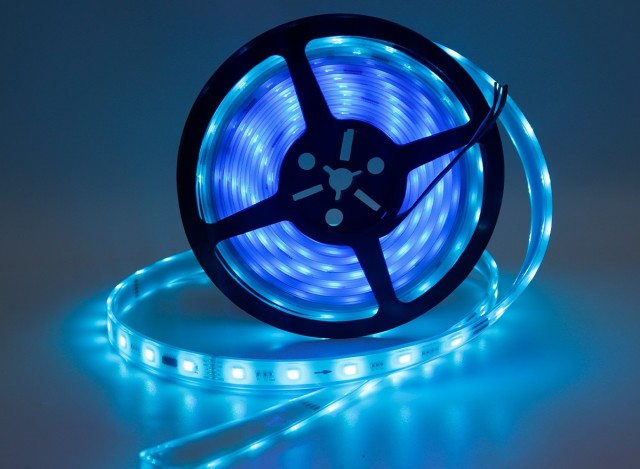

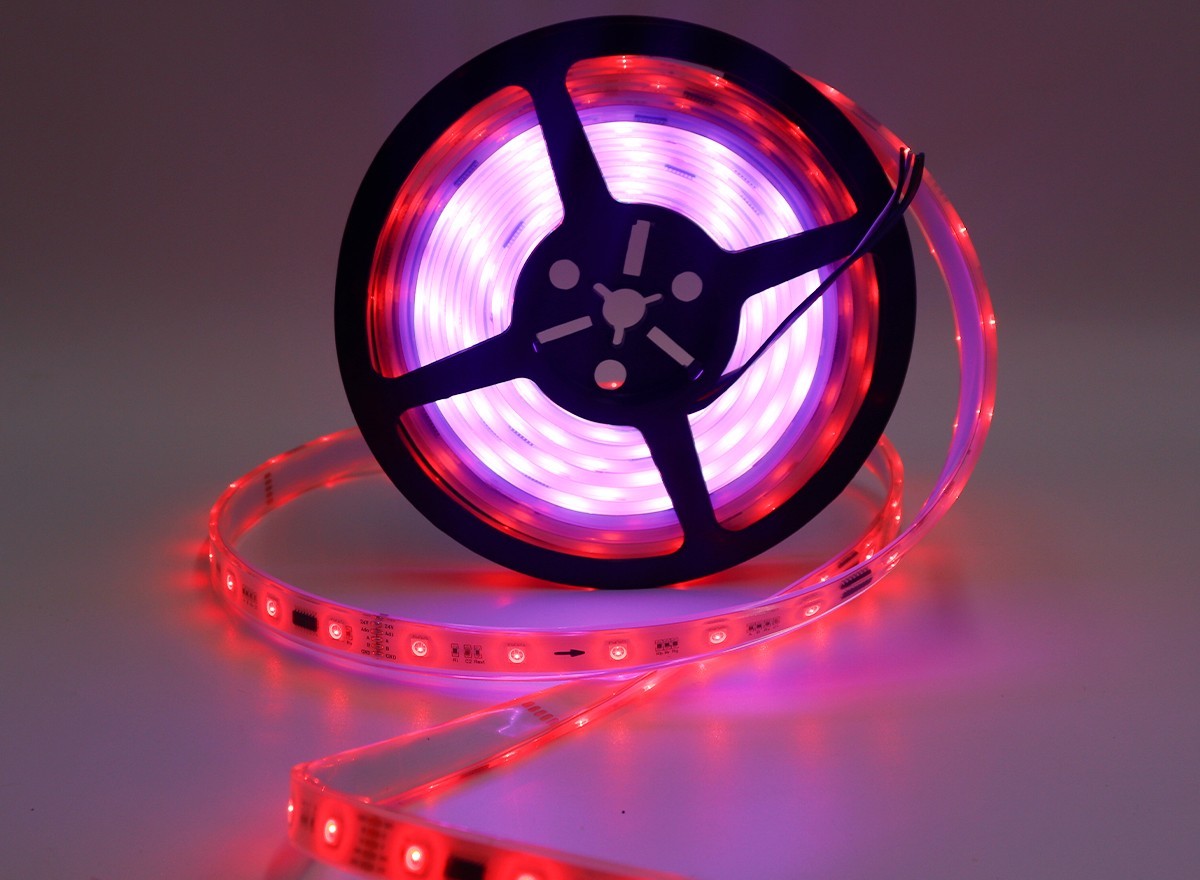

24V 5050 RGB DMX512 Pixel Strip — UCS512C3, 36LED/m, 6px/m
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGB-UCS512C3-36-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 RGB |
|
LED Density |
36 LEDs/m（180 LEDs / 5m roll） |
|
IC Type |
UCS512C3（DMX512 differential parallel driver, SOP16, 3ch RGB use / 4ch RGBW use） |
|
Pixels |
6 pixels/m（1 IC drives 6 LEDs） |
|
DMX Channels |
3 ch/pixel → 18 ch/m（R, G, B） |
|
Voltage |
DC 24V constant voltage |
|
Power |
~8.6 W/m（36×0.24W 估）– 11.5 W/m（厂商 36/m RGBW 参考值），RGB 版按 9–11 W/m 较稳 |
|
PCB |
12mm width, 2oz copper, black/white FPCB（10mm 也可做） |
|
Cut Unit |
166.7 mm（6 LEDs + 1 IC） |
|

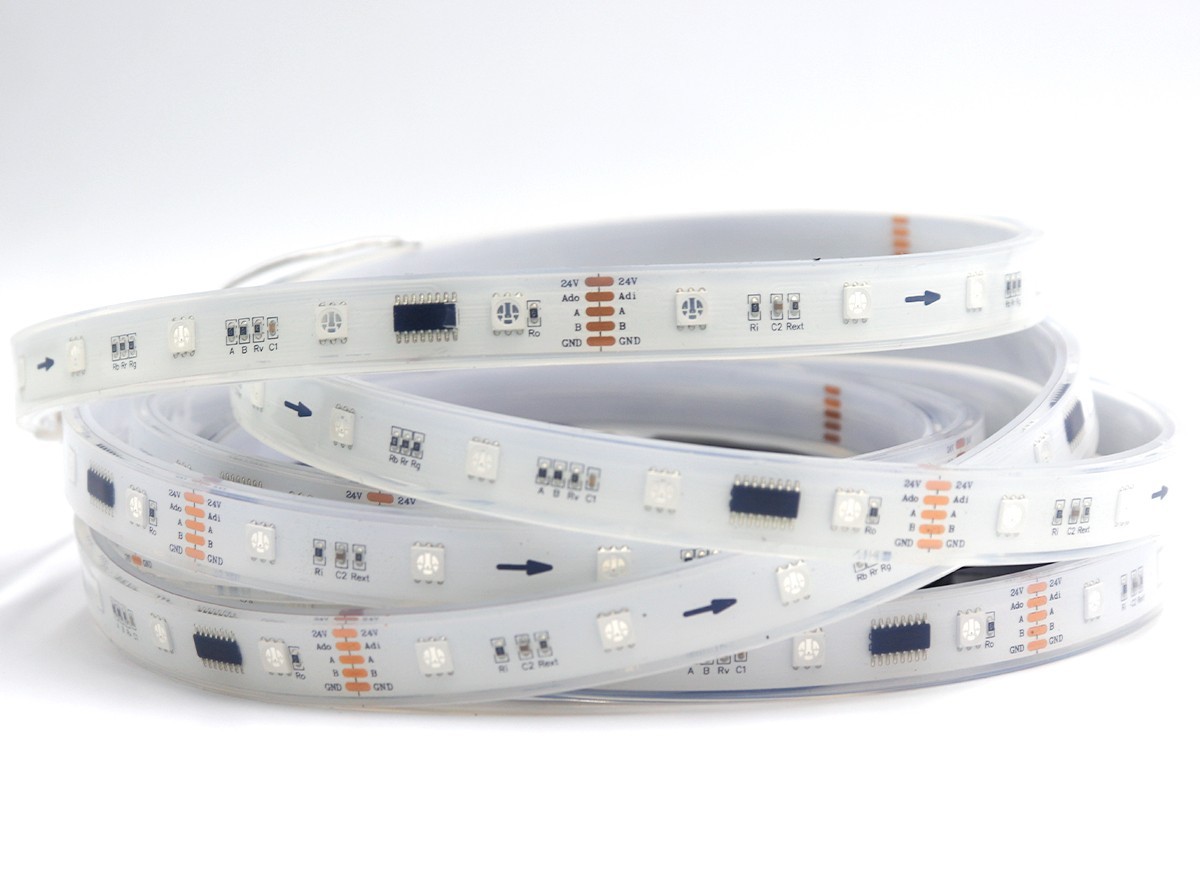

Signal Lines |
24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
DMX address writer / AB online auto-coding / Art-Net DMX |
|
Grayscale |
256-step base；UCS512 family 16-bit 65536 option on controller side |
|
PWM Refresh |
3.6 kHz（UCS512C3） |
|
Beam |
120° |
|
Max Run |
5 m/reel；long facade runs need power injection + DMX repeater |
|

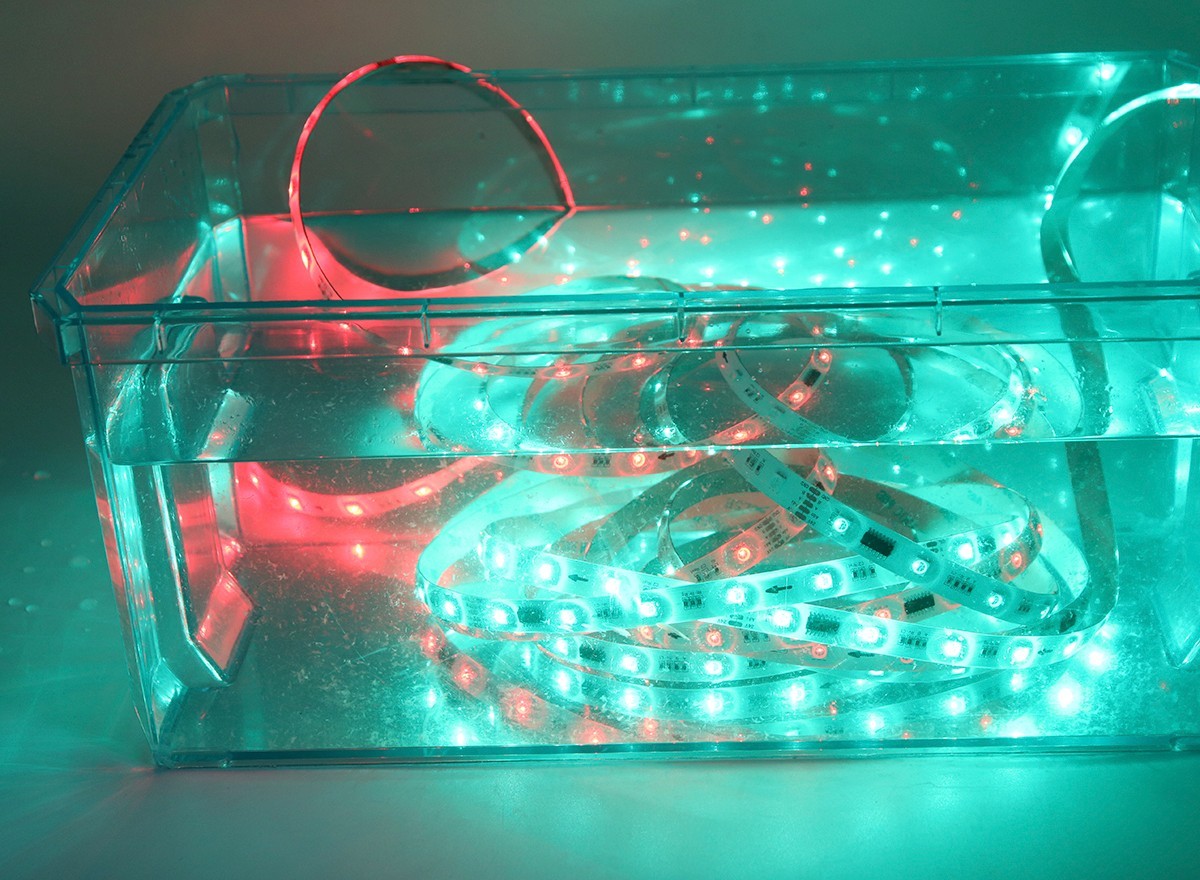

IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Bridge outline, building edge, fence line, signage border, mall facade, amusement ride contour, low-res pixel chase |
