High Luminous Efficacy: Up to 145lm/W delivers maximum brightness with minimal power consumption, reducing energy costs.
High-Density LED Layout: 70 LEDs/m provide uniform, dot-free illumination, perfect for premium linear lighting applications.
Stable 24V Constant Voltage: Ensures low voltage drop, safer operation, and supports longer run lengths with consistent brightness.
Reliable Color Rendering (Ra80): Faithfully reproduces true colors, enhancing visual comfort in residential and commercial spaces.
Flexible & Easy Installation: Cuttable every 100mm, fits various profiles and corners; compatible with dimming controllers for versatile lighting control.
|
Item |
Specification |
|---|---|
|
Product Name |

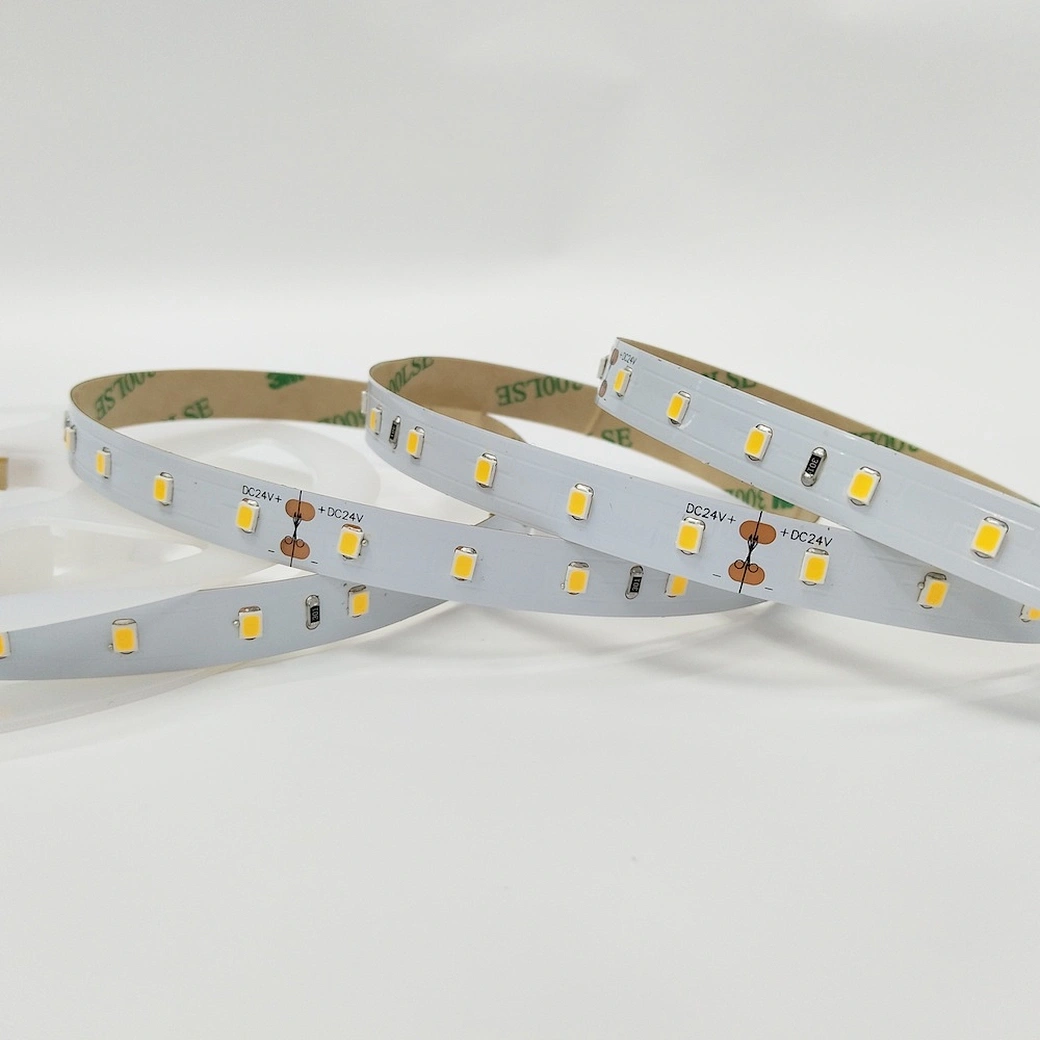

High-Efficiency 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
70 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
14.4W/meter (max. rated) |
|
Luminous Efficacy |
145 lm/W (LED/module level) |
|
Luminous Flux |
Approx. 2088 lm/m (theoretical max.) |
|
Color Rendering Index |
Ra80 |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 100mm (7 LEDs) |
|
PCB Width |
10mm (standard) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Recommended for use with aluminum profiles |
|
Applications |
Cabinet lighting, cove lighting, retail display, architectural outline, linear fixtures |
|
Warranty |
3–5 years (varies by supplier) |
