The 3-wire tunable white design blends 3000K warm and 6000K cool light for infinite color temperature control—from intimate evening glow to bright daytime clarity. Operating on safe 24V DC at 12W+12W per meter, it provides high brightness with minimal voltage drop. The solid silicone extrusion (or flame-retardant silicone sleeve) ensures true IP67 protection against dust, immersion, UV, and salt spray. Certified flame-retardant jacket meets commercial building codes for safe use in eaves, soffits, and public spaces. Flexible, cuttable, and easy to install with 3M VHB backing and mounting clips. Elevate your outdoor lighting with professional-grade performance and peace of mind.
🔥 Flame Retardant & IP67 Rated: Meets flame-retardant safety standards (UL94 V-0 / V-2 class silicone) plus IP67 waterproof—dust-tight, immersion-safe, UV-stable. Ideal for commercial buildings, eaves, and public outdoor areas.
🌈 Tunable 3000K–6000K White: Blend warm and cool white channels for infinite CCT control—transition from cozy patio ambiance to functional task lighting with one strip.
✨ Dot-Free COB Illumination: 576 LEDs/m in COB packaging eliminate visible dots and hotspots, creating a smooth, continuous light sheet even at close viewing distance.
⚡ 24V High Power Stable: DC 24V at 24W/m total (12W+12W) delivers strong brightness with lower current and less voltage drop—perfect for longer outdoor runs.
📏 10mm Width for Easy Handling: Wider 10mm PCB improves heat dissipation and makes field cutting/re-sealing easier than ultra-narrow 6–8mm strips, while still fitting most outdoor aluminum profiles.
Product Specification Sheet — 10mm COB CCT Tunable IP67 Flame Retardant LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
10mm COB Dual CCT IP67 Flame Retardant LED Strip |
|
LED Technology |
COB (Chip-on-Board), 2-color in one chip |
|
|
LED Density |
576 LEDs/m (288 Warm White + 288 Cool White) |
|
|
Electrical |
Input Voltage |
DC 24V (Constant Voltage) |
|
Power Consumption |
24W/m total (12W Warm White + 12W Cool White) |
|
|
Current |
~1.0A/m @ 24V |
|
|
Control Type |
3-wire CCT (V+ / WW+ / CW+), non-addressable |
|
|
Cuttable Unit |
Every 41.67mm (approx. every 24 chips) |
|
|
Optical |
Color Temperature |
Tunable 3000K–6000K (blend of WW + CW) |
|
CRI (Ra) |
≥90 (High Color Rendering) |
|
|
Luminous Efficacy |
100–110 lm/W |
|
|
Beam Angle |
180° (top emission, uniform) |
|
|
Feature |
Dot-free, no dark spots, soft uniform glow |
|
|
Physical |

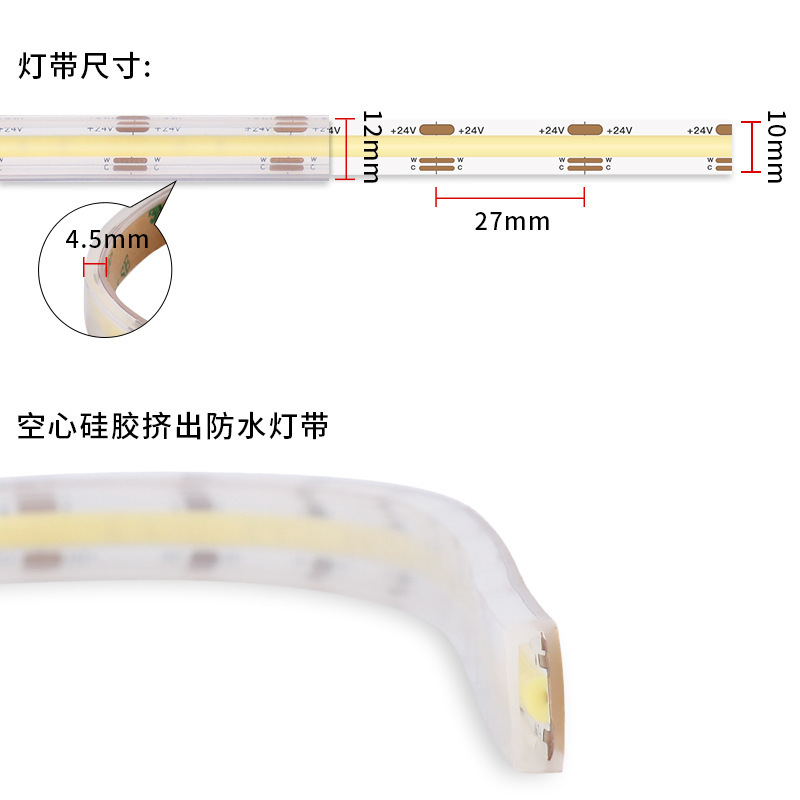

PCB Width |
10mm |
|
Overall Width |
~12mm (with silicone jacket) |
|
|
Overall Height |
~4mm (flat top profile) |
|
|
Roll Length |
5m / roll (custom lengths available) |
|
|
Min. Bending Radius |
≥ 25mm (side bend) |
|
|
Waterproof |
IP Rating |
IP67 (solid silicone extrusion or flame-retardant sleeve) |
|
Max Immersion |
≤1m depth |
|
|
UV Resistance |
Yes, anti-yellowing (outdoor grade) |
|
|
Salt Spray |
Pass (coastal rated) |
|
|
Safety |
Flame Retardant |
Yes, silicone jacket meets flame-retardant class (UL94 V-0 / V-2 or equivalent) |
|
Certification |
CE / RoHS (flame-retardant grade available upon request) |
|
|
Environment |
Operating Temp. |
-40℃ to +60℃ |
|
Lifespan |
30,000–50,000 hours |
|
|
Installation |
Mounting |
3M VHB tape on back + stainless steel clips (included) |
|
Bending |
Side bend only (not face-bend) |
|
|
End Sealing |
Pre-sealed; field cuts require silicone sealant + end cap |
|
|
Controller |
Compatibility |
CCT dimmer, PWM controller, 0-10V, DALI, smart home module |
|
Application |
Facade, eaves, soffit, patio, garden, pathway, stair, bridge, marine dock, outdoor signage, commercial building |
