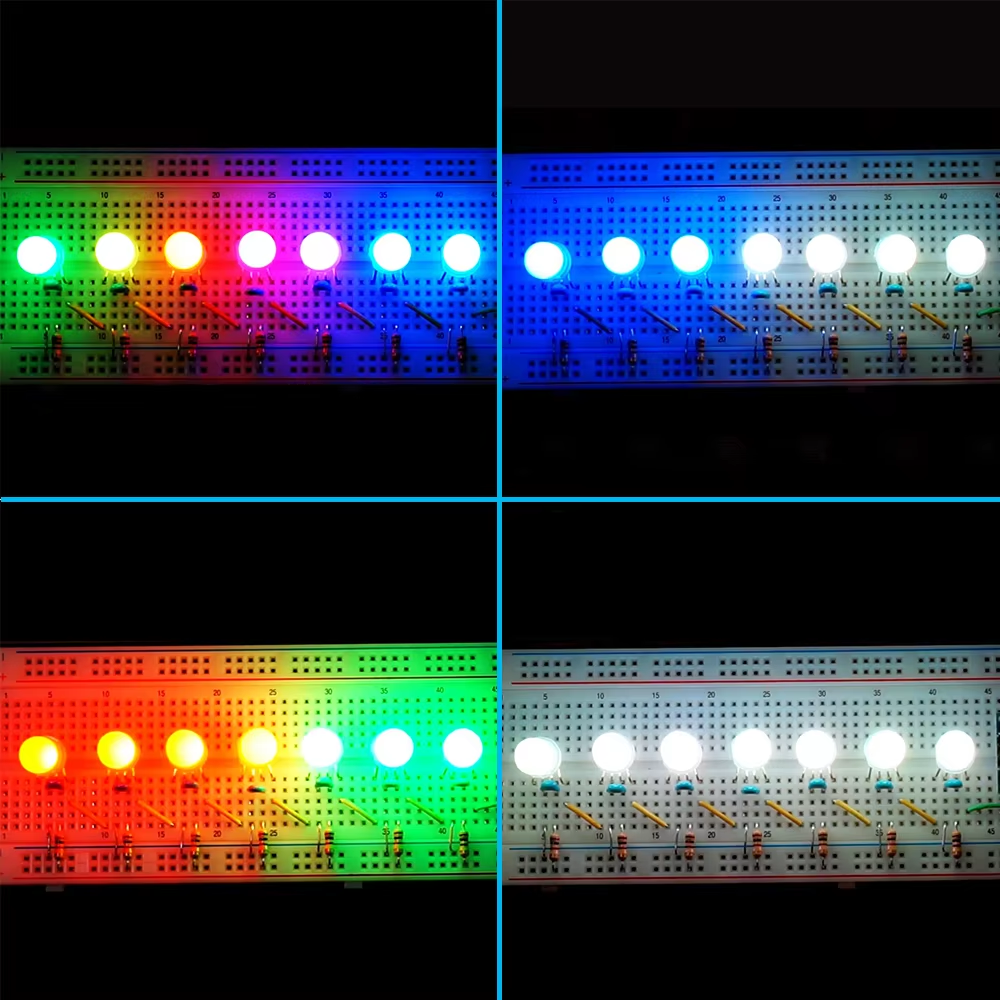

🎨 Addressable Full-Color Magic: Built-in WS2812D smart IC allows individual 256-level brightness control for each LED. Create stunning, customizable lighting effects and dynamic cascading visuals with a single data line.

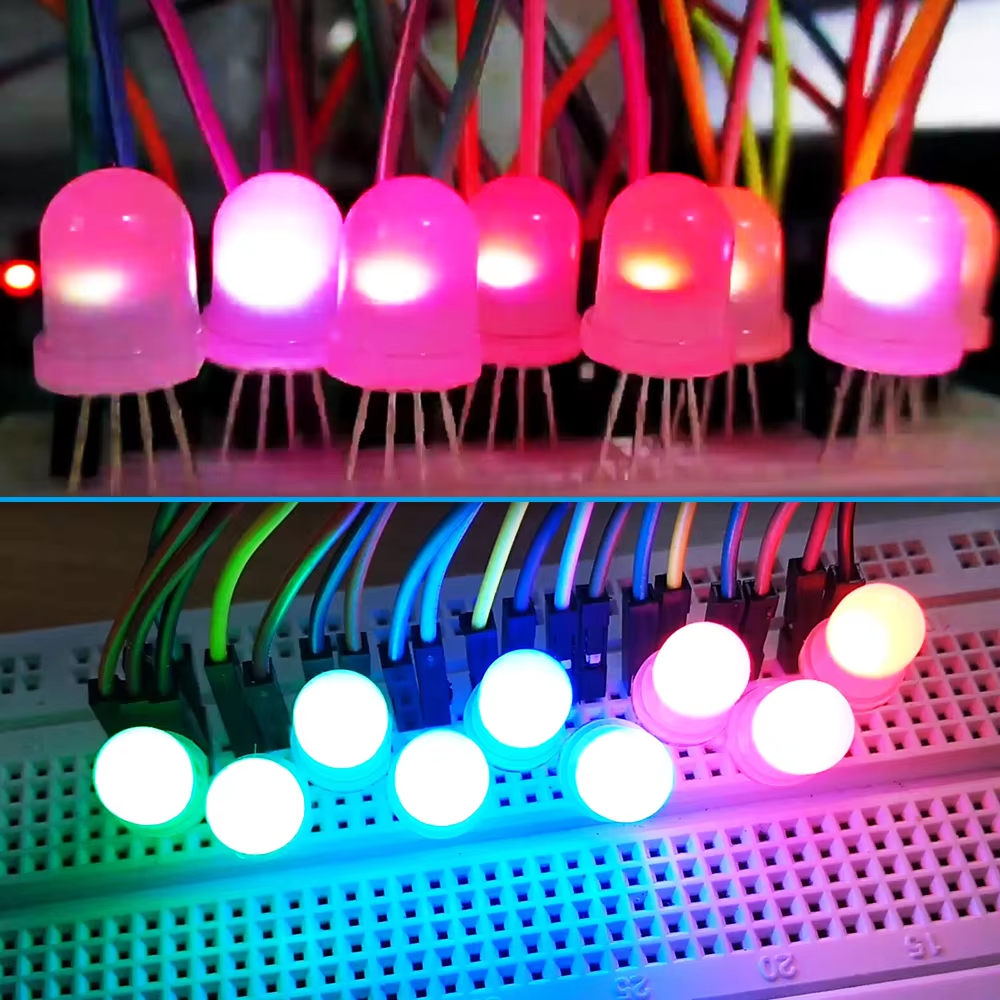

📏 Standard F5 & F8 DIP Packages: Available in universal 5mm and 8mm through-hole sizes. Features a classic straight-plug design that is incredibly easy to mount on PCBs, breadboards, and strip boards.
🛠️ Fully Customizable Appearance: We offer flexible OEM/ODM services to meet your exact needs. Customize the LED's shape, lens color, or specific exterior design to perfectly match your project's unique requirements.
⚡ Stable & Easy to Drive: Operates on a standard 5V DC power supply with a single-wire data transmission protocol. Highly compatible with popular platforms like Arduino, Raspberry Pi, and mainstream coding controllers.
🏭 Reliable Factory Direct Supply: Engineered for durability and consistent luminous performance. Backed by strict quality control and professional technical support, ensuring you get premium LEDs exactly when you need them.

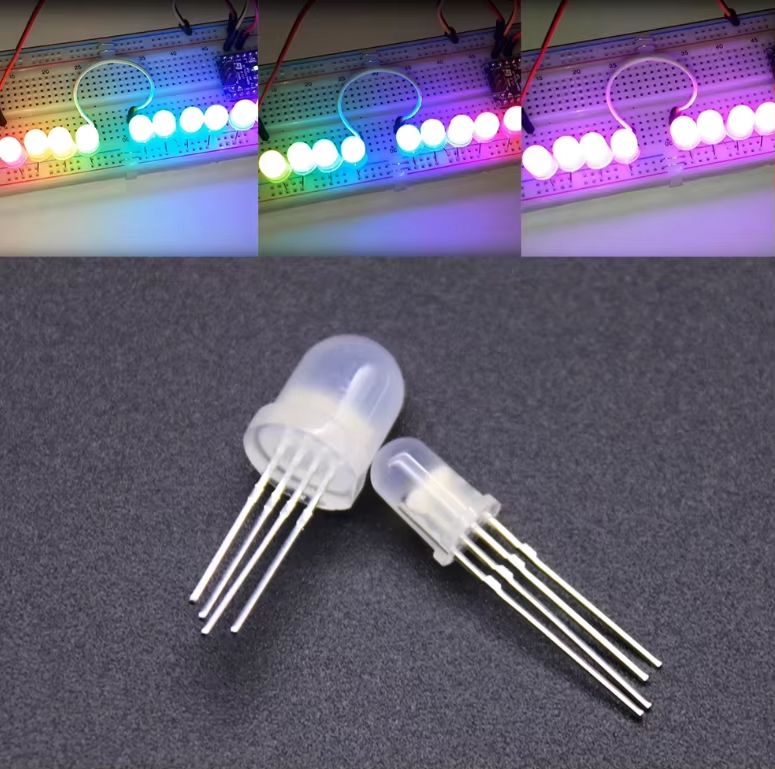

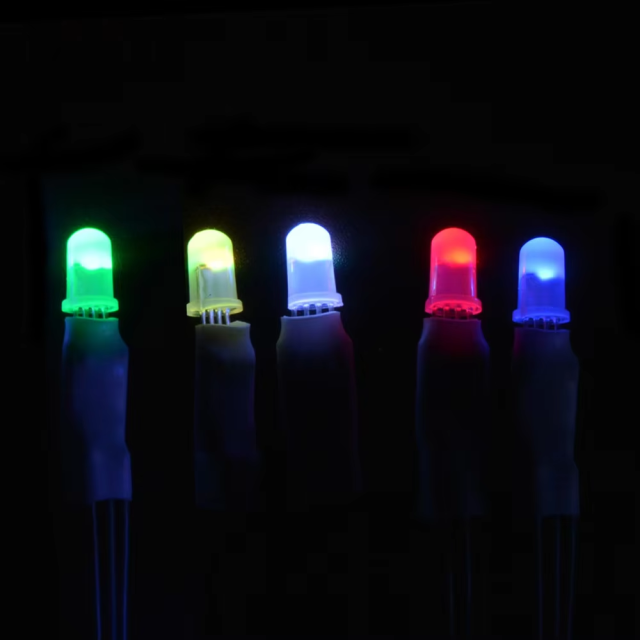

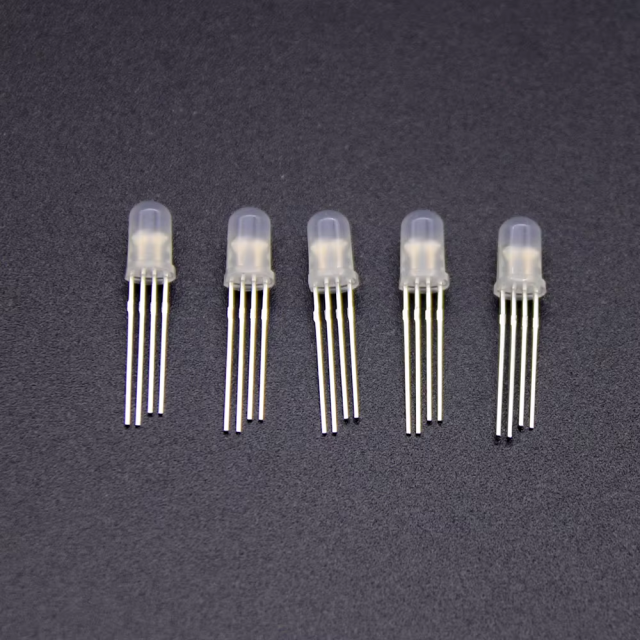

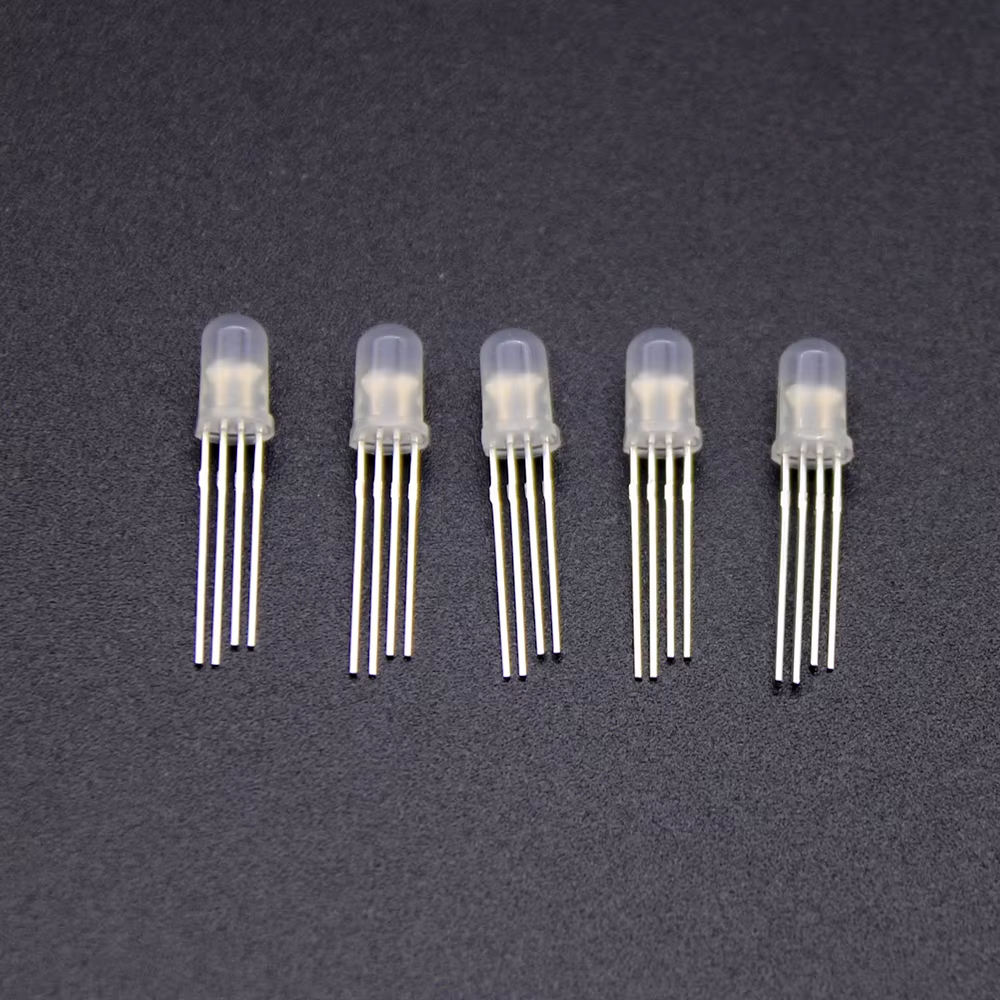

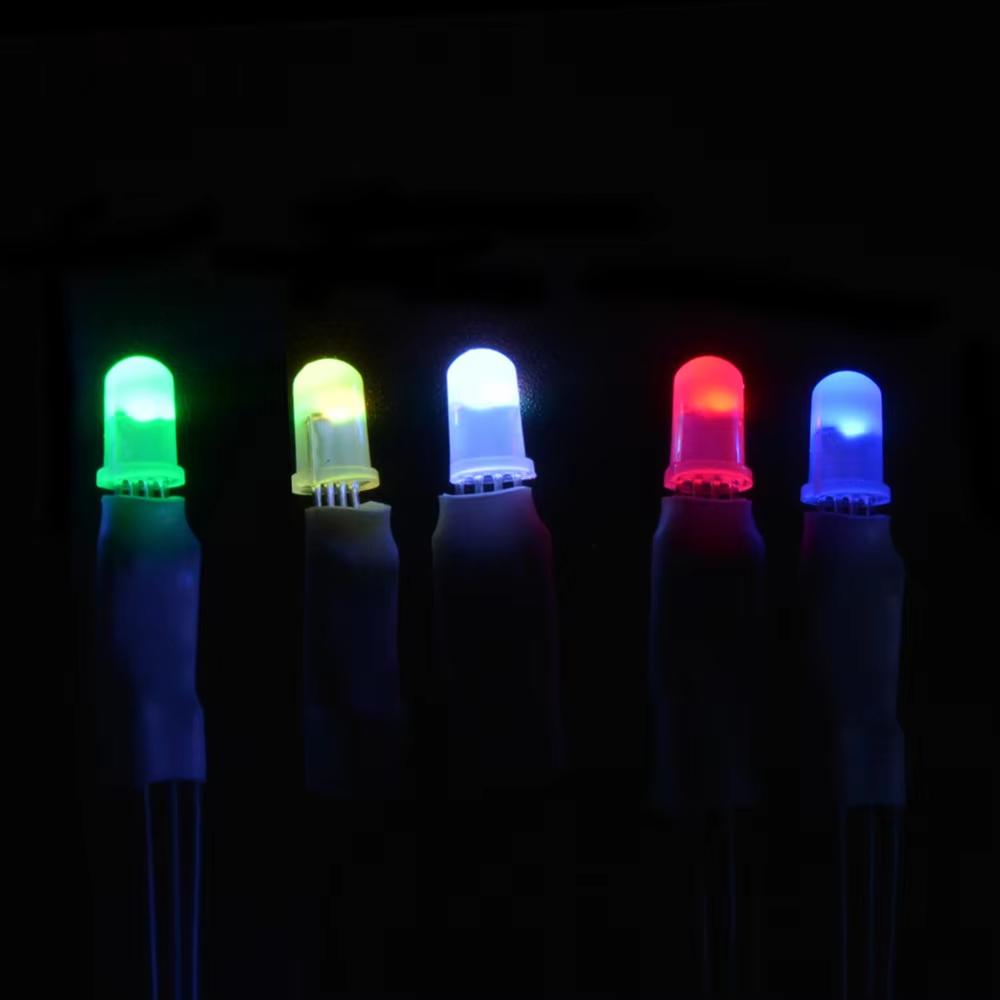

The WS2812D is an intelligent control LED light source that integrates a control circuit and a RGB chip into a standard through-hole (DIP) package. Available in F5 (5mm) and F8 (8mm) diameters, it delivers high brightness, individual addressability, and supports custom exterior designs for OEM/ODM projects.
|
Feature |
Description |
|---|---|
|
Built-in IC |
WS2812D smart driver (single-wire cascade) |
|
Package Type |
DIP / Through-hole (Straight-plug) |
|
Available Sizes |
F5 (Ø5mm), F8 (Ø8mm) |
|
LED Type |
RGB full-color (SMD die inside DIP shell) |
|
Gray Scale |
256 levels per channel (16.7 million colors) |
|
Data Protocol |
Single-wire return-to-zero code |
|
Cascading |
Unlimited cascade via single data line |
|
Customization |
Shape, lens color, pin length, shell design |
|
Parameter |
Symbol |
Min |
Max |
Unit |
|---|---|---|---|---|
|
Power Supply Voltage |
VDD |
4.5 |
5.5 |
V |
|
Input Voltage |
VI |
-0.3 |
VDD+0.3 |
V |
|
Operating Temp. |
TOPR |
-25 |
+85 |
°C |
|
Storage Temp. |
TSTG |
-40 |
+105 |
°C |
|
Static Power |
Pstatic |
— |
0.6 |
W |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|
|
Supply Voltage |
VDD |
4.5 |
5.0 |
5.5 |
V |
|
Data Transfer Rate |
Fdata |
— |
800 |
— |
Kbps |
|
Refresh Frequency |
Fr |
— |
≥400 |
— |
Hz |
|
Standby Current |
Istd |
— |
0.5 |
1.0 |
mA |
|
Parameter |
Color |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|
|
Wavelength |
Red |
620 |
625 |
630 |
nm |
|
Wavelength |
Green |
515 |
520 |
525 |
nm |
|
Wavelength |
Blue |
465 |
470 |
475 |
nm |
|
Luminous Intensity |
RGB |
— |
800–1200 |
— |
mcd |
|
Pin |
Name |
Function |
|---|---|---|
|
1 |
VDD |
Power supply (5V) |
|
2 |
DOUT |
Data output (to next LED) |
|
3 |
VSS |
Ground (GND) |
|
4 |
DIN |
Data input (from MCU/prev LED) |
Lens Color: Water clear, diffused, colored (red/green/blue/yellow)
Pin Length & Pitch: Standard or extended pins; custom pitch available
Shell Shape: Round, square, flat-top, or fully custom mold
Packaging: Bulk, anti-static tube, tape-in-reel, or custom labeling
DIY electronics & breadboard prototyping
LED pixel screens & dot-matrix displays
Decorative lighting & signage
Smart toys, wearables, and IoT devices
Automotive & architectural accent lighting
|
Part Number |
Size |
Lens |
Package |
MOQ |
|---|---|---|---|---|
|
WS2812D-F5-CLR |
Ø5mm |
Clear |
1000pcs/bag |
1000 |
|
WS2812D-F8-CLR |
Ø8mm |
Clear |
1000pcs/bag |
1000 |
|
WS2812D-XXX-CUS |
Custom |
Custom |
Per request |
5000 |
📞 Contact us for OEM/ODM inquiries, samples, and volume pricing.
