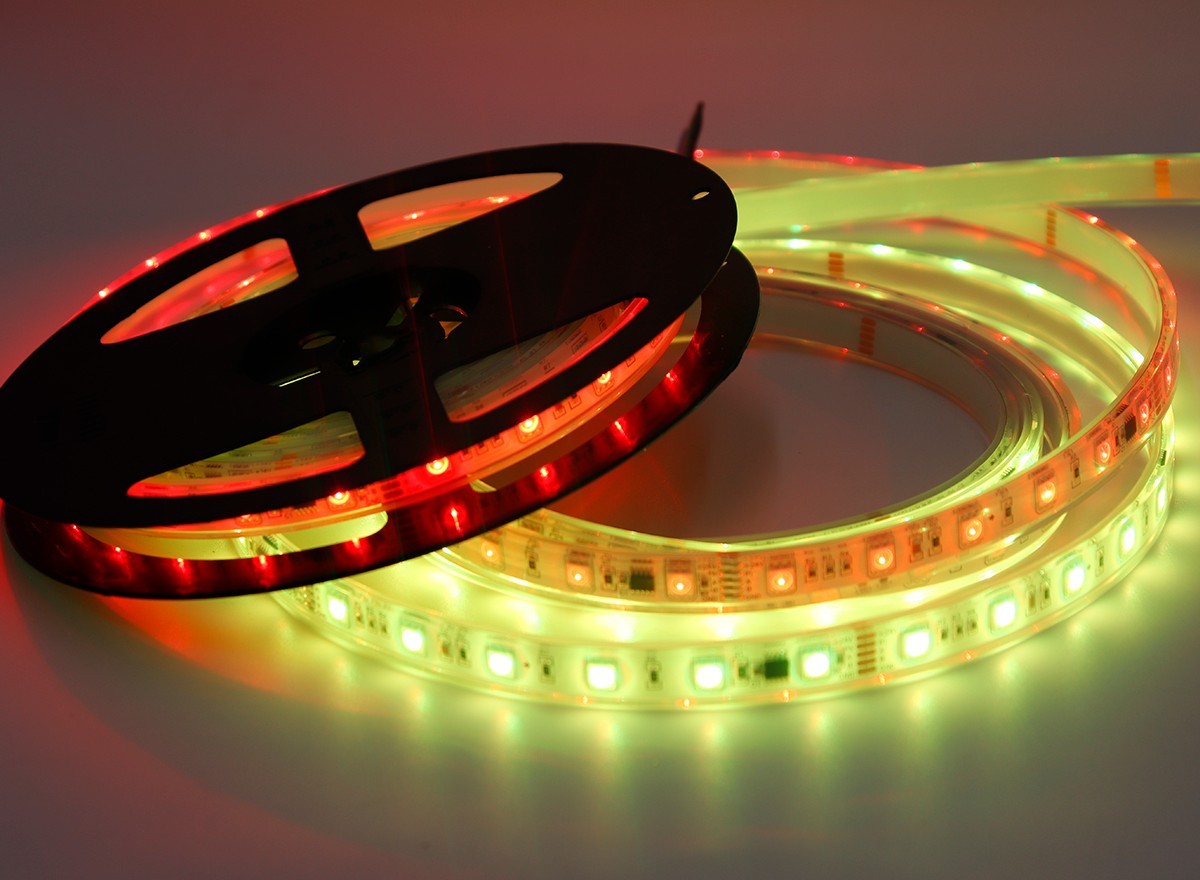

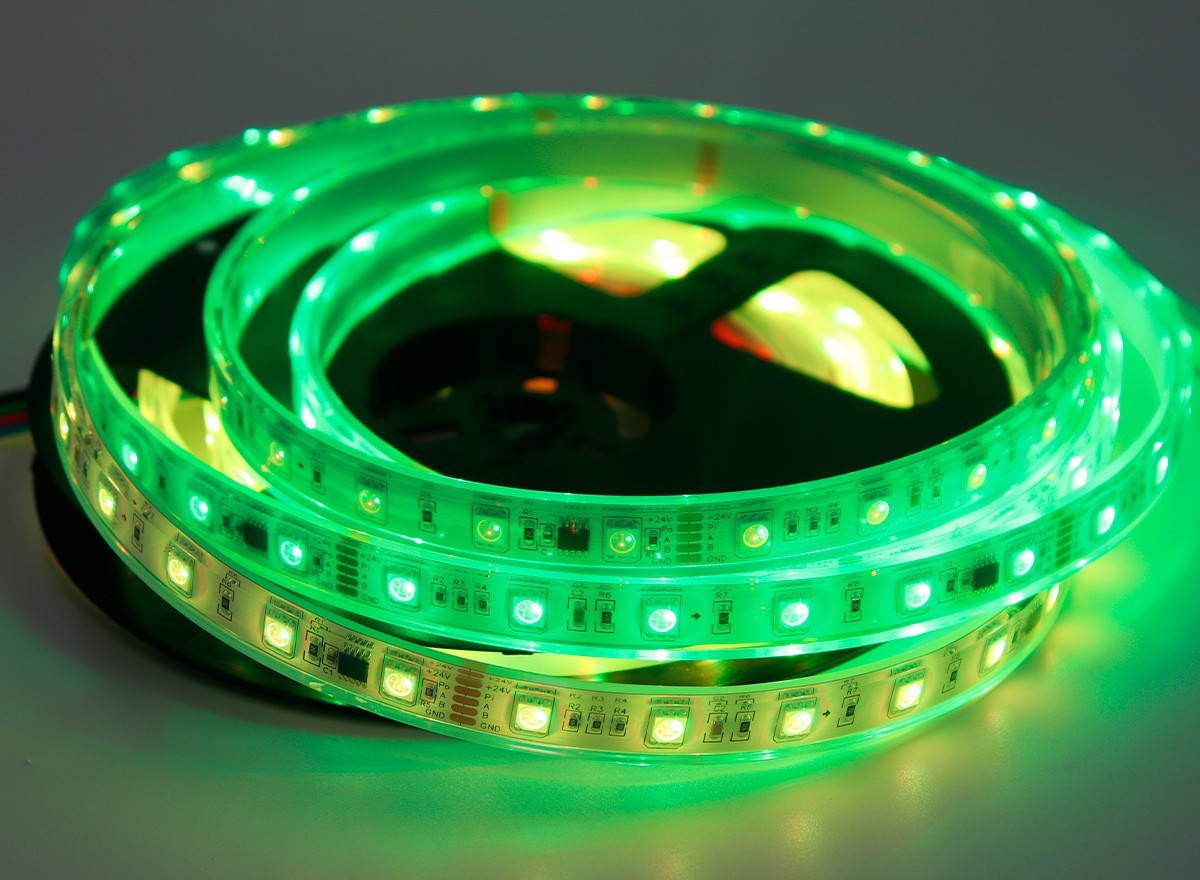

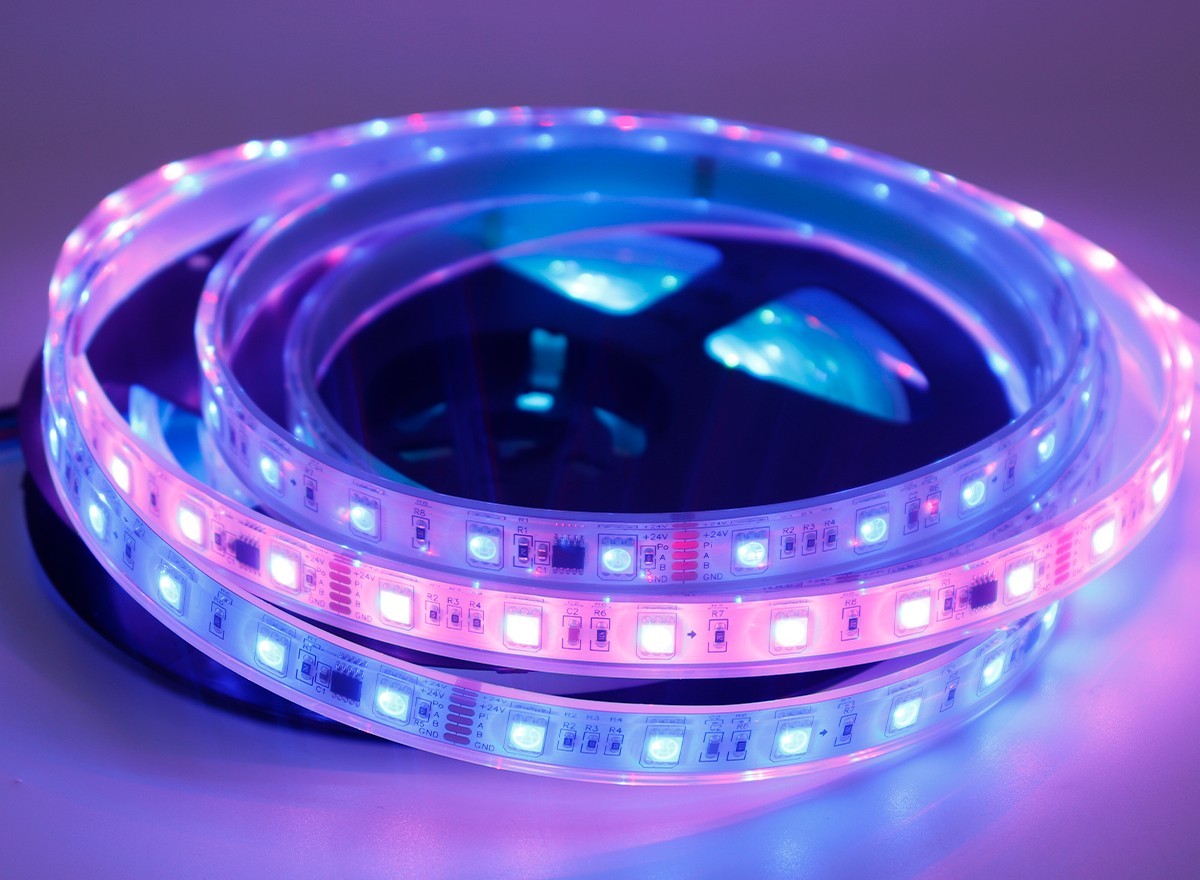

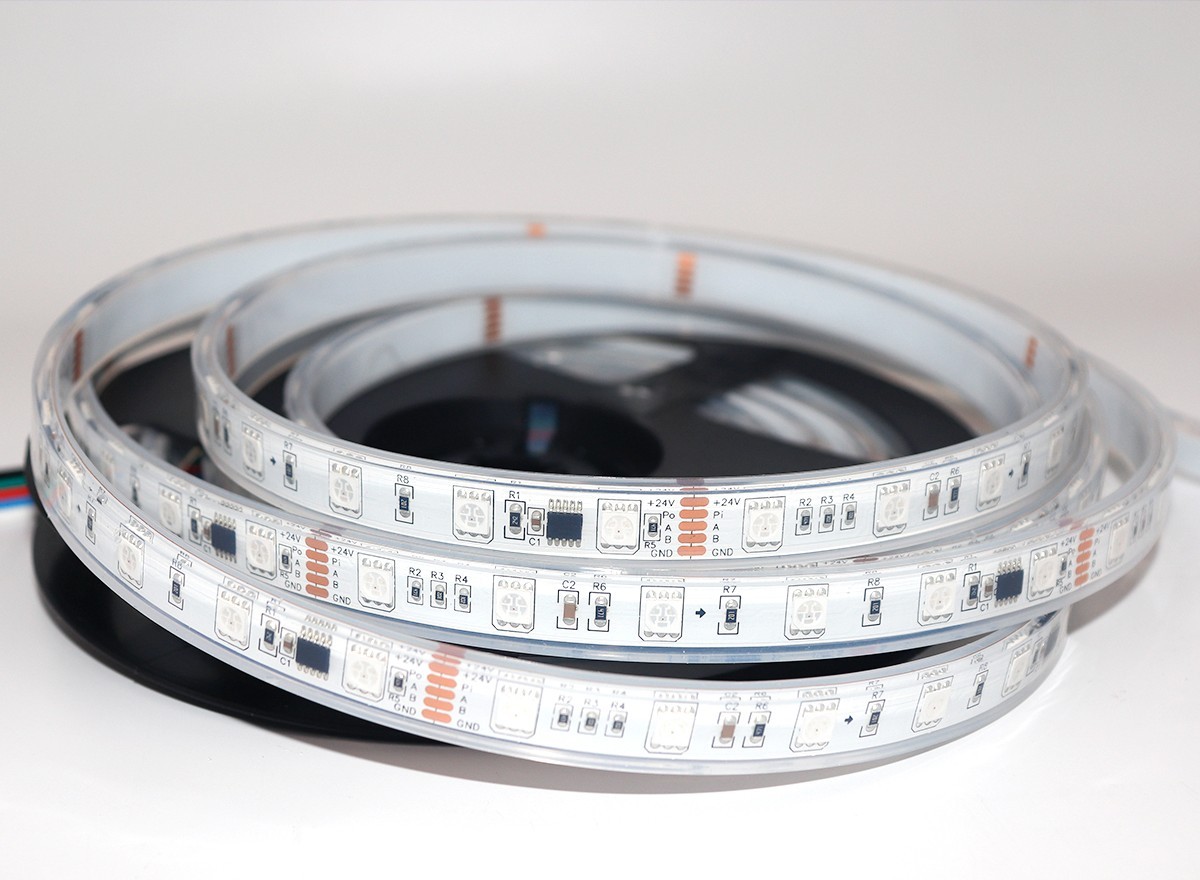

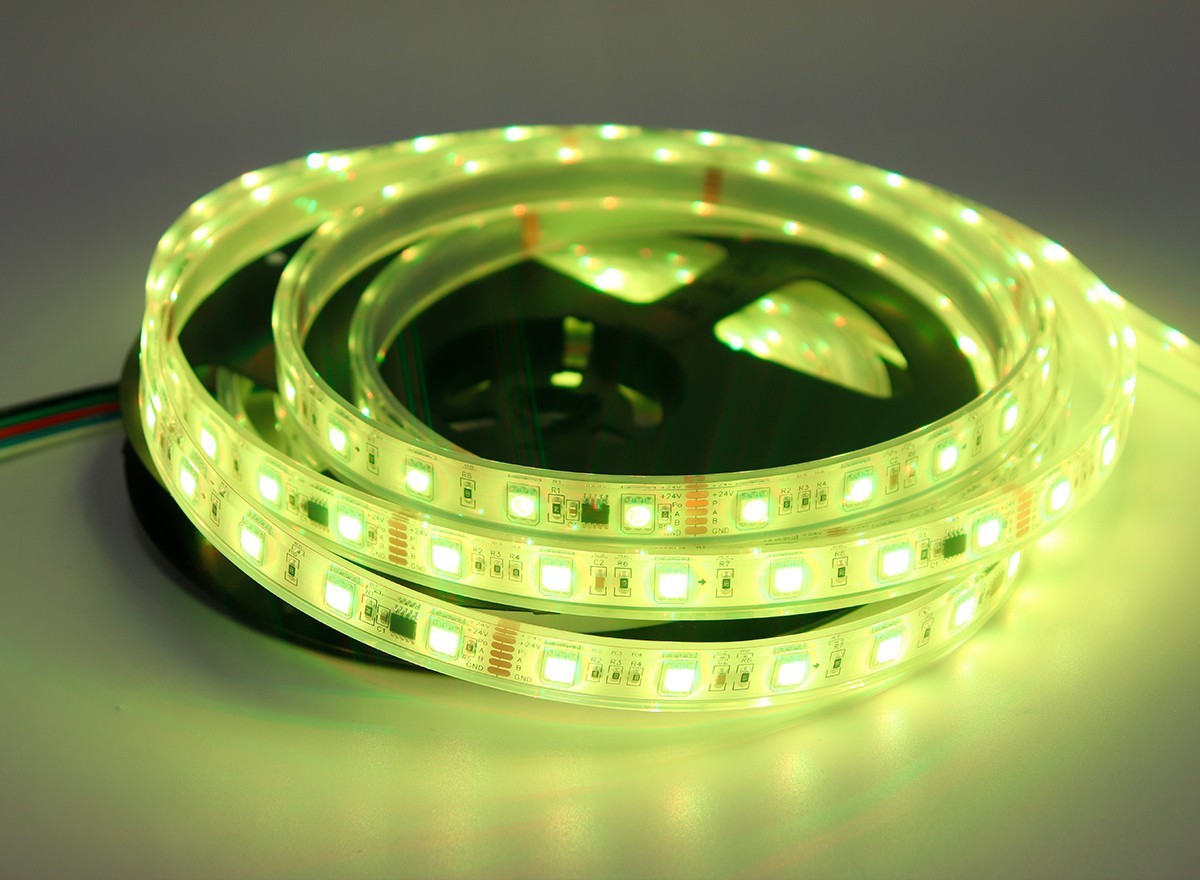

The UCS512H4L 5050 RGB LED Strip integrates 48 high-brightness 5050 RGB LEDs per meter with 8 DMX512-addressable pixels on DC24V, built on a 10mm 2oz FPC. Each UCS512H4L IC drives 6 LEDs, enabling chase, flow, gradient and full dream-color effects under DMX consoles, Art-Net and MADRIX. Parallel DMX A/B signal provides breakpoint resume—if one IC fails, the rest keep running. Cuttable every 125mm, low-heat and installer-friendly, ideal for building outlines, retail displays, bars, stage props and signage.
DMX512 Pixel Control: 8 addressable pixels/m (1 IC / 6 LEDs) for pro chase, flow and gradient effects.
Bright 5050 RGB: 48 tri-chip LEDs/m deliver vivid full-color output with 120° beam angle.
24V + 10mm FPC: DC24V reduces voltage drop; 10mm 2oz copper PCB improves heat dissipation and long-run stability.
Breakpoint Resume: Differential A/B parallel DMX signal; one pixel fault does not stop the whole strip.
Cut Every 125mm: 6 LEDs/pixel, easy customization for profiles, letters, facades and architectural lines.
|
Item |
Specification |
|---|---|
|
Model |
UCS512H4L-5050RGB-48D-24V-10mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
48 LEDs/m |
|
Pixel / IC |
8 pixels/m, 1 UCS512H4L controls 6 LEDs |
|
IC Type |
UCS512H4L, DMX512 protocol, 3-channel constant-current |
|
Color |
Full RGB |
|
Input Voltage |
DC 24V |
|
Power |
11.52–12 W/m |
|
Grayscale |
256 levels/channel |
|
Cutting Unit |
125 mm / 6 LEDs |
|
PCB Width |
10 mm |
|
PCB |
2 oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |
24V+, GND, A (DMX+), B (DMX-), PI (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (address writing required) |
|
Data Rate |
800 kbps |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Working Temp. |
-25°C to +80°C |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
