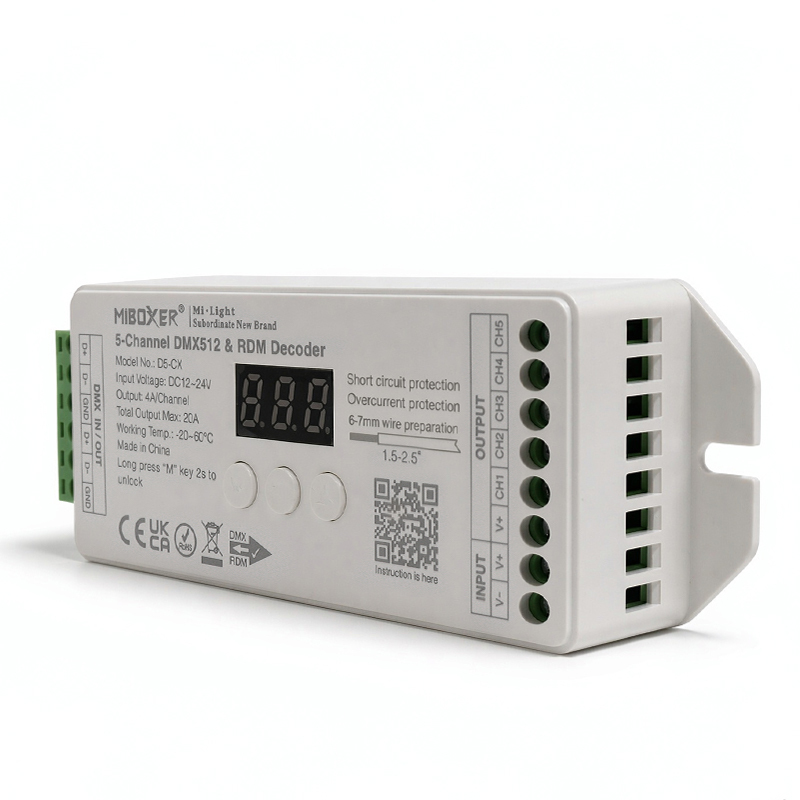

5-Channel RGBCCT Control: Precisely drives RGB + CCT LED strips with 5 independent outputs (4A/ch, 20A max).
DMX512 & RDM Support: Standard DMX control plus RDM V1.0 for remote addressing, configuration, and monitoring.
High PWM Frequency: 2000Hz (default) eliminates flicker for video and stage applications; 500Hz mode available.
Flexible Dimming: Choose between logarithmic (Gamma 1.6) and linear (Gamma 1.0) curves for smooth, natural fading.
Digital Display & Protection: Easy address setup via LED screen; safeguards include reverse polarity, short circuit, and overcurrent protection.
|
Parameter |
Specification |
|---|---|
|
Model |
D5-CX |
|
Input Voltage |
DC 12–24V (Common Anode) |
|
Output Channels |
5 Channels (CH1–CH5) |
|
Max Output Current |
4A/Channel, 20A Total |
|
Max Output Power |
12V: 240W (48W/CH); 24V: 480W (96W/CH) |
|
Protocol |
DMX512 (1990/-A), RDM V1.0 (E1.20) |
|
DMX Addresses |
5 consecutive (start address 001–512) |
|
PWM Frequency |
2000Hz (default) / 500Hz (selectable) |
|
Dimming Curve |
Logarithmic (Gamma 1.6, default) / Linear (Gamma 1.0) |
|

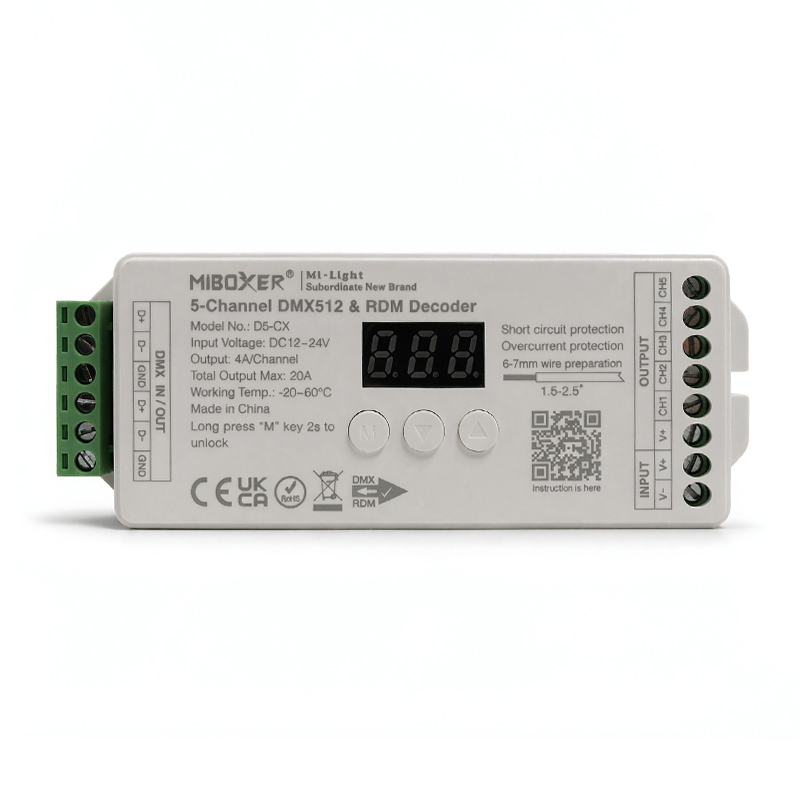

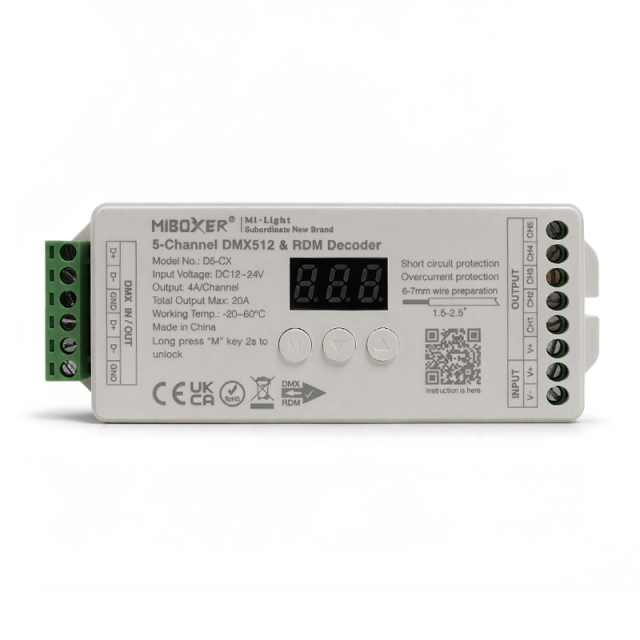

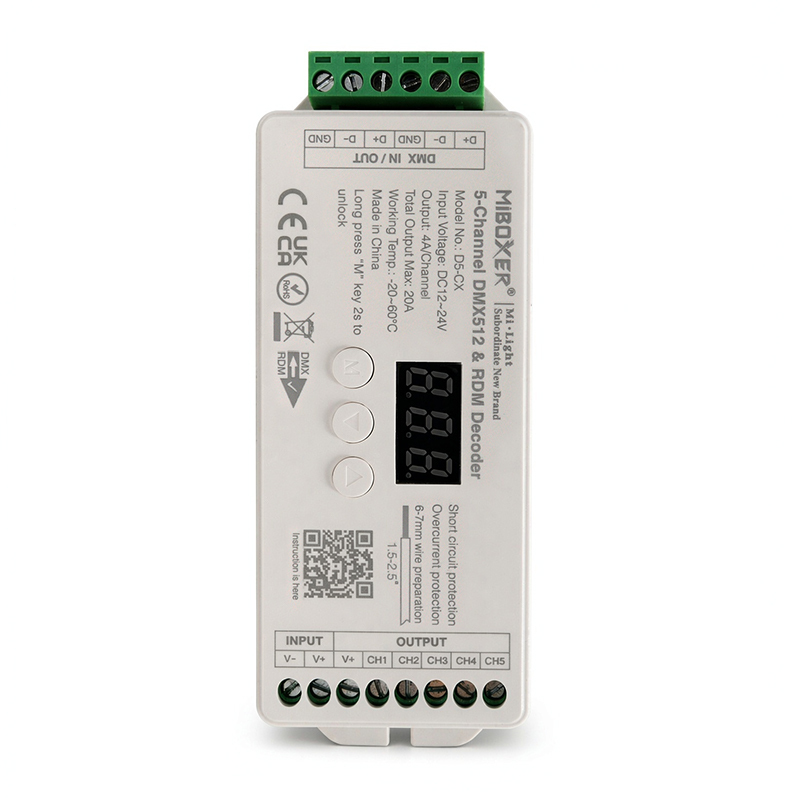

Connections |

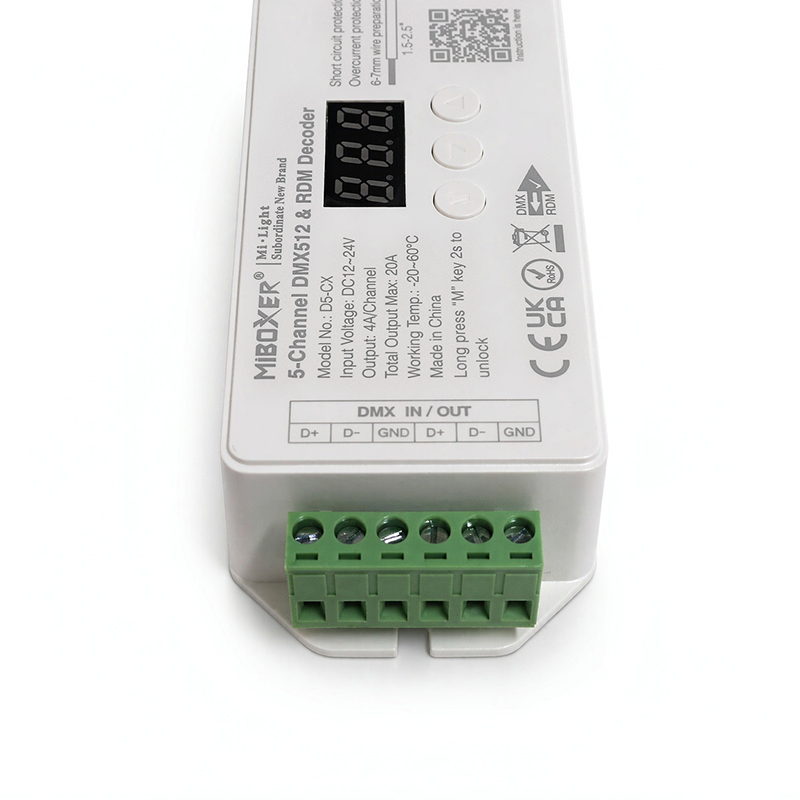

Screw terminals: Power, DMX IN/OUT (GND/D−/D+), LED OUT (V+, CH1–CH5) |
|
Protections |
Reverse polarity, short circuit, overcurrent (auto-recover), power-on self-test |
|

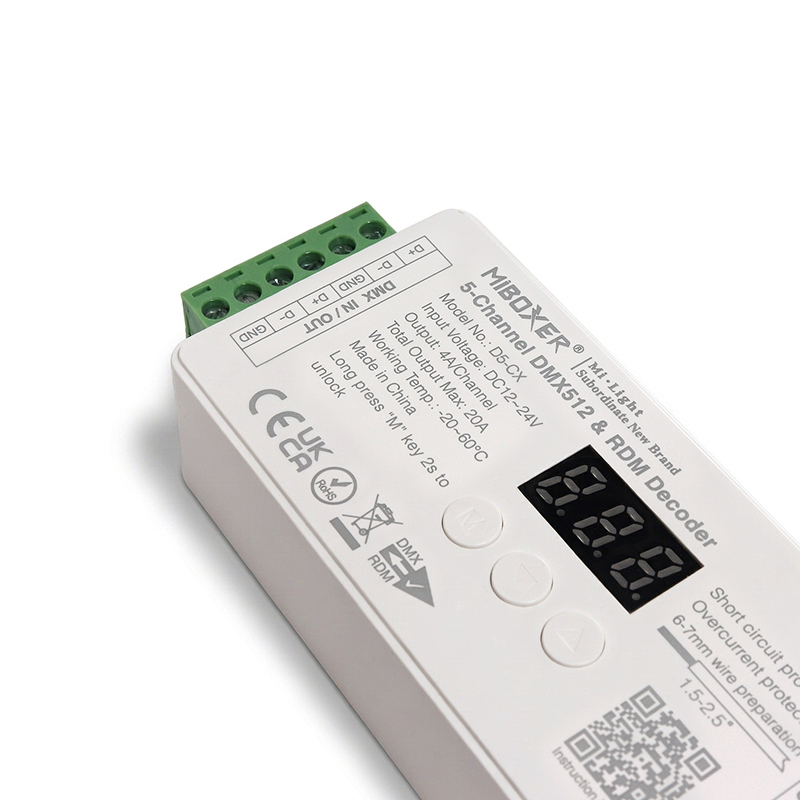

Display |
Digital address readout + M/▲/▼ buttons |
|
Housing |
IP20, indoor use only |
|
Dimensions |
130 × 49 × 27 mm |
|
Operating Temp. |
−20°C to 60°C |
