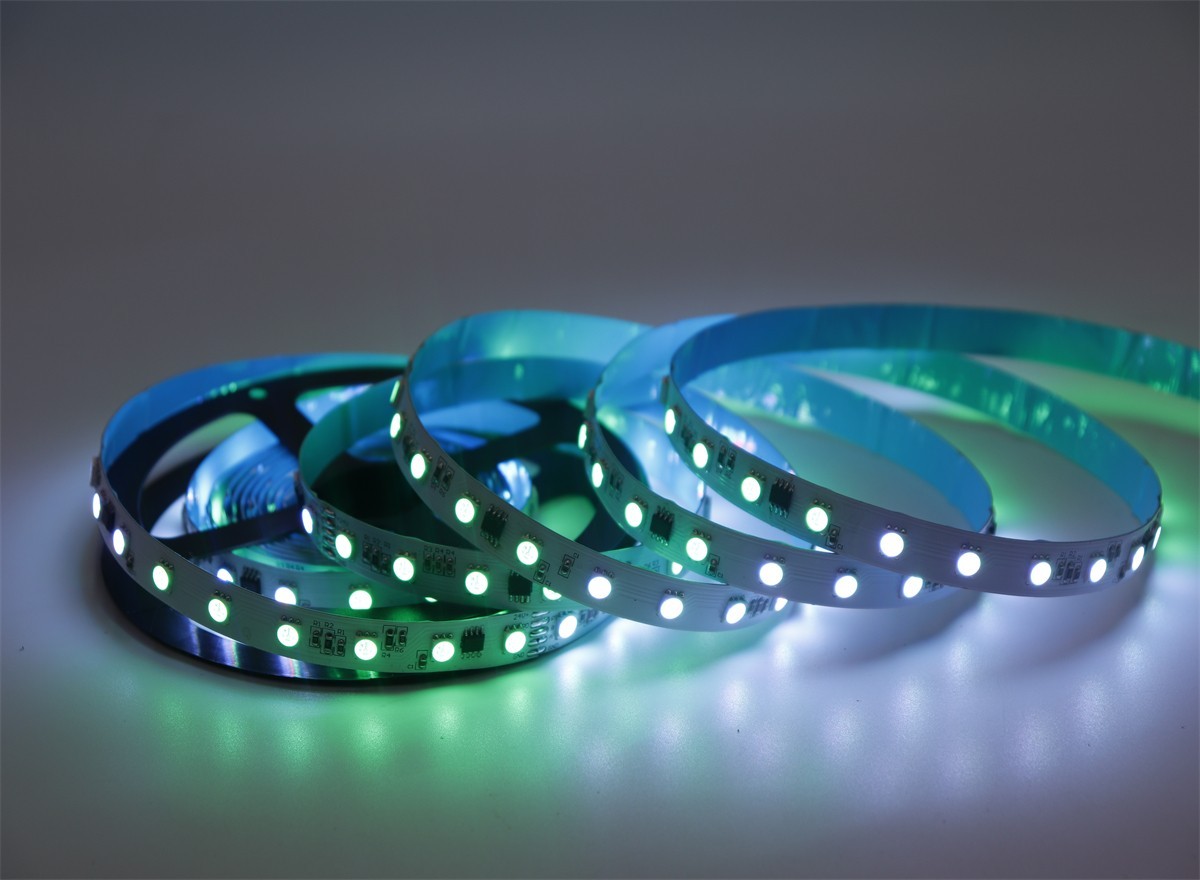

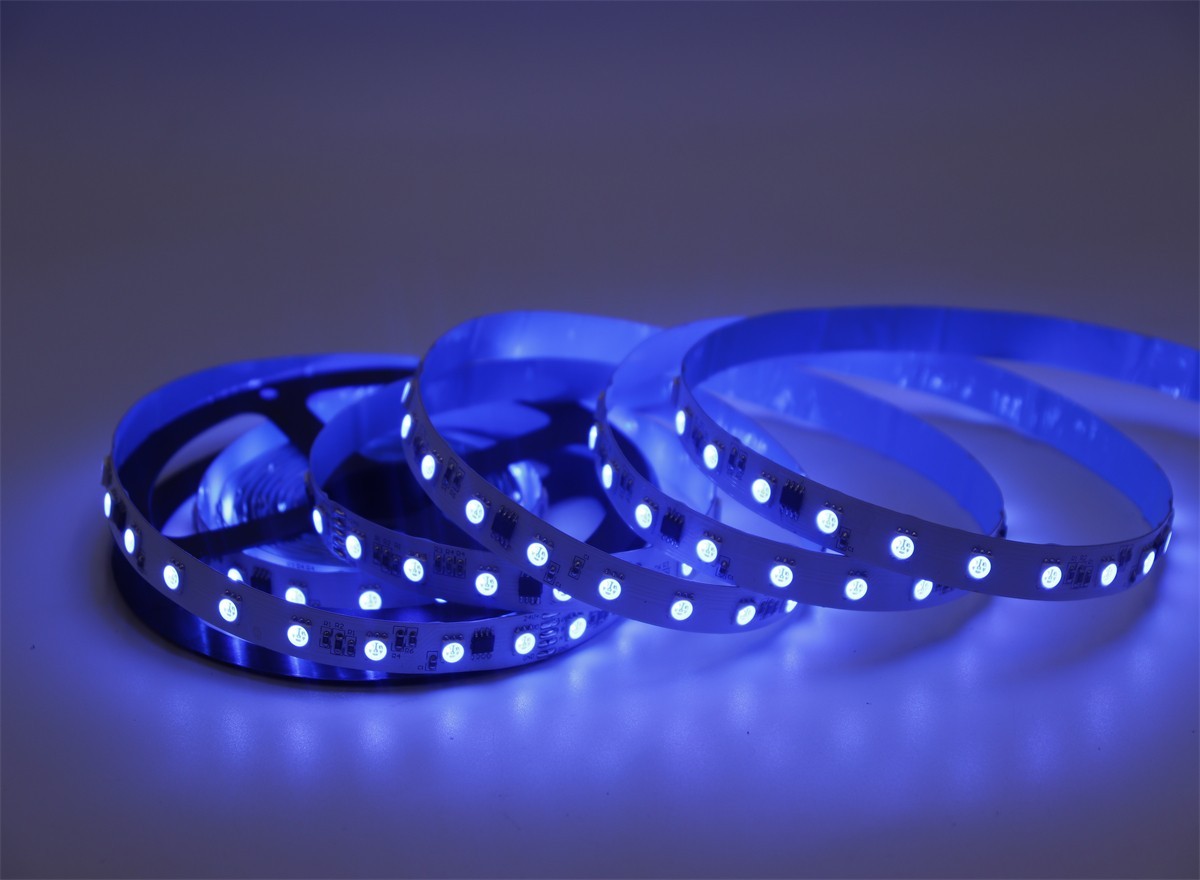

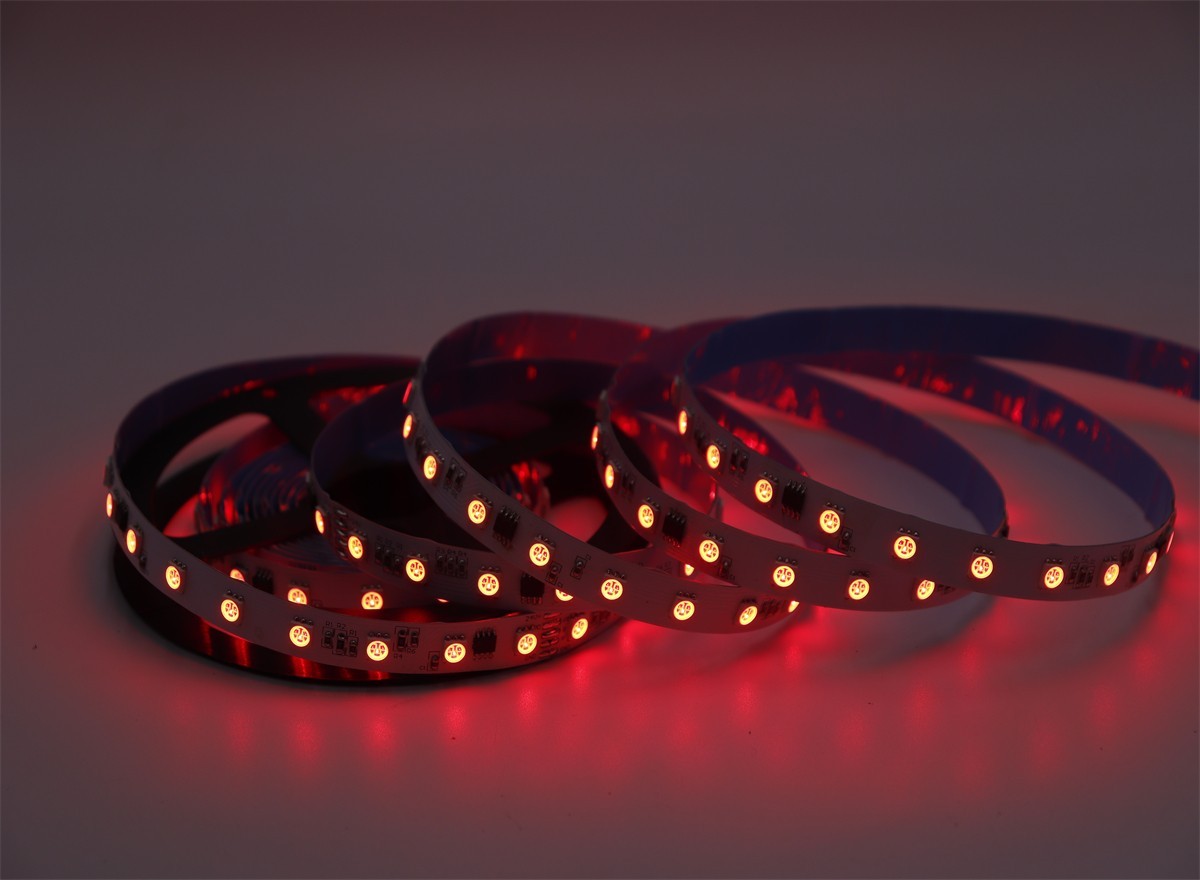

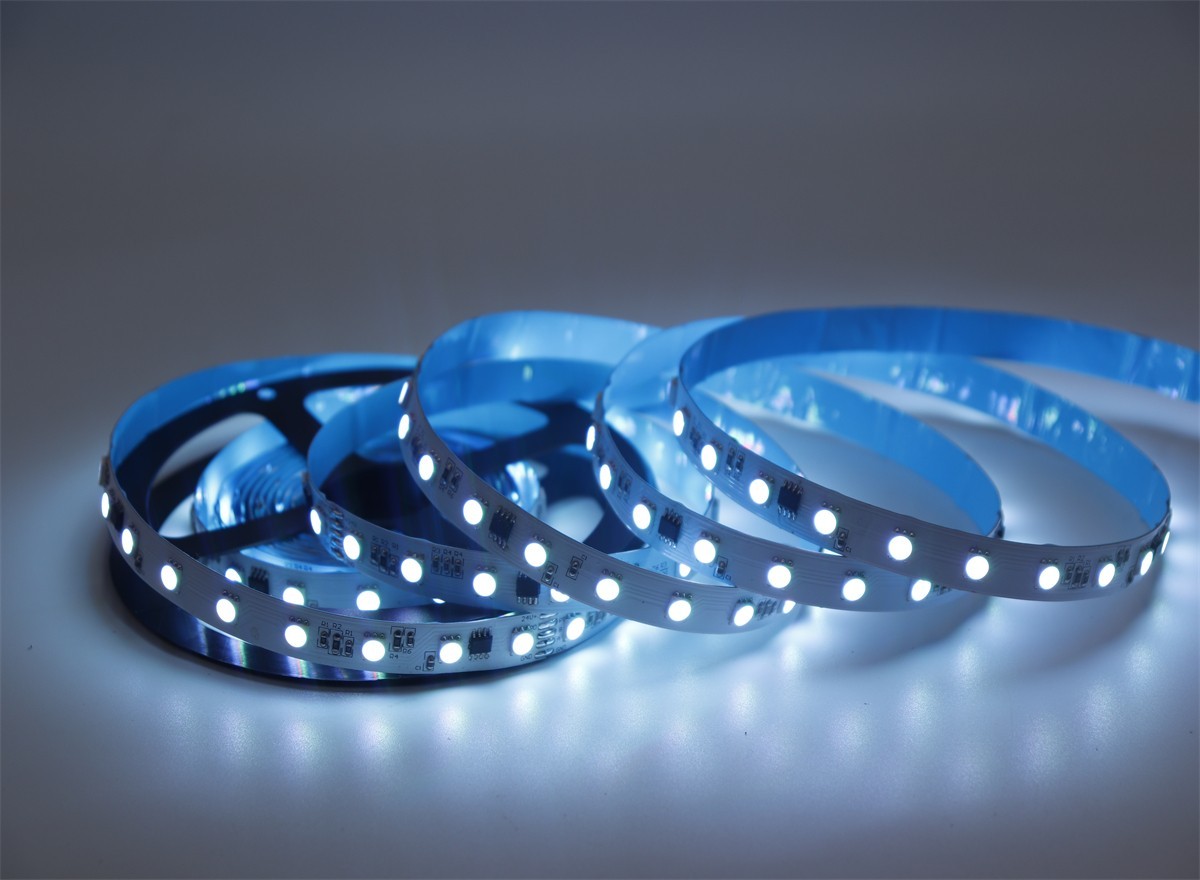

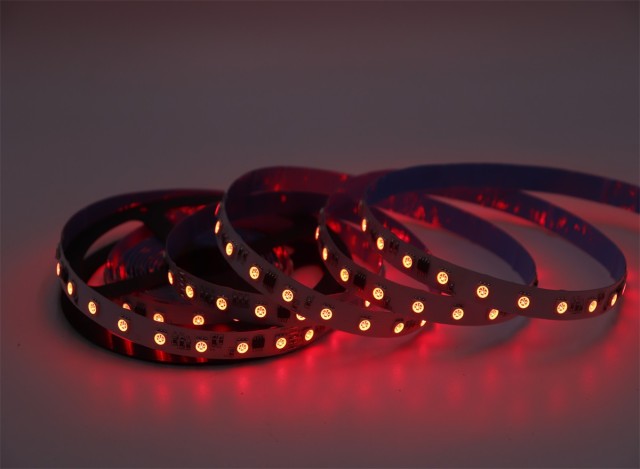

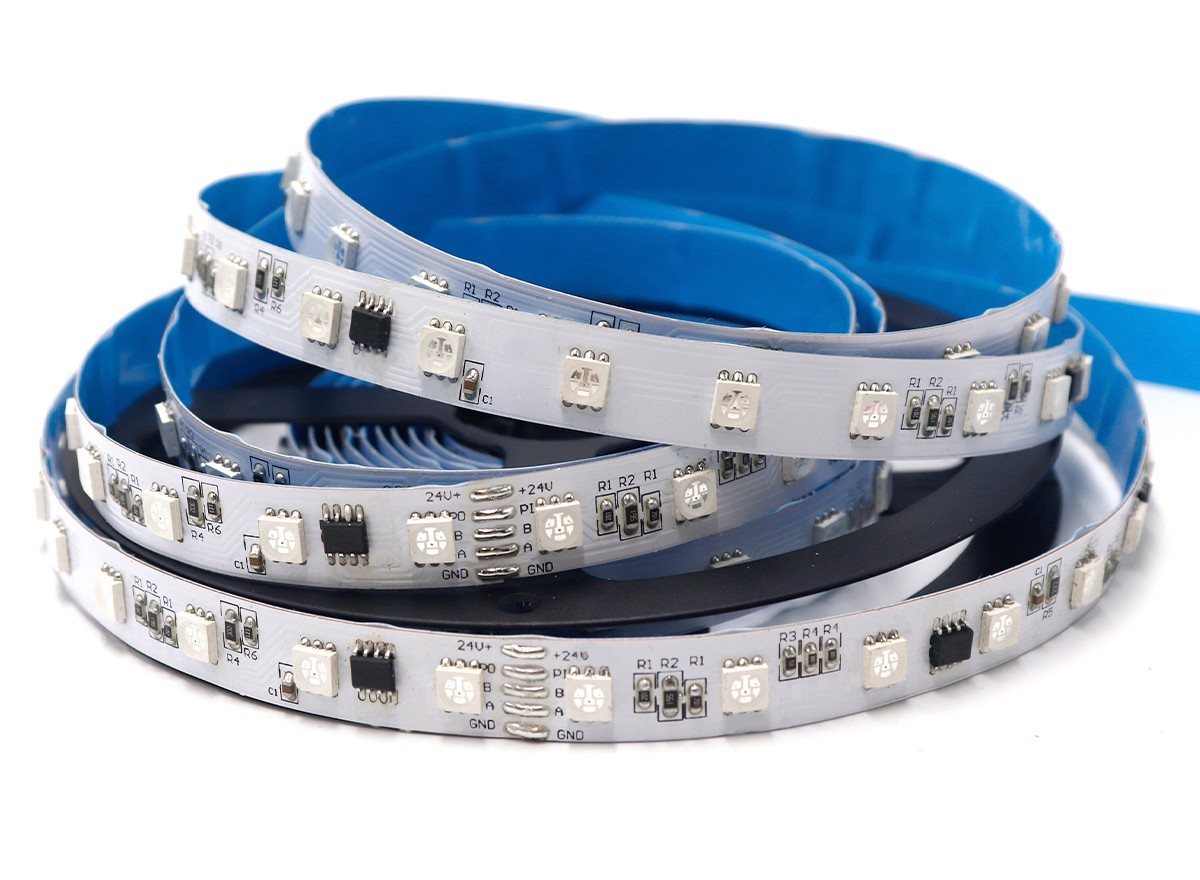

The UCS512C0 5050 RGB LED Strip integrates 60 high-brightness 5050 RGB LEDs per meter with 10 DMX512-addressable pixels on DC24V, built on a 12mm 2oz FPC. Each UCS512C0 node drives 6 LEDs, enabling chase, flow, gradient, strobe and full dream-color effects under DMX consoles, Art-Net and MADRIX. Differential A/B DMX signal supports breakpoint/resume-style parallel transmission—one node issue does not kill the whole run. Cuttable every 100mm, ideal for stages, KTV, bars, building facades, retail displays and signage.
DMX512 Pixel Control: 10 pixels/m, 1 UCS512C0 node controls 6 LEDs for pro chase/flow/gradient effects.
Bright 5050 RGB: 60 tri-chip LEDs/m deliver vivid full-color output with 120° beam angle.
24V + 12mm 2oz FPC: Lower voltage drop than 12V; thicker copper PCB improves heat dissipation and long-run stability.
Parallel DMX Signal: A/B differential bus with address writing; suitable for MADRIX / Art-Net / DMX consoles.
Cut Every 100mm: 6 LEDs/pixel, easy customization for letters, profiles, stages and architectural lines.
|
Item |
Specification |
|---|---|
|
Model |
UCS512C0-5050RGB-60D-24V-12mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
60 LEDs/m |
|
Pixel / Node |
10 pixels/m, 1 UCS512C0 controls 6 LEDs |
|
IC Type |
UCS512C0, DMX512 differential parallel decode/driver IC |
|
Color |
Full RGB |
|
Input Voltage |
DC 24V |
|
Power |
14.4 W/m |
|
Grayscale |
256 levels/channel |
|
Channels |
30 DMX channels per meter (10 pixels × 3) |
|
Cutting Unit |
100 mm / 6 LEDs |
|
PCB Width |
12 mm |
|
PCB |
2 oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |
24V+, GND, A (DMX+), B (DMX-), PI (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (DMX address writing required) |
|
Data Rate |
~800 kbps (IC/factory dependent) |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Working Temp. |
-25°C to +80°C |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
