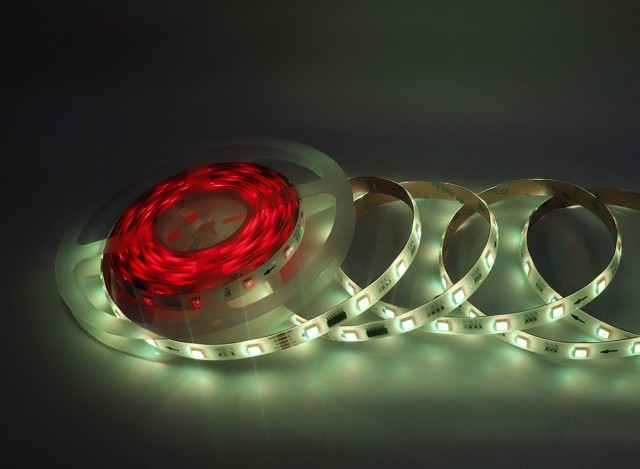

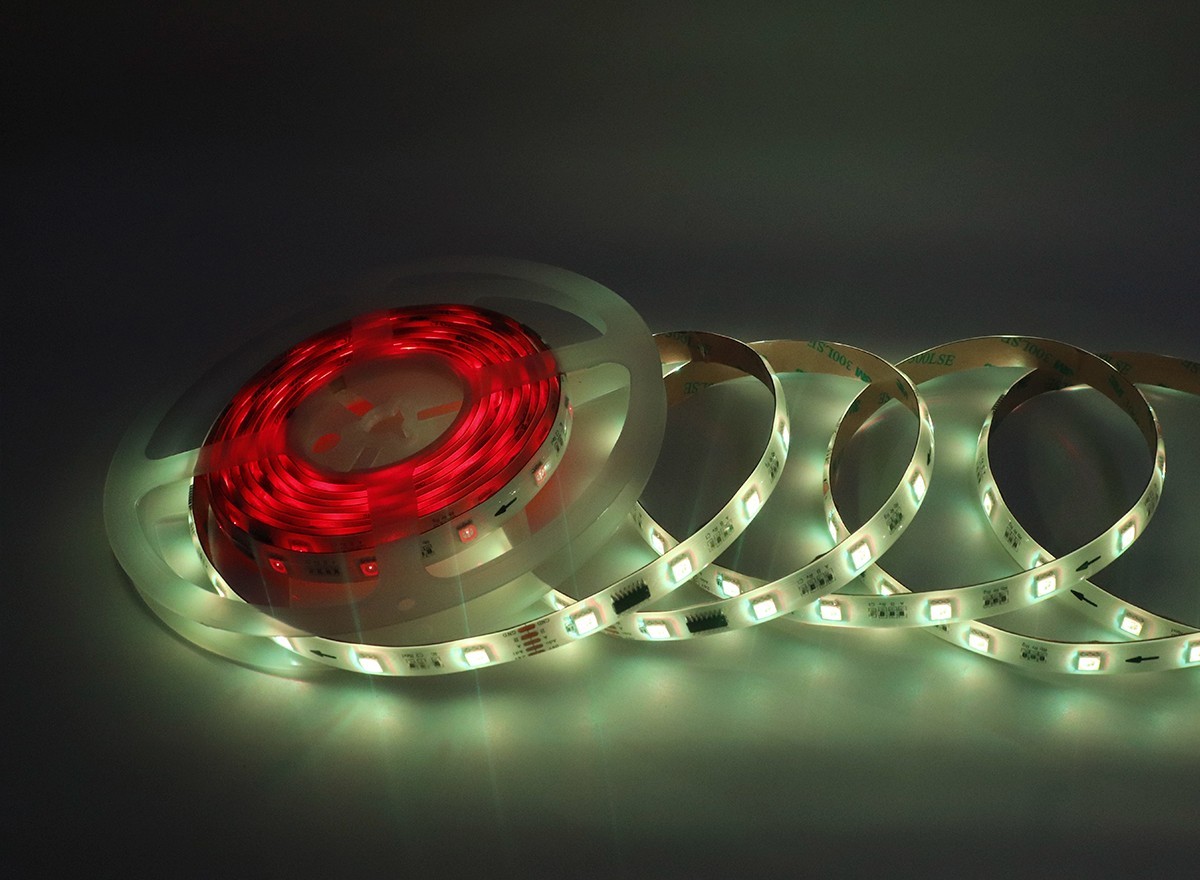

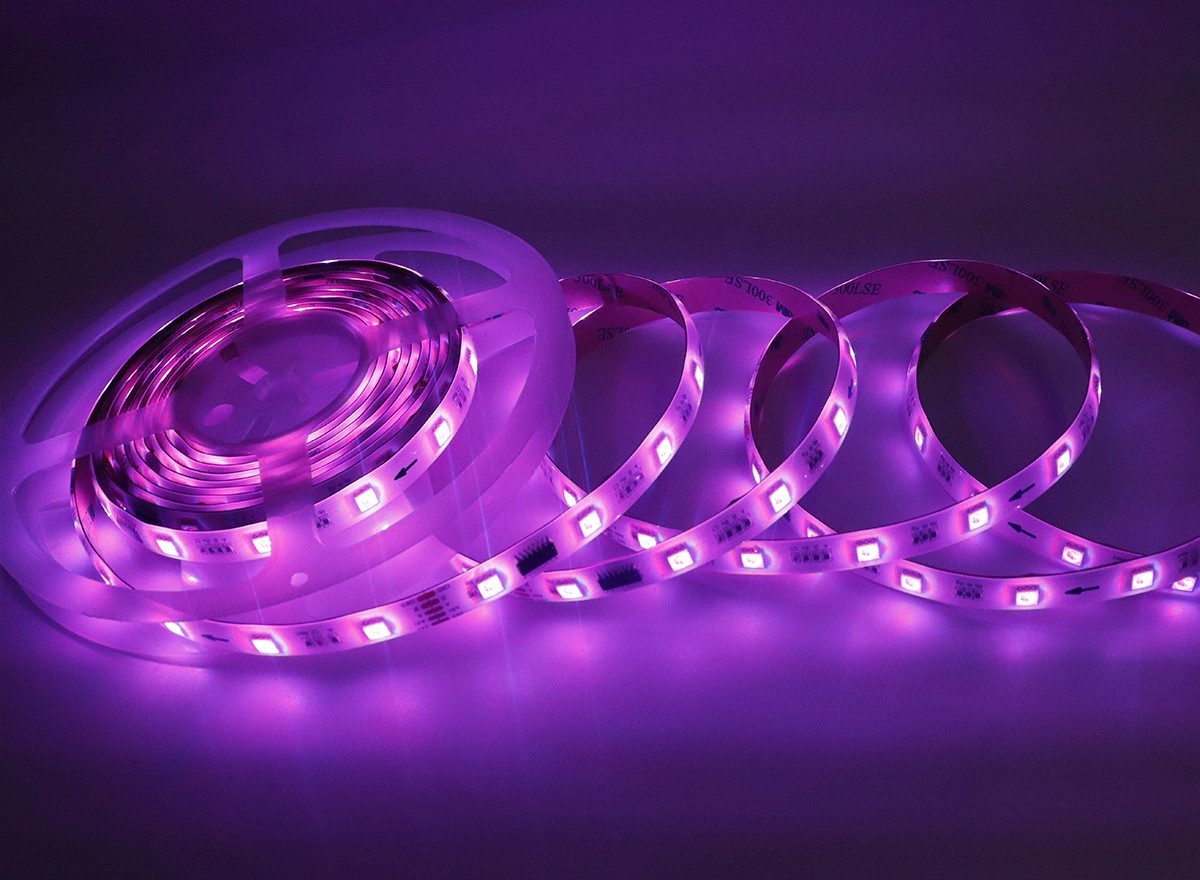

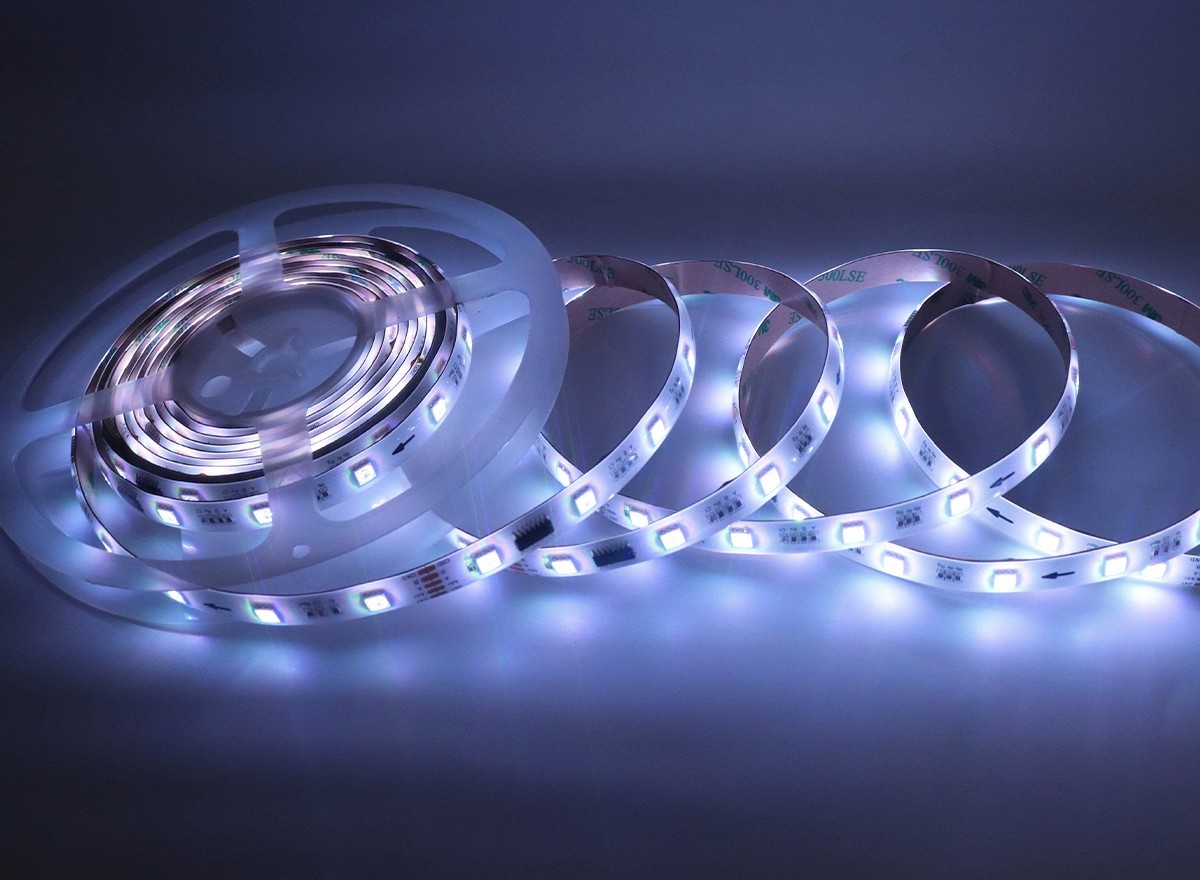

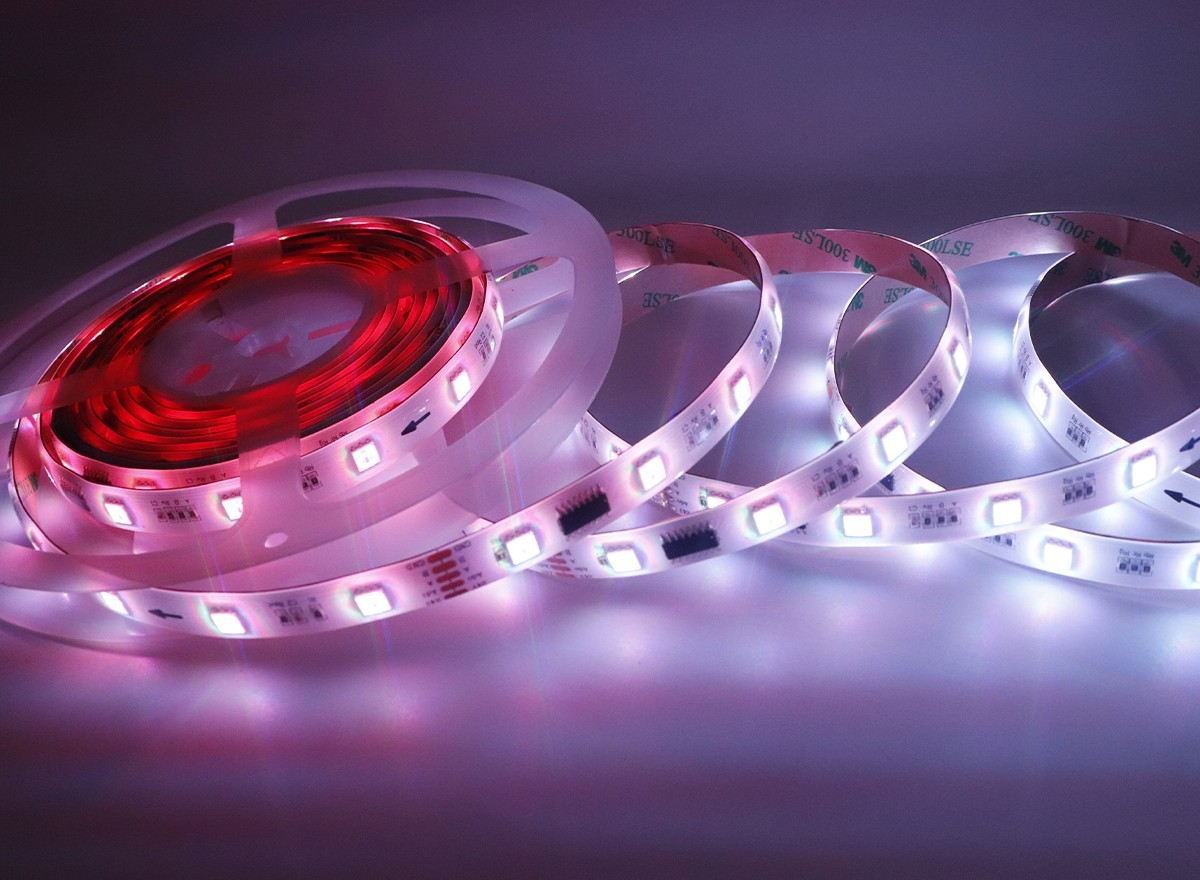

The UCS512C3 5050 RGB LED Strip integrates 60 high-brightness 5050 RGB LEDs per meter with 10 DMX512-addressable pixels on DC24V, built on a 12mm flexible PCB. Each UCS512C3 IC drives 6 LEDs, enabling chase, flow, gradient and full dream-color effects under DMX consoles, Art-Net and MADRIX. Parallel A/B DMX signal provides breakpoint resume—if one IC fails, the rest keep running. Cuttable every 100mm, low-heat and installer-friendly, ideal for stages, bars, building outlines, retail displays and signage.
DMX512 Pixel Control: UCS512C3 gives 10 addressable pixels/m for pro chase/flow/gradient effects.
Bright 5050 RGB: 60 tri-chip LEDs/m deliver vivid, saturated full-color output with 120° beam.
24V + 12mm PCB: DC24V reduces current/voltage drop; 12mm 2oz FPC improves heat dissipation and stability.
Breakpoint Resume: Differential A/B parallel DMX signal; one pixel fault does not stop the whole run.

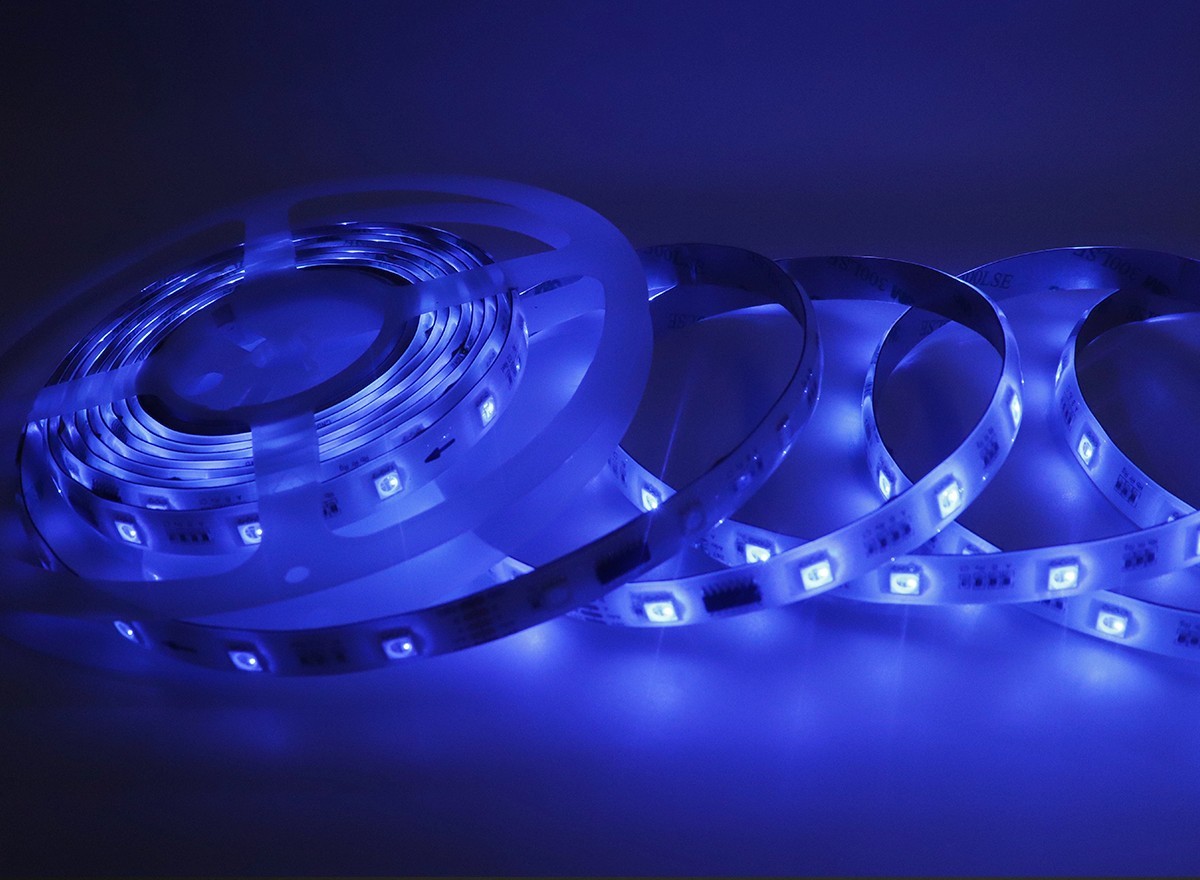

Cut Every 100mm: 6 LEDs/pixel, easy customization for letters, profiles, stages and architectural accents.
|
Item |
Specification |
|---|---|
|
Model |
UCS512C3-5050RGB-60D-24V-12mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
60 LEDs/m |
|
Pixel / IC |
10 pixels/m, 1 UCS512C3 controls 6 LEDs |
|
IC Type |
UCS512C3, external IC, DMX512 protocol, 3-channel |
|
Color |
Full RGB |
|
Input Voltage |
DC 24V |
|
Power |
14.4 W/m |
|
Grayscale |
256 levels/channel |
|
Cutting Unit |
100 mm / 6 LEDs |
|
PCB Width |
12 mm |
|
PCB |
2oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |
24V+, GND, A (DMX+), B (DMX-), PI (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (address writing required) |
|
PWM / Data |
~3.6kHz PWM, DMX512(1990) compatible |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
