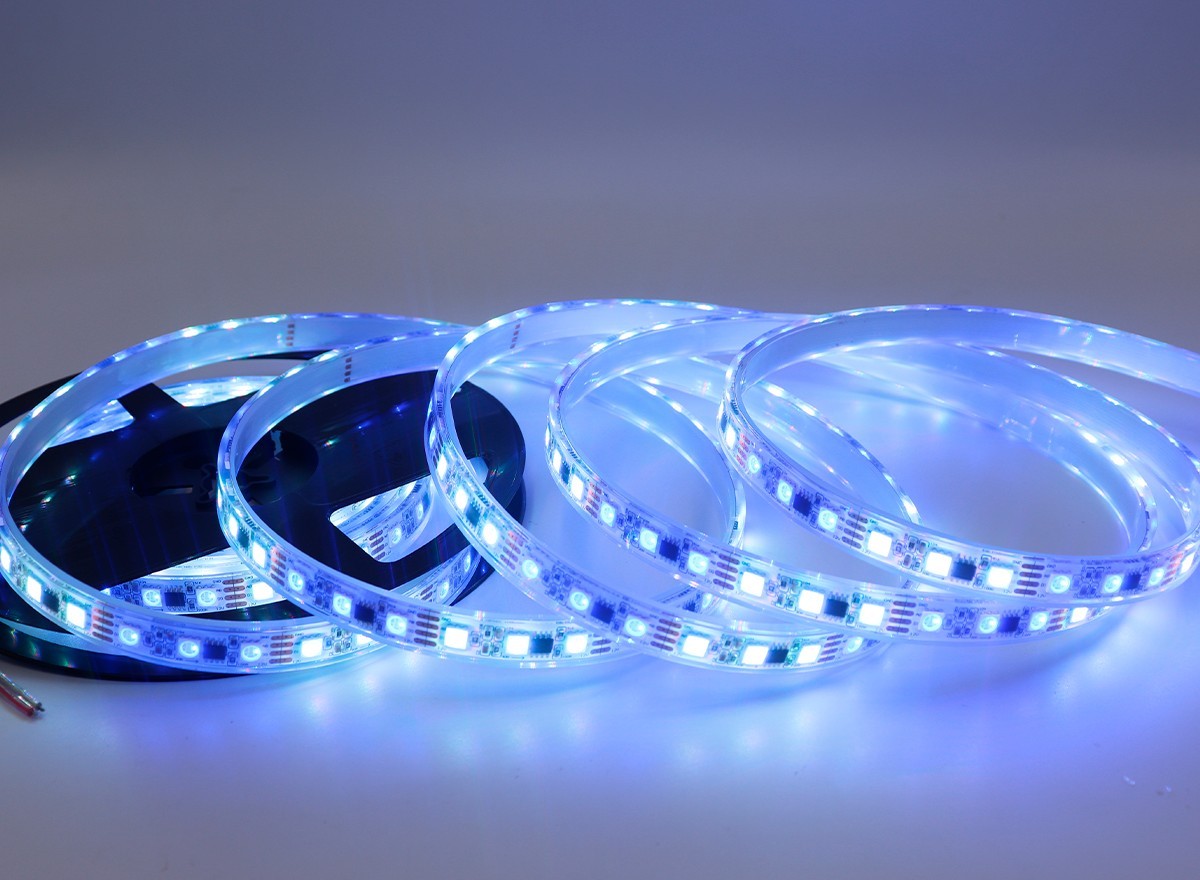

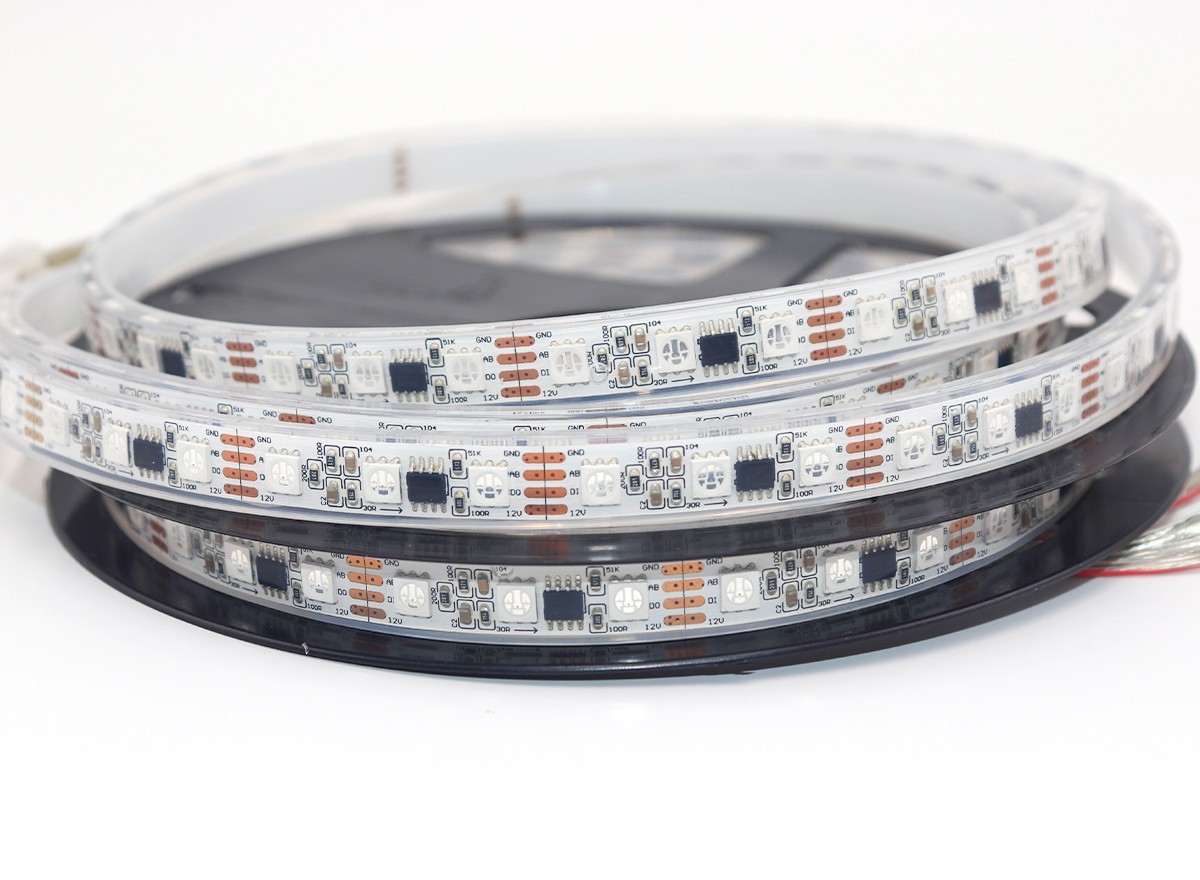

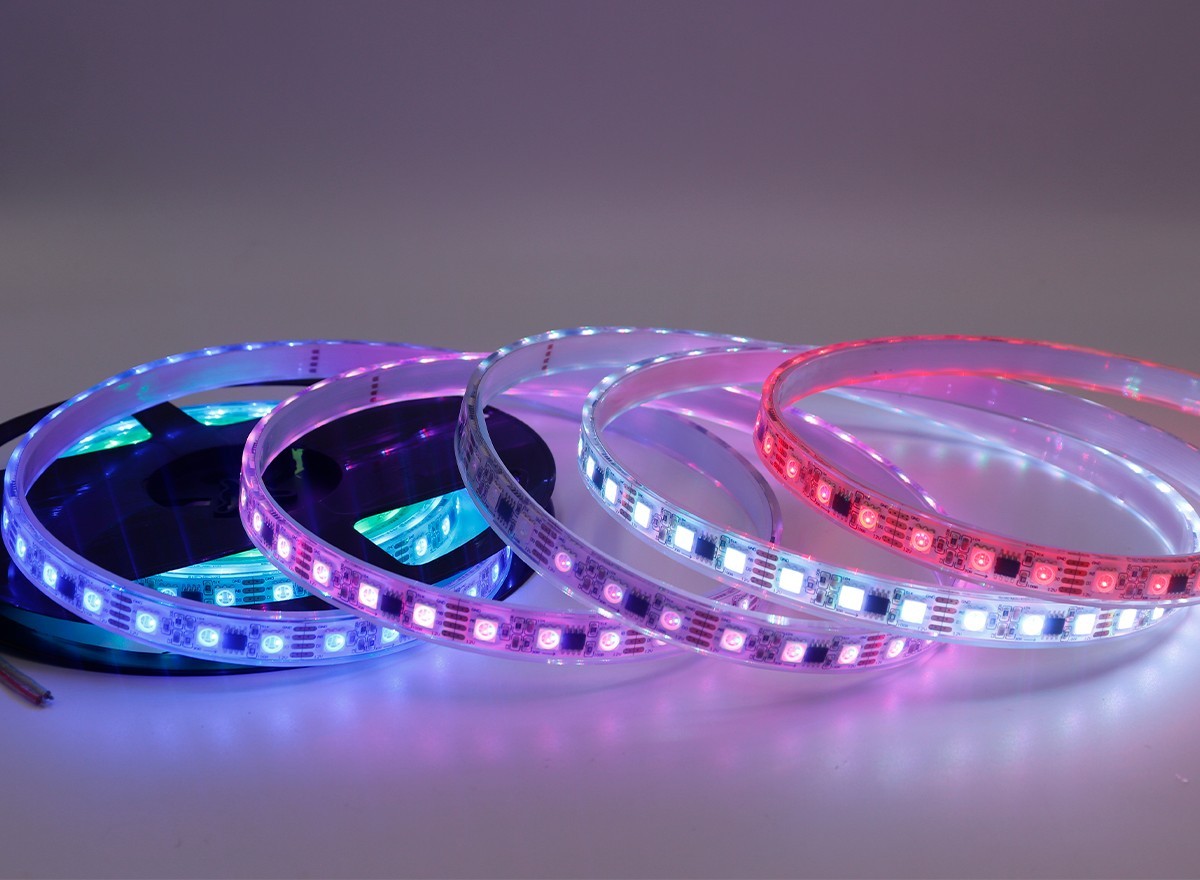

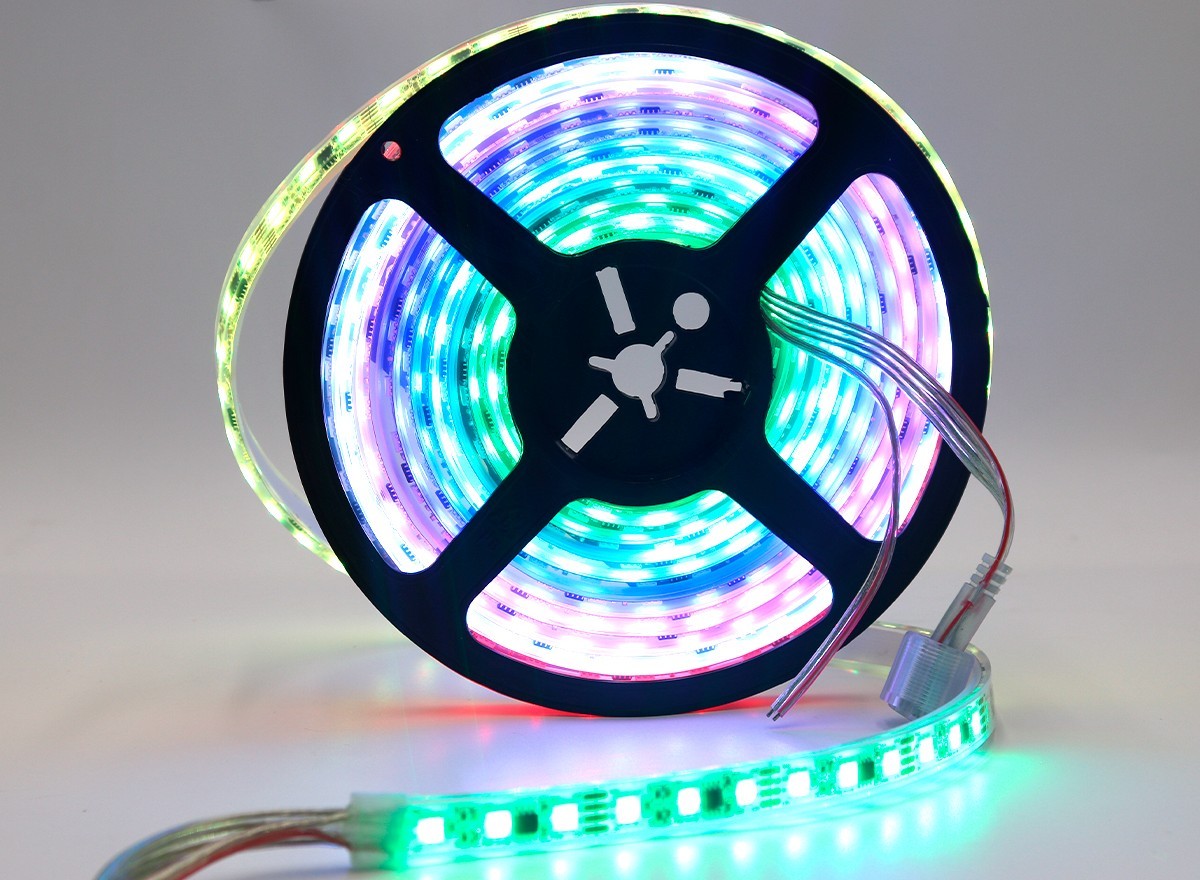

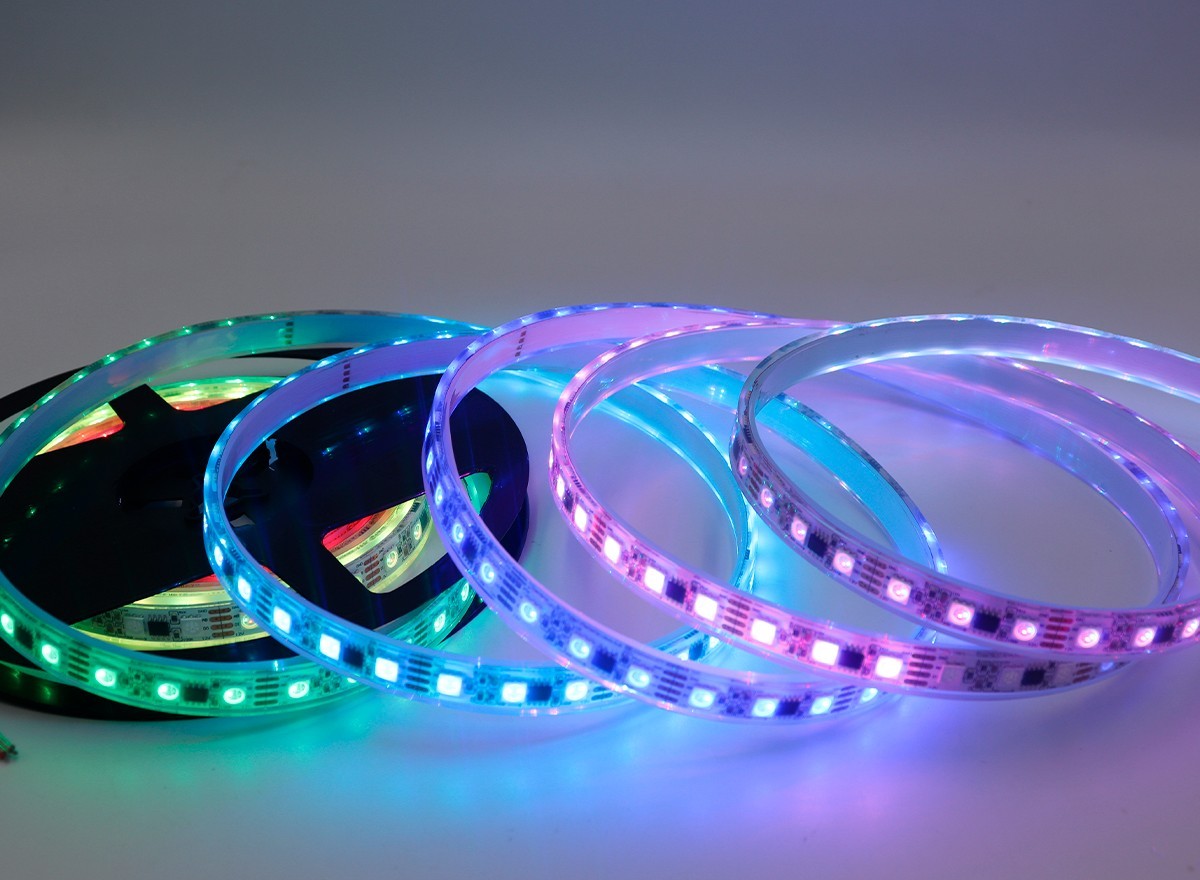

The UCS512B3 5050 RGB LED Strip delivers 72 high-brightness 5050 RGB LEDs per meter with 24 DMX512-addressable pixels on DC12V, built on a slim 10mm 2oz FPC. Each UCS512B3 IC controls 3 LEDs, giving fine 41.67mm pixel pitch for smooth chase, flow, gradient and video-style effects. Parallel DMX A/B signal provides breakpoint resume—if one IC fails, the rest keep running. Ideal for stage props, retail displays, signage, gaming setups and architectural accents under DMX consoles, Art-Net and MADRIX.
Fine 24 Pixel/m: 1 IC per 3 LEDs (41.67mm cut) enables high-resolution animations and smooth gradients.
Bright 5050 RGB: 72 tri-chip LEDs/m provide vivid full-color output with 120° beam angle.
12V Safe System: DC12V low-voltage operation, suitable for close-view and small fixtures.
10mm 2oz FPC: Narrow PCB with thick copper for better current carrying and heat dissipation.
DMX512 Breakpoint Resume: Differential A/B parallel signal; one pixel fault does not stop the whole strip.
|
Item |
Specification |
|---|---|
|
Model |
UCS512B3-5050RGB-72D-12V-10mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
72 LEDs/m |
|
Pixel / IC |
24 pixels/m, 1 UCS512B3 controls 3 LEDs |
|
IC Type |
UCS512B3, DMX512 protocol, 3-channel |
|
Color |
Full RGB |
|
Input Voltage |
DC 12V |
|
Power |
~17.2 W/m |
|
Grayscale |
256 levels/channel |
|
Cutting Unit |
41.67 mm / 3 LEDs |
|
PCB Width |
10 mm |
|
PCB |
2 oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |
12V+, GND, A (DMX+), B (DMX-), PI (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (address writing required) |
|
Data Rate |
~800 kbps (factory dependent) |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Working Temp. |
-25°C to +80°C |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
