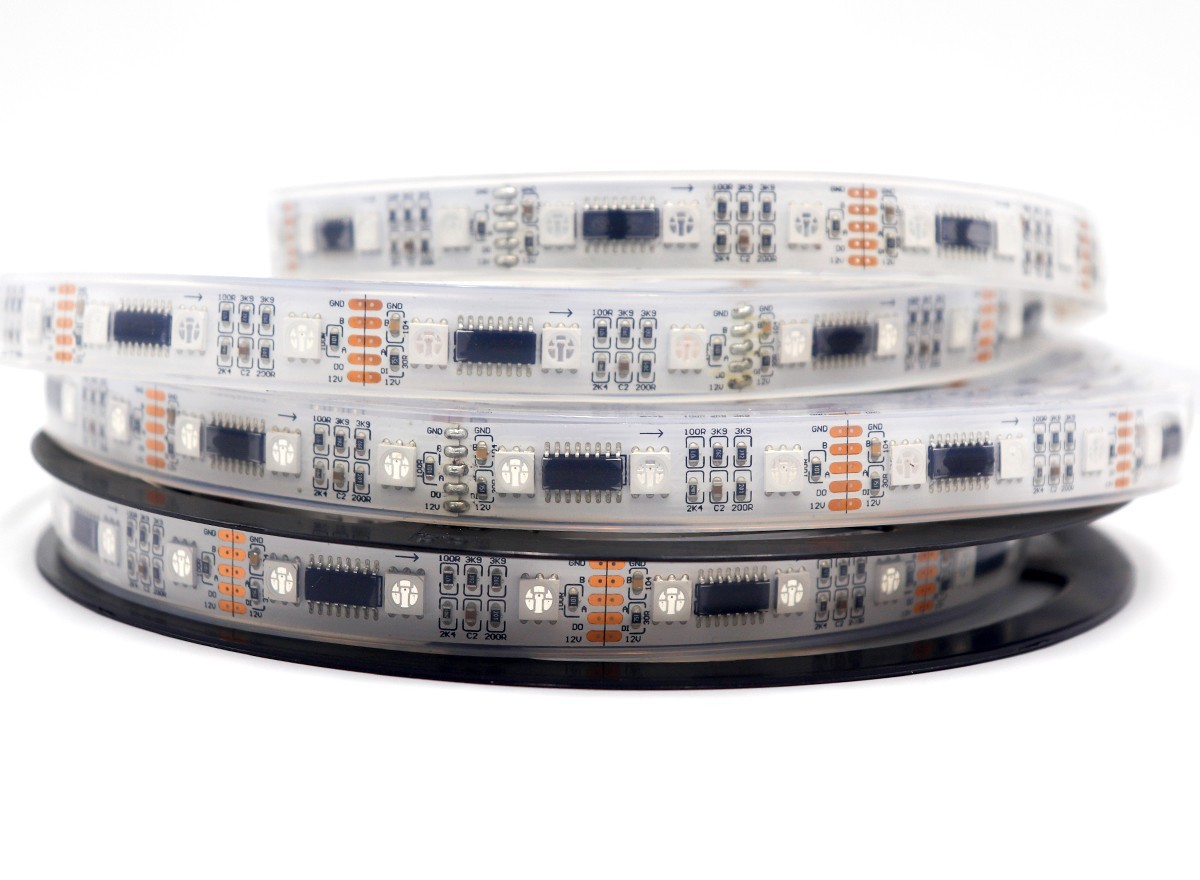

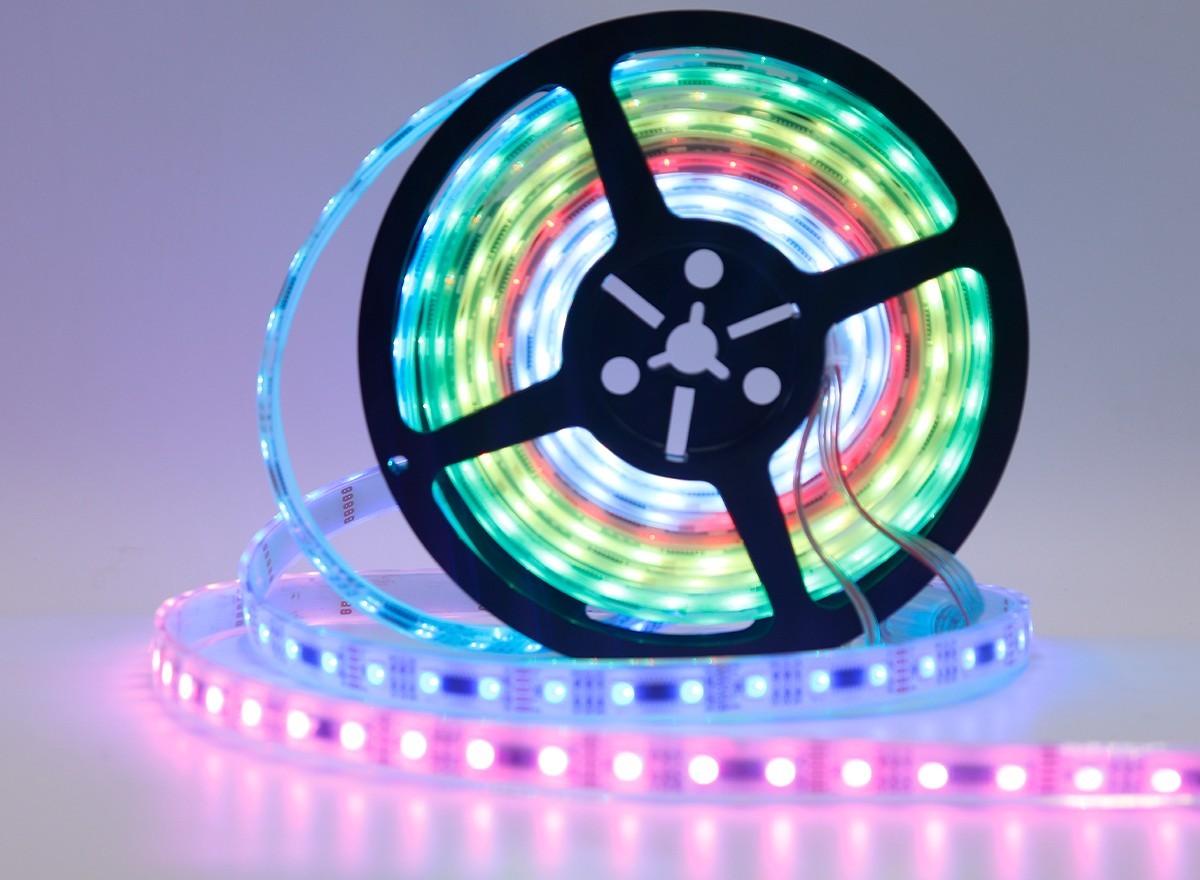

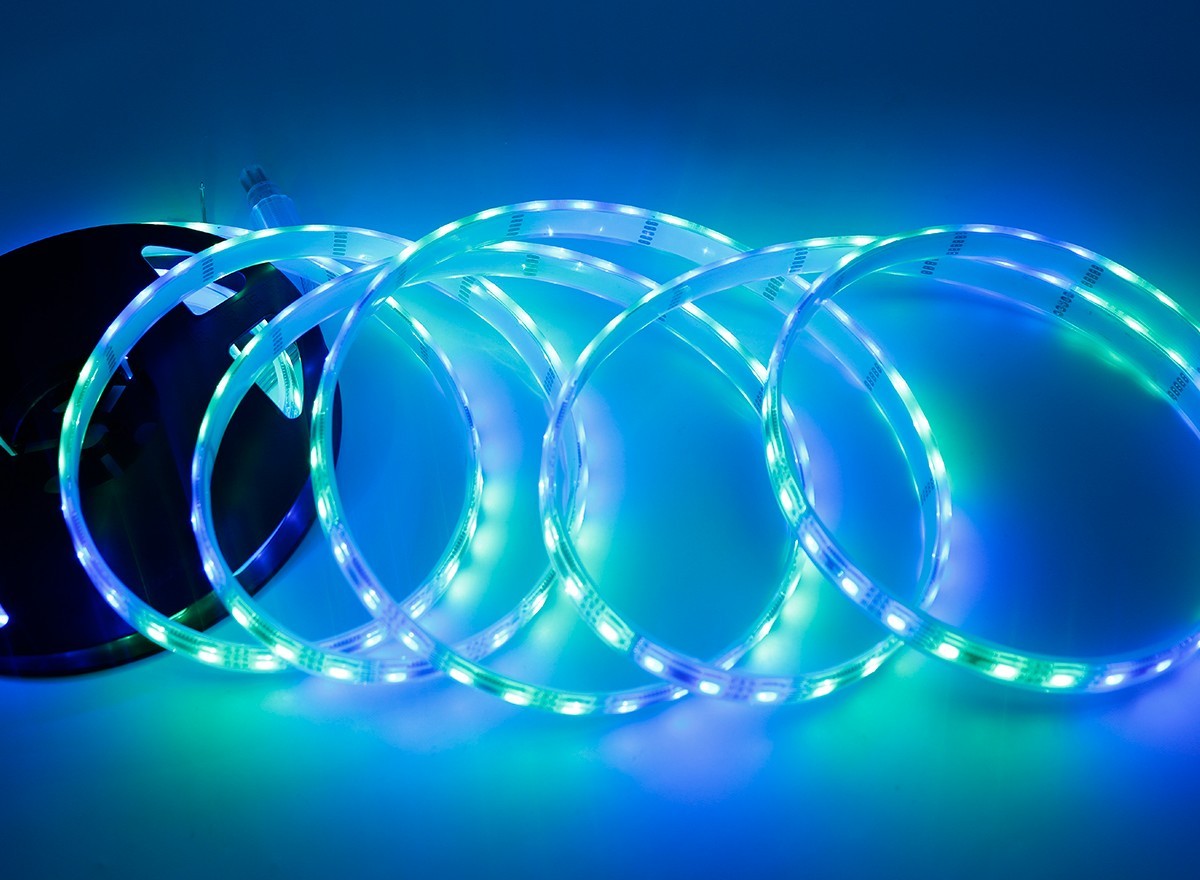

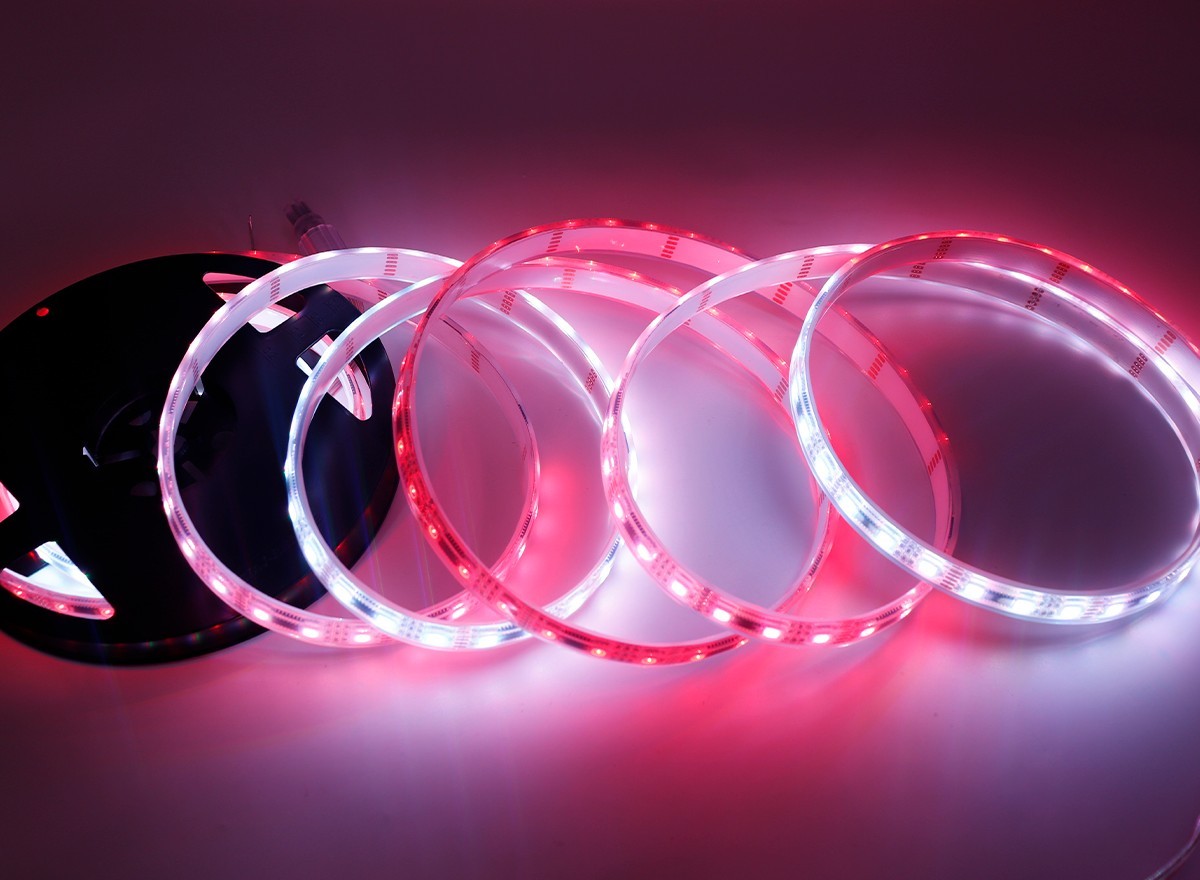

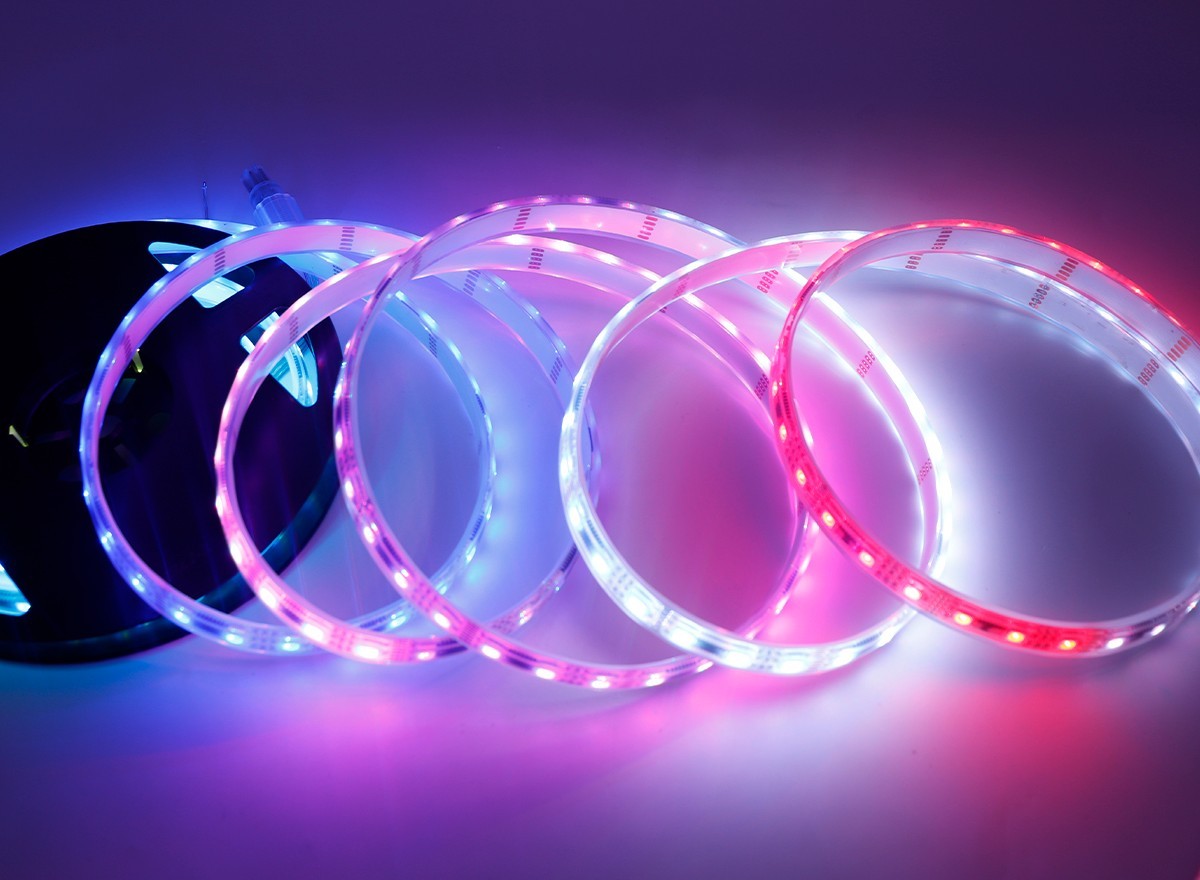

The UCS512C4 5050 RGB LED Strip packs 60 high-brightness 5050 RGB LEDs per meter into 20 DMX512-addressable pixels on DC12V, with a 12mm wide flexible PCB. Each UCS512C4 IC controls just 3 LEDs per pixel, delivering ultra-fine resolution for smooth chase, flow, gradient and video effects. Parallel DMX signal ensures continued operation even if one IC fails. Cuttable every 50mm for custom lengths, compatible with DMX consoles, Art-Net and MADRIX—perfect for stages, retail displays, channel letters, gaming setups and architectural accents.
Ultra-Fine 20 Pixel/m: 1 IC per 3 LEDs (50mm cut) gives high-resolution effects unmatched by 6-LED-per-pixel strips.
Bright 5050 RGB: 60 tri-chip LEDs/m deliver vivid, saturated colors with excellent uniformity.
12V Low-Voltage Safe: DC12V operation with lower heat and safer handling for close-view installations.
12mm Wide PCB: Extra copper width improves current carrying capacity and heat dissipation at high density.
DMX512 Breakpoint Resume: Differential A/B parallel signal; one pixel failure does not interrupt the rest of the strip.
|
Item |
Specification |
|---|---|
|
Model |
UCS512C4-5050RGB-60D-12V-12mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
60 LEDs/m |
|
Pixel / IC |
20 pixels/m, 1 UCS512C4 controls 3 LEDs |
|
IC Type |
UCS512C4, external IC, DMX512 protocol, 3-channel |
|
Color |
Full RGB |
|
Input Voltage |
DC 12V |
|
Power |
14.4 W/m |
|
Grayscale |
256 levels/channel (16-bit optional by controller) |
|
Cutting Unit |
50 mm / 3 LEDs |
|
PCB Width |
12 mm |
|
PCB |
2oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |
12V+, GND, A, B, PI (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (address writing required) |
|
Refresh Rate |
≥1000 Hz, camera-friendly, no flicker |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
