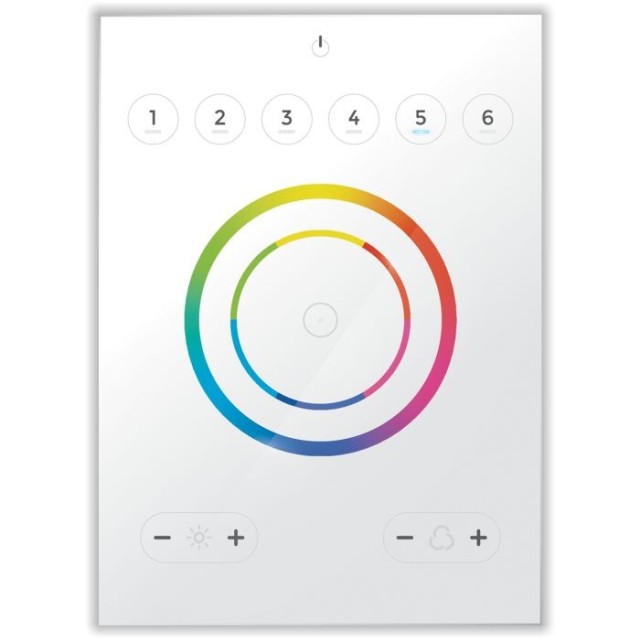

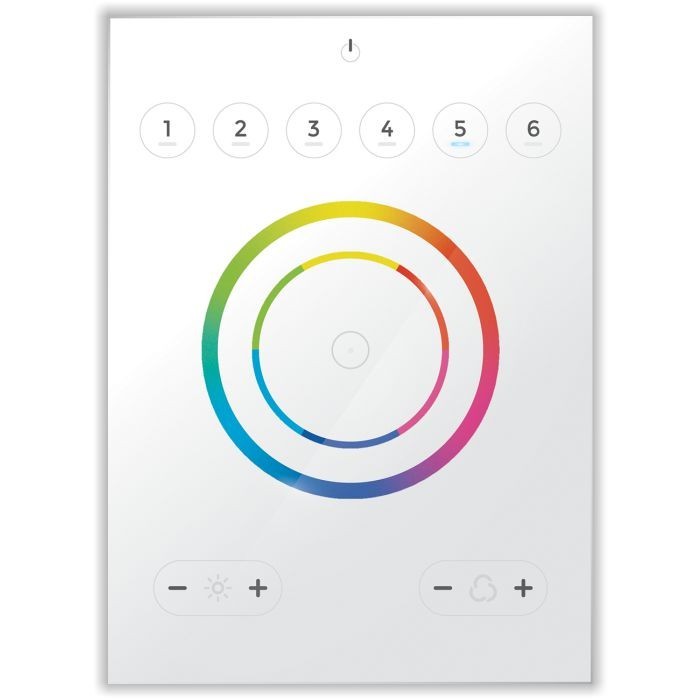

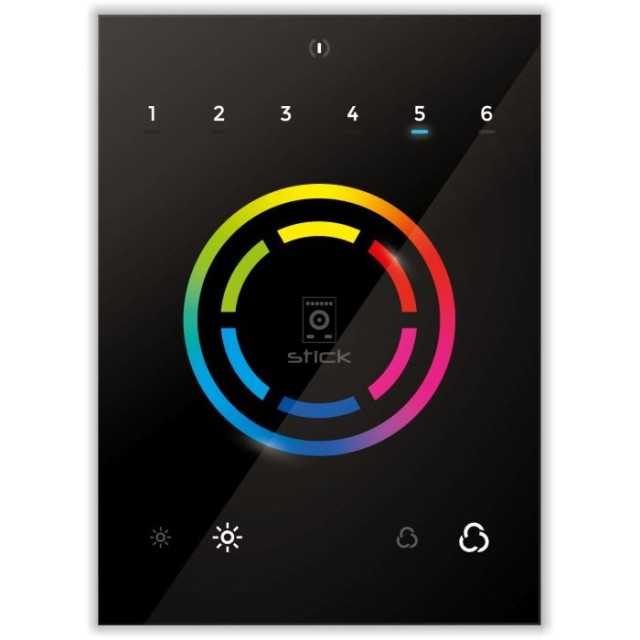

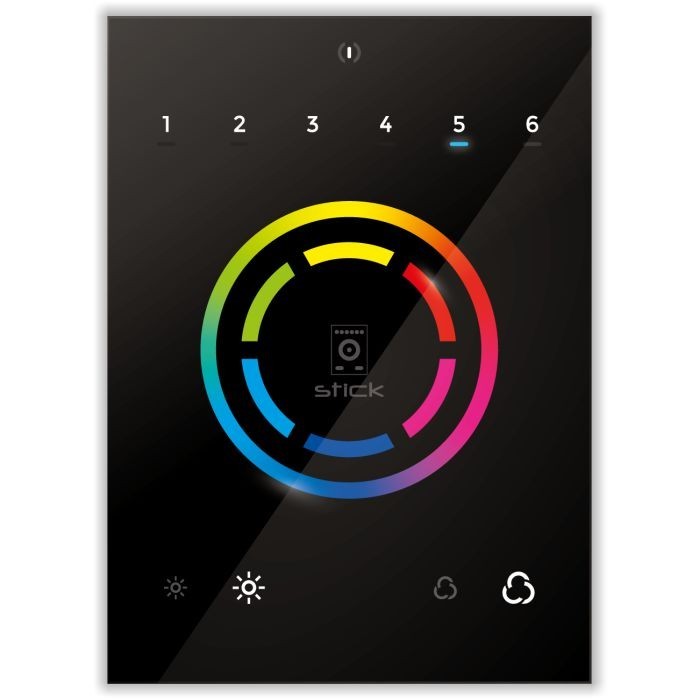

The glass faceplate mounts in a standard 86mm box with 6 scene keys to switch brightness, color, and looks in seconds. Control via WiFi APP, schedule, RF remote, sensors, or 8 dry contacts. Available in black or white, it pairs a premium look with a powerful core and mid-range price—professional DMX control that feels like interior design.
Premium Residential / Hospitality Panel: High-end glass touch faceplate in black or white—built for hotel lobbies, living rooms, and lobby lounges where aesthetics matter as much as control.

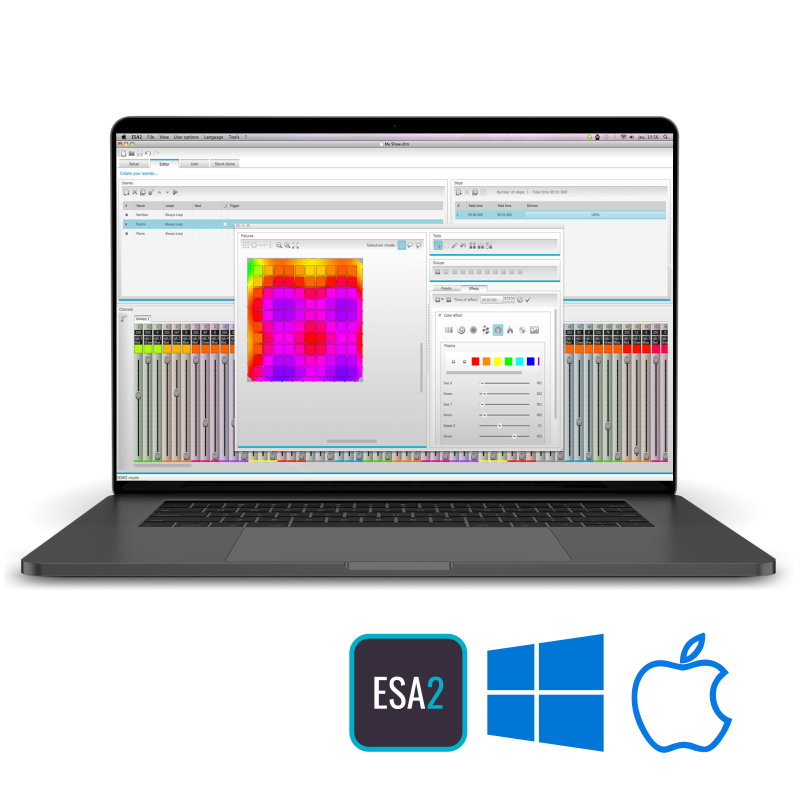

1024 DMX Channels Standalone: 2×512 channels programmed in ESA 2 (Win/Mac), stored offline with 36 scenes; no PC needed after download.
6-Key Fast Scene Control: Six touch keys switch scenes instantly; brightness and color adjusted directly on the panel for guest-friendly operation.
WiFi + Local Trigger Stack: iPhone/iPad/Android APP, scheduling, RF remote, sensors, and 8 dry contacts cover both smart-home and BMS integration.
Flexible Power & Mounting: 5–15V DC via USB / terminal / RJ45; standard 86mm back box keeps installation clean and architect-friendly.
STICK-CW4 WiFi / USB DMX Touch Panel
|
Category |
Specification |
|---|---|
|
Model |
STICK-CW4 |
|
Type |
Glass Touch Panel — WiFi / USB DMX Controller |
|
DMX Output |
2 × 512 channels (1024 DMX channels) |
|
Scenes |
36 Scenes |
|
Quick Keys |
6 Touch Scene Keys (brightness / color / scene switch) |
|
Control Inputs |
WiFi APP, Schedule, RF Remote, Sensors, 8 Dry Contacts |
|
Programming |
ESA 2 (Windows / Mac), Real-time Preview |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Remote Control |
iPad / Android APP |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain |
|
Power Supply |
5–15V DC (USB / Terminal / RJ45) |
|
Mounting |
Standard 86mm Wall Back Box |
|
Colors |
Black, White |
|
Positioning |
Hotel lobby, residence, lounge, high-end interior lighting |
