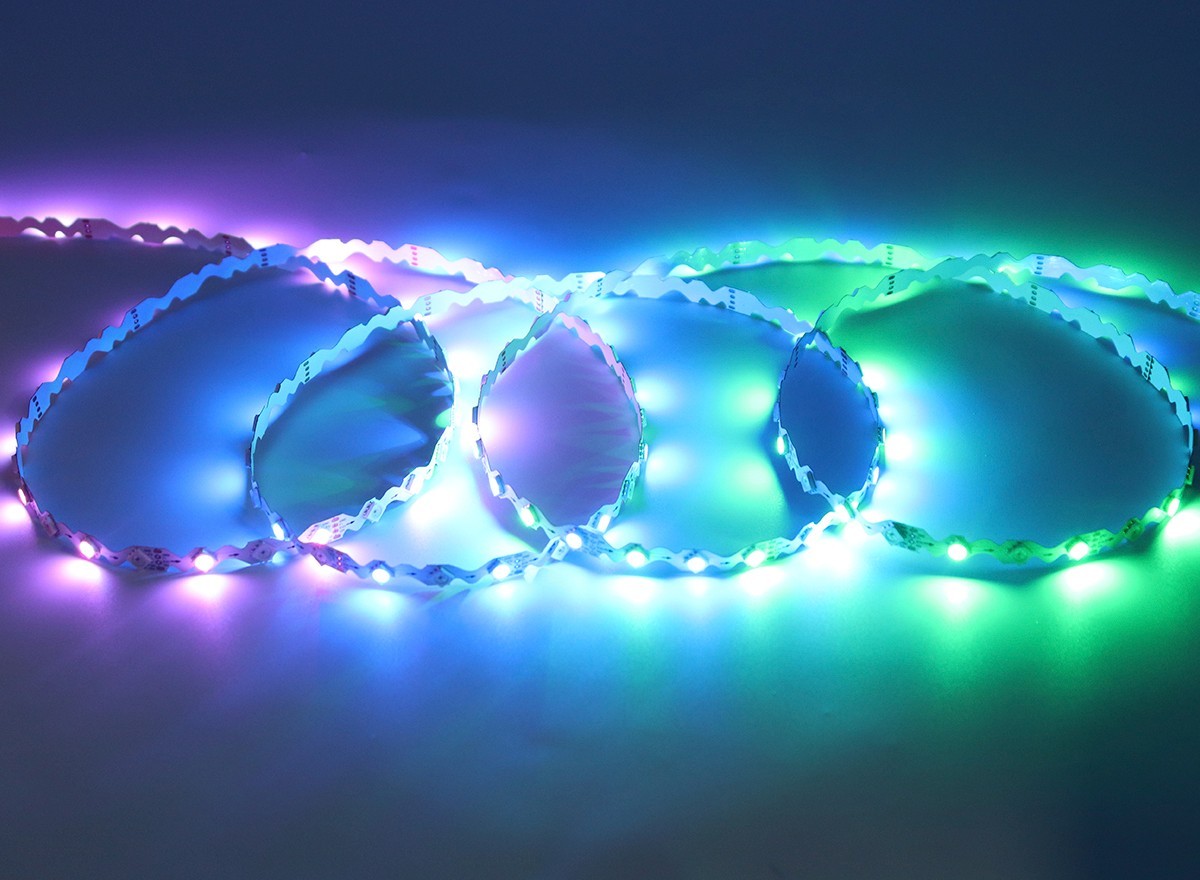

Flexible pixel lighting for curved surfaces. This DC12V S-shape SK6813 RGB strip has 60 SMD5050 RGB LEDs per meter, grouped into 20 addressable pixels (3 LEDs per pixel). The zigzag PCB bends around corners, letters, and arcs without folding the board. Built-in SK6813 ICs give single-pixel control plus dual-signal breakpoint-continue: if one pixel fails, the rest keep running. 12V power means lower current and less voltage drop than 5V strips, great for channel letters, KTV walls, DJ booths, and architectural contours. Drive it with SPI/DMX/Art-Net/K-1000C/Arduino/WLED controllers for chase, flow, gradient, and video-mapping effects.

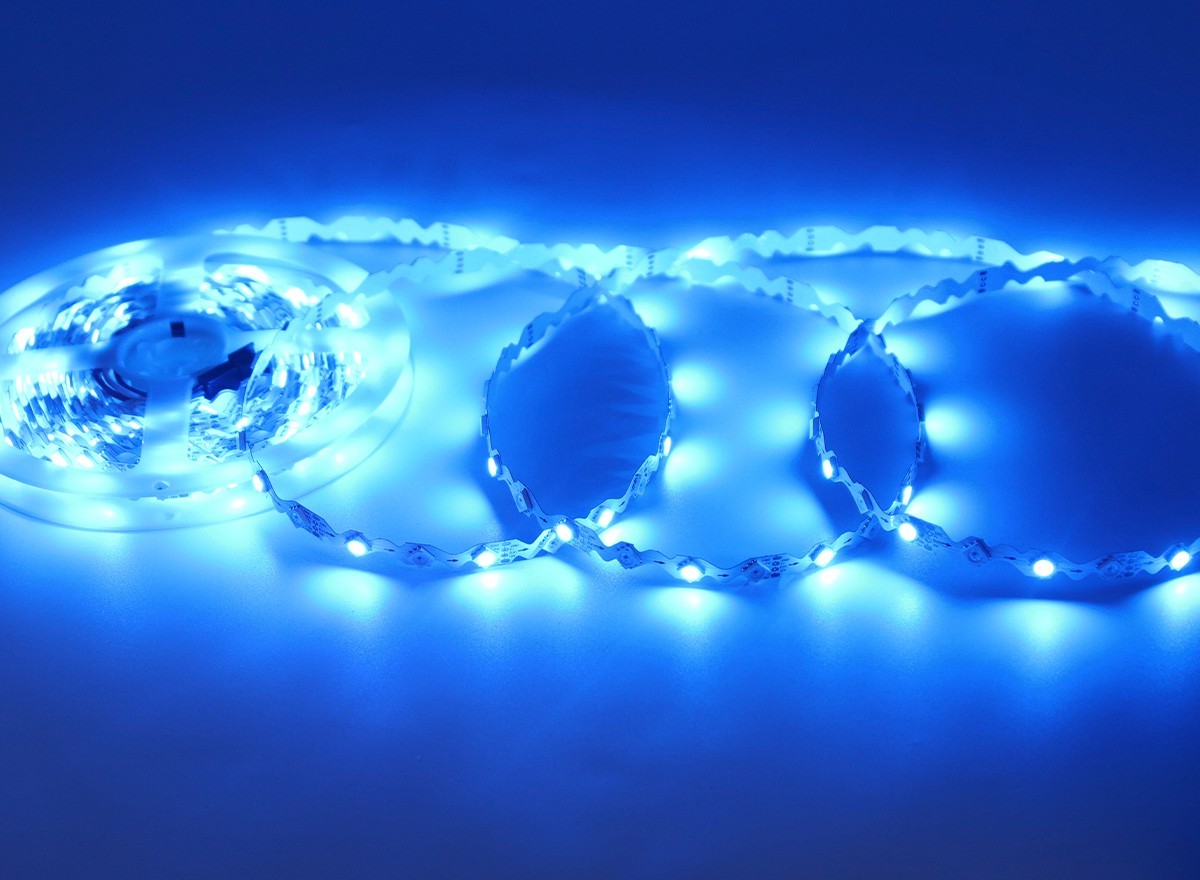

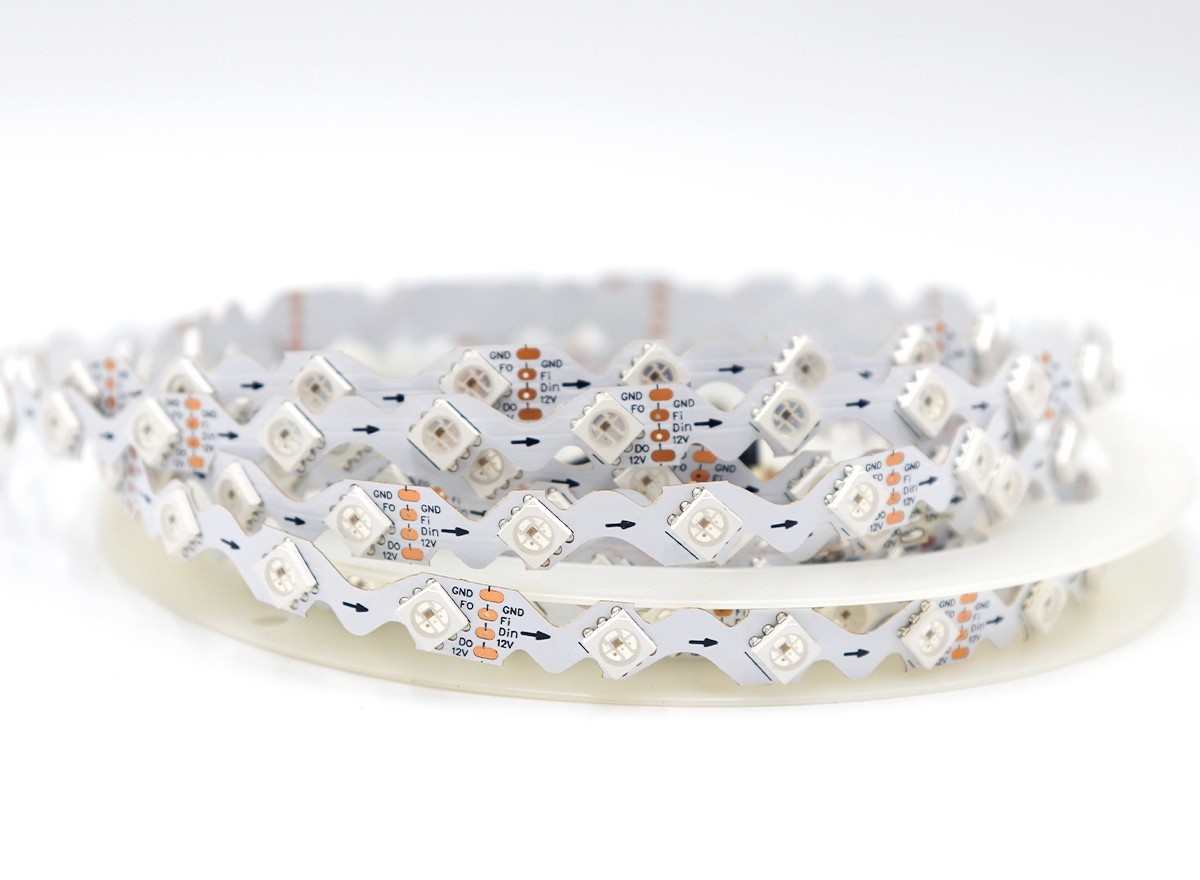

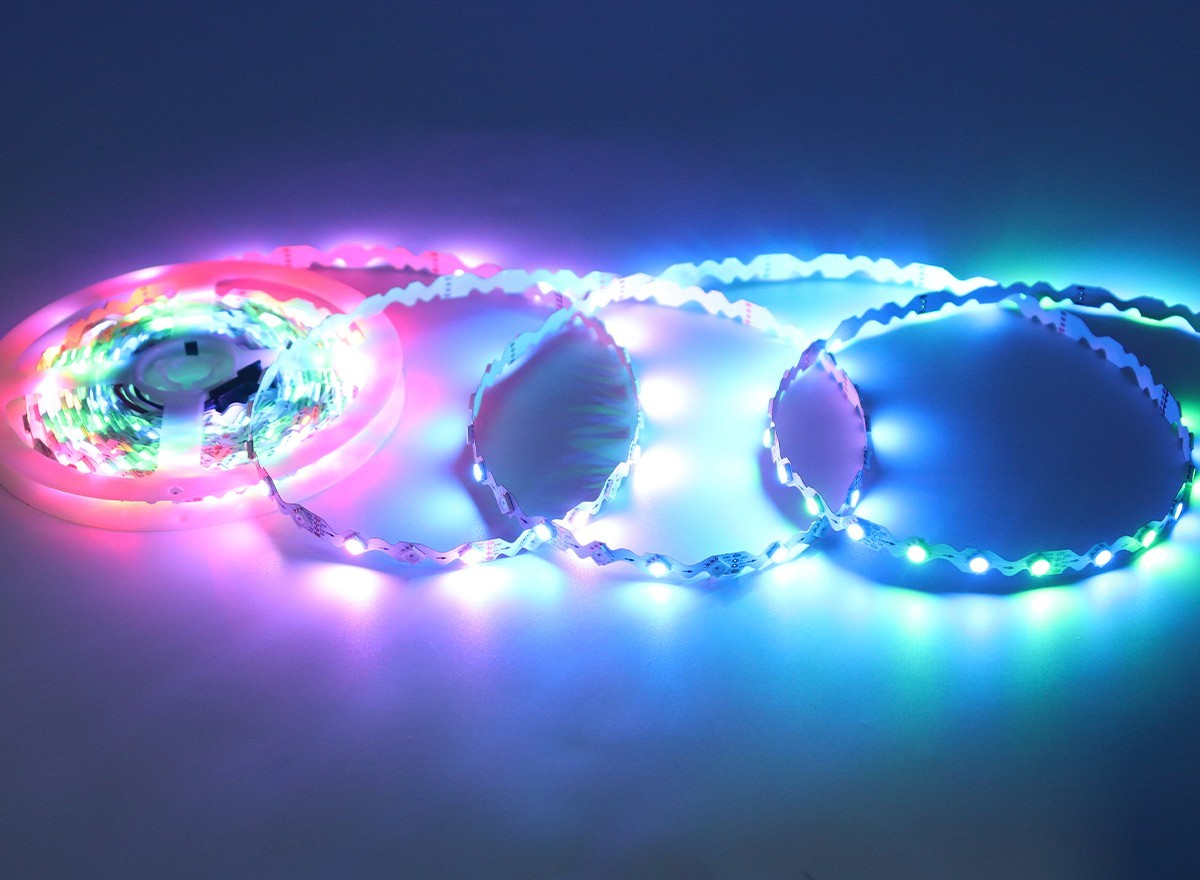

20 Pixels/m S-Shape PCB – Zigzag layout bends into curves/letters; 3 LEDs = 1 pixel, smooth commercial signage effects.
Built-in SK6813 @ 12V – WS2815-class 12V pixel IC; lower current, longer stable runs than 5V SK6812.

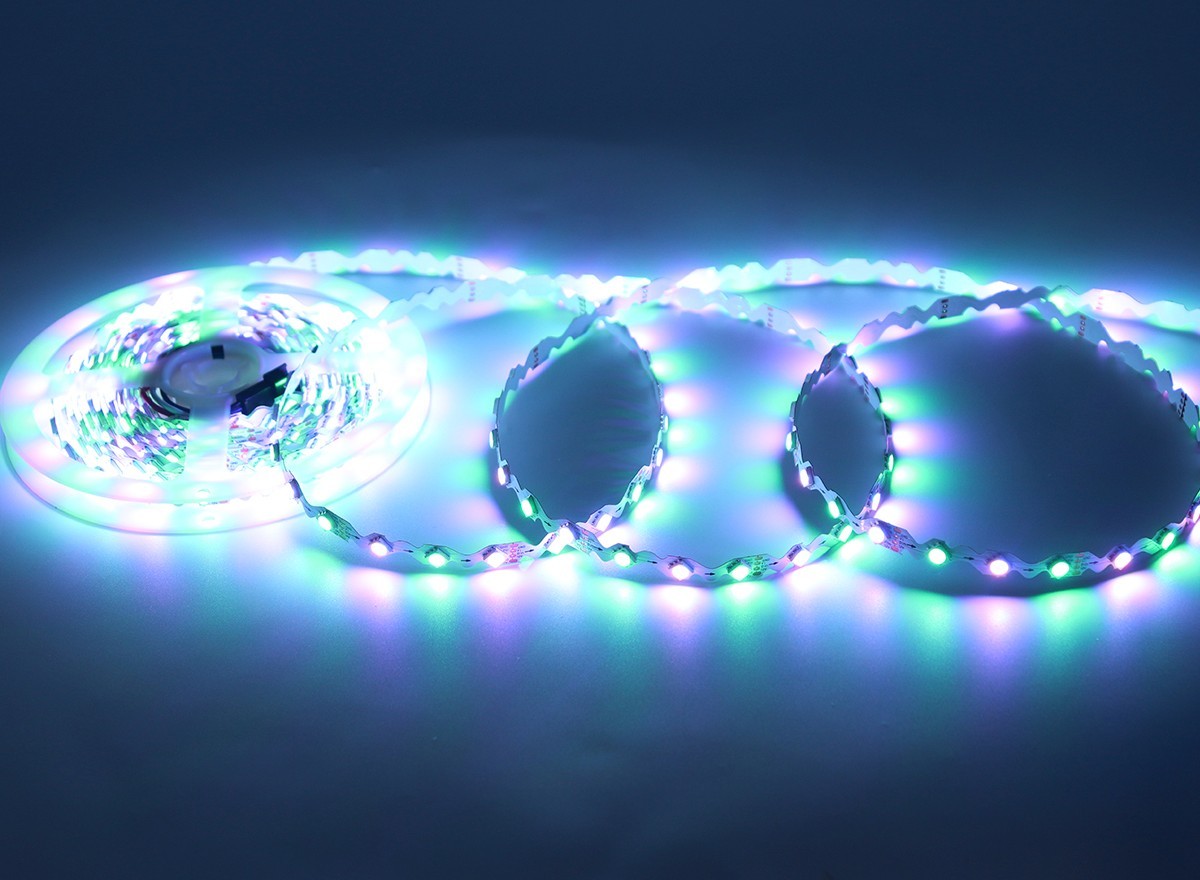

Breakpoint Continue / Dual Signal – Damaged pixel auto-bypassed; single fault won’t kill the tail of the strip.
5050 RGB High Brightness – 120° beam, 256 gray/chan, rainbow/chase/breathing/text effects.
Cut Every 3 LEDs – S-type FPC（常见 8/10/12mm 宽）, IP20/IP65/IP67/IP68 optional, works with SPI/DMX/Art-Net controllers.
|
Parameter |
Specification |
|---|---|
|
Product Type |
S-shape addressable RGB pixel LED strip |
|
LED Type |
SMD5050 RGB (built-in SK6813 IC) |
|
Voltage |
DC 12V (do not exceed 13V) |
|
LED Density |
60 LEDs/m |
|
Pixel Density |
20 pixels/m (3 LEDs = 1 pixel) |
|
IC Type |
SK6813 / SK6813-HV (12V) |
|
Signal |
Single-data + backup line, breakpoint continue |
|
Power |
9–14.4 W/m (model dependent) |
|
PCB |
S/ZigZag FPC, 8mm / 10mm / 12mm versions exist |
|
Cut Unit |
3 LEDs (50mm) |
|
Gray Scale |
256 / channel, 24-bit color |
|
Data Rate |
800 kbps, PWM ~1200Hz |
|
Beam Angle |
120° |
|
Roll |
5 m/reel |
|
Controllers |
SPI, DMX decoder, K-1000C, T-1000C, Arduino, ESP32/WLED, Art-Net/Madrix |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Life |
30,000–50,000 hrs |
