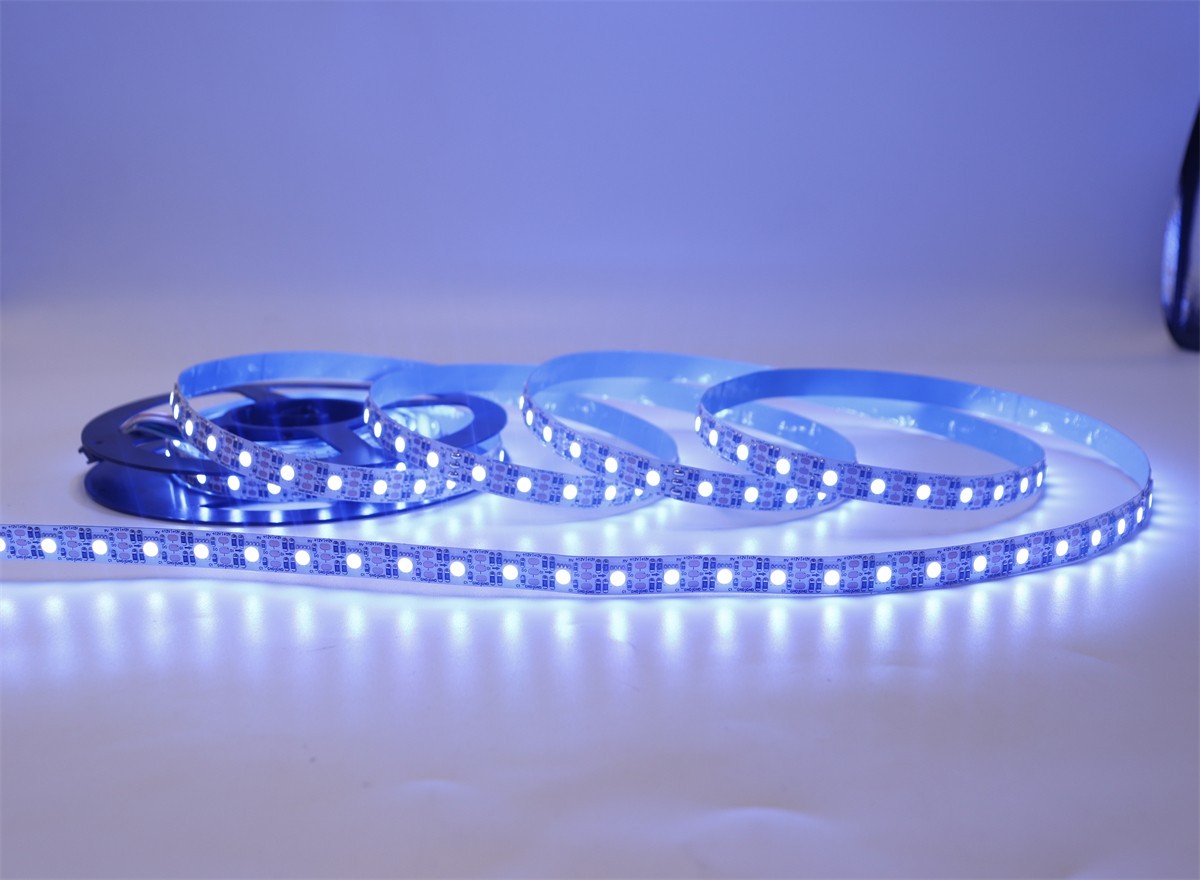

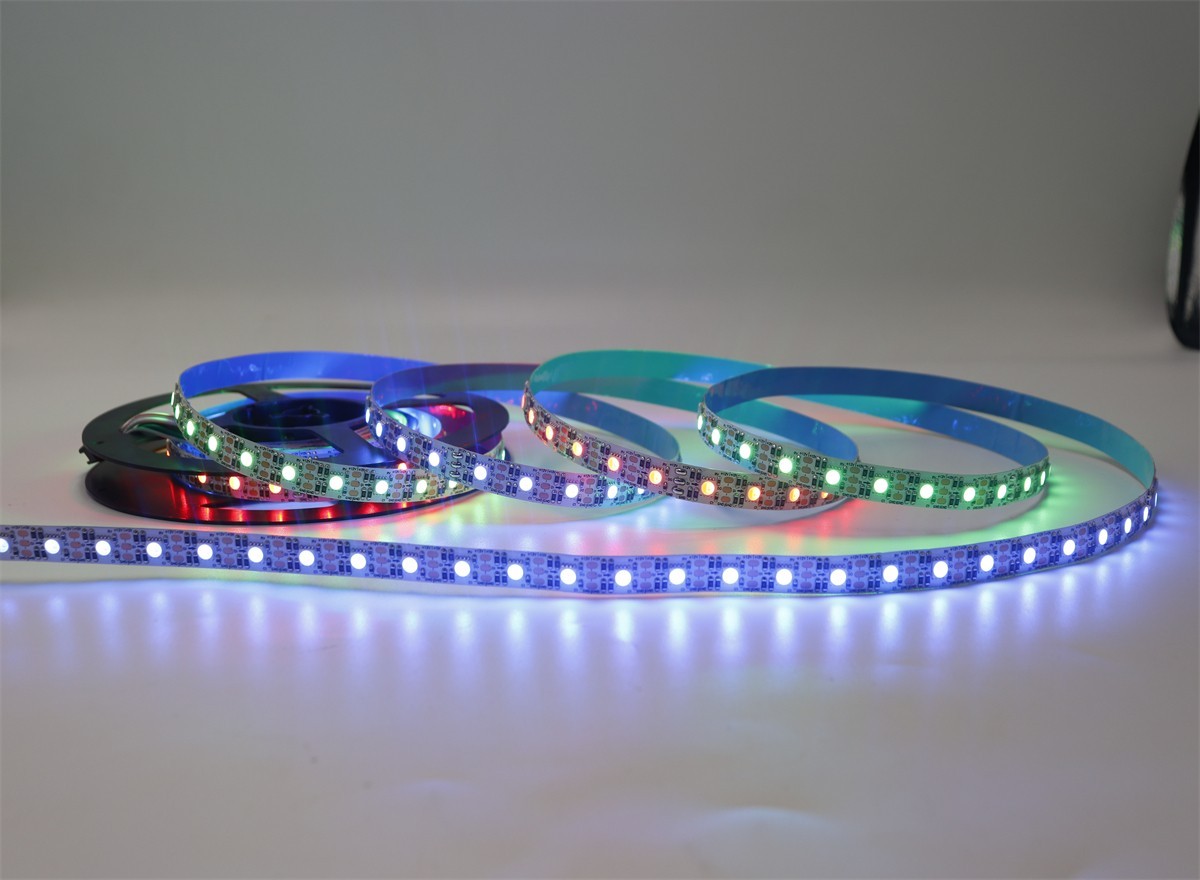

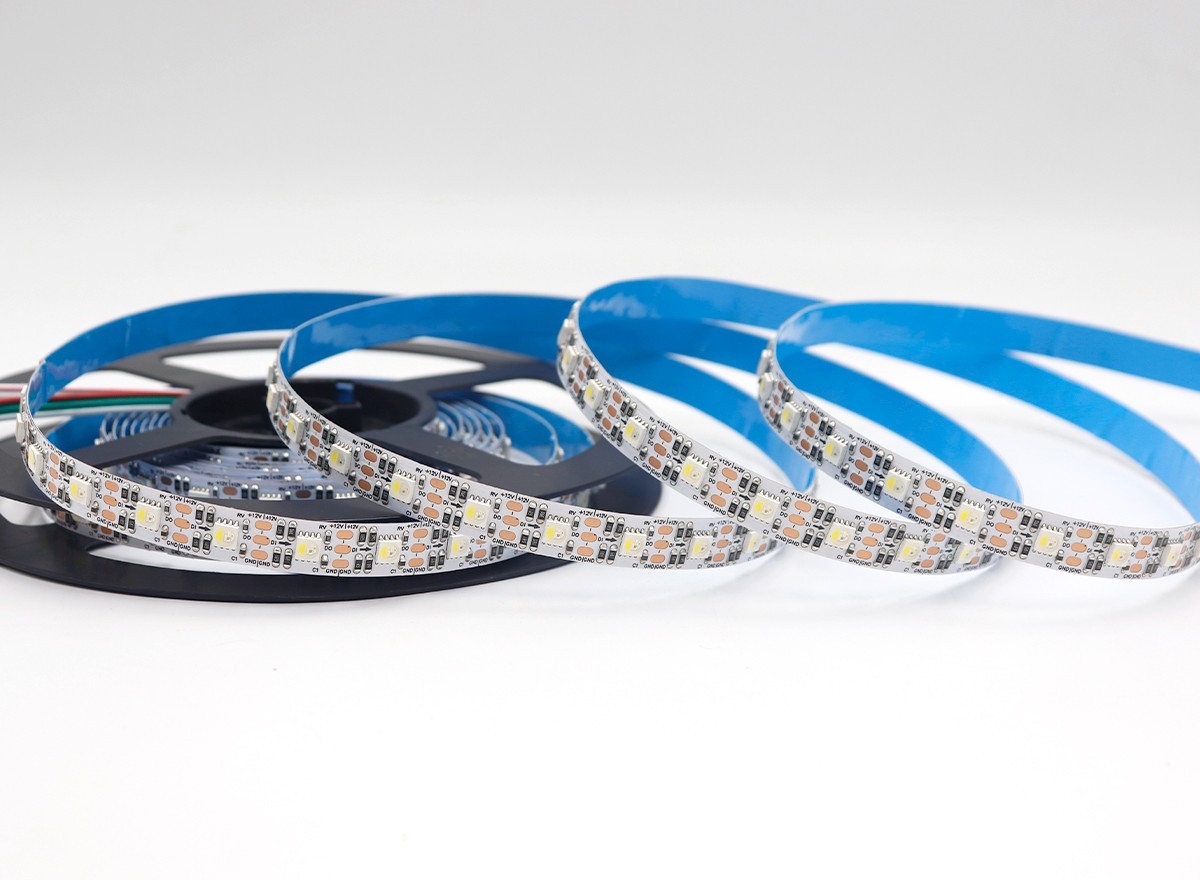

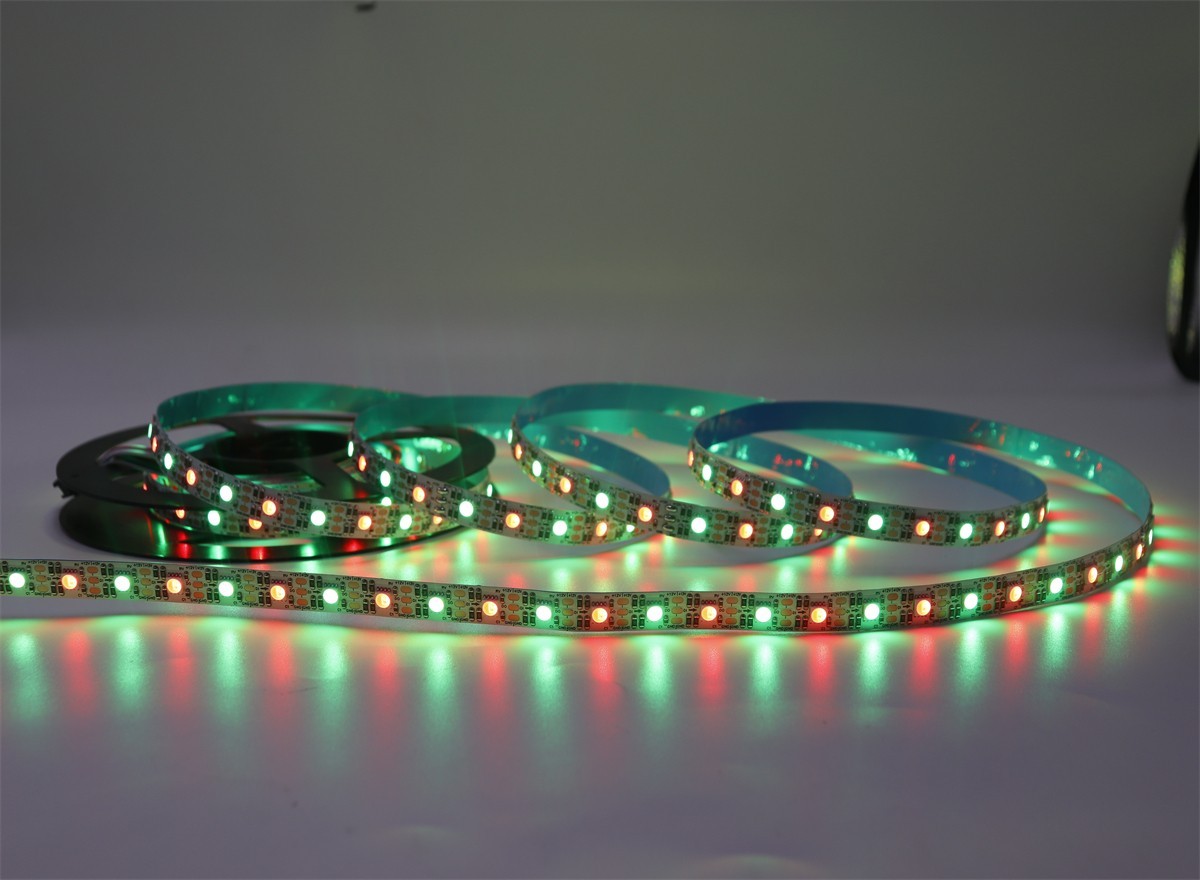

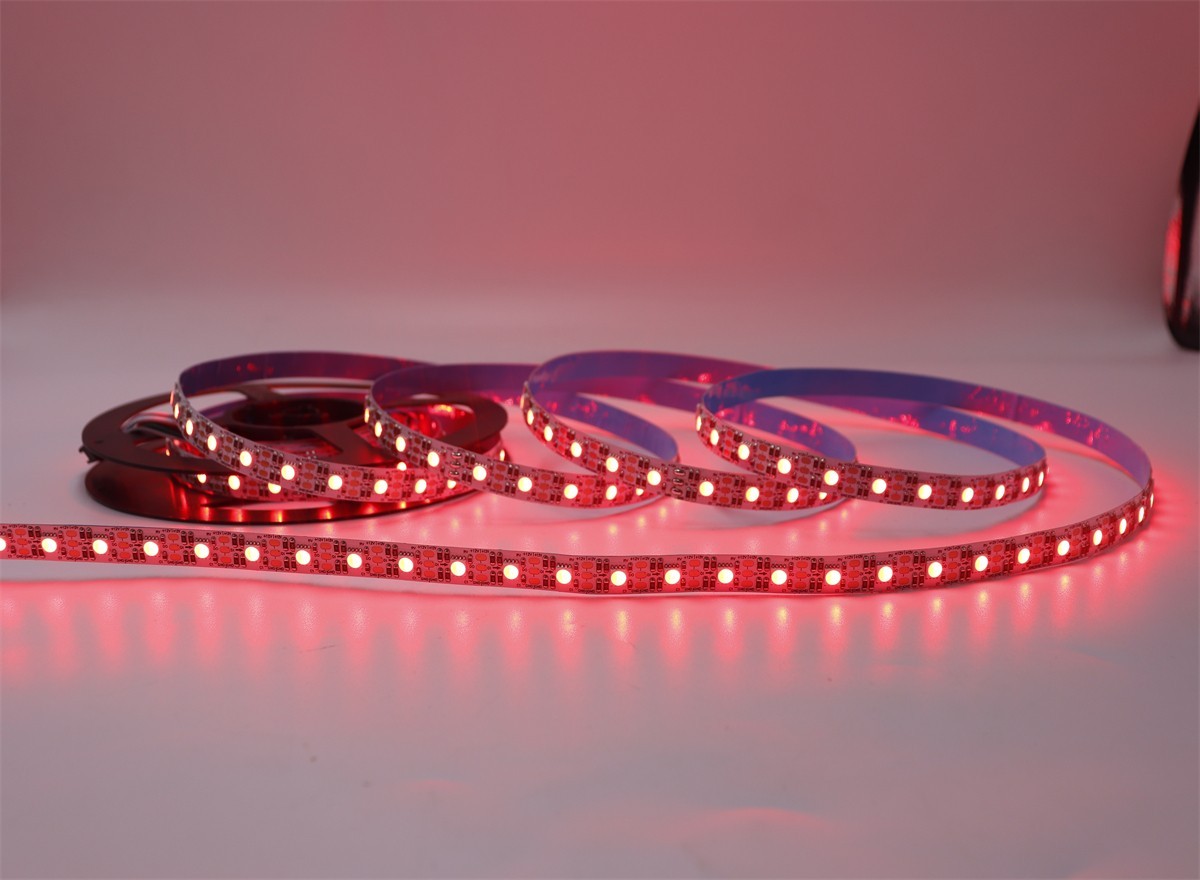

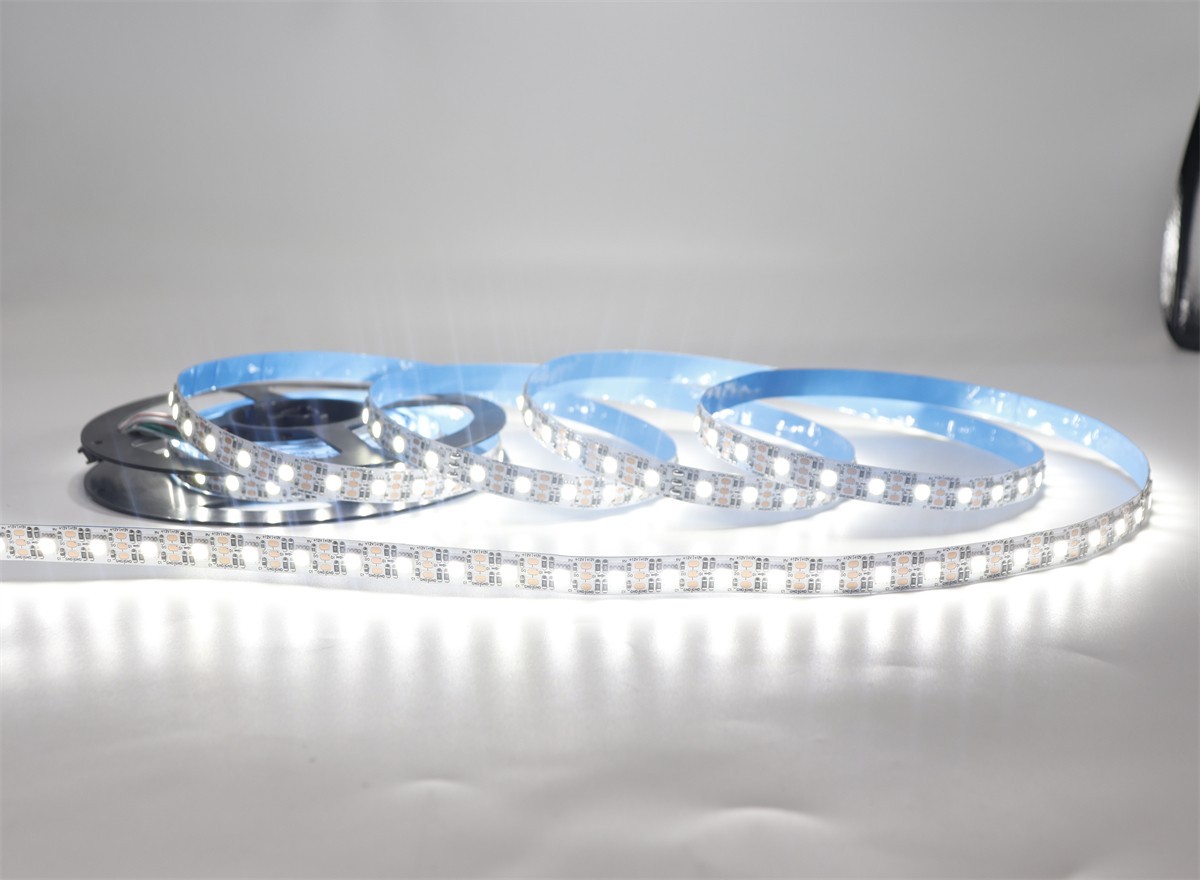

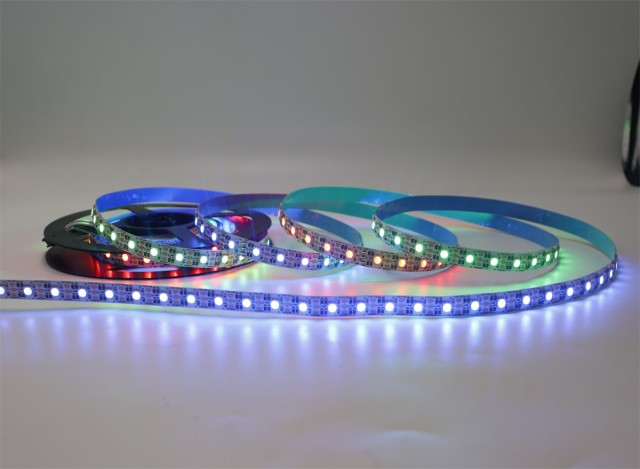

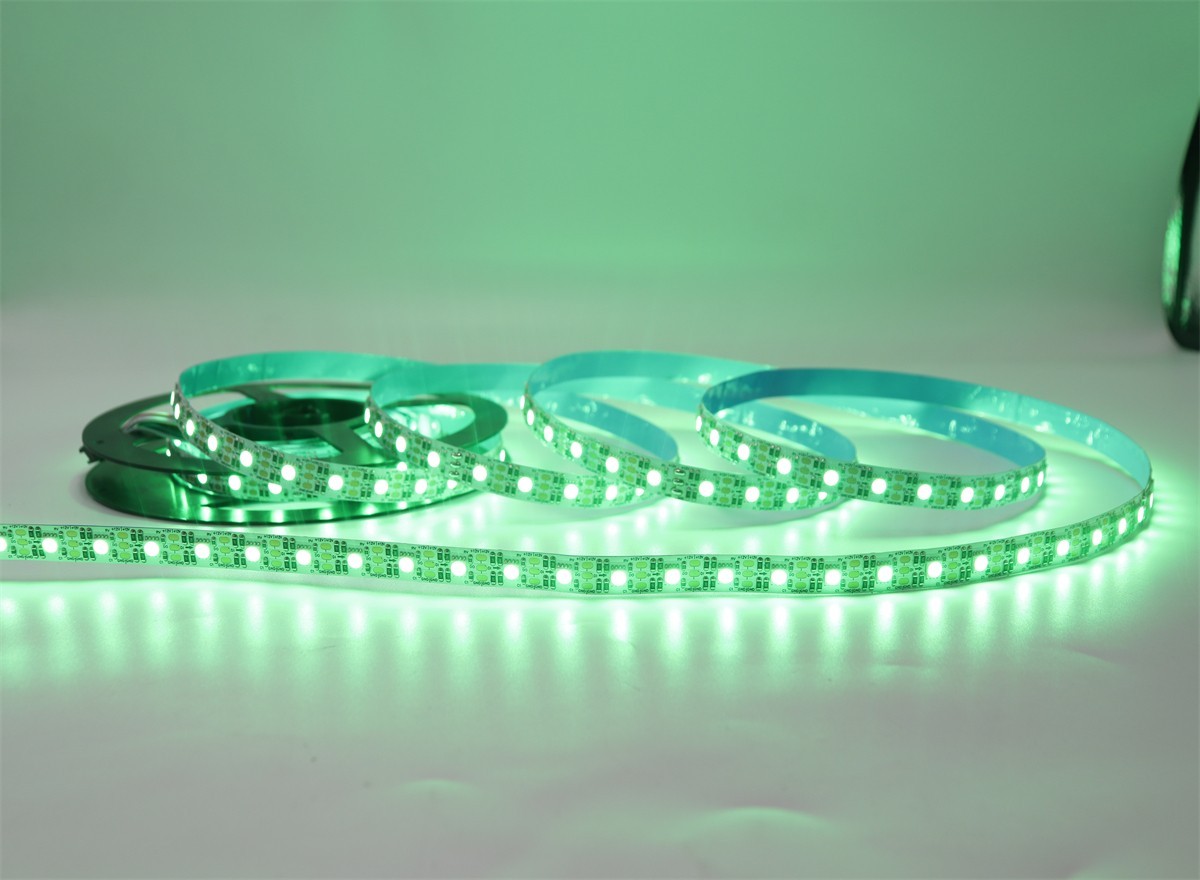

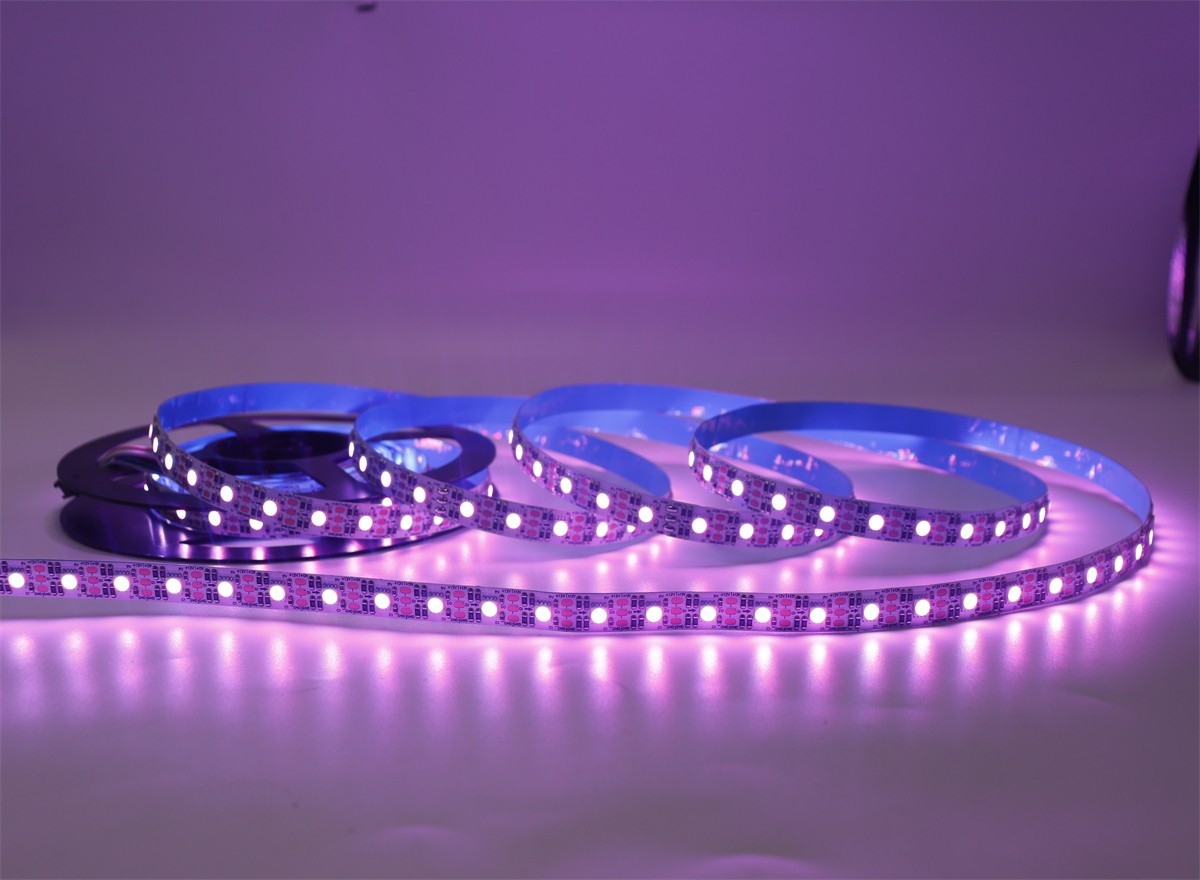

Elevate your lighting with the SK6812 5050 RGBW 60LED/m 12V strip. Each of the 60 LEDs is individually addressable and features a dedicated white chip for pure, clean white alongside vivid RGB effects. At 12V, it offers lower current draw and reduced voltage drop compared to 5V strips, making it ideal for longer runs. Perfect for home ambiance, gaming setups, retail displays, and signage. Compatible with Arduino, ESP32/WLED, K-1000C, and Madrix controllers. Cuttable every 16.6mm, flexible PCB, easy installation. True RGBW color opens up creative possibilities beyond standard RGB strips.
True RGBW 4-in-1: Each 5050 LED integrates red, green, blue, and a dedicated white die (2700K/4000K/6500K optional) for pure white light plus full-color effects.
12V Operation: Higher voltage means less current, reduced voltage drop, and longer stable runs compared to 5V RGBW strips—no constant power injection needed.
Individually Addressable: 1 IC controls 1 LED (60 pixels/m), 256-level grayscale, 24-bit color, enabling chase, gradient, meteor, rainbow, and text animations.
Maker & Controller Ready: Works with Arduino, ESP32 + WLED, K-1000C, SP108E, Madrix, LEDEdit; 3-pin wiring (12V/DATA/GND).
Flexible & Cuttable: Cut every 1 LED (16.6mm), 12mm PCB, 3M adhesive backing, IP20/IP65/IP67 options for indoor or outdoor creative installs.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
IC Model |
SK6812 (built-in) |
|
LED / Pixel Density |
60 LEDs/m = 60 pixels/m |
|
Operating Voltage |
DC 12V |
|
Power Consumption |
~14.4 W/m (typical), ~18 W/m (full white) |
|
Cut Unit |
Every 1 LED / 16.6 mm |
|
PCB Width |
12 mm (10 mm optional) |
|
White Color Options |
WW 2700K / NW 4000K / CW 6500K |
|
Grayscale |
256 levels per channel |
|
Signal Protocol |
Single-wire NZR, 800 kbps, WS2812-compatible |
|
View Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Wire / Connector |
12V / DIN / GND (3-pin or 4-pin JST) |
|
Controller Support |
Arduino, WLED/ESP32, K-1000C, SP108E, Madrix |
|
Working Temp. |
-20°C to +60°C |
|
Lifespan |
30,000–50,000 hrs |
|
Breakpoint Resume |
No (single data line; for dual-line backup see SK6813) |
