Featuring Gigabit TCP/IP networking, multiple T-790K units can be cascaded up to 100 meters apart, making it ideal for architectural façades, stage lighting, and massive commercial displays. The controller automatically switches to pre-loaded SD card content if the PC connection drops, ensuring zero downtime. With built-in LCD screen, DMX addressing, and comprehensive short-circuit protection, the T-790K delivers industrial-grade reliability and high-density performance for your most demanding lighting projects.
🚀 T-500K Perfect Upgrade: Direct replacement with 8 output ports, significantly increasing driving capacity and compatibility with various IC chips (WS2811, SK6812, etc.).
💻 Dual Mode Operation: Supports real-time PC online control via Art-Net/sACN and offline standalone playback from SD card, ensuring continuous lighting even if the network fails.
🌐 Scalable Networking: Gigabit Ethernet ports allow cascading multiple controllers up to 100m apart, perfect for large-scale architectural and stage installations.
🔌 High-Capacity Drive: Capable of controlling up to 6,144 pixels (SPI) or 4,096 channels (DMX512), handling complex pixel mapping with ease.
🛡️ Industrial Protection: Equipped with an LCD display, DMX write-addressing function, and built-in reverse-connection/short-circuit protection for enhanced safety and ease of use.
|
Feature |
Specification |
|---|---|
|
Model |
T-790K (T-500K Upgrade Version) |
|
Input Voltage |
DC 5V - 24V (Auto-adaptive) |
|
Output Ports |
8 Ports (SPI / TTL / DMX512 Selectable) |
|
Control Protocol |
DMX512, SPI, TTL, Art-Net, sACN |
|
Max SPI Pixels |
6,144 Pixels (Varies by IC type) |
|
Max DMX Channels |
4,096 Channels (DMX512 Standard) |
|

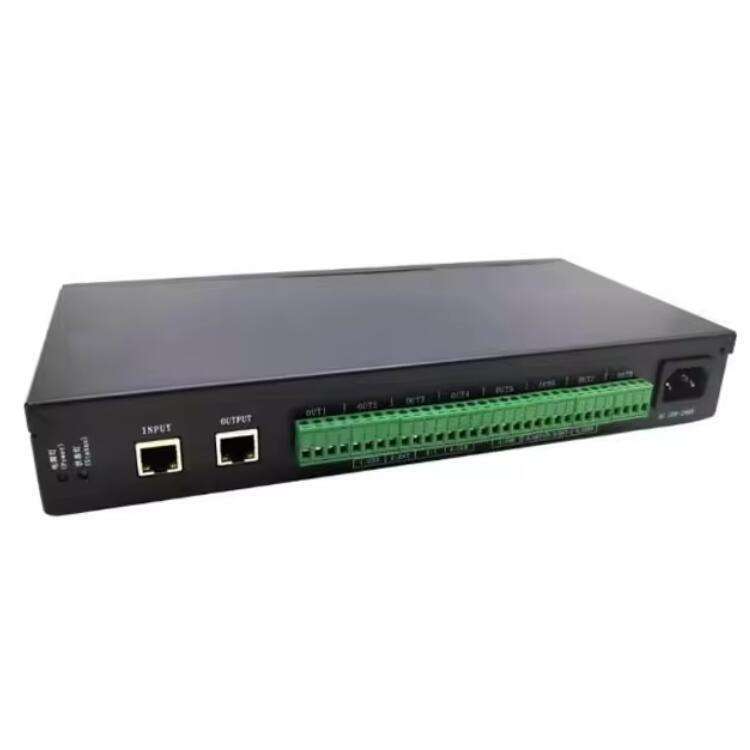

Communication Port |
1 x RJ45 (10/100/1000M Ethernet) |
|
Networking |
TCP/IP Cascading (Max 100m between units) |
|
Storage |
SD Card (For offline programs & backup) |
|
PC Software |
LedEdit-K, LedPlayer, MADRIX compatible |
|

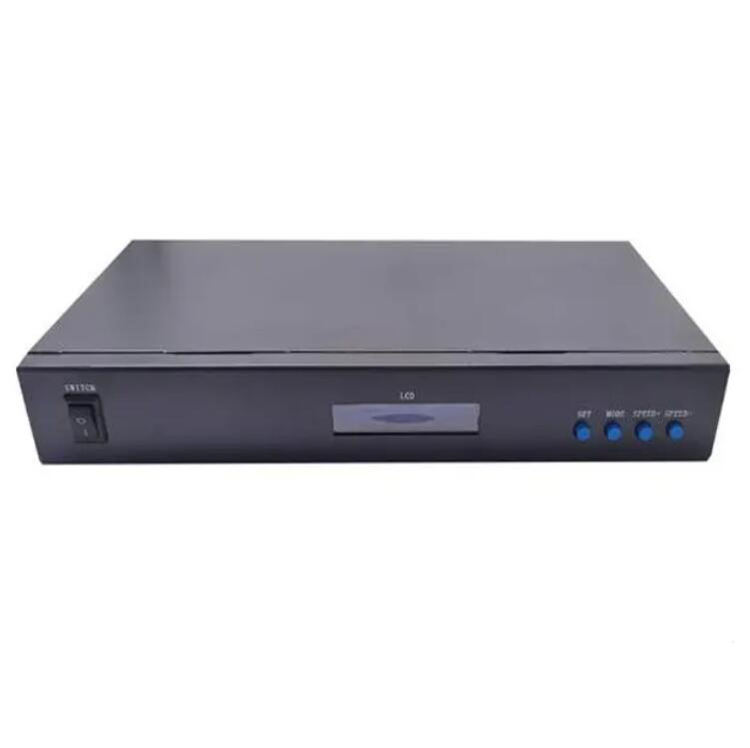

Display |
LCD Screen (Status & IP Display) |
|
Protection |
Reverse Connection, Short Circuit, Over-current |
|
Dimensions |
145mm x 95mm x 25mm (L x W x H) |
|
Application |
LED Strips, Pixel Bars, Wall Washers, Stage Lights |
