Operating at 3.7V–5.5V with a constant current drive, it ensures consistent brightness and low power consumption. The SK6803-EC10 is perfect for space-constrained designs such as mechanical keyboard backlighting, wearable electronics, smart watches, and miniature LED displays. Upgrade your product’s visual appeal with OPSCO’s reliable, high-quality micro LED technology—where premium performance meets miniature design.

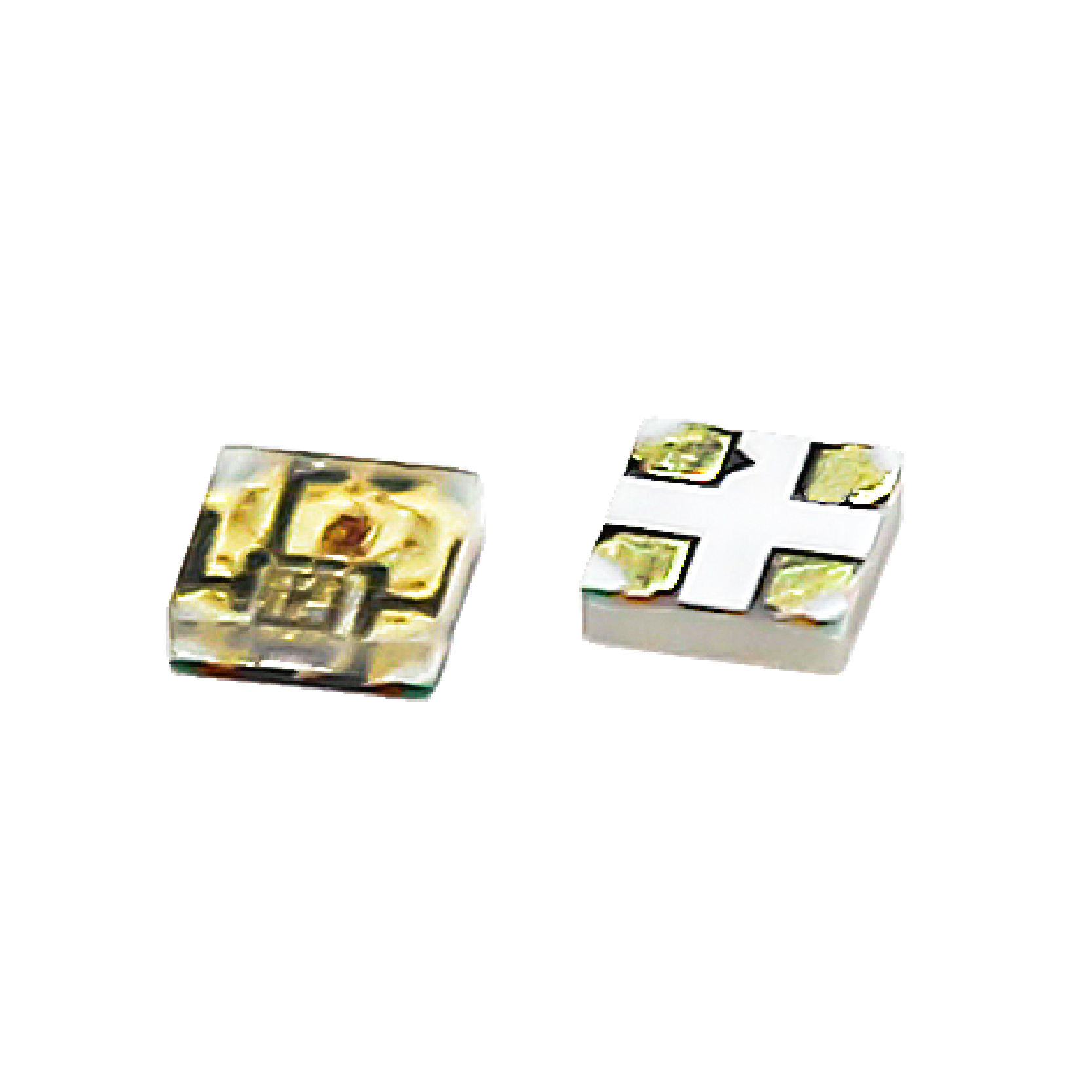

Ultra-Compact 1010 Package: Measures only 1.0x1.0mm, ideal for high-density and space-constrained PCB designs.
Built-in Intelligent IC: Integrates control circuit and RGB chip; supports 256-level grayscale per channel (24-bit true color).
Single-Wire Communication: Utilizes NZR protocol for easy MCU control and simplified wiring (DIN/DOUT cascading).
Signal Auto-Reshaping: Features a built-in signal reshaping circuit for distortion-free transmission and infinite cascading capability.
Wide Voltage & Constant Current: Operates from 3.7V to 5.5V with internal constant current drive, ensuring stable brightness and low power use.
OPSCO SK6803-EC10 Product Datasheet (Summary)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|
|
Electrical Characteristics |
|||||
|
Supply Voltage |
VDD |
3.7 |
5.0 |
5.5 |
V |
|
Input Current |
IIN |
- |
1.2 |
- |
mA |
|
Standby Current |
ISB |
- |
0.5 |
- |
mA |
|
Optical Characteristics |
|||||
|
Wavelength (Red) |
λR |
- |
620 |
- |
nm |
|
Wavelength (Green) |
λG |
- |
525 |
- |
nm |
|
Wavelength (Blue) |
λB |
- |
470 |
- |
nm |
|
Viewing Angle |
2θ |
- |
120 |
- |
deg |
|
Communication |
|||||
|
Data Rate |
FD |
- |
800 |
- |
kbps |
|
Grayscale Levels |
- |
- |
256 |
- |
bit/channel |
|
Mechanical |
|||||
|
Package Size |
L x W |
- |
1.0 x 1.0 |
- |
mm |
|
Operating Temp |
Topr |
-20 |
- |
+85 |
°C |
|
Storage Temp |
Tstg |
-40 |
- |
+105 |
°C |
Pin Configuration:
VDD: Power Supply (3.7V-5.5V)
DIN: Data Input
GND: Ground
DOUT: Data Output (Cascading)
Features:
Single-wire NZR data transmission
Auto signal reshaping and forwarding
Built-in RC oscillator and PWM control
ESD protection (HBM 2kV)
