Each LED outputs 24-bit true color (256 grayscale levels per channel), ensuring smooth, vibrant color transitions perfect for dynamic displays. Its ultra-compact 3535 footprint is ideal for high-density applications where space is limited, such as flexible LED strips, miniature pixel screens, and channel letters. Highly compatible with popular libraries like FastLED and NeoPixel, the SK6812MINI offers unmatched versatility and reliability for both commercial installations and DIY makers. Experience brilliant illumination and effortless control in one tiny, powerful package.
📦 All-in-One Compact Design: Features a built-in SK6812 IC within a tiny 3535 SMD package, eliminating the need for external controllers and saving valuable PCB space.
🌈 24-bit True Color & High Gray Scale: Delivers exceptional color depth with 256 levels per RGB channel (16.7 million colors) and a 1kHz PWM frequency for flicker-free, vibrant visuals.
🔗 Single-Wire Smart Control: Utilizes a single-line NZR communication protocol, allowing for infinite cascading and long-distance synchronization using only one microcontroller pin.
🔧 Wide Compatibility & Easy Integration: Fully compatible with mainstream development platforms (Arduino, Raspberry Pi) and libraries (FastLED, Adafruit NeoPixel).
💡 High-Density Application Ready: The miniature 3535 footprint is perfectly suited for space-constrained projects like narrow LED strips, dense pixel matrices, and intricate lighting fixtures.

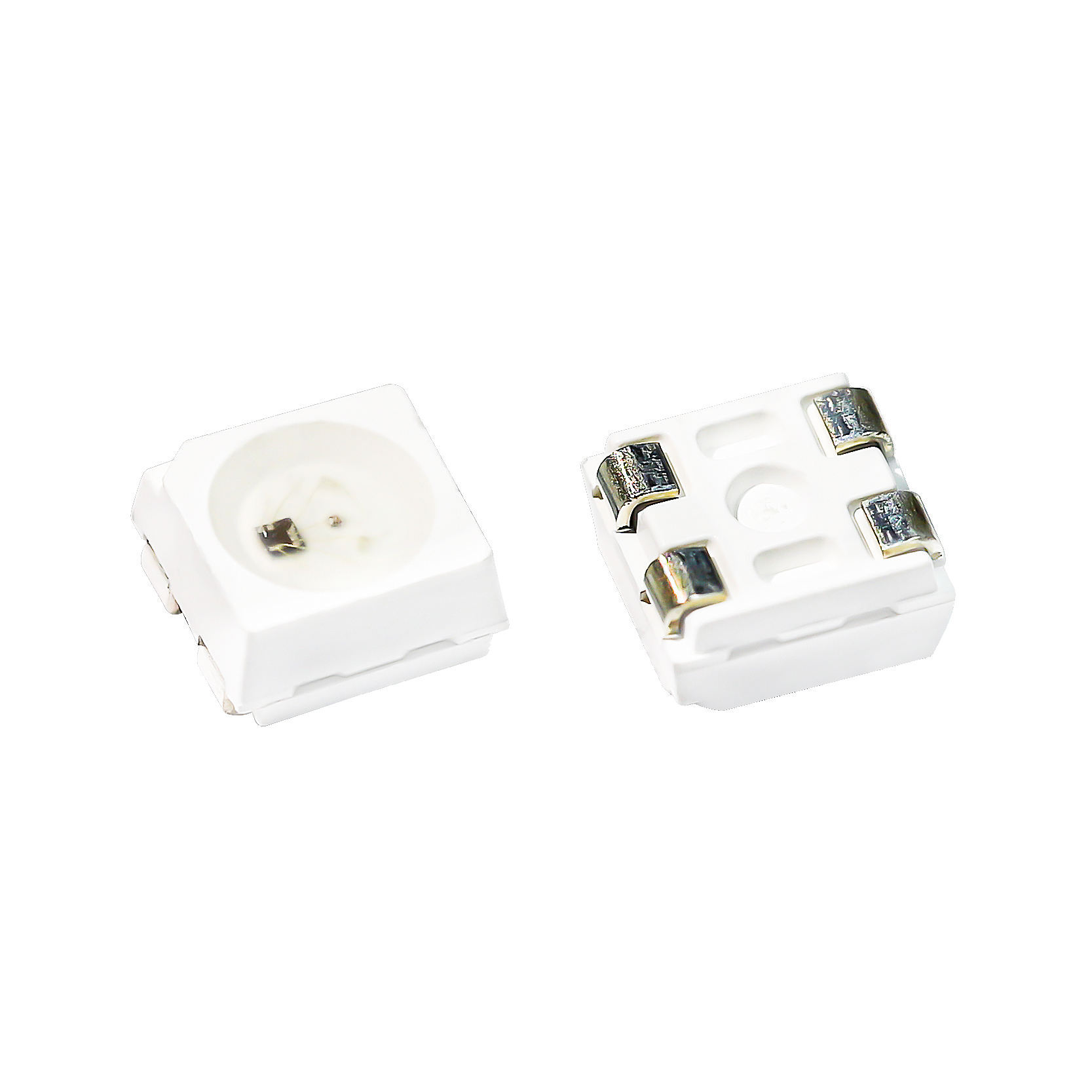

OPSCO SK6812MINI Product Specification
|
Category |
Specification |
|---|---|
|
Product Model |
SK6812MINI (Built-in IC RGB LED) |
|
Package Type |
3535 SMD (3.5 x 3.7 mm) |
|
Input Voltage (VDD) |
DC 3.7V - 5.5V (Typical 5V) |
|
Signal Protocol |
Single-wire NZR (Return-to-Zero) |
|
Data Transfer Rate |
800 kbps |
|
Color Resolution |
24-bit (8-bit per channel: R, G, B) |
|
Gray Levels |
256 levels per primary color |
|
PWM Frequency |
1 kHz (Typical) |
|
Max Current (Full White) |
~12 mA per LED |
|
Viewing Angle |
120° |
|
Operating Temp. |
-40°C to +85°C |
|
ESD Protection |
HBM 2 kV |
|
Cascade Capability |
Supports long-distance cascading (up to 1024+ pixels at 30 fps) |
|
Pin Configuration |
1. DIN (Data In) |
Key Features:
Integrated driver IC and RGB chip in one 3535 package.
Automatic reshaping and forwarding technology for signal integrity.
Power-on reset function.
Self-detection signal specification.
