Compatible with DINA, SLESA, and STICK controllers, it is the ideal wall-mounted interface for professional lighting projects in hotels, venues, and architectural installations.
Nicolaudie Ecosystem Native: Purpose-designed for DINA, SLESA, and STICK controllers; fully integrated with ESA Pro 2.5 configuration software.
Vivid 4" IPS Display: 480×480 resolution with IPS technology delivers sharp visuals and wide viewing angles in a compact 86mm square form factor.
Dual Power Flexibility: PoE (IEEE 802.3af) or 110–240V AC direct wiring—choose the most convenient power source for any site.

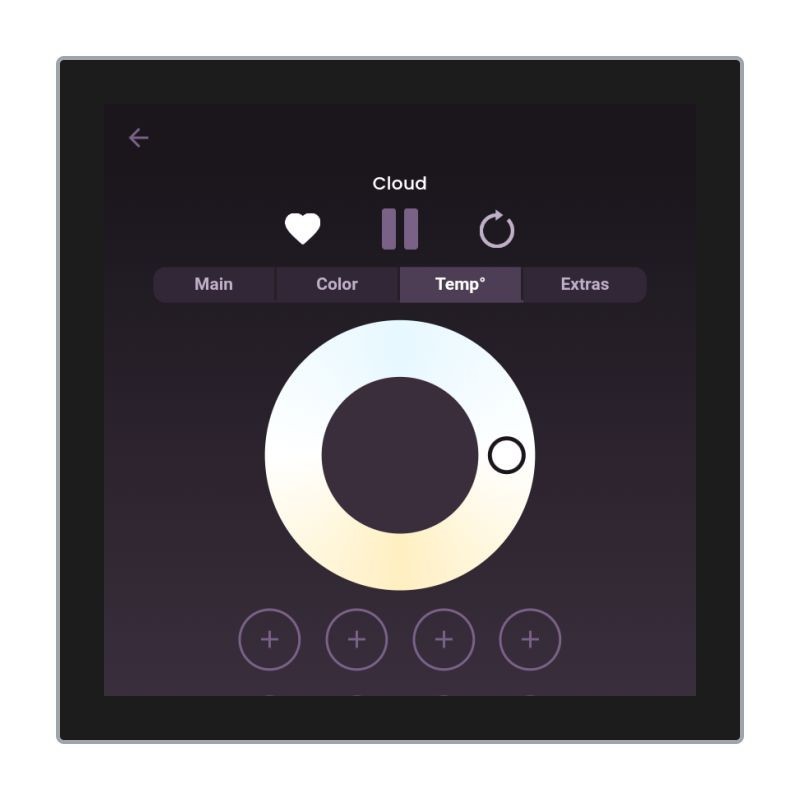

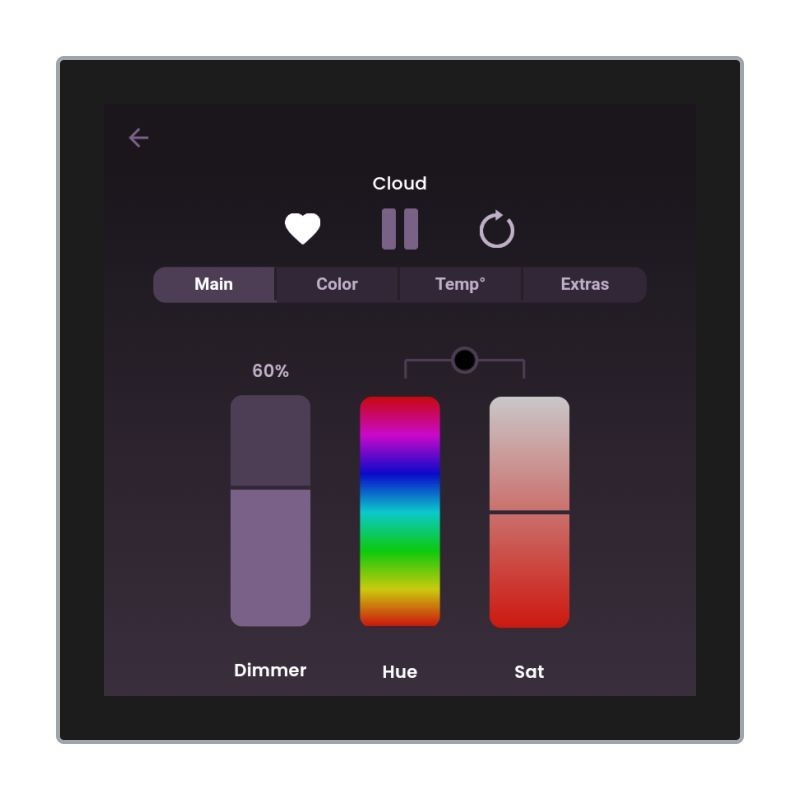

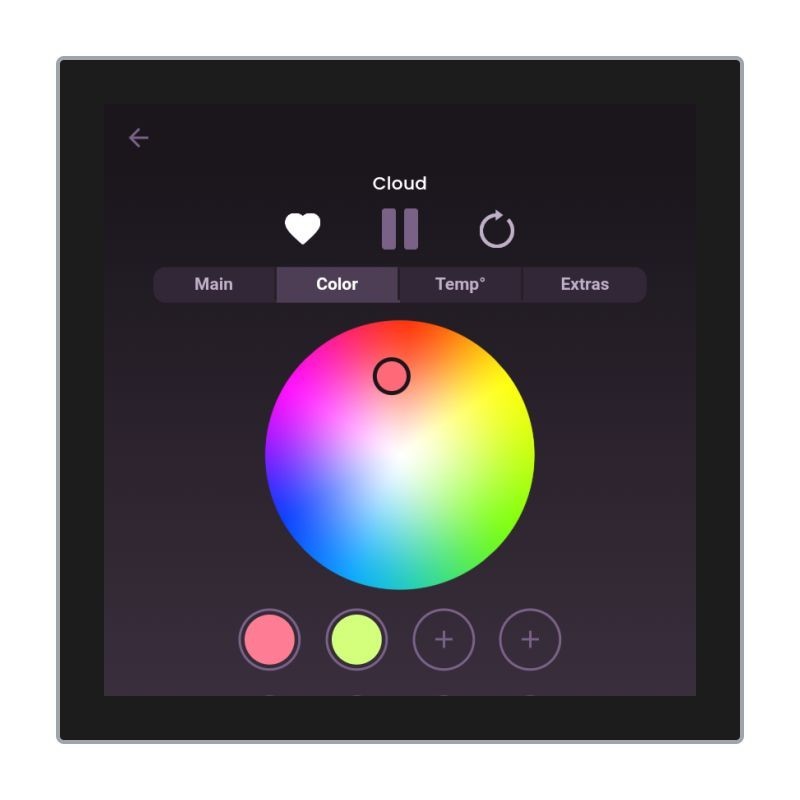

Fully Customizable UI: Custom buttons, scenes, colors, and layouts via ESA Pro 2.5; preinstalled Arcolis Touch and Arcolis Remote apps for out-of-the-box operation.
Slim & Standard Mount: Ultra-thin 11mm profile, standard 86-type back box installation—blends discreetly into any interior design.

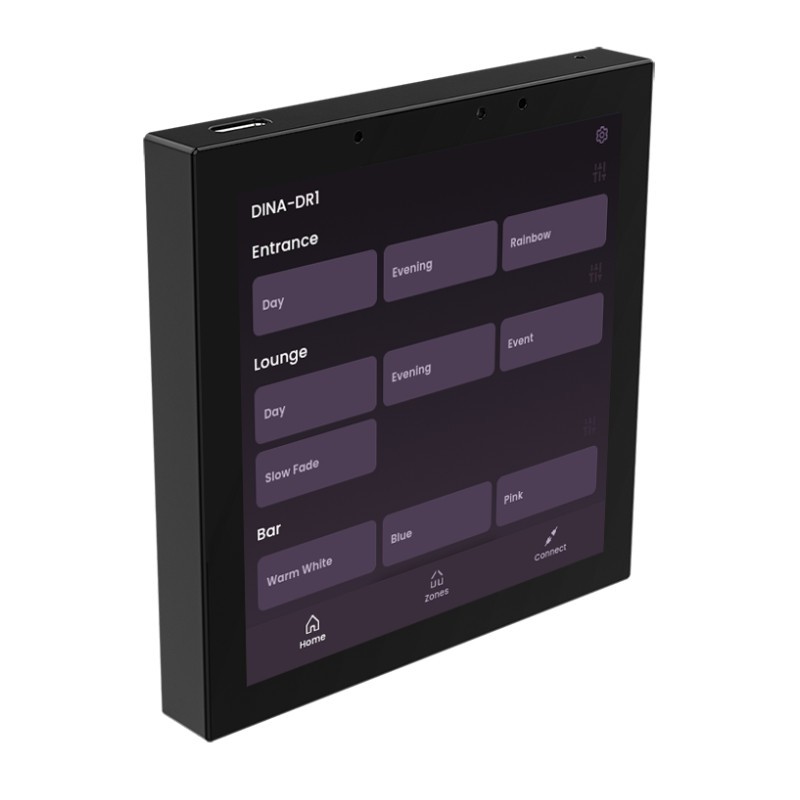

NATOUCH-4 4" Smart Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
NATOUCH-4 |
|
Display |
4" IPS Touchscreen, 480 × 480 pixels |
|
Dimensions |
86 × 86 × 11 mm (W × H × D) |
|
Installation |
86-type back box (flush mount) |
|
Power Supply |
PoE (IEEE 802.3af) or 110–240V AC |
|
Main Functions |
Scene Trigger, Dimming & Color Tuning (RGBW/CCT) |
|
UI Customization |
Custom buttons, layouts, colors via ESA Pro 2.5 |
|
Preinstalled Software |
Arcolis Touch, Arcolis Remote |
|
Configuration |
ESA Pro 2.5 Software |
|
Compatible Controllers |
DINA, SLESA, STICK (Nicolaudie range) |
|
Network |
Ethernet (PoE data + power) |
|
Language |
Multi-language UI (configurable) |
