A standout feature is its NFC programmable capability, allowing installers to configure dimming curves, power-on states, and PWM frequencies via a smartphone tap—no power required. Supporting 12-48V wide voltage input and up to 720W load capacity, it fits everything from residential cove lighting to large commercial installations. Built-in protection against short circuits and overheating ensures long-term reliability. Upgrade your lighting system with the MA-C5 for future-proof, multi-ecosystem smart control. (148 words)
Universal Matter Compatibility: Works natively with Apple Home, Google Home, Alexa, and SmartThings via Thread protocol for a unified smart home experience.
NFC Pre-Configuration: Easily program settings (dimming curves, CCT range, etc.) via NFC before installation, drastically improving deployment efficiency for projects.
True RGBCW Performance: Independent 5-channel control provides endless color options combined with high-CRI tunable white (WW+CW) for both ambiance and illumination.
High Power & Wide Voltage: Supports 12-48V DC input with a maximum load of 720W (at 48V), suitable for long runs of high-density LED strips.
Robust Protection & Reliability: Equipped with short-circuit, over-temperature, and reverse-connection protection, ensuring a lifespan of up to 100,000 hours.

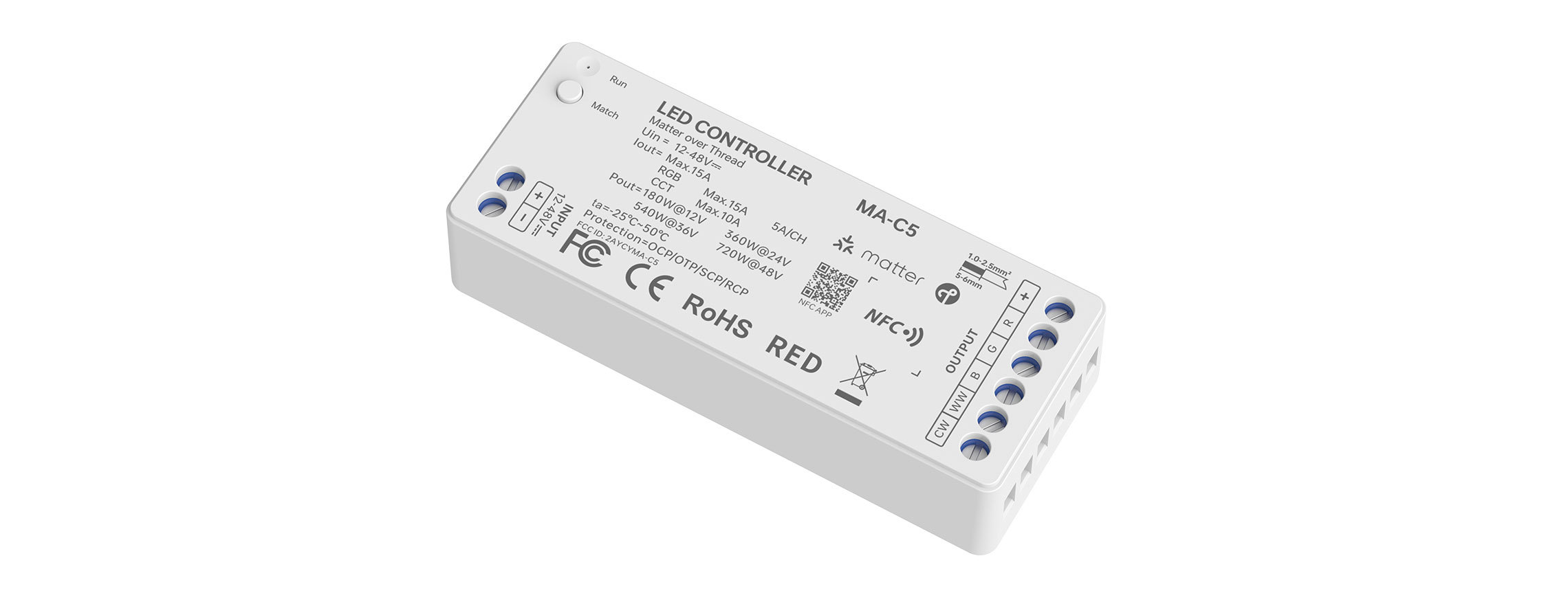

LTECH MA-C5 Technical Specifications
|
Category |
Specification |
|---|---|
|
Model |
MA-C5 |
|
Input Voltage |
DC 12-48V |
|
Output Channels |
5 Channels (R, G, B, WW, CW) |
|
Output Type |
Constant Voltage |
|
Max Load Current |
RGB: 5A/CH (Max 15A total); WW+CW: 10A (Max 5A/CH) |
|
Max Output Power |
180W (12V) / 360W (24V) / 540W (36V) / 720W (48V) |
|
Wireless Protocol |
Matter over Thread |
|
Configuration |
NFC Programmable (via App) |
|
Dimming Range |
0-100% |
|
Dimming Modes |
PWM (Frequency adjustable via NFC) |
|
Protection Rating |
IP20 |
|
Safety Features |
Short-circuit, Over-temperature, Over-current, Reverse Polarity |
|
Operating Temp. |
-25°C to 50°C |
|
Dimensions |
91 × 37 × 21 mm (L × W × H) |
|
Weight |
46g |
|
Housing Material |
Flame-retardant PC (V0) |
|
Lifespan |
100,000 hours |
