WS24LU3A 24CH DMX512 Decode DC5V-24V 1A Max 3A 8 RGB Groups LED Controller

No.WS24LU3A

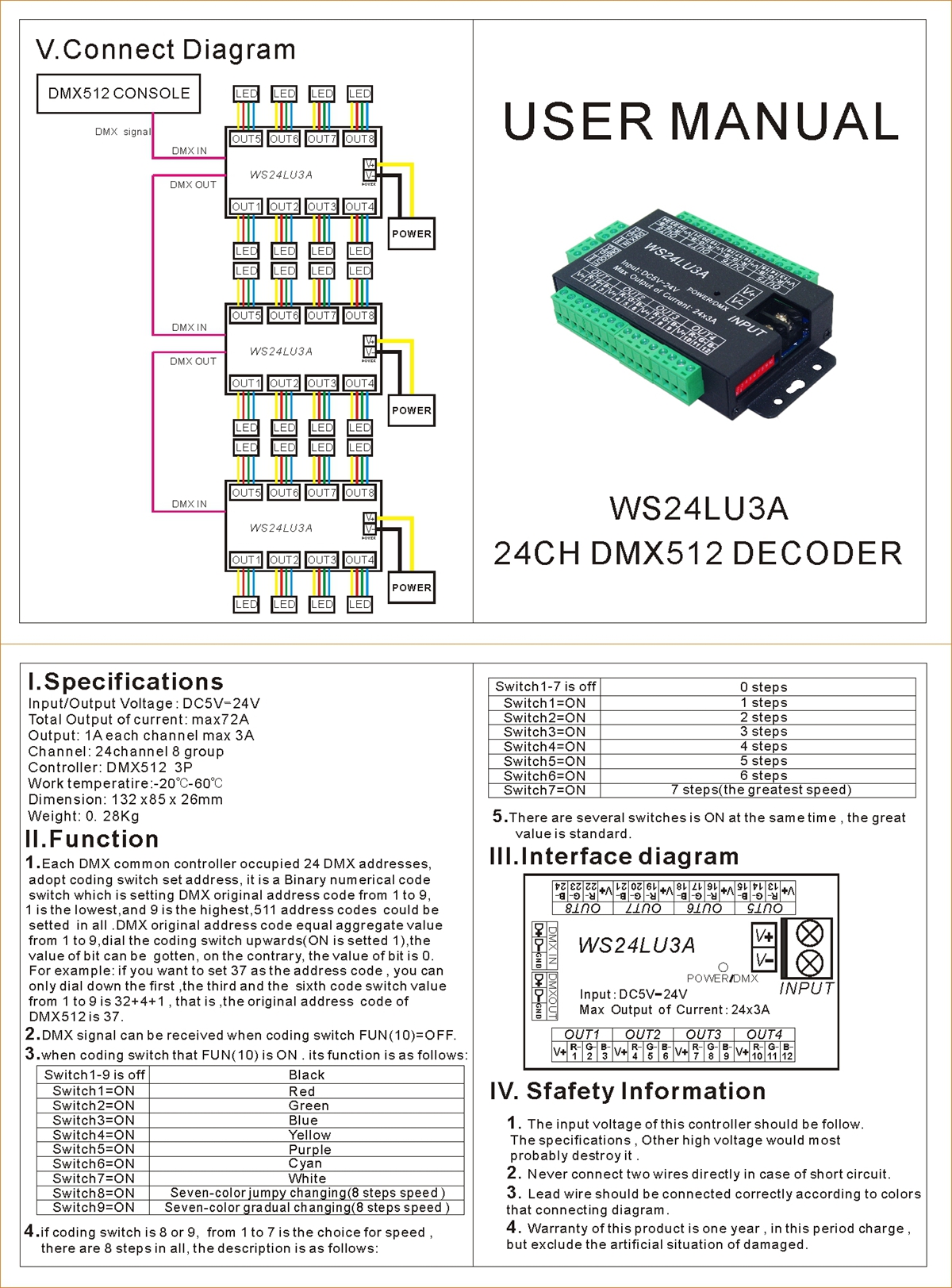

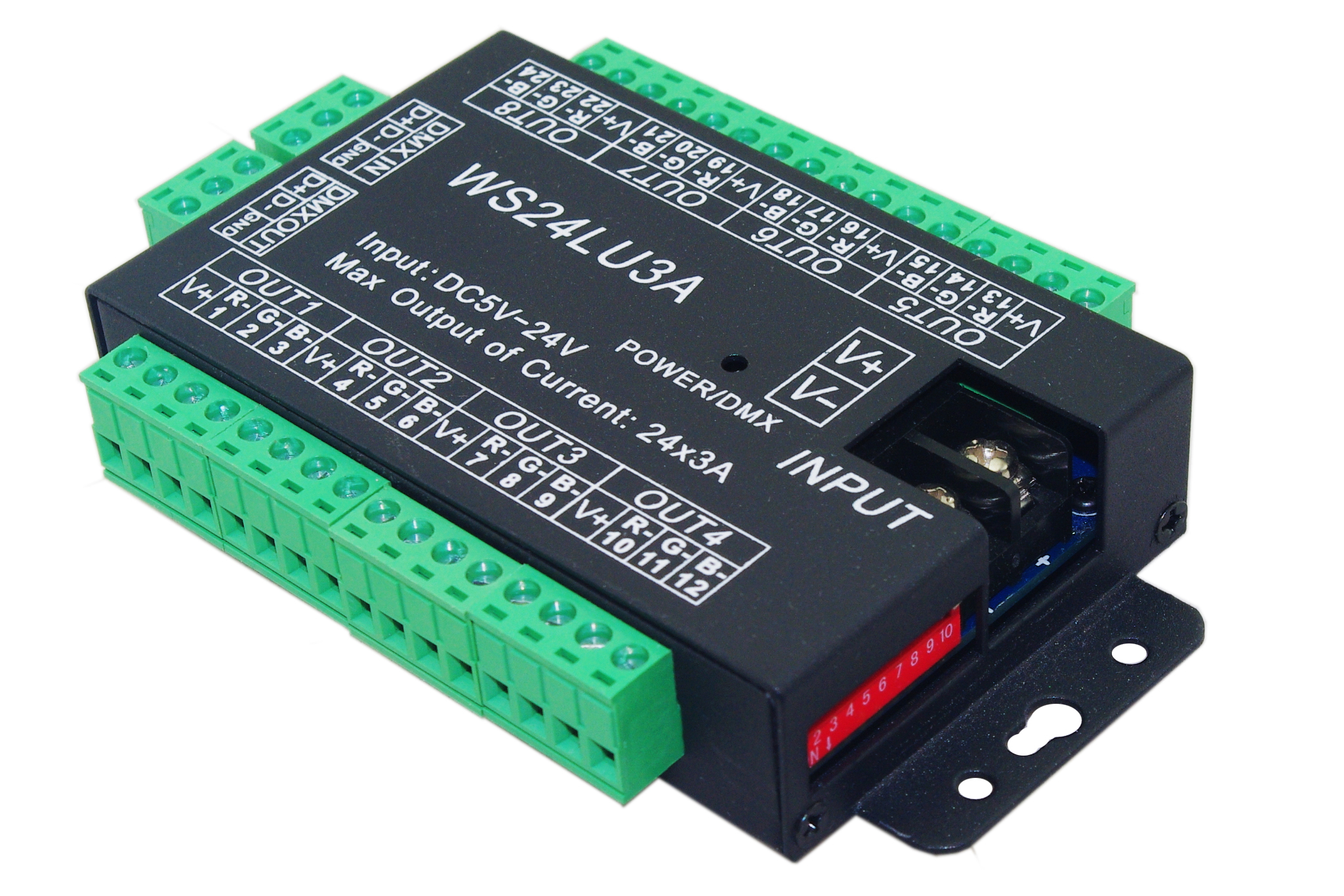

he WS24LU3A is a 24-channel DMX512 LED decoder for DC5V-24V loads, driving 8 RGB groups and occupying 24 consecutive DMX addresses. Rated 1A per channel (max 3A/CH, total up to 72A reference), it uses DIP switches for start address and FUN for standalone Black/Red/Green/Blue/Yellow/Purple/White, 7-color jump/gradual and speed. With DMX IN/OUT and screw terminals (OUT1–OUT4/V+/R/G/B), it fits stage, architectural, signage and decor.

24CH / 8 RGB Groups: Controls eight RGB strings via one unit, occupying 24 DMX addresses.
DC5V-24V Wide Range: Works with 5V/12V/24V common-anode LED strips/modules (not AC HV dimmer).
1A/CH, Max 3A/CH: Manual cites 1A each channel / max 3A, total max 72A reference—plan load/wiring/heat margin.
DIP + FUN Effects: Binary DMX start-address; FUN gives solid colors, 7-color jump/gradual and 1–7 speed steps.
DMX Pass-Through Terminals: DMX IN/OUT chaining with V+/R/G/B screw terminals; size 132×85×26mm, 0.28kg.

1-9 pcs

$42.99

10-999 pcs

$39.88

>=1000 pcs

$37.88

GET A QUOTE

Download

View all downloads

Parameter	Specification
Model / Label	WS24LU3A / 24CH DMX512 DECODER
Type	24-Channel DMX512 LED Decoder (8 RGB groups)
Control	DMX512, DMX IN / DMX OUT
Input/Output Voltage	DC5V-24V
Output	24 channels (OUT1–OUT4 as V+/R/G/B groups per diagram)
Output Current	1A per channel; max 3A per channel; Total max 72A (per manual, use with margin)
DMX Footprint	Occupies 24 DMX addresses
Address Setting	DIP binary (1/2/4/8/16/32/64/128/256) + FUN(10)
FUN Behavior	Switch1-9: Black/Red/Green/Blue/Yellow/Purple/White/7-color jump/7-color gradual; 8/9 + 1-7 = speed steps
Working Temp.	-20℃ ~ 60℃
Dimension	132 × 85 × 26 mm
Weight	0.28 kg
Application	LED strip, RGB modules, signage, architectural, stage/decor
Safety	DC only; no AC/mains; observe V+/R/G/B polarity; no short; check DMX A/B & termination
