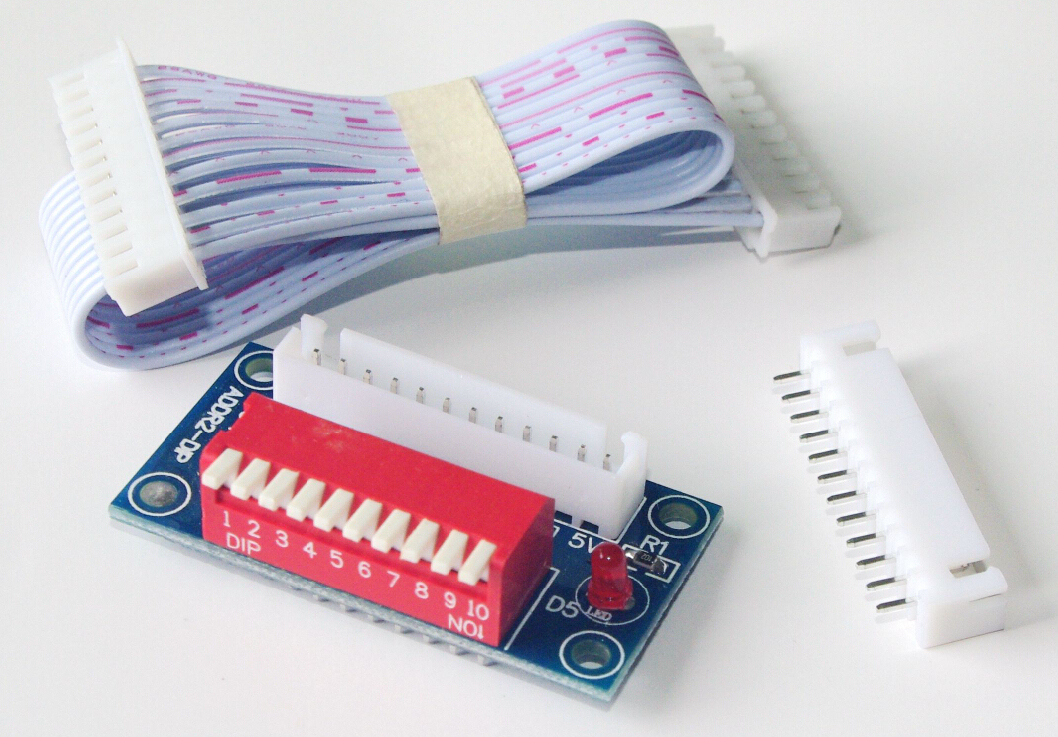

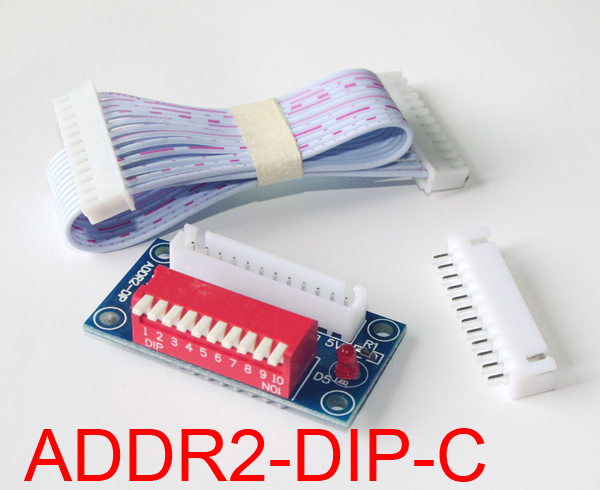

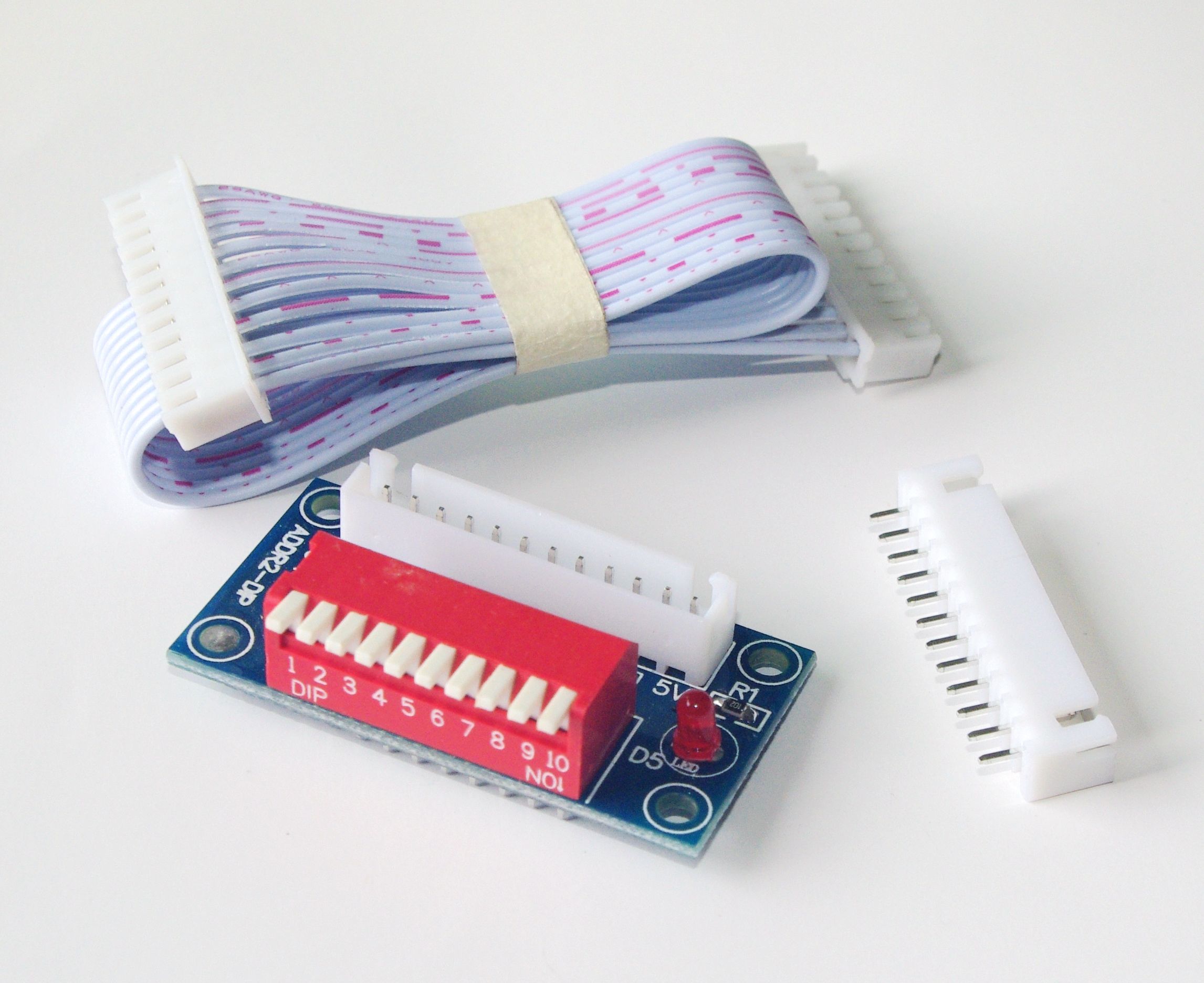

The ADDR2-DIP-C is a compact DIP-switch address/configuration module for hardware-based node addressing and mode selection. It ships with a 12P 200mm ribbon cable and provides binary address bits 1/2/4/8/16/32/64/128/256 plus FUN, together with LED status indication. Measuring 46×25×15mm and weighing 40g, it fits DMX512 lighting decoders, RS485/Modbus nodes, PLC modules and AV control equipment. Technicians can set device IDs on-site without PC software, helping avoid address conflicts in multi-device systems and simplifying installation, commissioning and maintenance in stage, broadcast and automation setups.
Binary Address Setting: 1/2/4/8/16/32/64/128/256 plus FUN for hardware addressing/mode config.
12P 200mm Cable: Includes ribbon/12-pin cable for board-to-board or controller connection.
No PC Required: Set node ID via DIP on site for fast deploy and service.
LED Indication: Built-in LED for power/status visibility during commissioning.
Wide Use Cases: Suits DMX512, RS485/Modbus, PLC, lighting decoder and industrial automation.
|
Parameter |
Specification |
|---|---|
|
Product Model / Label |
ADDR2-DIP-C |
|
Dimension |
46 × 25 × 15 mm |
|
Weight |
40 g |
|
Cable/Interface |
12P line / 200 mm |
|
Setting Method |
DIP switch (binary) |
|
Address/Value Bits |
1, 2, 4, 8, 16, 32, 64, 128, 256 |
|
Extra Control |
FUN (mode/function, per device protocol) |
|
Indicator |
LED (power/status) |
|
Supply/Ref |

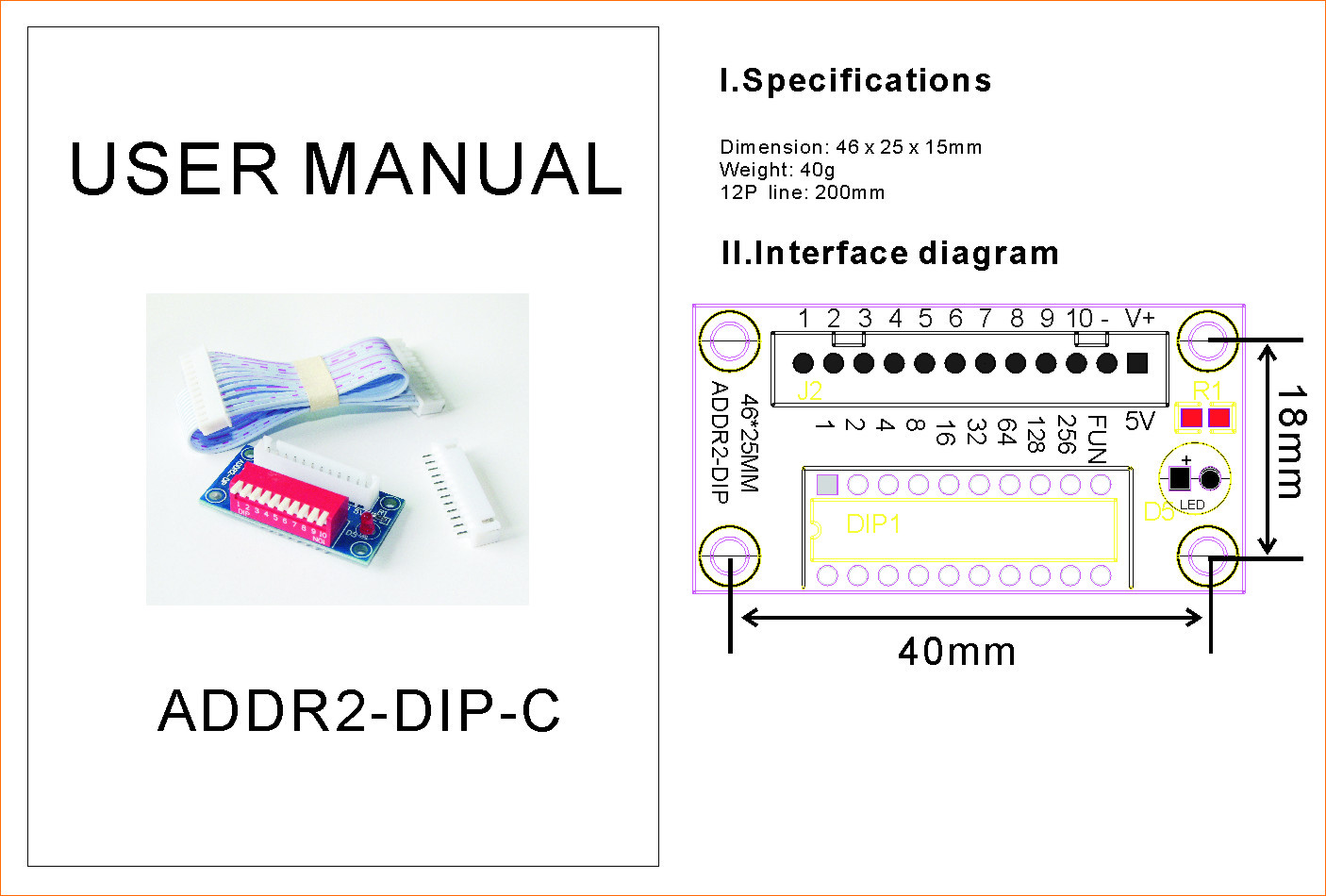

5V / V+ (per interface diagram) |
|
Typical Use |
DMX512 address, RS485/Modbus node ID, PLC/decoder config |
|
Mounting |
PCB/panel mount holes (see diagram) |
|
Note |
FUN may not be part of DMX address; verify with host device; avoid overlapping DMX channel ranges |
