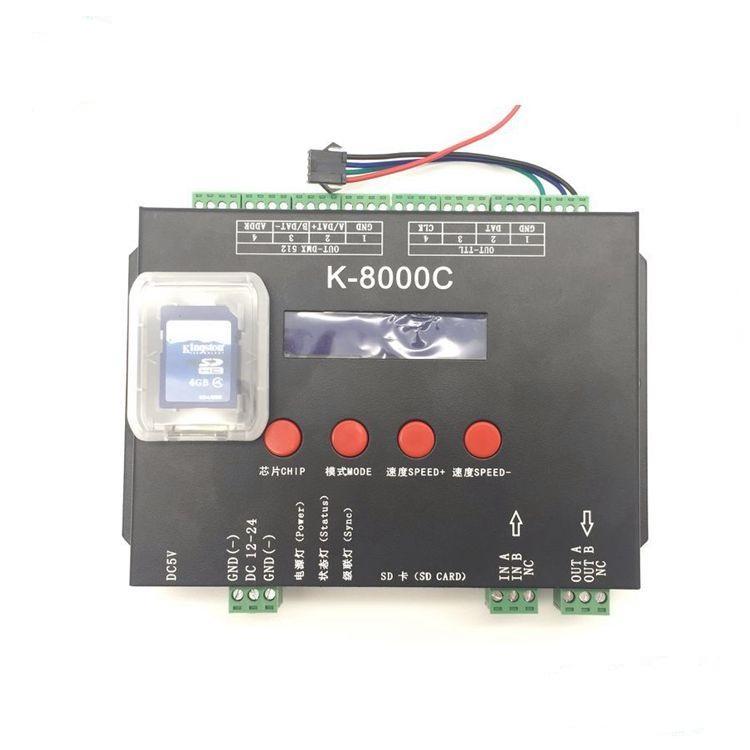

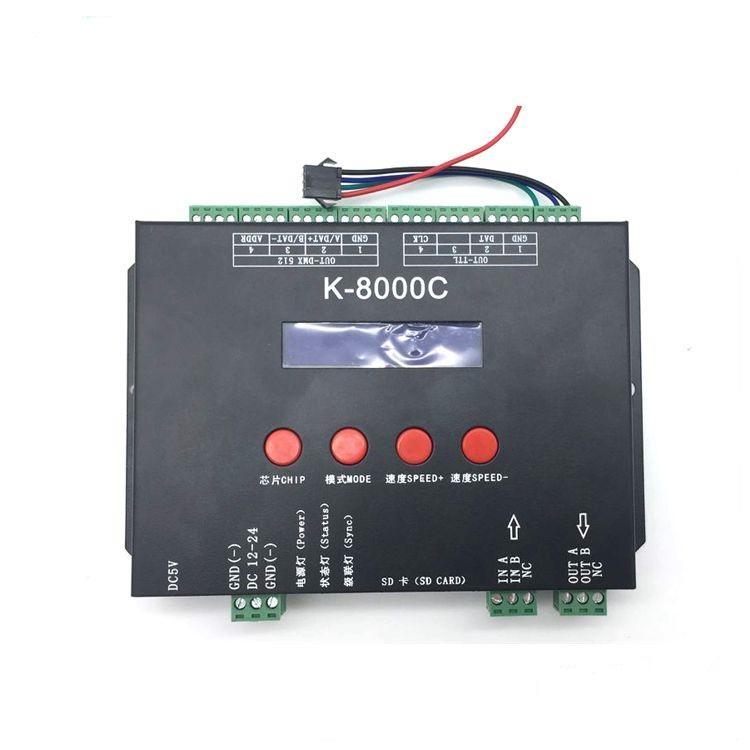

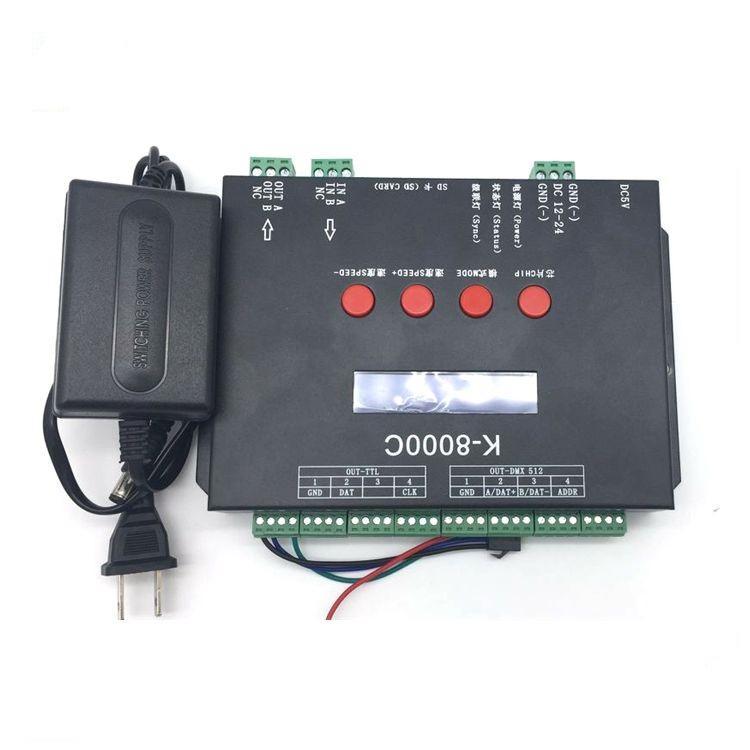

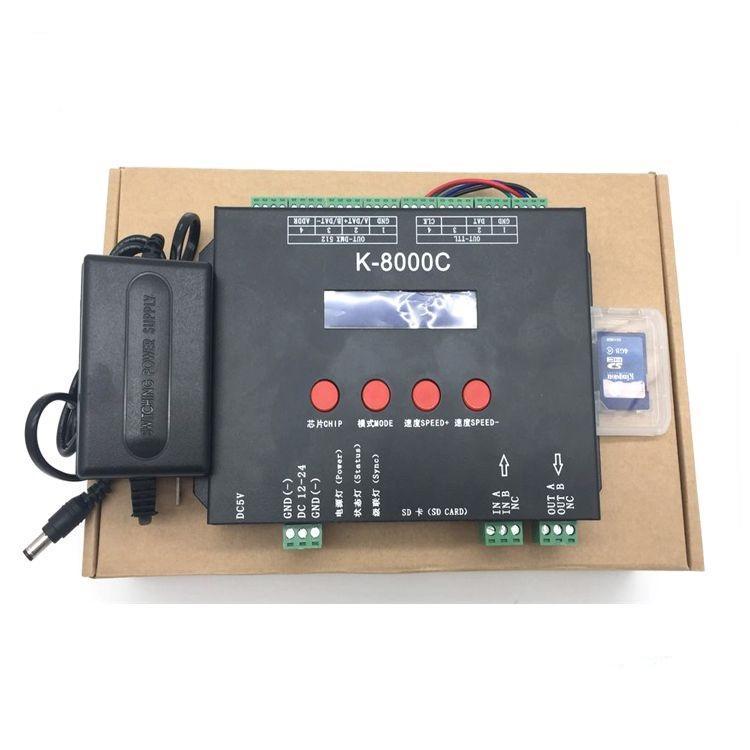

High-Capacity Processing: Supports up to 8,192 pixels (1,024 per port) across 8 independent outputs, perfect for large-scale installations.
Dual Protocol Support: Seamlessly integrates SPI (TTL) and DMX512 (RS485) signals, compatible with 99% of addressable LED chips.
Standalone Operation: Reads .ledeffect files directly from an SD card (FAT32), eliminating the need for a continuous PC connection.
Advanced Connectivity: Features MODBUS control and optical isolation for stable cascading of multiple units over long distances (up to 150m).
User-Friendly Software: Works with LedEdit-K for easy programming, including GIF/video import, DMX addressing, and built-in test patterns.
|
Feature |
Specification |
|---|---|
|
Model |
K-8000C |
|
Output Ports |
8 Ports (OUT1 - OUT8) |
|
Max Load Capacity |
SPI: 8,192 Pixels (1,024/port); DMX: 4,096 Pixels (512/port) |
|
Supported Signals |
SPI (TTL) / DMX512 (RS485) |
|
Compatible ICs |
WS2811, WS2812B, SK6812, SM16703, LPD8806, DMX512, etc. |
|
Storage |
SD Card (128MB - 32GB), FAT/FAT32 format |
|
File Format |
|
|
Power Supply |
DC 5V or DC 12V-24V |
|
Communication |
MODBUS (Third-party control), DMX Write Address |
|
Cascading |
Optical Isolation, up to 150m between controllers |
|
Software |
LedEdit-K |
|
Dimensions |
Standard Industrial Enclosure |
