Versatile 3-in-1 Protocol Support: Seamlessly integrates Ethernet, SPI, and DMX512 protocols, allowing you to control a wide range of addressable pixel lights and traditional DMX fixtures with a single, unified device.

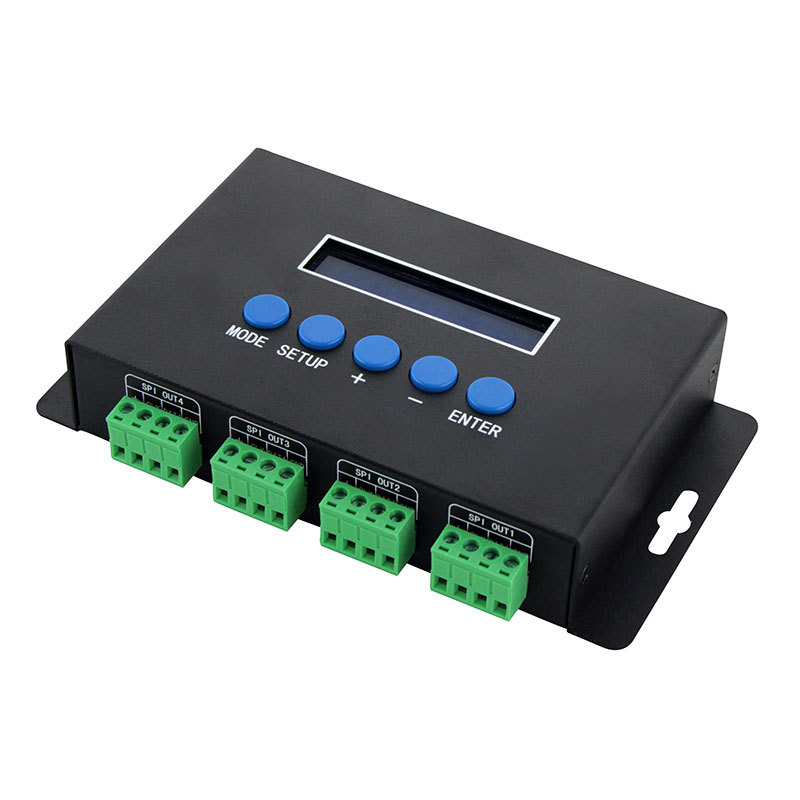

4-Port Independent SPI Output: Features four dedicated terminal block outputs (SPI OUT 1-4), enabling you to drive multiple LED pixel strips or bars simultaneously for complex, large-scale lighting installations.
Intuitive LCD Interface & Controls: Equipped with a clear LCD display and a user-friendly blue button panel (MODE, SETUP, +/-, ENTER) for quick, on-site parameter configuration and real-time status monitoring without needing a PC.
Robust Metal Housing for Durability: Built with a heavy-duty metal enclosure to ensure excellent heat dissipation and reliable performance in demanding environments, ideal for stage, architectural, and outdoor commercial use.

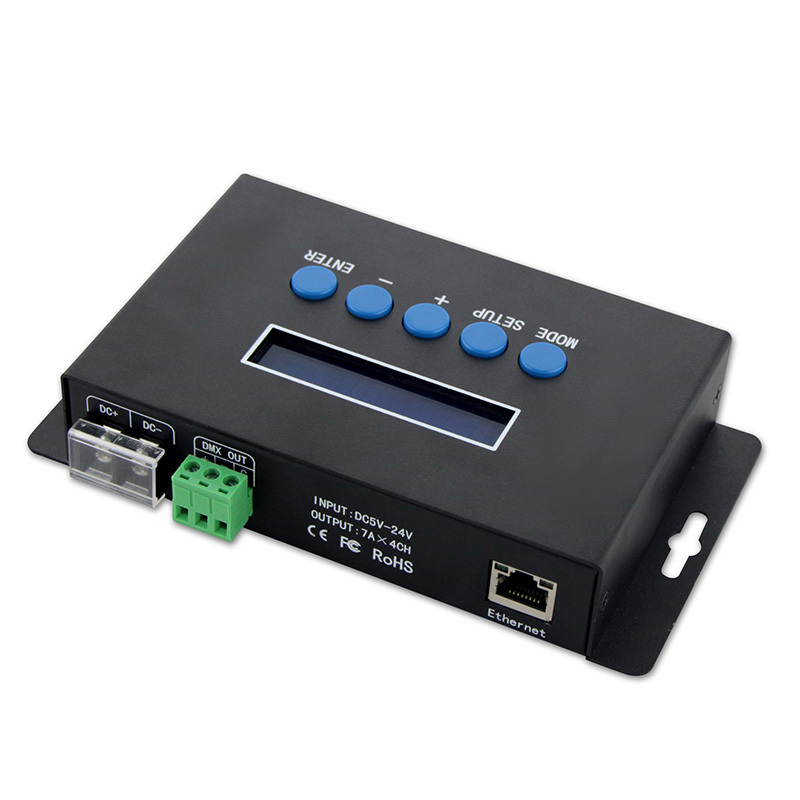

Effortless Network Integration: Supports standard Ethernet input for easy daisy-chaining and long-distance signal transmission, making it the perfect backbone controller for professional pixel lighting networks.
1. Product Overview
The BC-204 is a professional-grade network pixel controller designed to bridge Ethernet, SPI, and DMX512 protocols. It is engineered for large-scale, addressable LED pixel lighting installations requiring high reliability and flexible configuration.
2. Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
BC-204 |
|
Input Voltage |
AC 100–240V, 50/60Hz |
|
Input Signal |
Ethernet (Network) |
|
Output Signal |
SPI (TTL) / DMX512 |
|
SPI Output Ports |
4 Independent Ports (SPI OUT 1–4) |
|
Max. Pixel Capacity |
Up to 8,192 pixels (Model dependent) |
|
Control Protocols |
Art-Net, sACN, Kling-Net, SPI, DMX512 |
|
Display & Interface |
LCD Screen with 5-Key Navigation (MODE, SETUP, +/-, ENTER) |
|
Housing Material |
Heavy-Duty Metal Enclosure |
|
Dimensions (LxWxH) |
[Insert Dimensions, e.g., 200 x 120 x 50 mm] |
|
Net Weight |
[Insert Weight, e.g., 1.2 kg] |
|
Operating Temp. |
-20°C to 60°C |
|
Certifications |
CE, RoHS (Pending/Compliant) |
3. Key Features
Multi-Protocol Compatibility: Supports standard network lighting protocols (Art-Net/sACN) and converts to SPI/DMX.
Independent 4-Port Output: Drive 4 separate SPI pixel strips or DMX universes simultaneously.
Stand-alone & Network Modes: Can operate via network or store playback files for offline use.
Real-time Status Monitoring: LCD screen displays IP address, pixel count, and signal status.
4. Application Scenarios
Stage & Architectural Lighting
Commercial Signage & Pixel Screens
Theme Parks & Entertainment Venues
DMX512 System Upgrades
