Feature
1. Meet DMX512ㄗ1990ㄘinternational standard protocol
2. Support 4 zones separately, each zone 4 channels.
3. Control RGBW lights separately or synchronously
4. Support speed, brightness, color live adjustment.
5. Can save 4 customized scenes
6. Built-in 36 kinds of mode
7. High sensitivity panel touch button and color ring
8. Color ring using scrub concave ring design, more ergonomics.
9. Using glass material, stylish appearance.
10.Compatible with any DMX fixtures or DMX drivers.
11.Can be installed in the wall, suitable for all types of wall boxes.
Technical Parameter

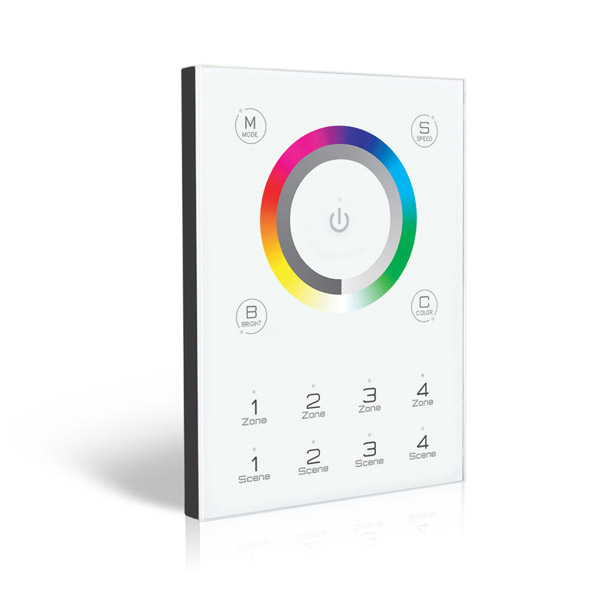

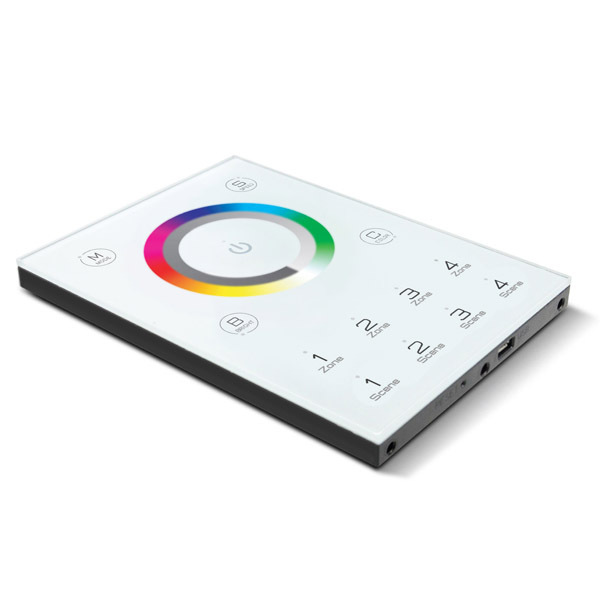

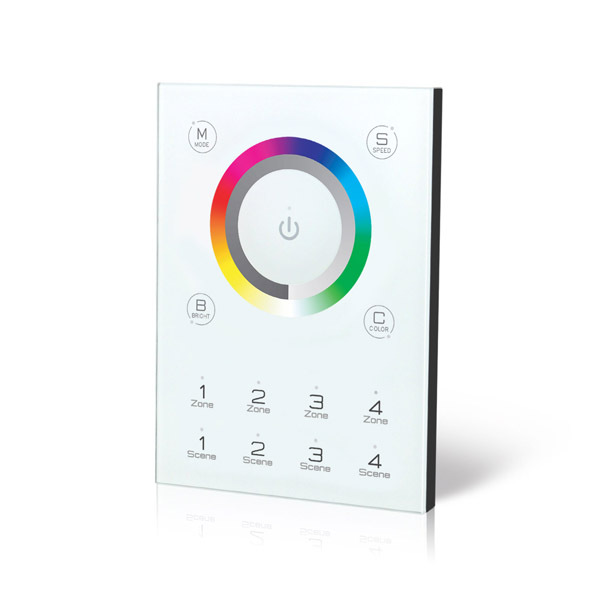

| Product Name | RGBW 16ch 4 Zones 4 Scenes DMX Touch Panel Controller |
| Item | DMX-E03 |
| Voltage | 5VDC |
| Power | 3W |
| DMX channels | 16 (Each zone 4 channels) |
| Zones | 4 |
| Scenes | 4 |
| Dimmer | DMX512 |
| Indicators | 13 |
| Product Size | 146(L) *106 (W)*11 (H)mm |
| N.G. | 200g |
| Work temperature | 0⊥ – 50⊥ |
