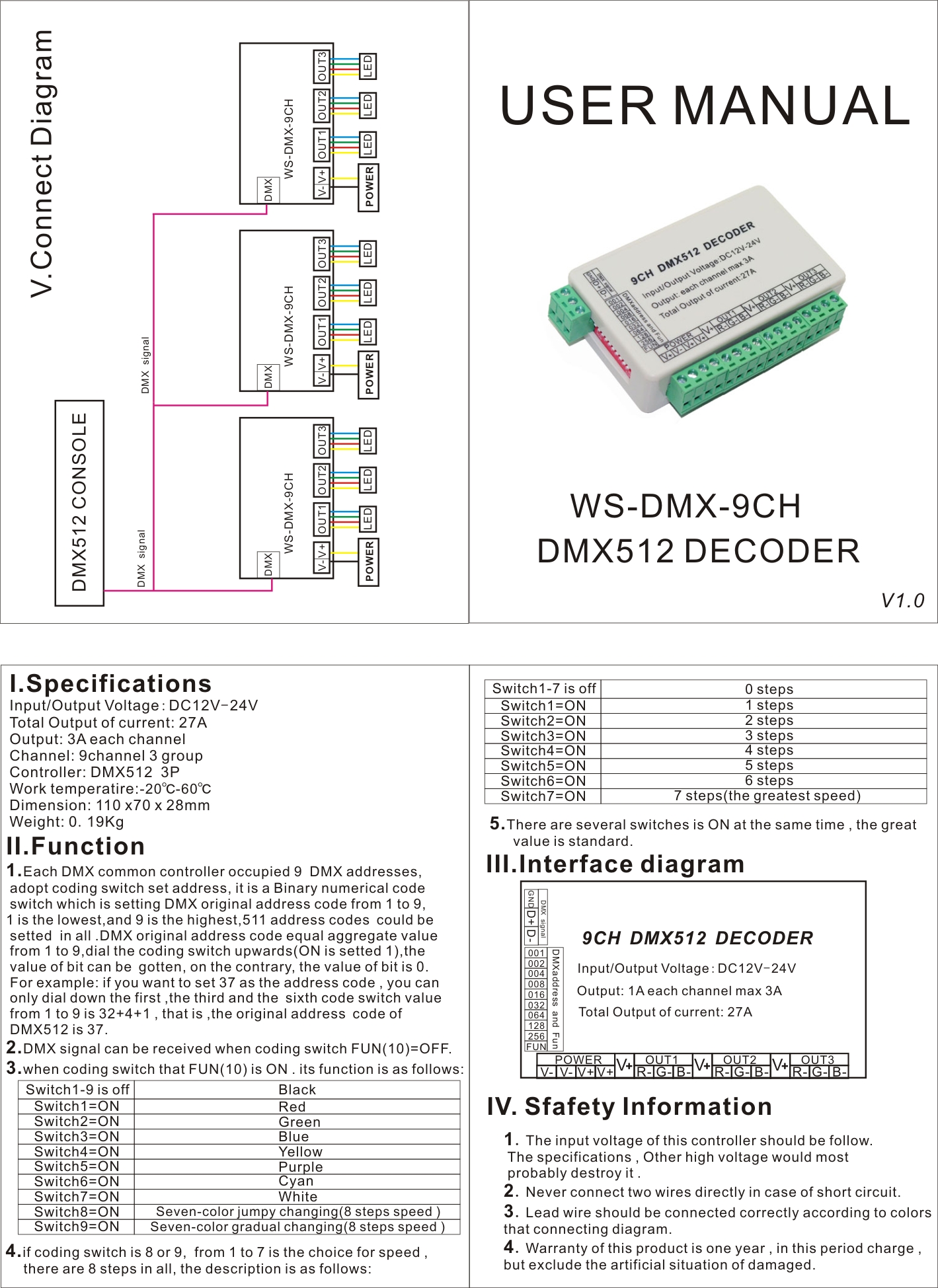

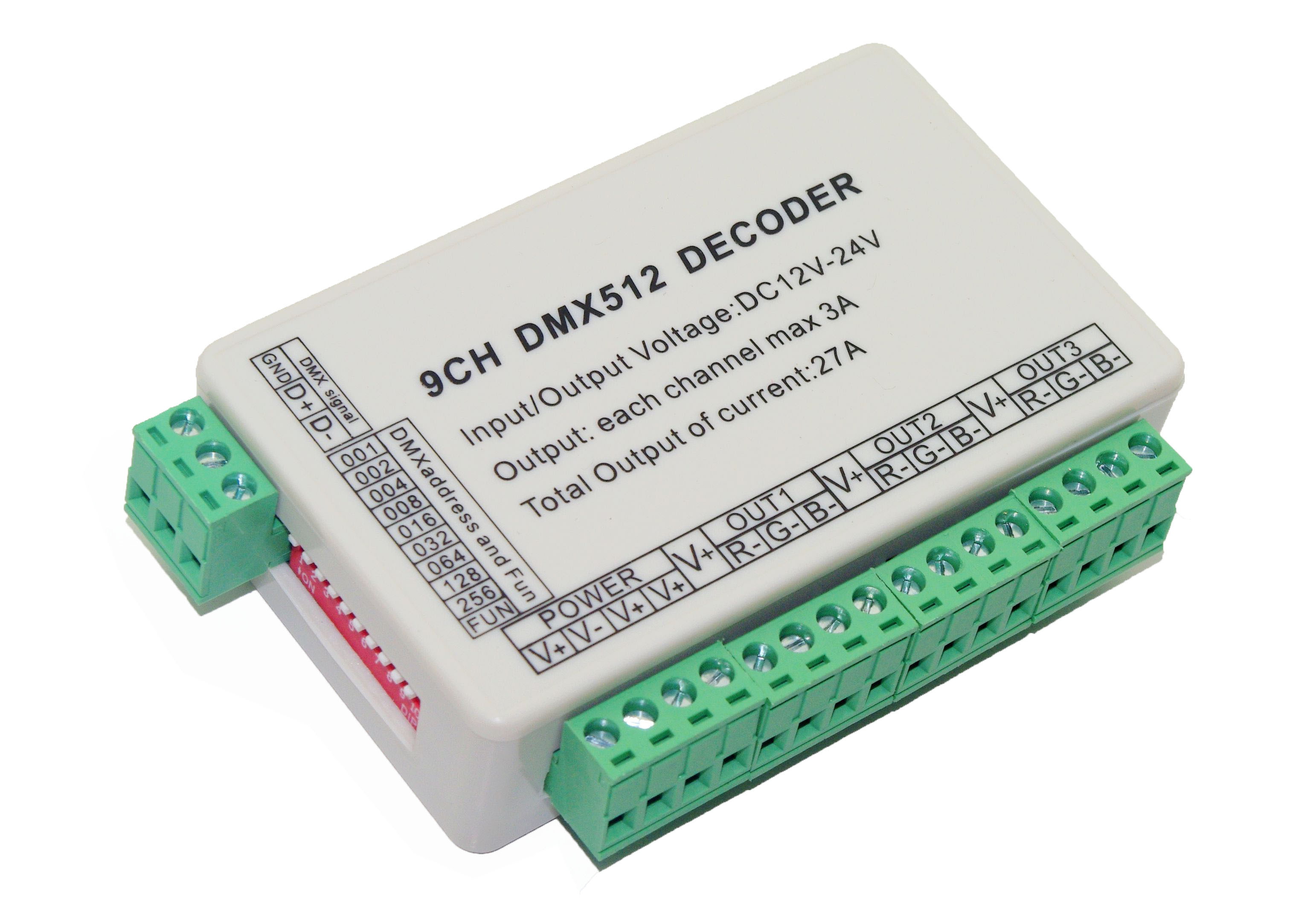

The WS-DMX-9CH is a 9-channel DMX512 LED decoder for DC12V-24V LED loads, organized as 3 RGB groups and occupying 9 consecutive DMX addresses. It delivers up to 3A per channel (27A total reference), with DIP-switch start-address and FUN for standalone color/jump/gradual effects and speed. Compact 110×70×28mm, 0.19kg, supports DMX console daisy-chain to LED strips/modules. Ideal for architectural, stage and signage lighting. DC only—do not apply AC mains; follow V+/V- and RGB wiring, avoid short circuits, and allow current margin.
9CH / 3-RGB Groups: Drives three RGB strings via one decoder, occupying 9 DMX addresses.
DC12V-24V Input: For common low-voltage LED strips/modules—not AC HV dimmer.
3A/CH, 27A Total Ref: Rated 3A each channel; plan load/heat and wiring margin.
DIP + FUN Modes: Binary address set; FUN enables black/red/green/blue/yellow/purple/white, 7-color jump/gradual and speed steps.
Compact & Chainable: 110×70×28mm/0.19kg; connects to DMX console/daisy-chain for multi-unit installs.
|
Parameter |
Specification |
|---|---|
|
Model / Label |
WS-DMX-9CH / 9CH DMX512 DECODER |
|
Version |
V1.0 (per image) |
|
Type |
9-Channel DMX512 LED Decoder (3 RGB groups) |
|
Control |
DMX512 (3P/console), DMX signal daisy-chain |
|
Input/Output Voltage |
DC12V-24V |
|
Output |
9 channels (OUT1/OUT2/OUT3 as R-G-B with V+) |
|
Output Current |
3A per channel; Total 27A (per manual, use with margin) |
|
DMX Footprint |
Occupies 9 DMX addresses |
|
Address Setting |
DIP binary (1/2/4/8/16/32/64/128/256) + FUN(10) |
|
FUN Behavior |
Switch1-9: Black/Red/Green/Blue/Yellow/Purple/White/7-color jump/7-color gradual; 8/9 + 1-7 = speed steps |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Dimension |
110 × 70 × 28 mm |
|
Weight |
0.19 kg |
|
Application |
LED strip, RGB modules, signage, architectural, stage/decor |
|
Safety |
DC only; no AC/mains; correct V+/V-/RGB; no short; check DMX wiring/termination |
