Featuring 16-bit grayscale per channel (65,536 levels) and a single-wire return-to-zero data protocol, it ensures smooth color transitions and effortless cascading for complex designs. Whether you are engineering next-generation LED transparent screens, flexible film displays, or compact decorative lighting, the SK9828MICROX-D offers unmatched reliability and precision. Its robust data reshaping and amplification circuit guarantees signal integrity over long-distance transmission. Choose OPSCO for cutting-edge micro-LED technology that combines minimal footprint with maximum creative potential.
Ultra-Compact Integration: Features a "Chip-in-Package" design (2.2x2.2mm) combining RGB LEDs and a driver IC into a single SMD component, saving over 40% PCB space compared to traditional discrete solutions.
True 16-bit Color Depth: Delivers 65,536 levels of grayscale per channel (48-bit total) for incredibly smooth color gradients and vibrant, true-to-life "dream color" effects without visible stepping.
Simplified Single-Wire Control: Utilizes a single-line return-to-zero code protocol, drastically reducing wiring complexity and MCU pin usage while supporting automatic data reshaping for stable cascading.
Built-in Signal Amplification: Integrated constant current drive and waveform reshaping ensure zero signal attenuation, allowing for reliable long-distance transmission (over 10 meters between pixels) without data corruption.
Versatile Application Ready: Optimized for high-density displays, transparent screens, and micro-lighting. The low-current design (max 6.5mA) prevents overheating, making it ideal for portable and wearable tech.

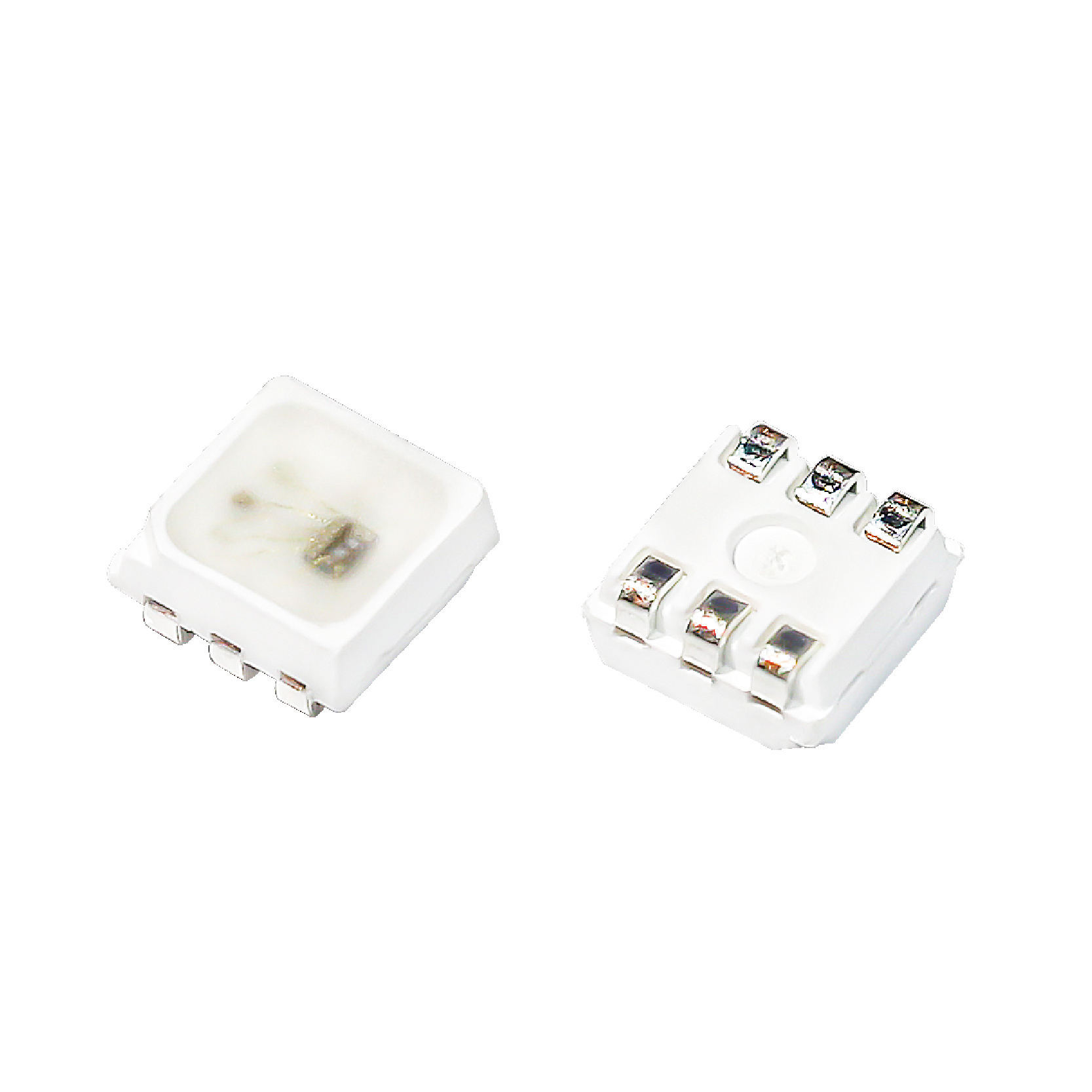

OPSCO SK9828MICROX-D Product Specification
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
OPSCO (OPSCOLED) |
|
Part Number |
SK9828MICROX-D |
|
Package Size |
2.2 mm x 2.2 mm x 1.05 mm (SMD) |
|
LED Type |
Built-in IC RGB Full Color |
|
Input Voltage (VDD) |
5.0V (Typical) |
|
Max Output Current |
6.5 mA (Total) / Adjustable per channel |
|
Grayscale Resolution |
16-bit per channel (65,536 levels) |
|
Color Resolution |
48-bit (R:16-bit, G:16-bit, B:16-bit) |
|
Communication Protocol |
Single-wire Return-to-Zero (RZ) |
|
Cascading Support |
Yes (DIN to DOUT automatic reshaping) |
|
Max Cascading Distance |
> 10 meters (point-to-point) |
|
Refresh Rate |
High speed (supports video-grade refresh) |
|
Key Features |
Single pixel addressable, constant current drive, data reshaping |
|
Operating Temp. |
-40°C to +85°C |
|
Primary Applications |
LED transparent screens, film screens, micro-displays, ambient lighting |
Pin Configuration:
VDD: Power Supply (5V)
GND: Ground
DIN: Data Input
DOUT: Data Output (Cascade to next IC)
