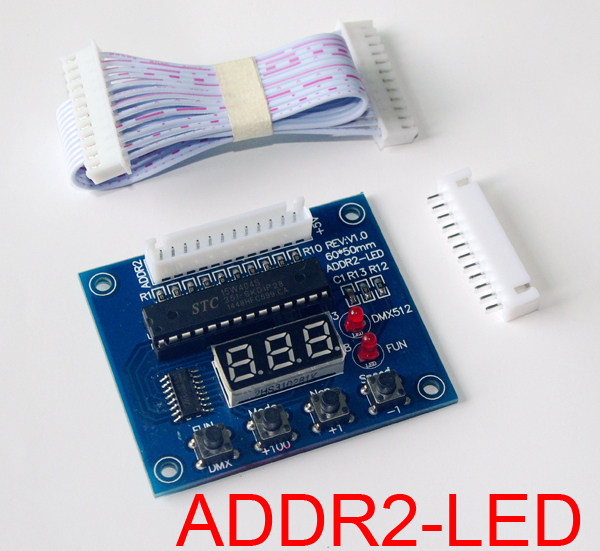

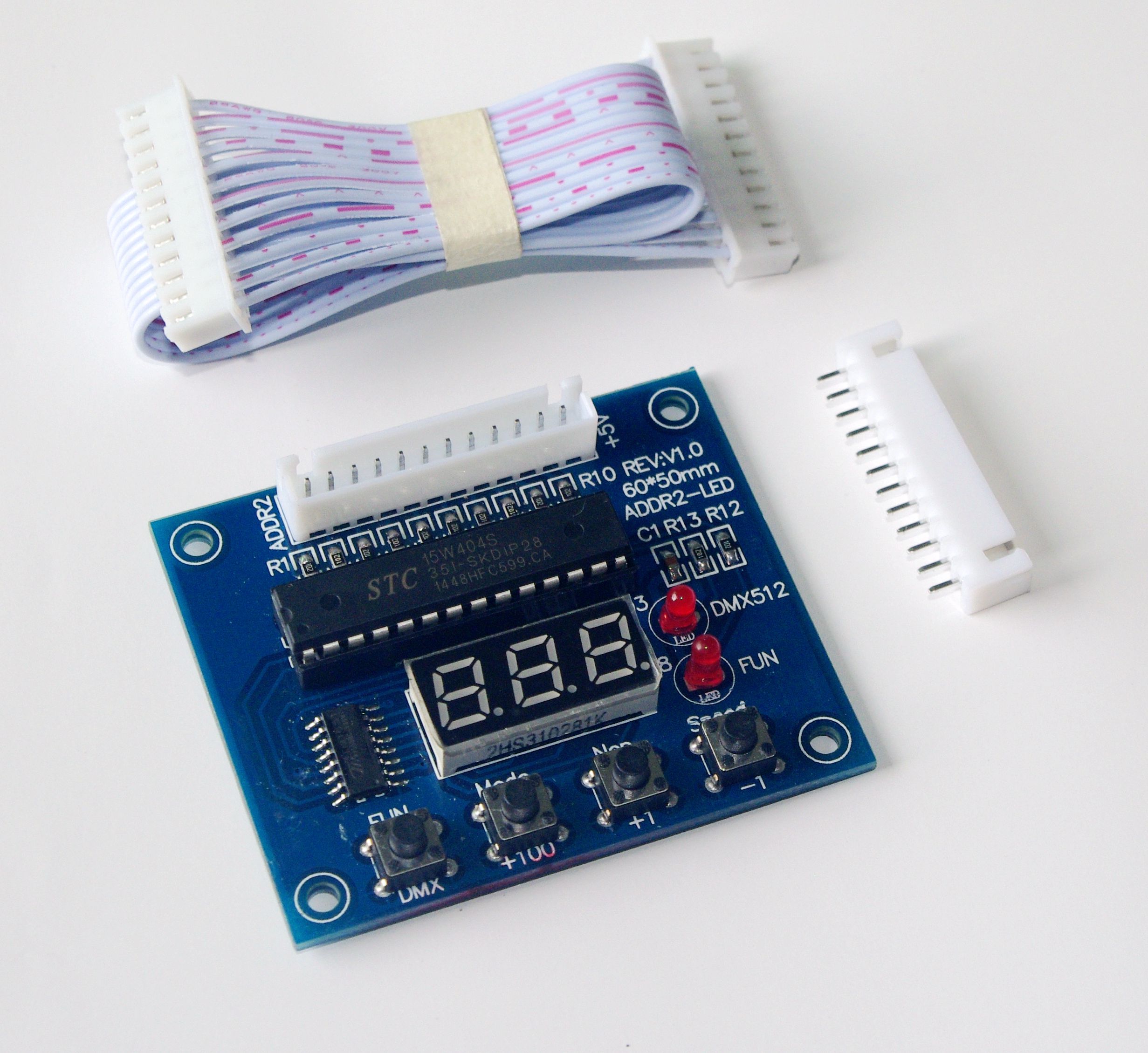

The ADDR2-LED is a digital DMX512/RS485 address and function configurator with onboard display and keys. It includes a 12P 200mm cable and allows address adjustment by +1, +10 and +100, plus Mode, Nop and Speed/FUN configuration. With 60×50×25mm size and 40g weight, it suits DMX512 decoders, LED fixtures, stage lighting and industrial control nodes. Installers can read/set addresses directly on site without relying on host software, reducing commissioning time, avoiding channel conflicts, and simplifying maintenance in multi-device DMX/RS485/Av control systems.
Digital Display: Shows address/status on onboard LED/digit display for clear on-site reading.
Key Adjustment: Set DMX address via +1 / +10 / +100; adjust Mode/Speed/FUN directly.
12P 200mm Cable: Plug-in ribbon connection for decoder/controller integration.
No PC Needed: Configure nodes on site, faster than DIP-only or software-only setups.
Pro AV/Control Use: Ideal for DMX512, RS485/Modbus nodes, LED fixtures and stage rigs.
|
Parameter |
Specification |
|---|---|
|
Product Model / Label |
ADDR2-LED |
|
Dimension |
60 × 50 × 25 mm |
|
Weight |
40 g |
|
Cable/Interface |
12P line / 200 mm |
|

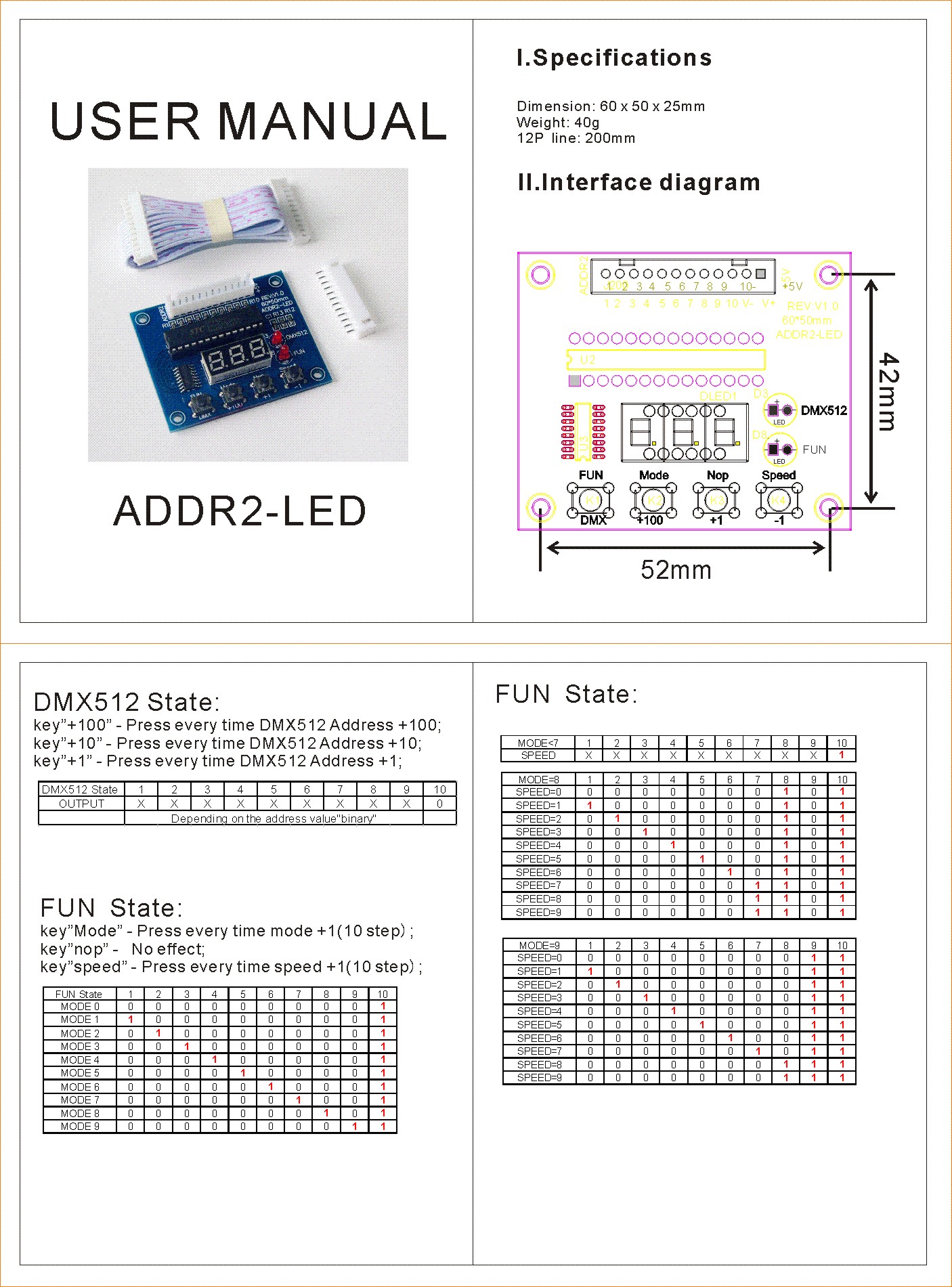

Setting Method |
Keys + digital/LED display (vs DIP switch) |
|
Address Adjust |
+1, +10, +100 (DMX512 address steps per manual) |
|
Function Keys/State |
Mode, Nop, Speed, FUN (per device/decoder protocol) |
|
Typical Bus |
DMX512 / RS485 (address/config use) |
|
Application |
DMX decoder, LED fixture, stage lighting, AV control, Modbus/RS485 node |
|
Mounting |
PCB/panel mount holes (see diagram) |
|
Note |
FUN/Mode/Speed mapping may vary by host; avoid overlapping DMX channel ranges; check 120Ω termination on bus |
