✅ True DMX512 Control – Native DMX512 protocol with 3 channels per pixel (RGB); works directly with standard DMX consoles, no SPI decoders required.
✅ High-Density Pixel Effect – 60 SMD5050 RGB LEDs/m, 10 independently addressable pixels per meter for smooth color chasing and washing.
✅ Flexible 24V System – DC24V operation minimizes voltage drop, supports longer runs, and reduces power injection points compared to 5V/12V strips.

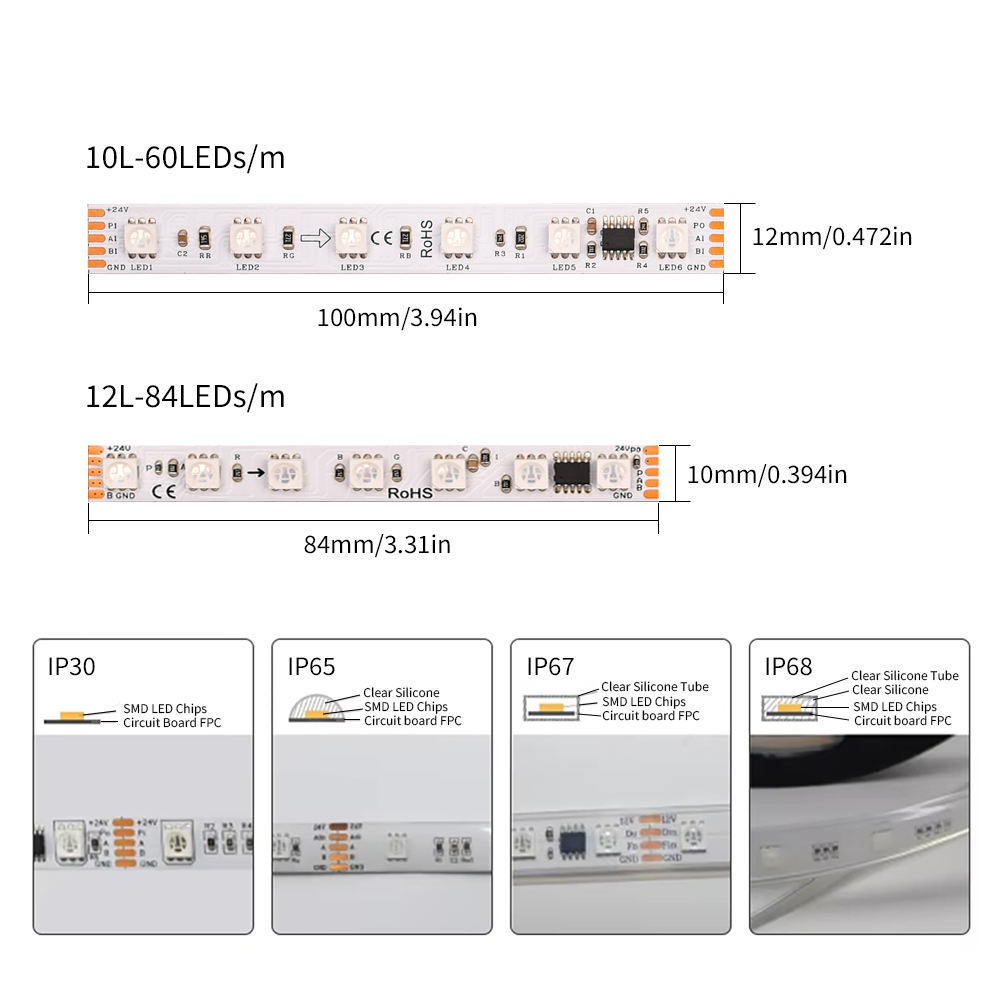

✅ Three Protection Levels – Available in IP20 (indoor), IP65 (splash-proof), and IP67 (fully waterproof) to suit any environment.

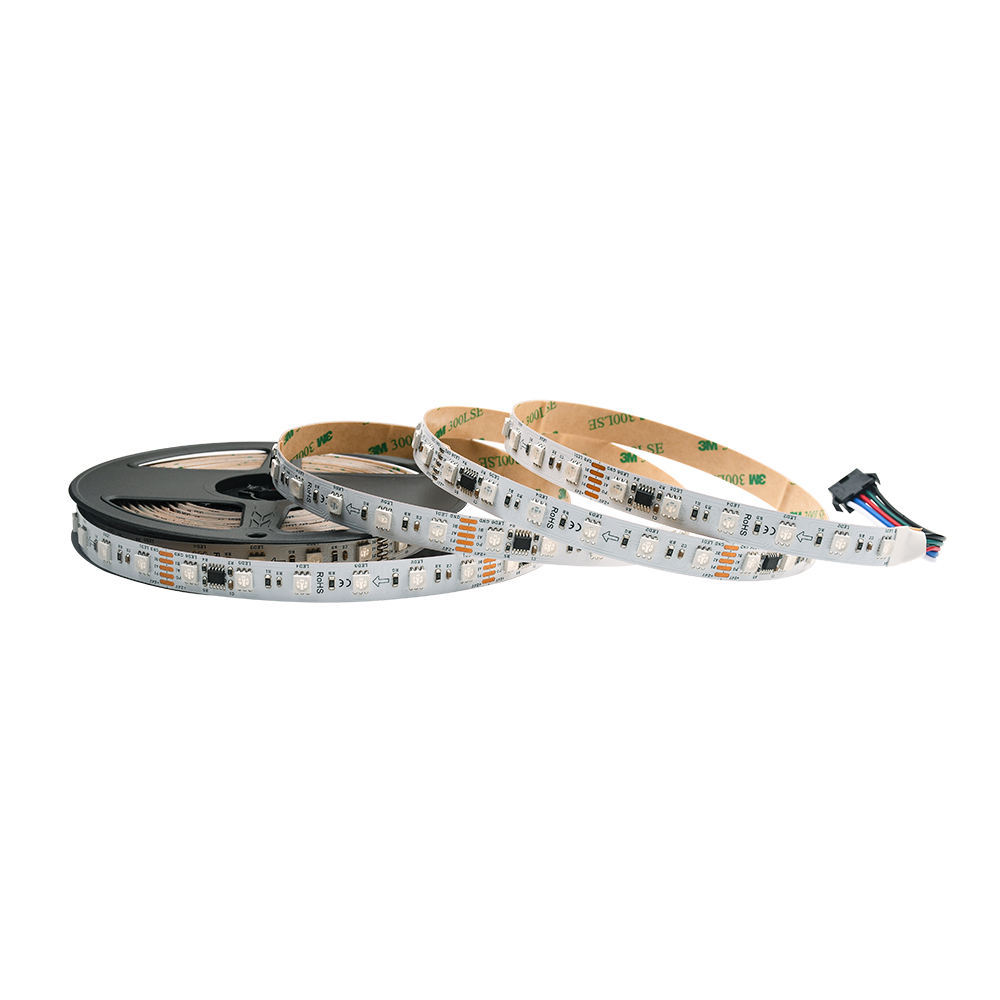

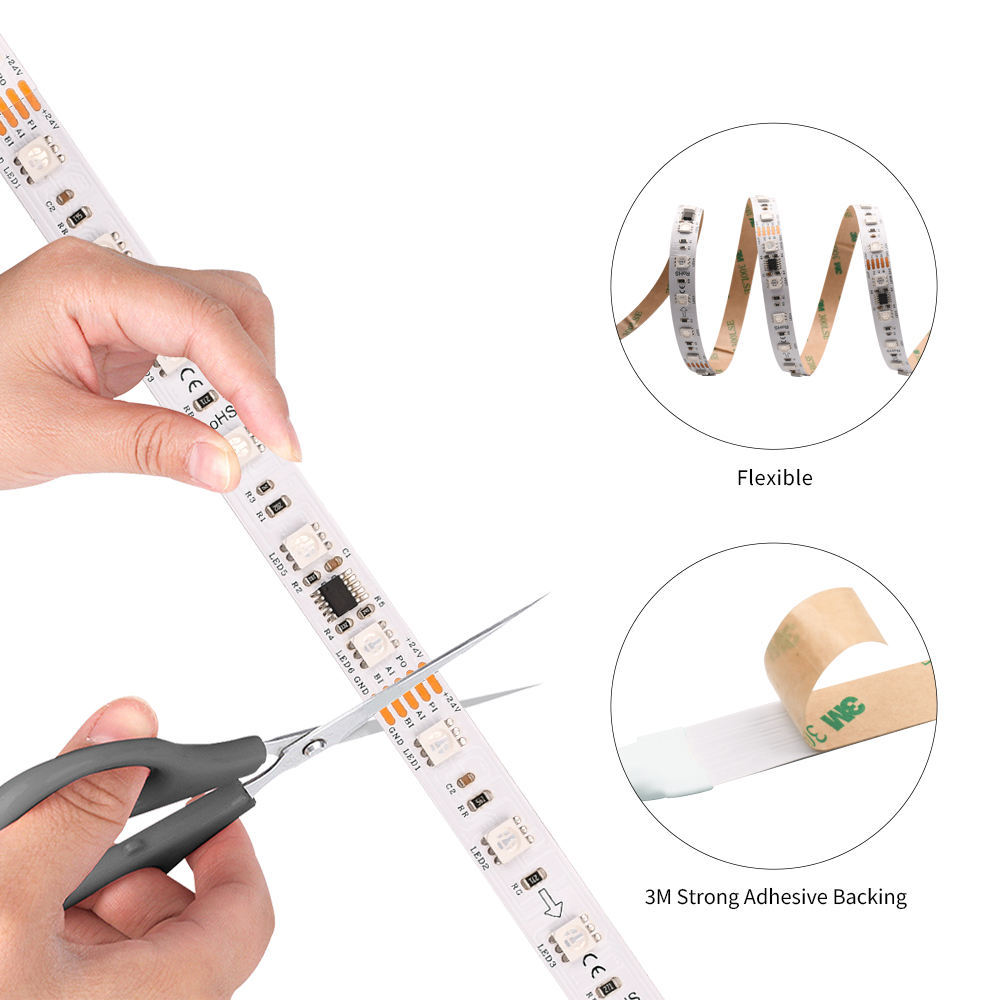

✅ Easy Installation & Cutting – 10mm wide PCB, cuttable every 100mm (6 LEDs); mounts with 3M tape or aluminum profiles for heat dissipation.
|
Item |
Specification |
|---|---|
|
Product Name |
DMX512 Addressable RGB LED Strip |
|
LED Type |
SMD5050 RGB |
|
LED Density |
60 LEDs/m |
|
Pixel Count |
10 pixels/m (1 pixel per 6 LEDs) |
|
Operating Voltage |
DC24V |
|
Power Consumption |
~14.4W/m (max. white) |
|
IC Type |
UCS512 / TM512 (DMX512 built-in) |
|
Control Protocol |
Standard DMX512 (3 channels/pixel: R, G, B) |
|
PCB Width |
10mm |
|
Cutting Unit |
Every 100mm / 6 LEDs |
|
Beam Angle |
120° |
|
IP Rating Options |
IP20 / IP65 / IP67 |
|
Working Temp. |
-20°C to +50°C |
|
Lifespan |
≥50,000 hrs |
|
Applications |
Stage lighting, architectural outlines, bars, hotels, signage, decorative pixels |
