The built-in SD card slot allows offline operation with up to 64 effect files, while DMX consoles can trigger files, adjust speed, and brightness in real time. With robust synchronization and flexible output modes (TTL/DMX), the H802RS delivers reliable, high-density pixel control for any creative lighting project.
Triple Control Modes: Supports Art-Net, DMX512, and SD card offline playback for maximum flexibility in any setup.
High-Capacity Output: Drives up to 8,192 pixels (1,024 per port) across 8 independent SPI/TTL ports.
Wide Chip Compatibility: Works with WS2811, WS2812, APA102, TM1914, UCS1903, and more.
Real-Time DMX Control: DMX console can switch files, adjust speed, and brightness; each unit occupies only 7 DMX channels.

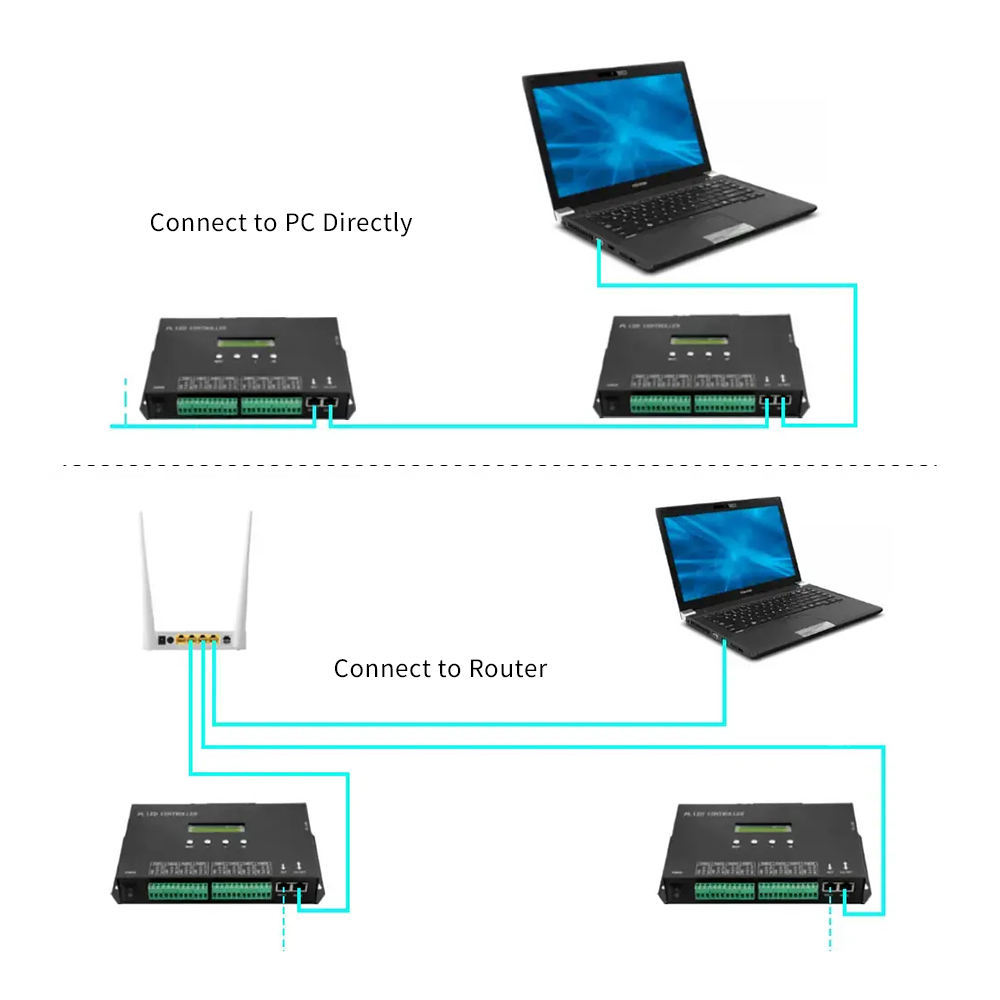

Multi-Device Sync: LAN-based synchronization ensures perfectly timed playback across multiple controllers.
|
Item |
Specification |
|---|---|
|
Model |
H802RS (8-Port) |
|
Control Protocols |
Art-Net, DMX512, SD Card Offline |
|
Output Ports |
8 × SPI/TTL (Configurable 245/485 mode) |
|
Max Pixels |
8,192 pixels (1,024 per port) |
|
Supported ICs |
WS2811/12/13/15, WS2801, APA102, TM1812/14, UCS1903, LPD6803/8806, SM16703, etc. |
|
SD Card |
FAT16/FAT32, up to 64GB, 64 DAT files |
|
DMX Channels |
7 channels per unit (file select, speed, brightness, mode) |
|
Sync Mode |
Net2 Send Sync / Net2 Input via LAN |
|
Software |
Madrix, Resolume, MadMapper, Jinx!, LED Build |
|
Power Supply |
DC 5–24V (depending on LED load) |
|
Dimensions |
Approx. 145 × 90 × 25 mm |
