Whether you're building an architectural display, a stage setup, or an immersive gaming room, the SP901E eliminates flicker and data corruption. It’s the professional’s choice for reliable, high-density LED control. Don't let signal degradation dim your vision—amplify it with SP901E.
Universal Compatibility: Supports almost all single-line and dual-line SPI LED chips (WS2812B, SK6812, APA102, WS2801, etc.), making it a versatile tool for any project.
Multi-Channel Output: Converts 1 data input into 8 independent outputs (or 4 pairs for clock/data chips), allowing you to drive multiple LED strips simultaneously from one controller.
Signal Regeneration: Actively reshapes and amplifies the data waveform, solving the problem of signal attenuation on long wire runs and preventing flickering or color errors.
Wide Voltage Range: Operates on DC 5V-24V, matching the voltage of your LED strips without needing a separate power supply or voltage converter.
Zero Configuration: Truly plug-and-play. No DIP switches or software required; it automatically detects the data rate and protocol of your controller.

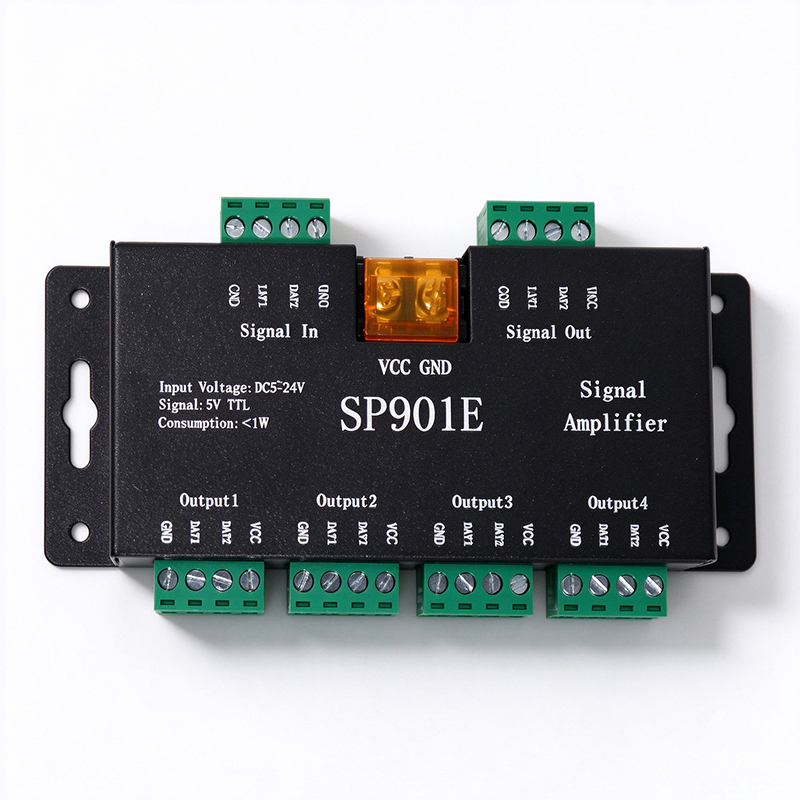

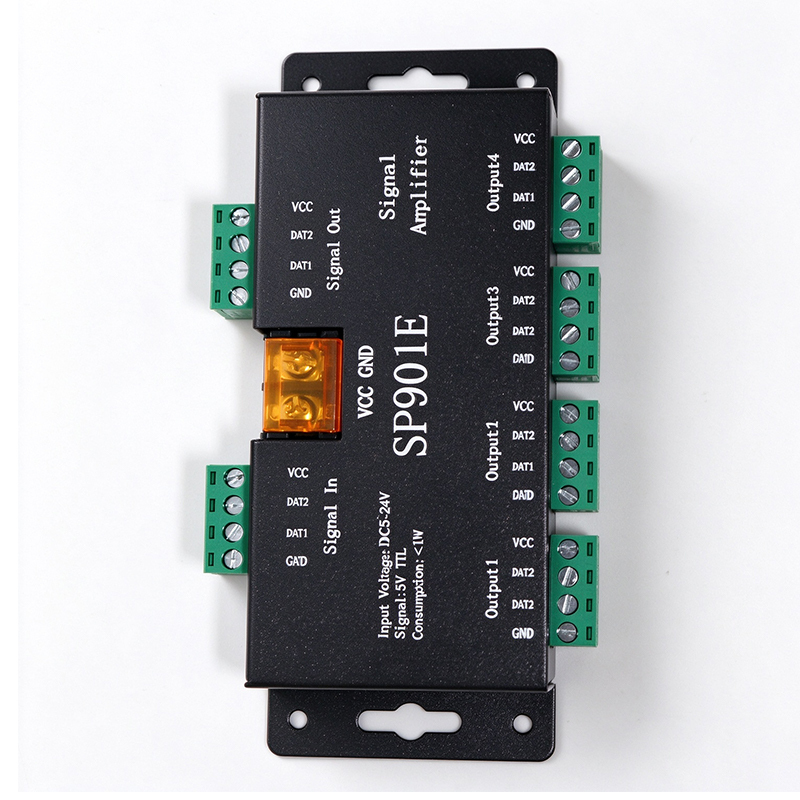

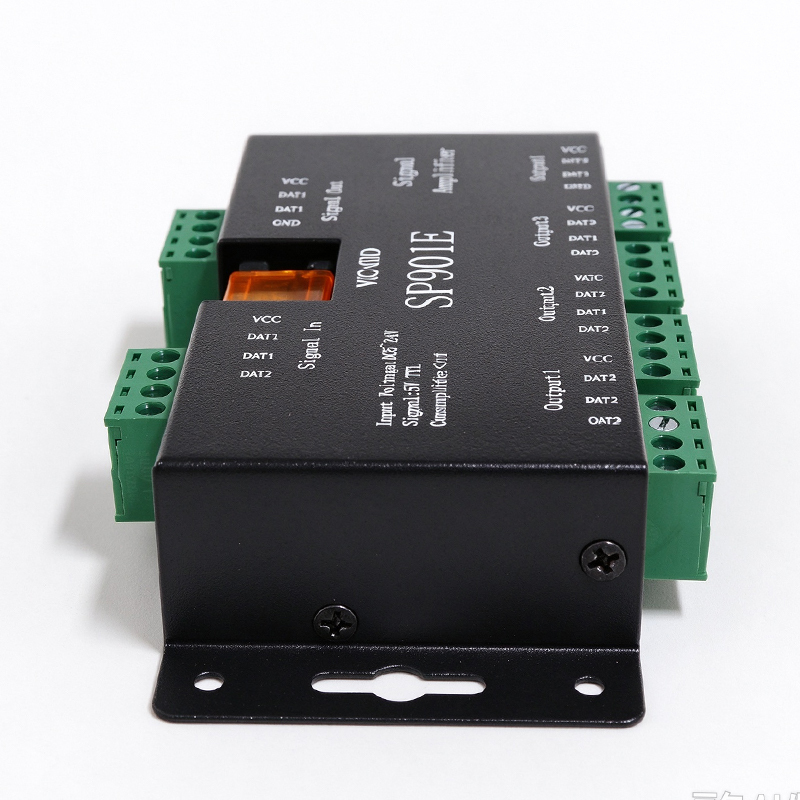

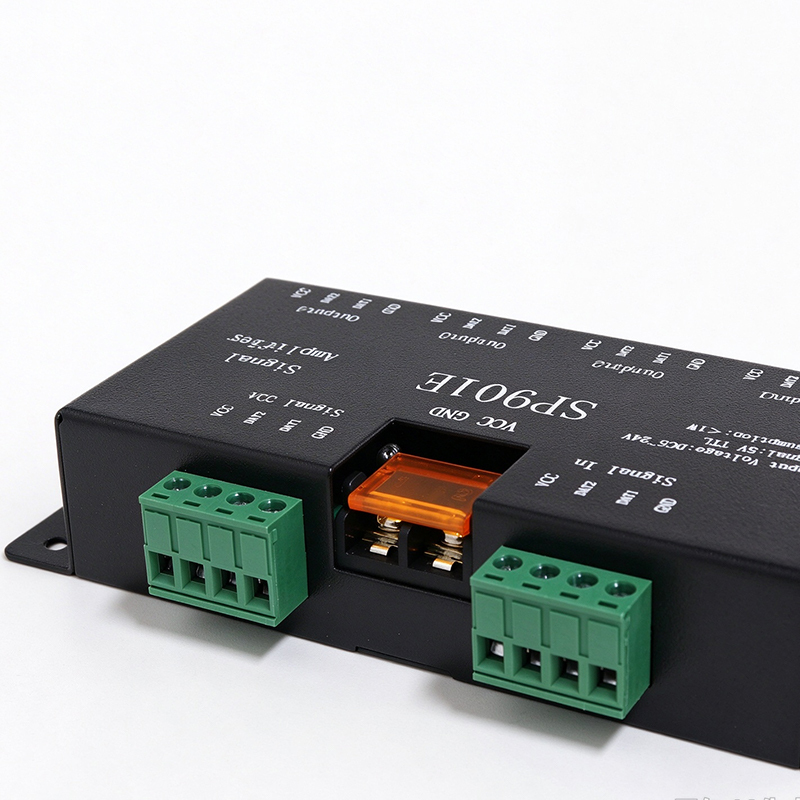

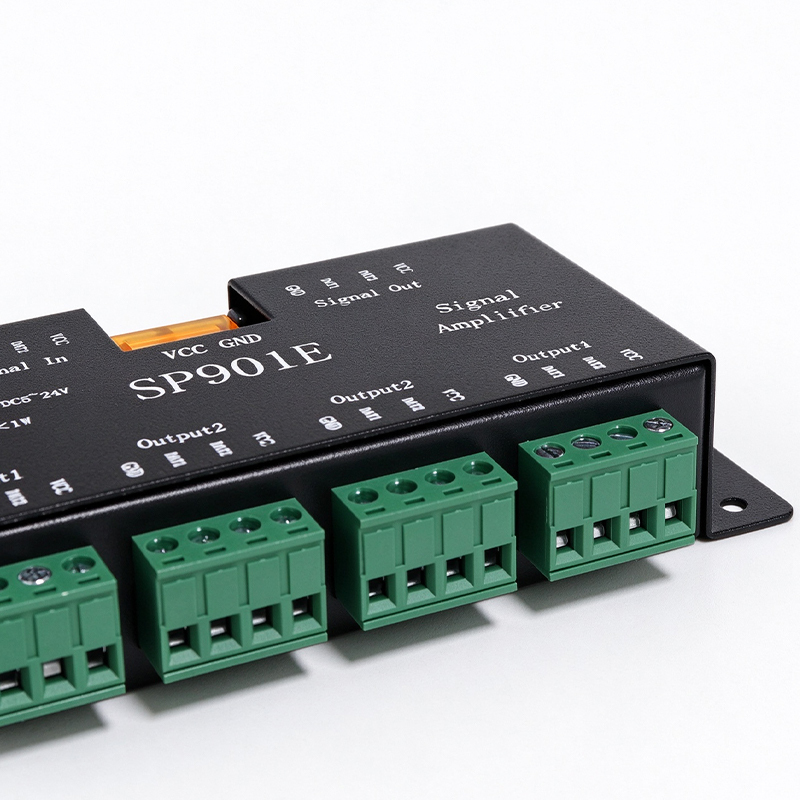

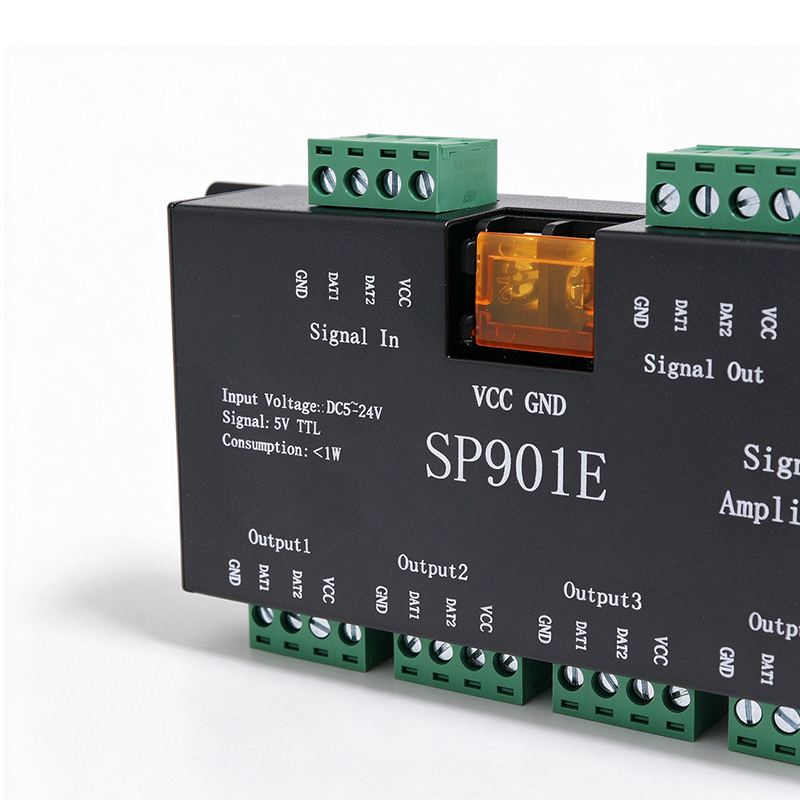

Product Model: SP901E
Type: SPI LED Signal Amplifier / Repeater
Electrical Characteristics:
Input Voltage: DC 5V - 24V (Must match LED strip voltage)
Input Signal: 5V TTL SPI
Static Power Consumption: < 1W
Working Current: 3mA - 6mA
Interface & Performance:
Input Channels: 1 Channel (Data/Clock)
Output Channels:
Single-wire ICs: 8 Ports
Dual-wire (Data+Clock) ICs: 4 Ports
Signal Boost: Yes (Waveform reshaping)
Cascading: Supported
Physical & Environmental:
Dimensions: 140 x 56 x 28 mm (Approx.)
Operating Temperature: -20°C to 60°C
Protection: Reverse Polarity Protection
Compatible IC List:
Single Wire:WS2811, WS2812B, WS2813, WS2815, SK6812, SM16703, UCS1903, UCS2903.
