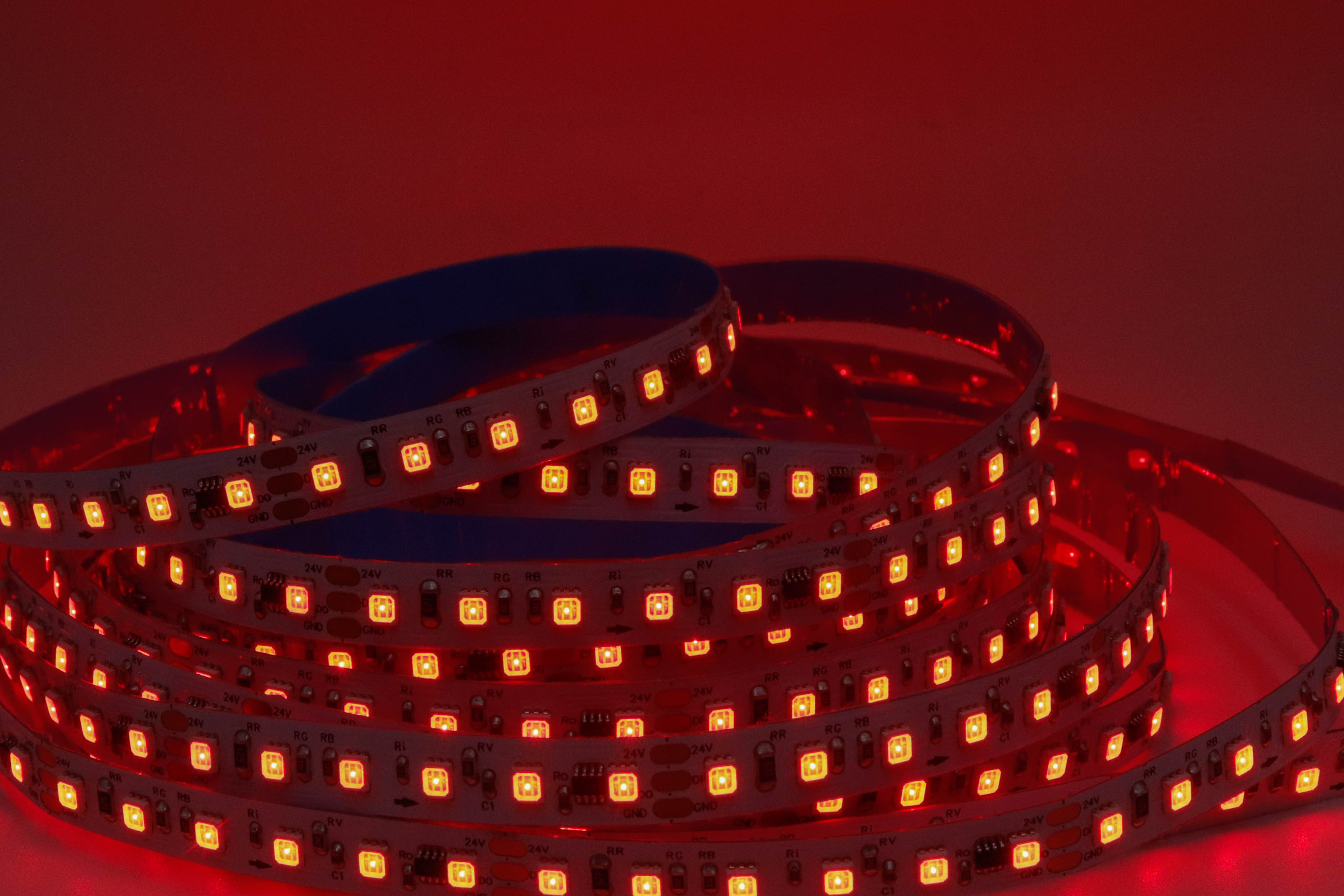

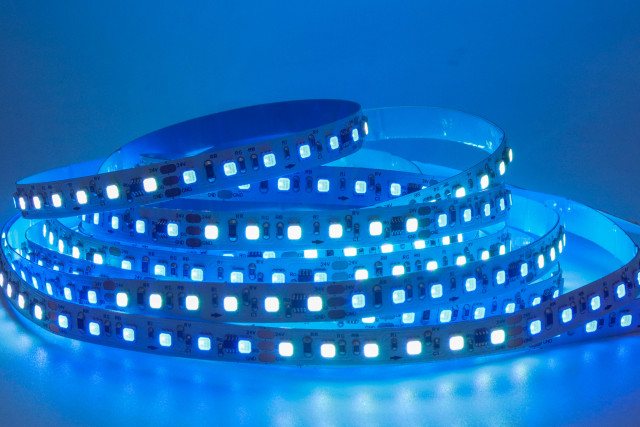

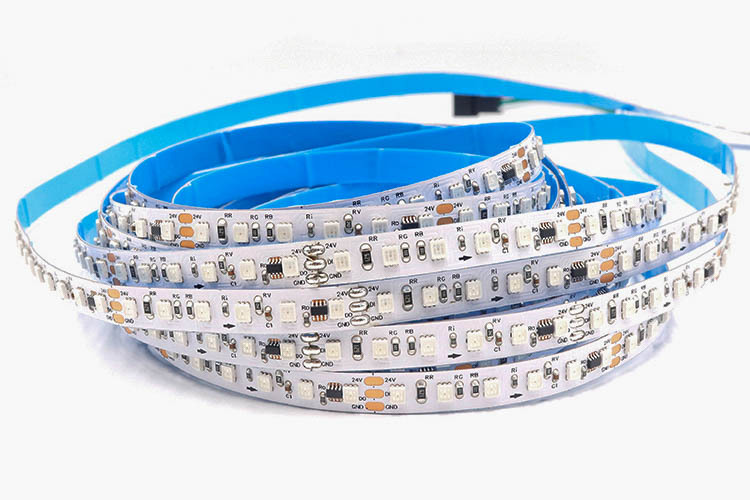

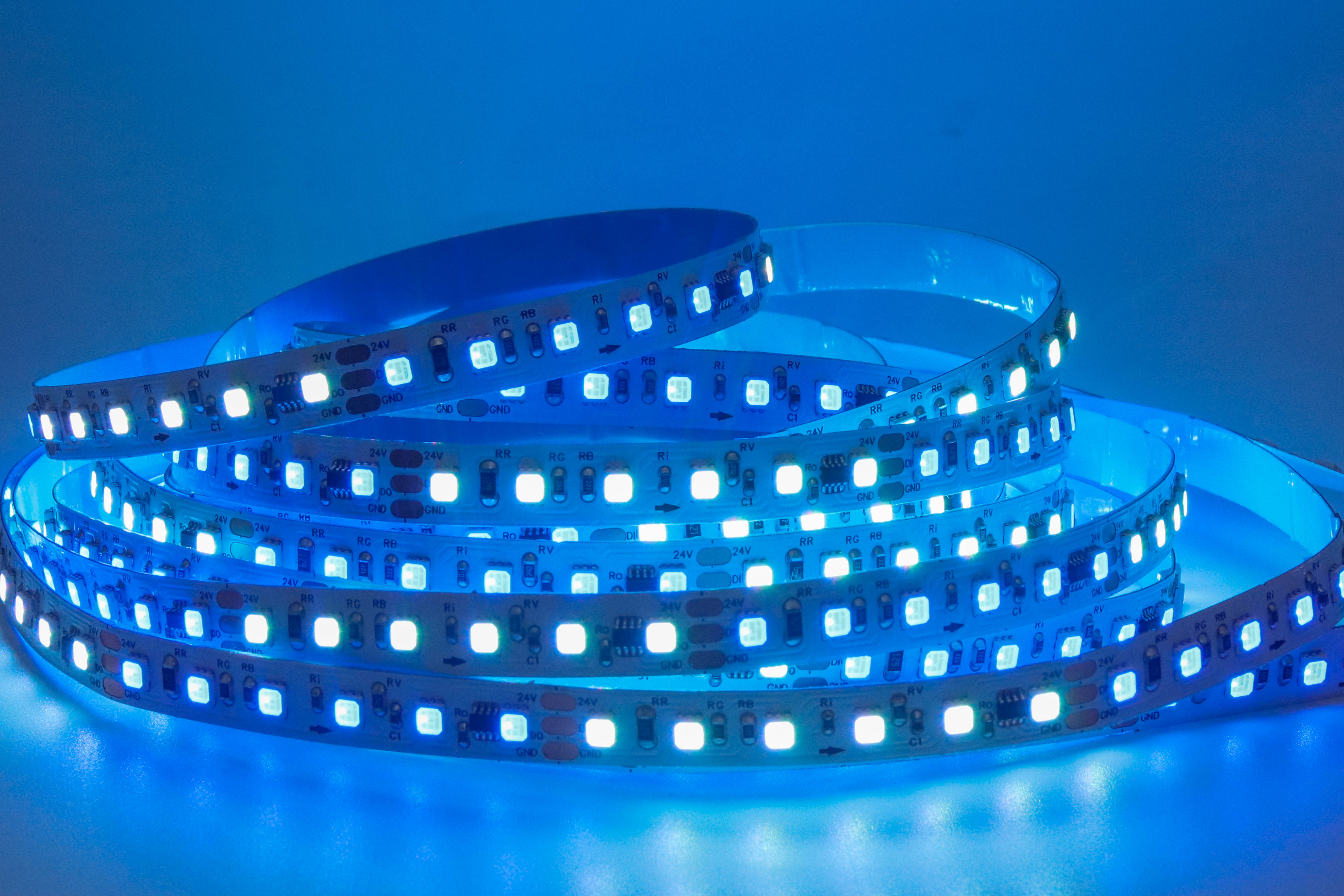

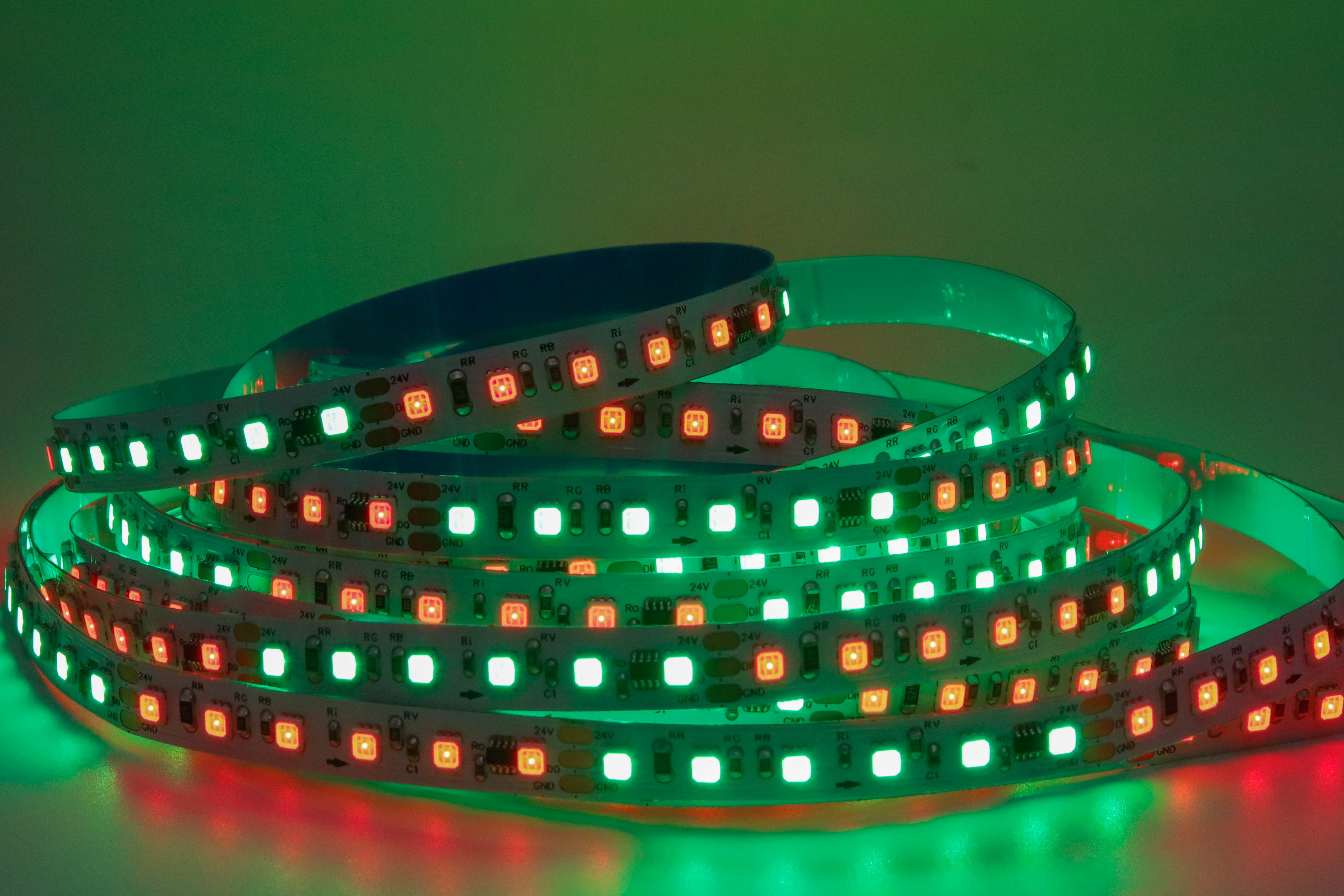

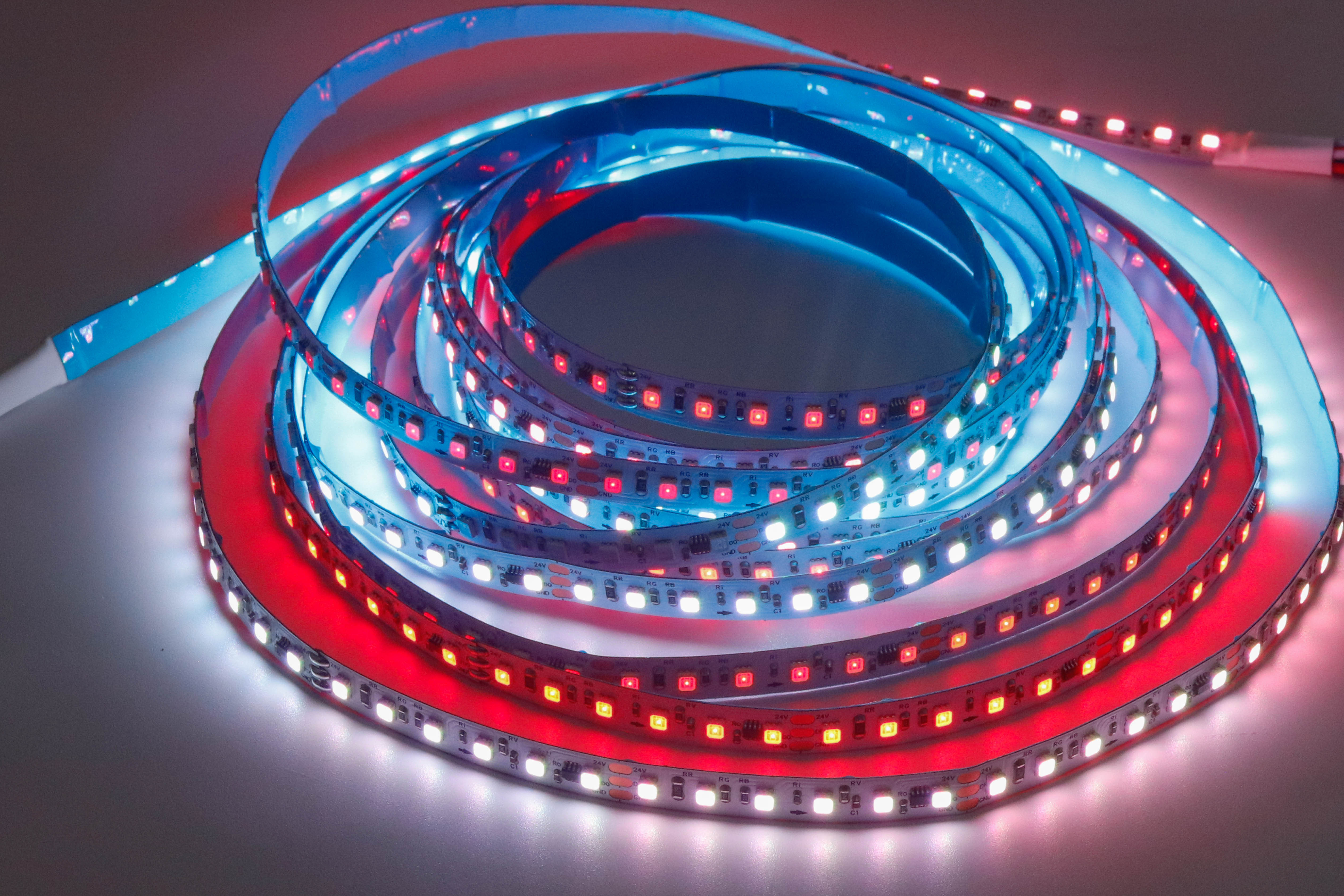

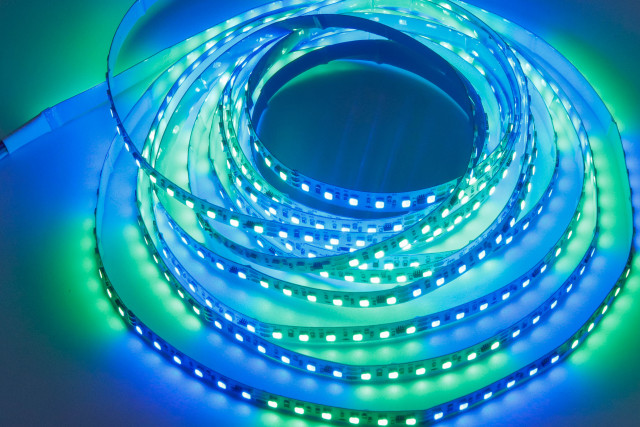

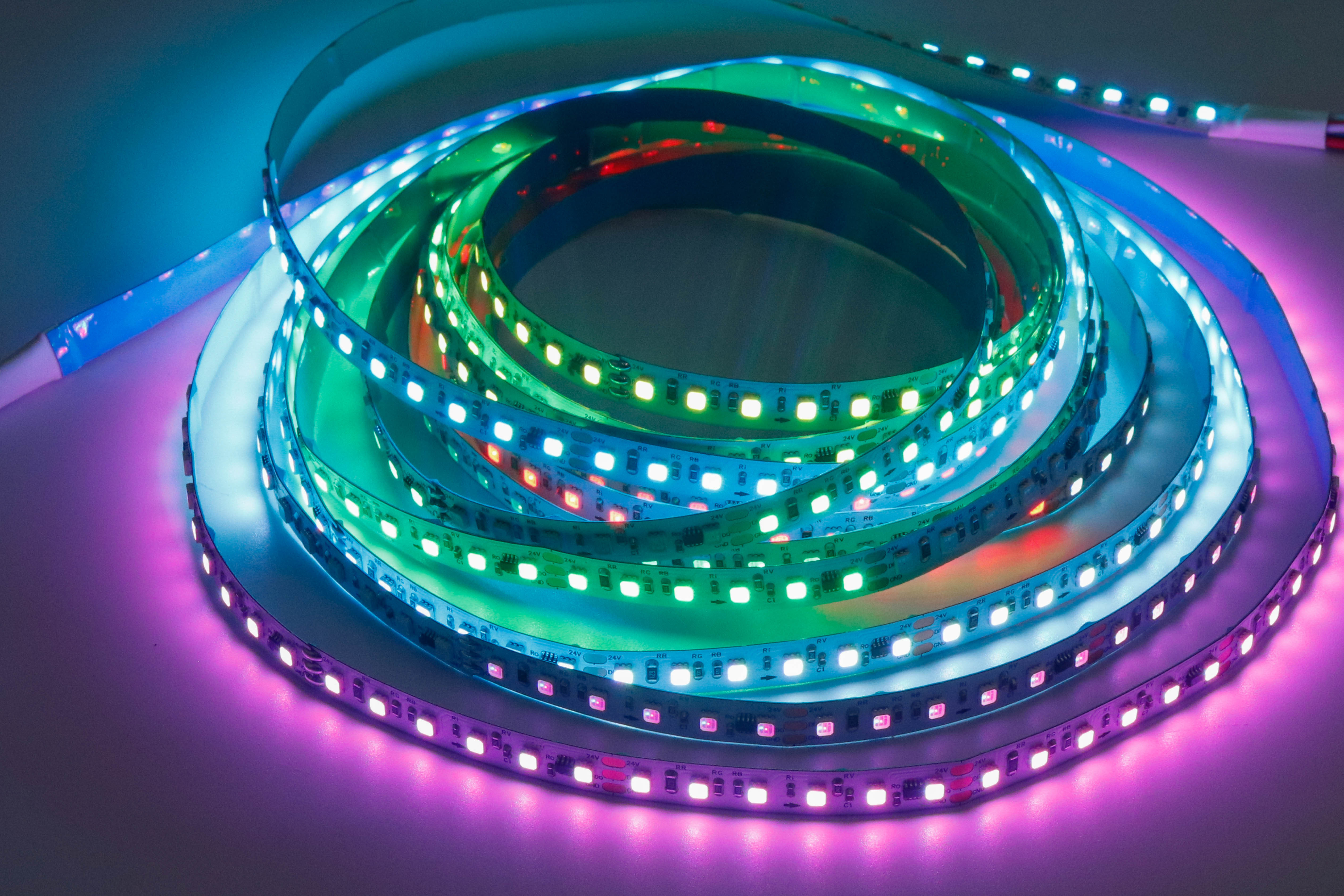

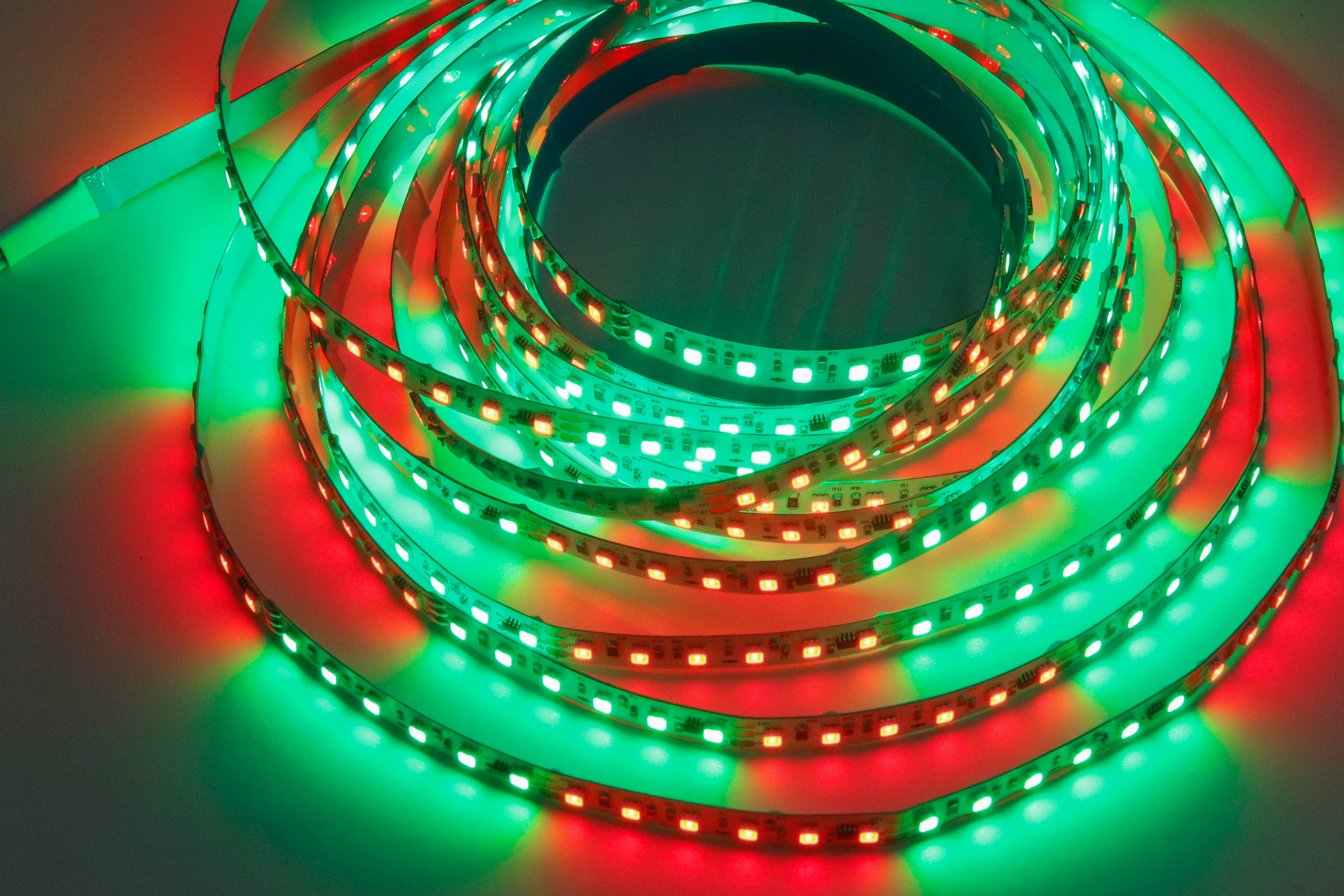

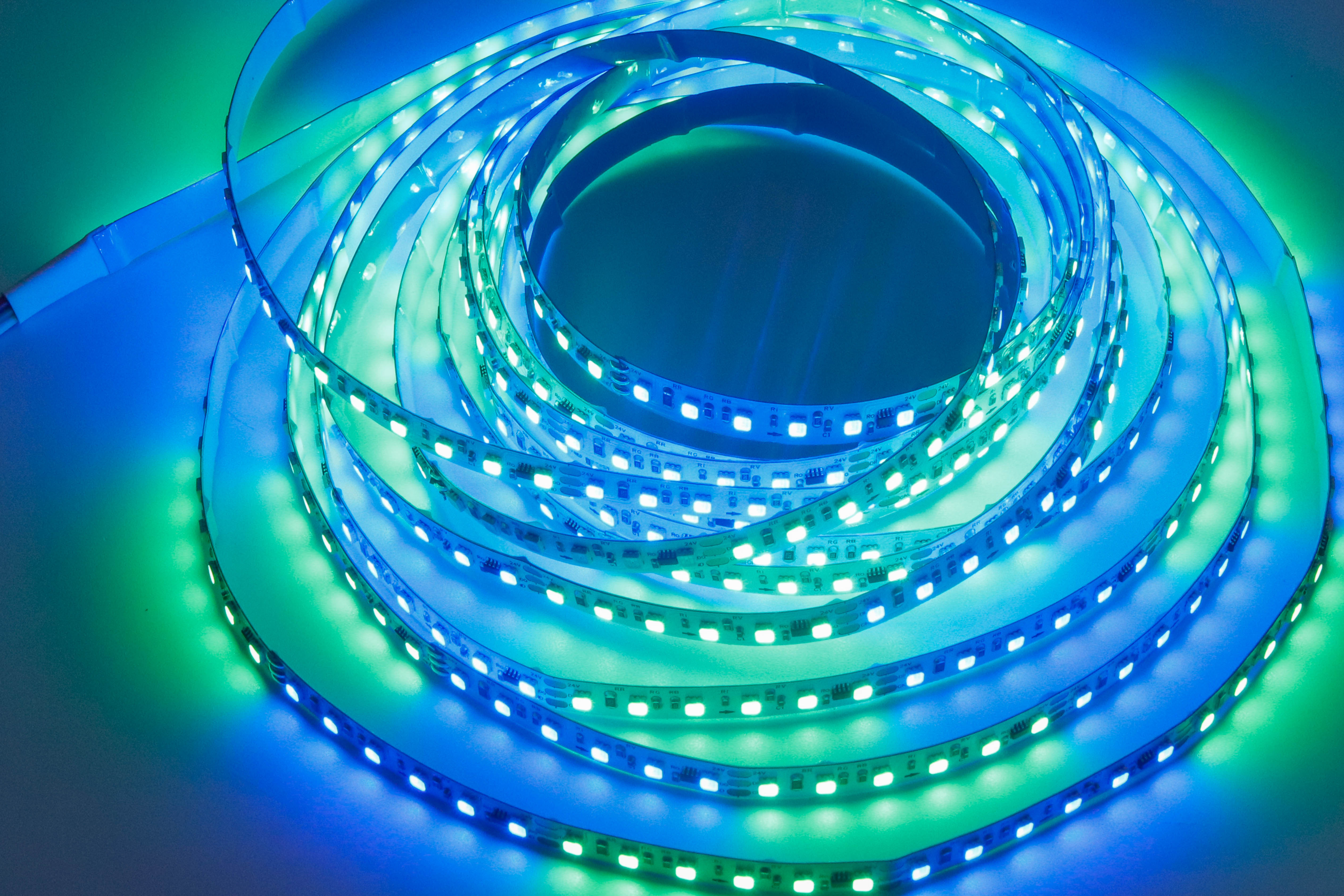

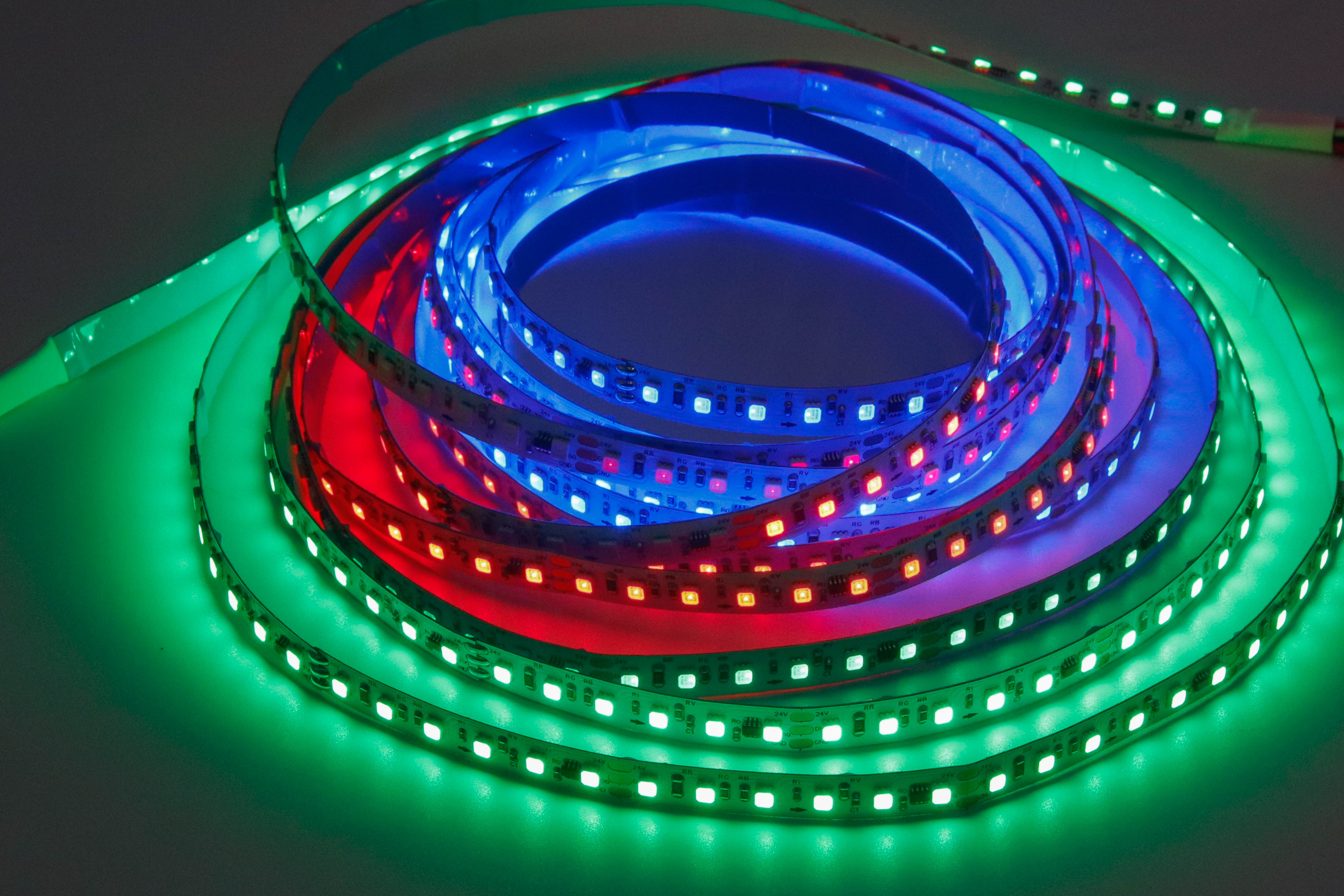

This 24V addressable strip uses high-efficiency SMD 2835 RGB LEDs with external FW1934A ICs on an 8mm narrow PCB. It packs 120 LEDs/m and 20 pixels/m, with 6 LEDs driven by one IC and a 50mm cut interval—dense enough for smooth color, narrow enough for small profiles. FW1934A supports single-line control plus backup-data breakpoint continuation, so a damaged pixel does not kill the whole run. 24V input reduces current and voltage drop for longer installations. Use auto effects or drive it with Arduino, K-1000C, T-series, WLED, or DMX512 SPI decoders. Ideal for channel letters, facade lines, shelf lighting, and commercial decoration.
8mm Narrow PCB + 2835 RGB — slim profile with better brightness/efficiency than 3528 and less bulk than 5050.
120 LEDs/m, 20 Pixels/m — high LED density with practical 50mm cutting for signs and profiles.

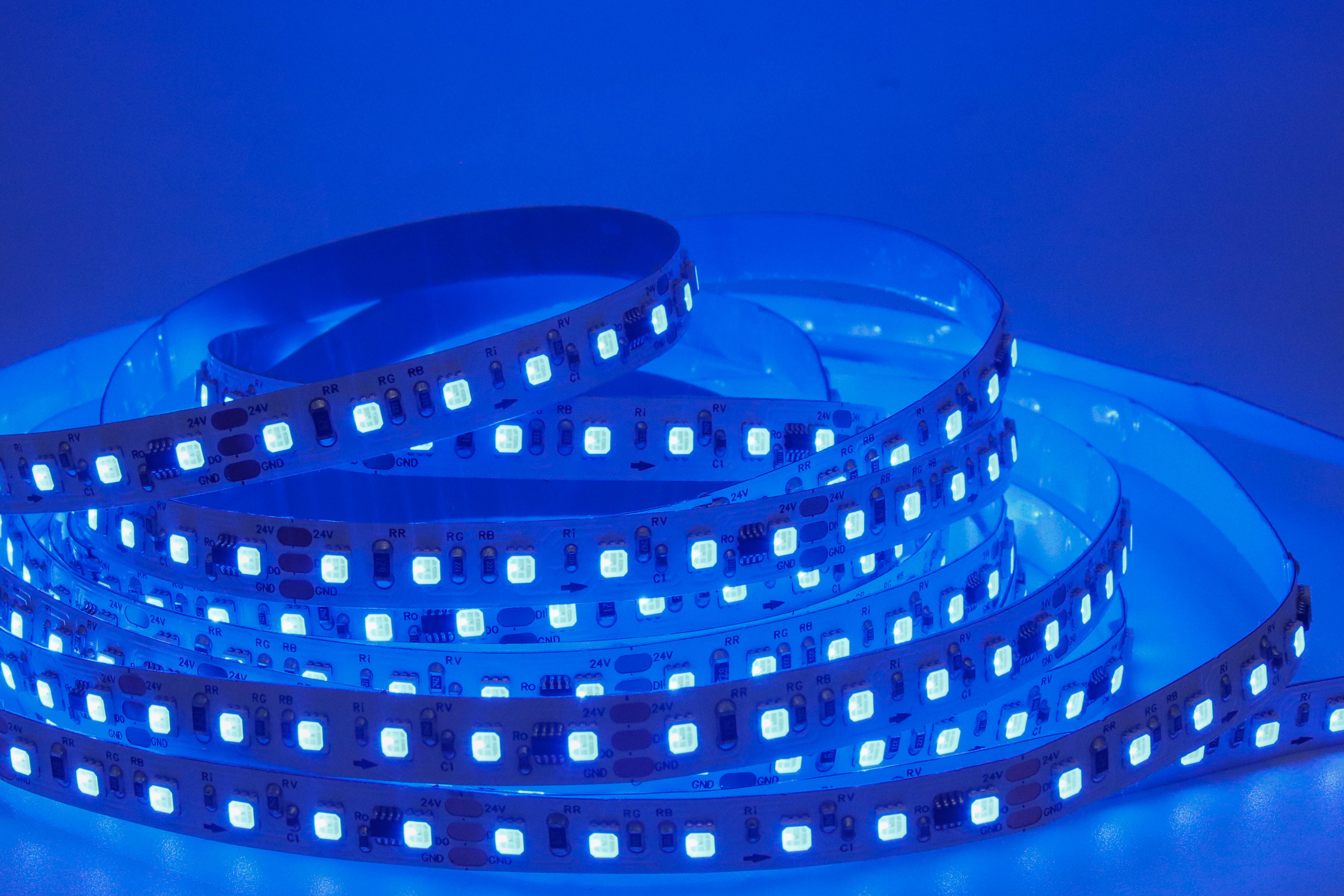

FW1934A Breakpoint Capability — DIN + FDIN backup path; pixel fault does not stop downstream pixels.
24V System — lower current, longer single run, less voltage drop than 5V/12V pixel strips.

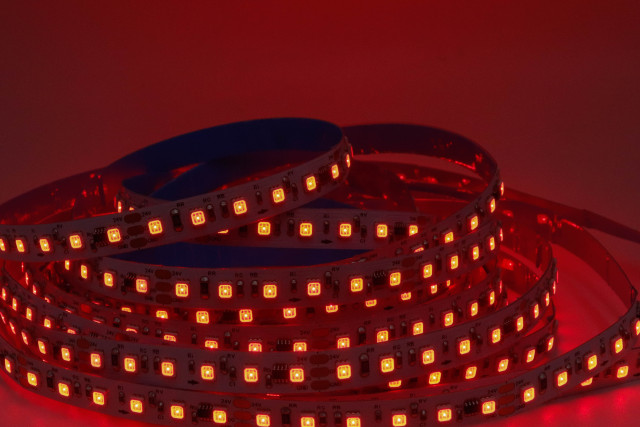

6 LEDs / IC Cut at 50mm — easy fabrication for letters, grooves, and architectural lines; SPI/DMX controller ready.
|
Item |
Specification |
|---|---|
|
Product Name |
24V FW1934A 2835 RGB Addressable LED Strip |
|
LED Type |
SMD 2835 RGB |
|
IC Type |
FW1934A (External on PCB) |
|
IC Family |
TM1934 / WS2818-class, 3-channel constant current |
|
Protocol |
Single-line return-to-zero + FDIN backup, 800 kbps |
|
Input Voltage |
DC 24V |
|
LED Density |
120 LEDs/meter |
|
Pixel Density |
20 Pixels/meter |
|
LEDs per Pixel |
6 LEDs / 1 IC |
|
Cutting Unit |
6 LEDs = 50 mm |
|
PCB Width |
8 mm |
|
Power Consumption |
~11.5 W/m (typical for 120LED/m 24V FW1934A strip) |
|
Grayscale |
256 levels/channel |
|
Constant Current |
14 mA/channel (IC spec) |
|
Signal Feature |
Signal reshape, breakpoint continuation |
|
Auto Run |
Yes (with auto-effect controller/IC mode) |
|
Controller Support |
Arduino, K-1000C, T-series, WLED, DMX512 decoder |
|
Wire/Pin |
24V, GND, DIN (FDIN backup on IC) |
|
Waterproof Rating |
IP20 / IP65 / IP67 / IP68 |
|
Lifespan |
30,000–50,000 hrs |
|
Working Temp. |
-20°C ~ +60°C |
