Use auto effects or drive it with K-1000C, T-series, Arduino, WLED, Art-Net, or DMX512 SPI decoders. Ideal for building outlines, large signs, stage sets, and media façades.

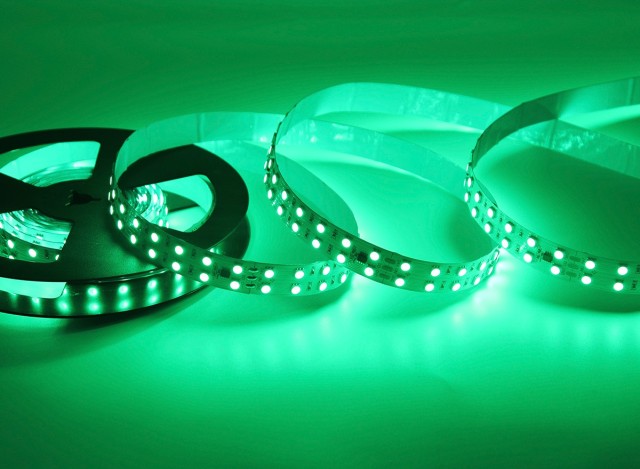

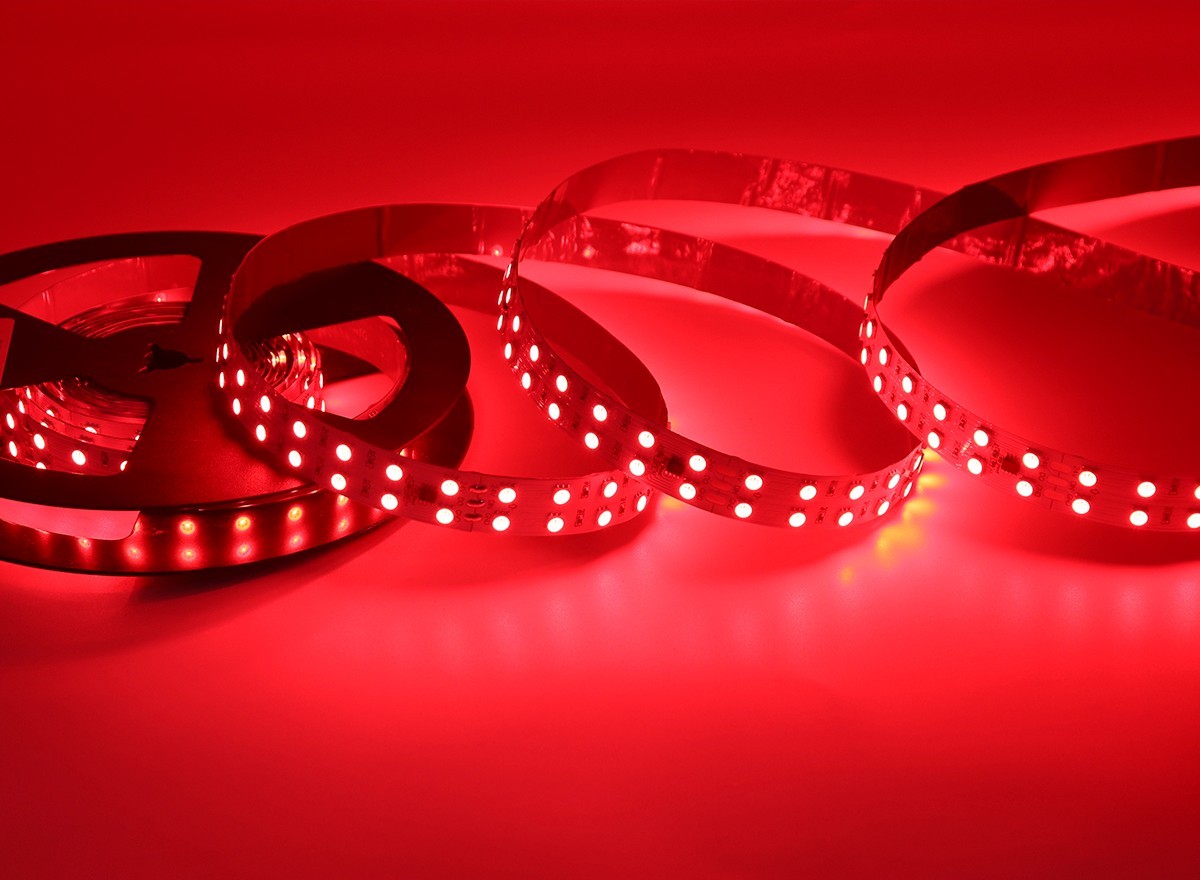

20mm Double-Row 5050 RGB — two LED lines, very high brightness; better for distance viewing than single-row 10mm strips.
24V / 10 Pixels per Meter — 12 LEDs per IC, smooth light bar, less pixel noise, longer runs with lower current.
UCS2903 = WS2811-Compatible — single-wire SPI ecosystem; brighter constant-current drive than UCS1903B/WS2811.
100mm Cut Unit — 12 LEDs per segment, easy for big letters, fascia lines, and architectural profiles.
Engineering-Grade PCB — 20mm wide, often 2oz/3oz copper; supports long runs and power injection for façade projects.
|
Item |
Specification |
|---|---|
|
Product Name |
24V Double-Row UCS2903 5050 RGB Addressable LED Strip |
|
LED Type |
SMD 5050 RGB |
|
IC Type |
UCS2903 (External on PCB) |
|
Protocol |
Single-wire SPI/TTL, WS2811/UCS1903-compatible |
|
Input Voltage |
DC 24V |
|
LED Density |
120 LEDs/meter |
|
Pixel Density |
10 Pixels/meter |
|
LEDs per Pixel |
12 LEDs / 1 IC |
|
Cutting Unit |
12 LEDs = 100 mm |
|
PCB Type |
Double-row / dual-line |
|
PCB Width |
20 mm |
|
Power Consumption |
~20–24 W/m (supplier-dependent) |
|
Lumen per LED |
20–22 lm |
|
Beam Angle |
120° |
|
Grayscale |
256 levels/channel |
|
Data Rate |
800 kbps |
|
PWM Refresh |
~1.6–1.8 kHz |
|
Breakpoint Function |
No (standard UCS2903); backup-data version optional |
|
Auto Run |
Yes (with auto-effect controller/IC mode) |
|
Controller Support |
K-1000C, T-1000S, Arduino, WLED, Art-Net, DMX512 decoder |
|
Wiring |
24V, GND, DIN (some 5-pin versions: 2×24V + 2×GND + DATA) |
|
Waterproof Rating |
IP20 / IP65 / IP67 / IP68 |
|
Max Run |
5m stock roll; 20m possible with 3oz PCB + power injection |
|
Lifespan |
30,000–50,000 hrs |
|
Working Temp. |
-20°C ~ +60°C |
⚠ 24V only. Do not connect 12V/5V. Long runs need power injection at intervals even on 24V wide PCB.
