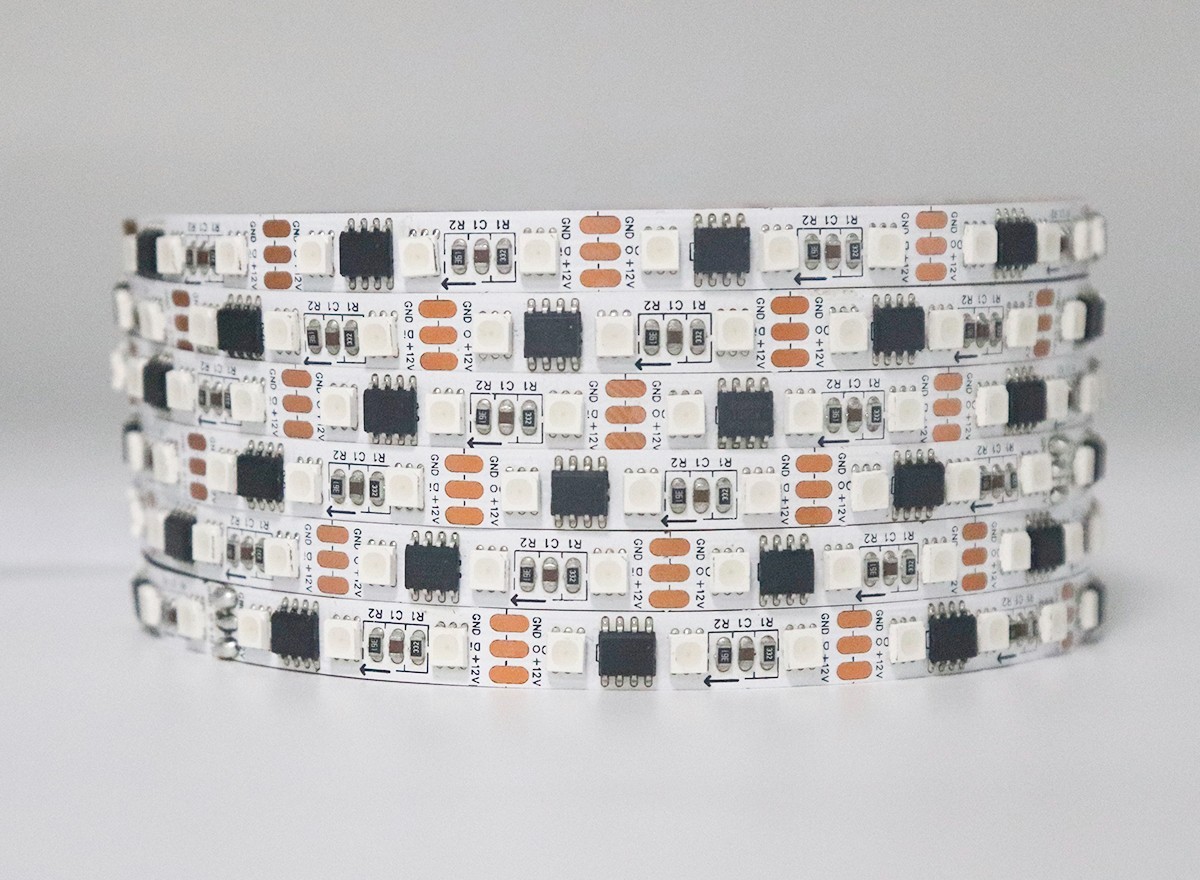

8mm Narrow PCB + 4040 RGB — slimmer than 5050 strips, fits small channels, grooves, and thin profiles.
96 LEDs/m, 32 Pixels/m — high LED density with fine 31.25mm cut points for detailed fabrication.
External WS2811 — 12V system, 3 LEDs/pixel, lower voltage drop than 5V built-in-IC strips.
WS2812B-Compatible Protocol — Arduino/FastLED, WLED, K-1000C, T-1000S, Art-Net, DMX decoder ready.

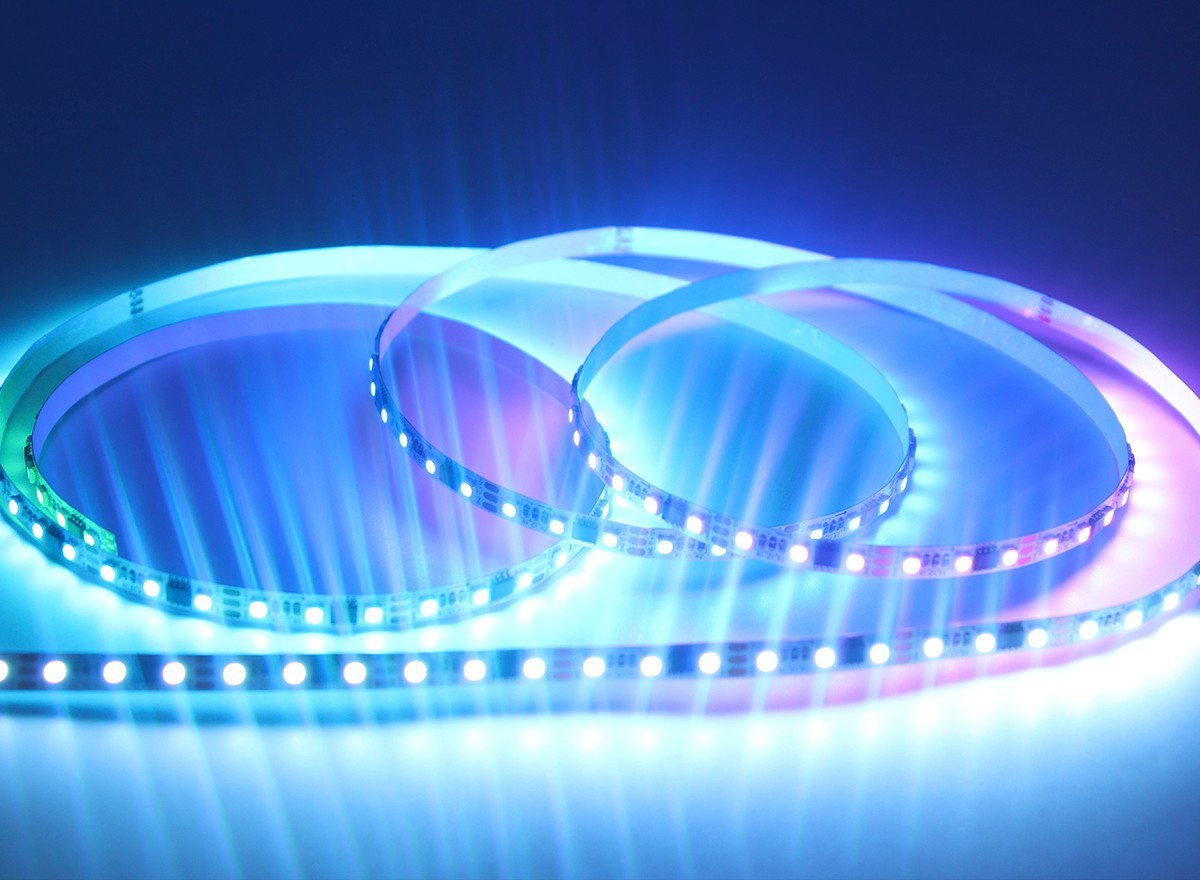

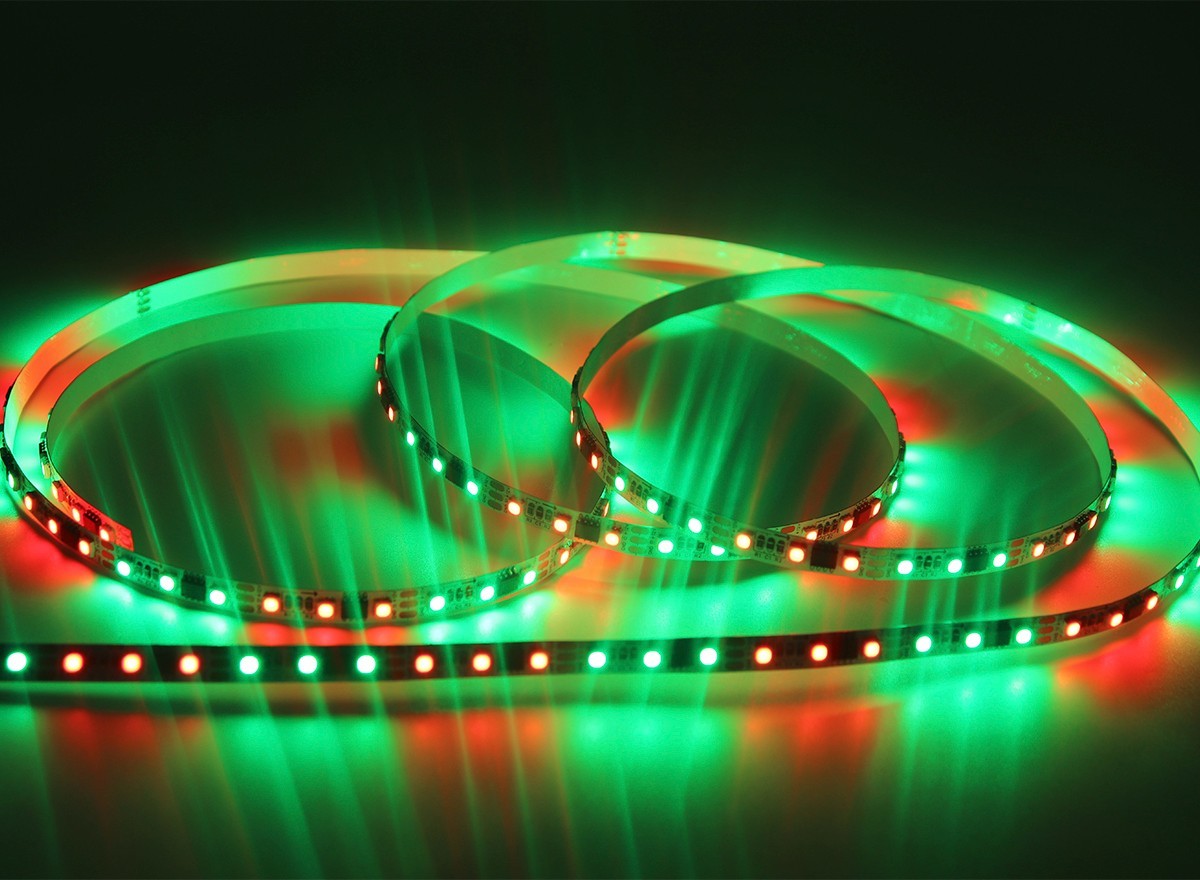

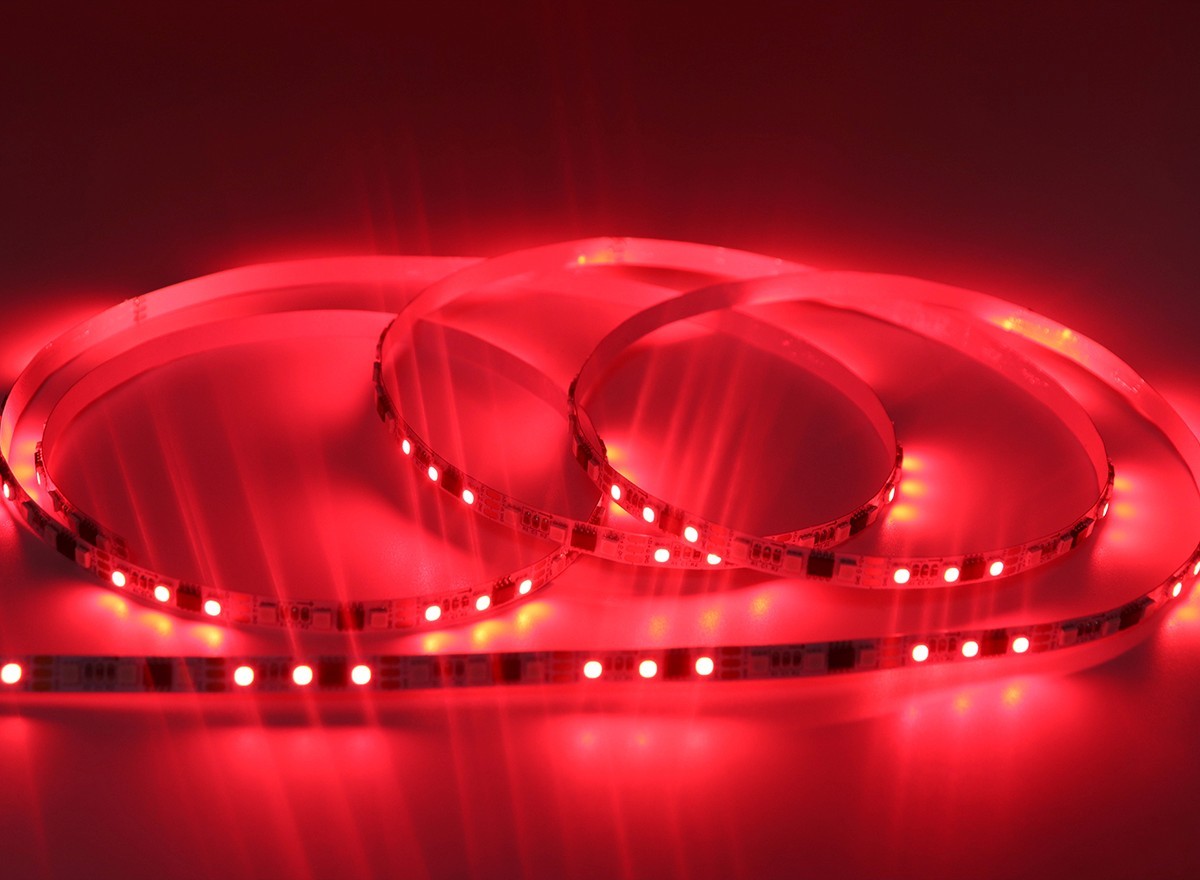

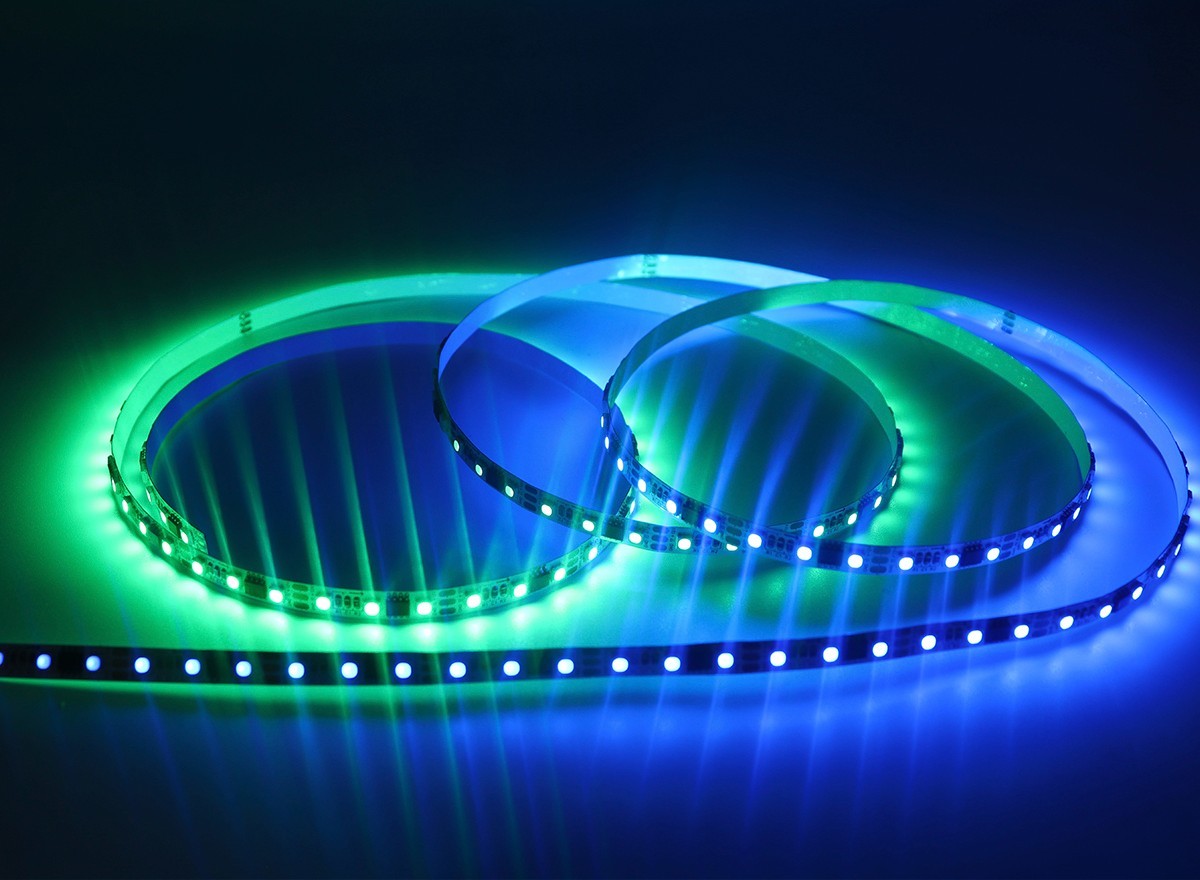

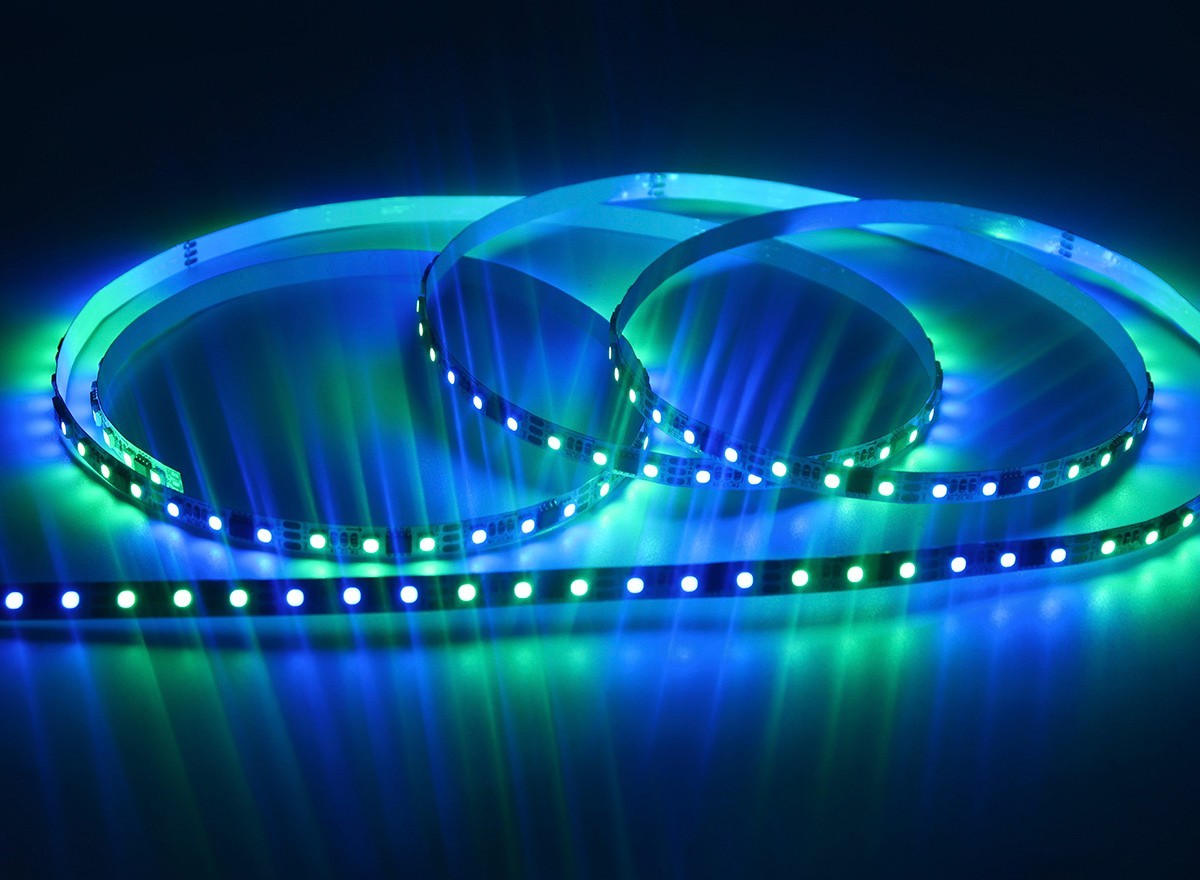

Dream Color Effects — chase, flow, gradient, rainbow, custom animation; 256 gray levels per channel, 16.7M colors.
|
Item |
Specification |
|---|---|
|
Product Name |
12V WS2811 4040 RGB Narrow Addressable LED Strip |
|
LED Type |
SMD 4040 RGB |
|
IC Type |
WS2811 (External on PCB) |
|
Protocol |
Single-wire NRZ, 800 kbps, WS2812B-compatible |
|
Input Voltage |
DC 12V |
|
LED Density |
96 LEDs/meter |
|
Pixel Density |
32 Pixels/meter |
|
LEDs per Pixel |
3 LEDs / 1 IC |
|
Cutting Unit |
3 LEDs = 31.25 mm |
|
PCB Width |
8 mm |
|
Power Consumption |
~15 W/m (supplier-specific; ~0.15–0.18 W/LED) |
|
Grayscale |
256 levels/channel, 24-bit color |
|
Beam Angle |
120° |
|
Data Lines |
12V, GND, DIN (DO to next pixel) |
|
Auto Run |
Yes (with auto-effect controller) |
|
Controller Support |
Arduino, ESP32/WLED, K-1000C, T-1000S, DMX512 decoder |
|
Waterproof Rating |
IP20 / IP65 / IP67 / IP68 |
|
PCB Color |
White / Black |
|
Roll Length |
5 m |
|
Lifespan |
30,000–50,000 hrs |
|
Working Temp. |
-25°C ~ +80°C |
⚠ 12V WS2811 only. Data signal is 5V TTL; 3.3V MCU (ESP32/RP2040) should use a level shifter for long data lines.
