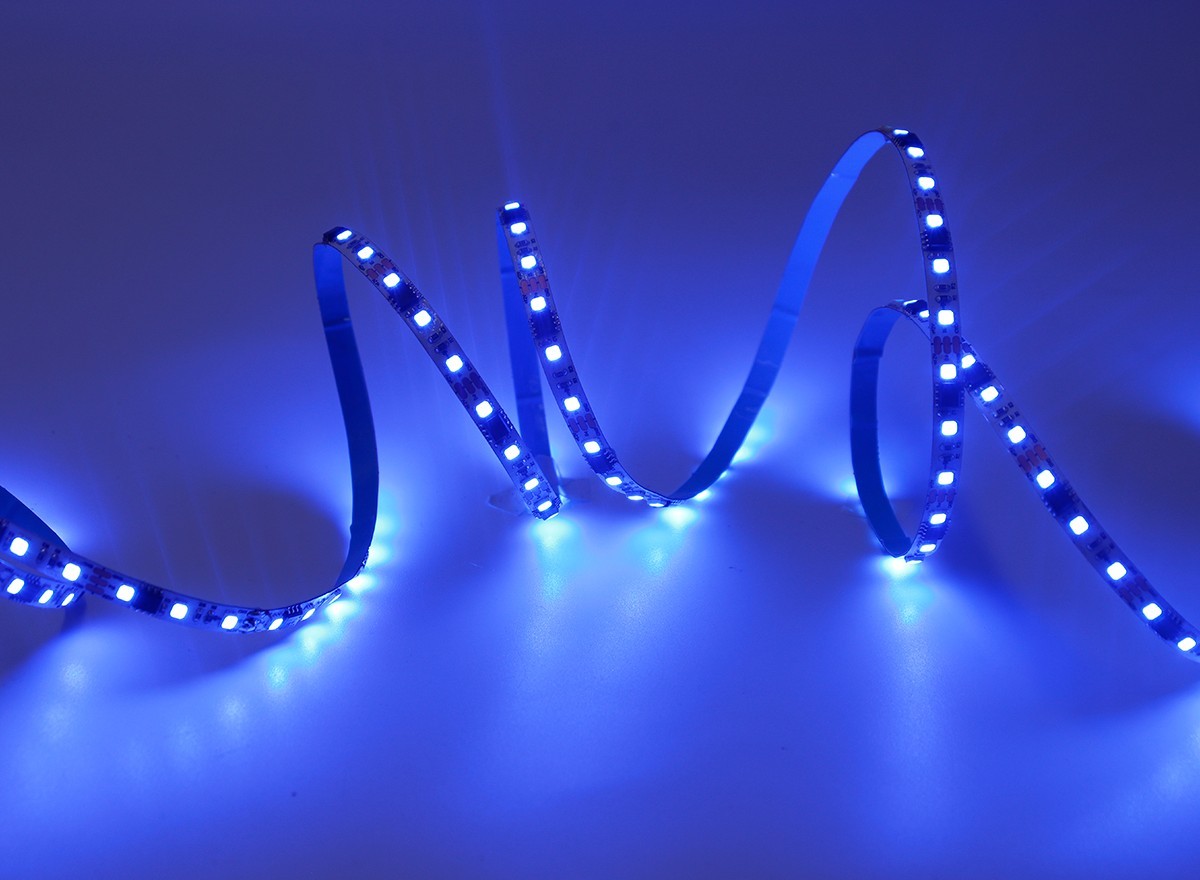

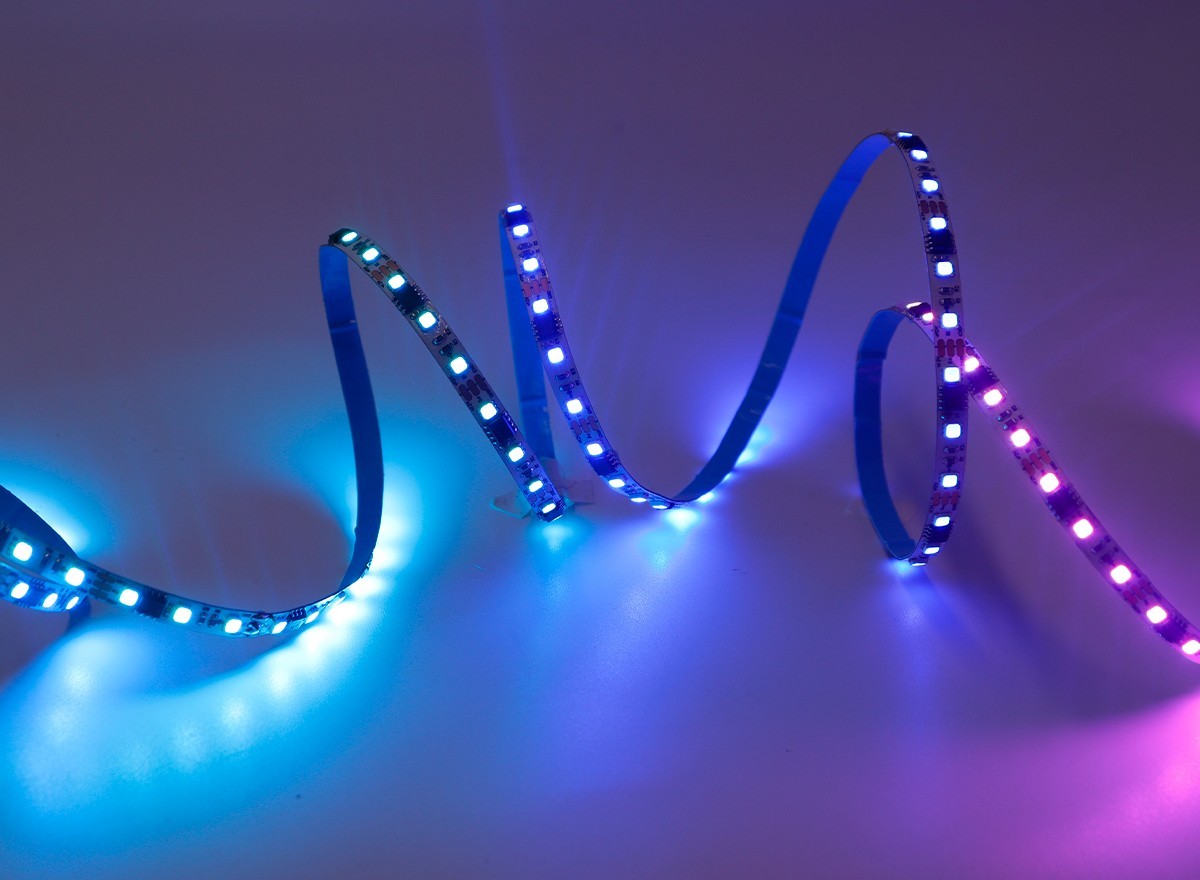

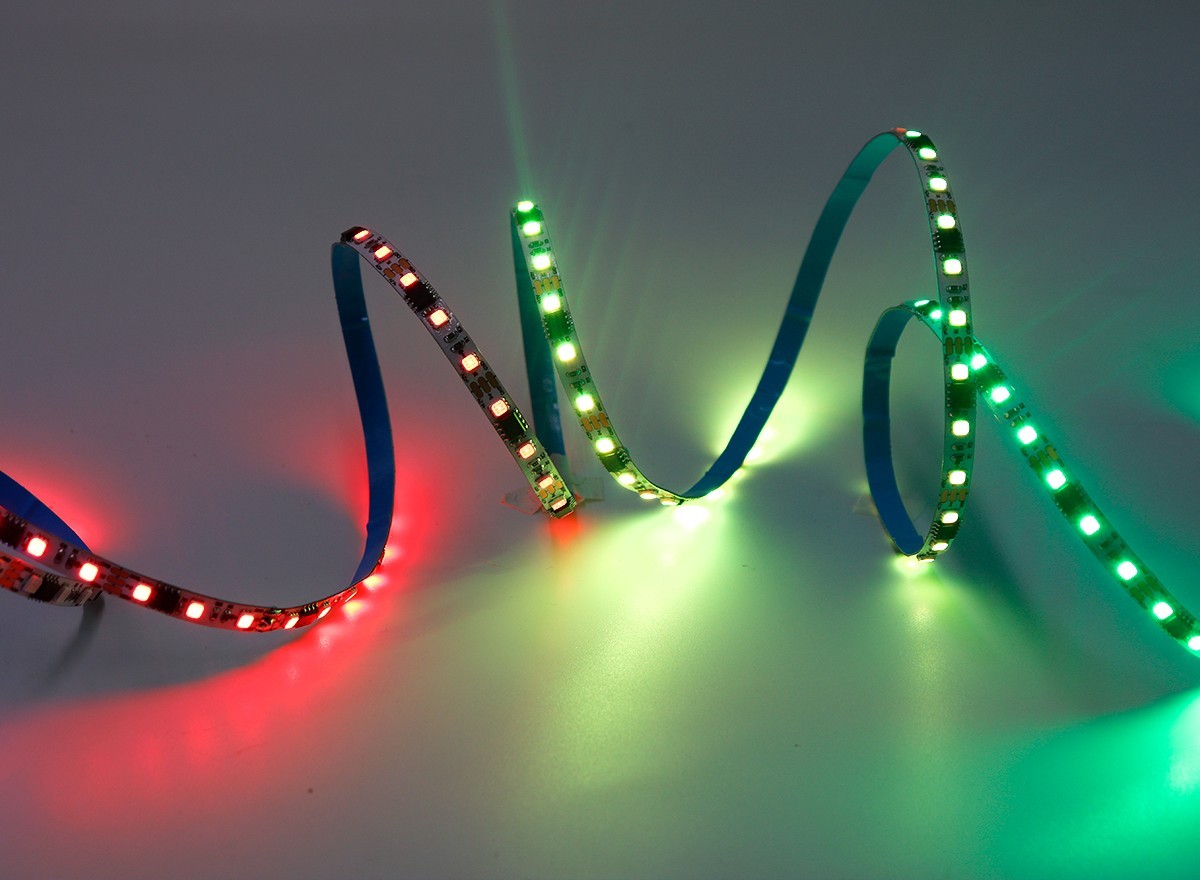

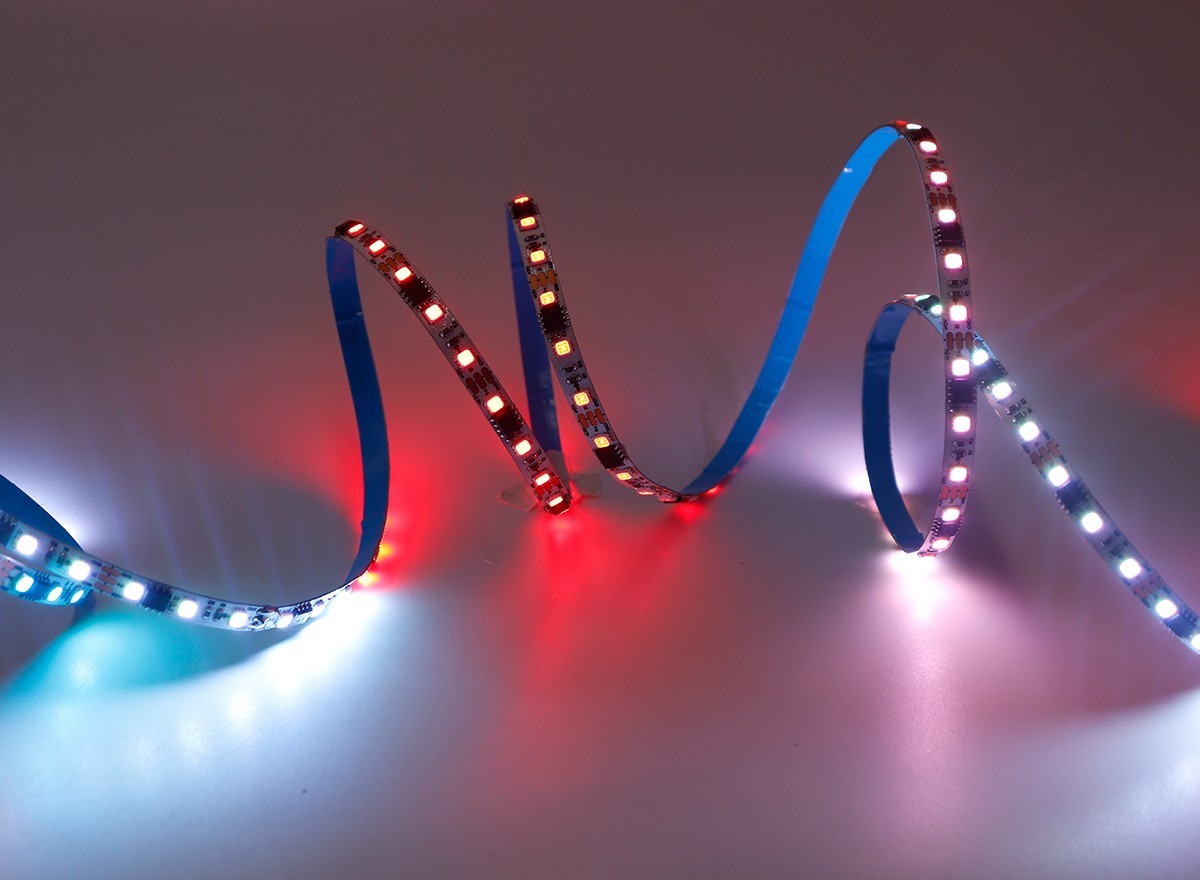

This ultra-slim 12V addressable strip uses tiny SMD 3528 RGB LEDs and external UCS1903B ICs on a 6mm-wide PCB, making it perfect for narrow channel letters, thin profiles, and detailed signage. With 96 LEDs/m and 32 independent pixels/m, it gives smooth color mixing while staying low-profile. Each IC drives 3 LEDs, cuttable every 31.25mm, and the UCS1903B protocol is WS2811-compatible for easy controller integration. Use auto-run mode for plug-and-play effects, or connect Arduino / K-1000C / T-series / DMX decoders for custom animations. Ideal where standard 10mm pixel strips are too wide.
6mm Ultra-Narrow PCB — fits small channel letters, edge-lit signs, display cases, and tight grooves where 8/10mm strips cannot fit.
96 LEDs/m, 32 Pixels/m — high LED density with balanced pixel resolution; 3 LEDs per UCS1903B pixel for stable 12V current distribution.
WS2811-Compatible UCS1903B — single-wire data, easy to drive with popular SPI/LED controllers and existing WS2811 workflows.
31.25mm Cut Unit — very fine cutting interval, great for short letter strokes and precise sign fabrication.
12V System — lower current than 5V strips, longer runs with less voltage drop, ideal for signage and architectural accents.
|
Item |
Specification |
|---|---|
|
Product Name |
Narrow PCB Addressable LED Strip |
|
LED Type |
SMD 3528 RGB |
|
IC Type |
UCS1903B (External on PCB) |
|
Protocol |
Single-wire, WS2811-compatible |
|
Input Voltage |
DC 12V |
|
LED Density |
96 LEDs/meter |
|
Pixel Density |
32 Pixels/meter |
|
LEDs per Pixel |
3 LEDs / 1 IC |
|
Cutting Unit |
3 LEDs = 31.25 mm |
|
PCB Width |
6 mm |
|
Power Consumption |
~7.2 W/meter (36W/5m roll, approx.) |
|
Beam Angle |
120° |
|
Grayscale |
8-bit / 256 levels per channel (IC dependent) |
|
Refresh Rate |
High-speed PWM, camera-friendly |
|
Auto Run |
Yes (with auto-effect IC/controller) |
|
Controller Support |
Arduino, K-1000C, T-series, WLED, DMX512 decoder |
|
Waterproof Rating |
IP20 / IP65 / IP67 |
|
Lifespan |
30,000–50,000 hrs |
|
Working Temp. |
-20°C ~ +60°C |
