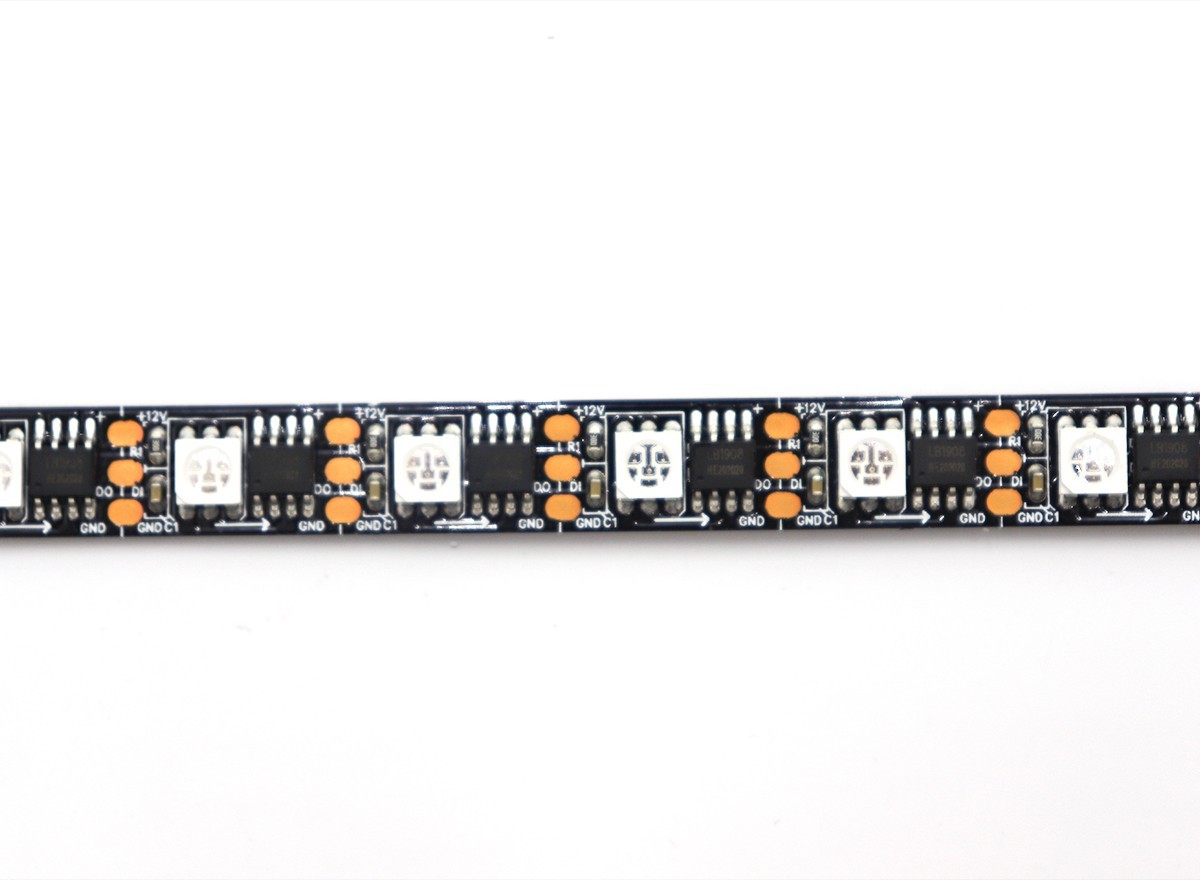

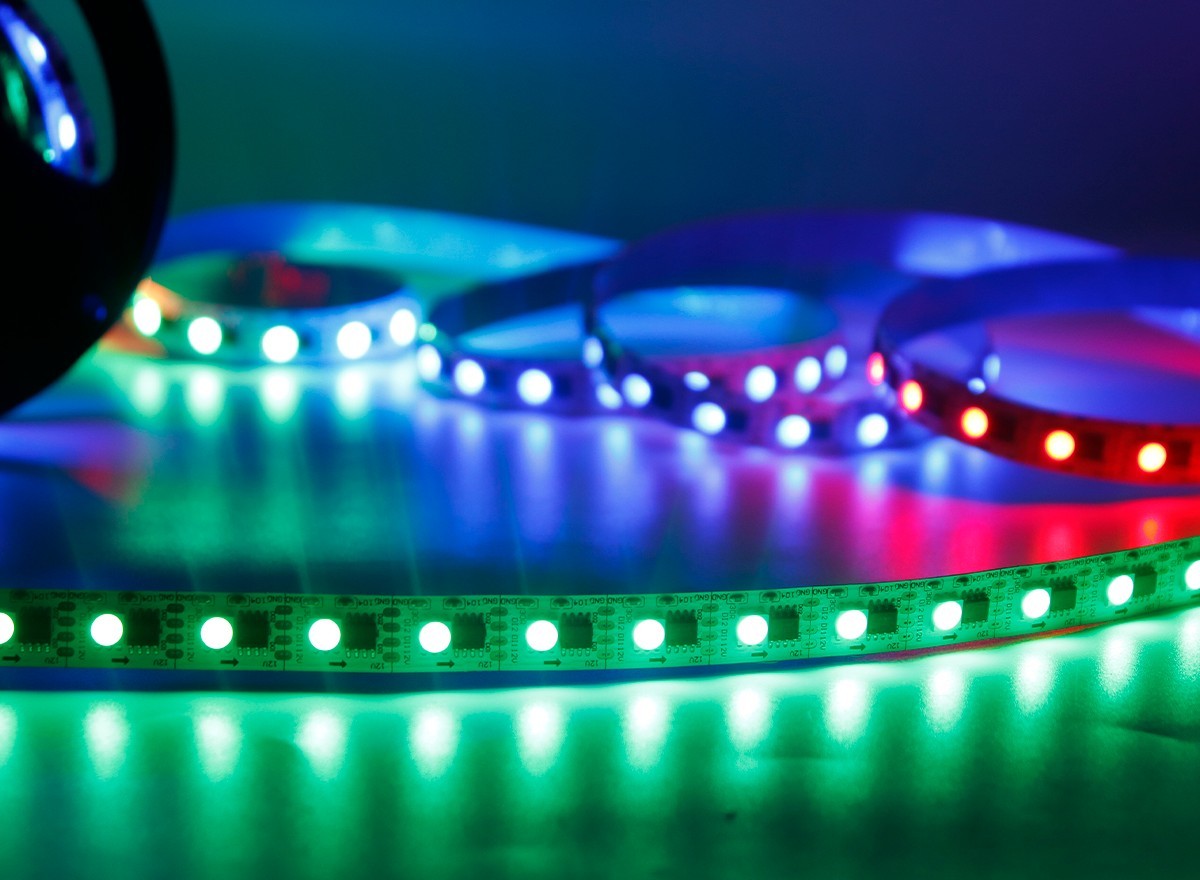

True 1-LED-1-IC-1-Pixel — 60 pixels/m, finest practical resolution for 5050 addressable strips.
16.67mm Cut Unit — extremely precise fabrication for small letters, logos, pixel grids, and mapping.
12V LB1908 IC — WS2811-family protocol, but 12V supply reduces current and voltage drop vs 5V built-in-IC strips.
Breakpoint / Redundant Data — DIN + FDIN backup path; a failed pixel does not kill the whole run.
8 kHz PWM, 256 Gray Levels — smooth gradients, camera/broadcast friendly, 16.7M colors.
|
Item |
Specification |
|---|---|
|
Product Name |

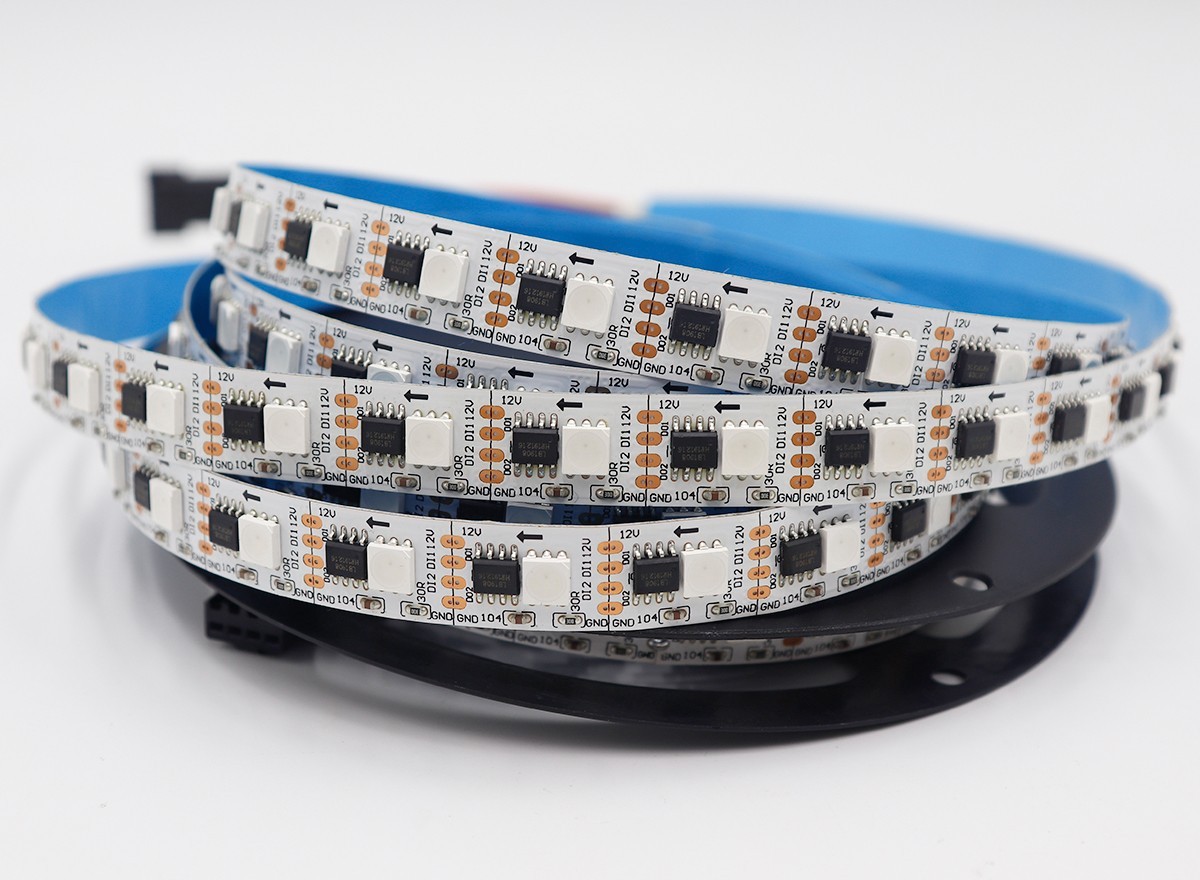

12V LB1908 5050 RGB Individual Addressable LED Strip |
|
LED Type |
SMD 5050 RGB |
|
IC Type |
LB1908 (External, SOP8) |
|
Control Mode |
1 LED / 1 IC / 1 pixel |
|
Protocol |
Single-wire NRZ, WS2811-compatible, 800 kbps |
|
Backup Data |
DIN + FDIN (breakpoint continuation) |
|
Input Voltage |
DC 12V |
|
LED Density |
60 LEDs/meter |
|
Pixel Density |
60 Pixels/meter |
|
LEDs per Pixel |
1 LED / 1 IC |
|
Cutting Unit |
1 LED = 16.67 mm |
|
PCB Width |
10 mm |
|
Power Consumption |
~14.4 W/m (72W/5m roll) |
|
Lumen per LED |
~22 lm |
|
Grayscale |
8-bit/channel (256 levels) |
|
PWM Refresh |
Up to 8 kHz |
|
Output Current |
Constant current ~10–14 mA/channel (IC spec) |
|
Auto Run |
Yes (with auto-effect controller) |
|
Controller Support |
Arduino, ESP32/WLED, K-1000C, T-1000S, Art-Net, DMX512 decoder |
|
Wiring |
12V, GND, DIN (FDIN backup on PCB/IC) |
|
Waterproof Rating |
IP20 / IP65 / IP67 / IP68 |
|
Lifespan |
30,000–50,000 hrs |
|
Working Temp. |
-20°C ~ +60°C |
