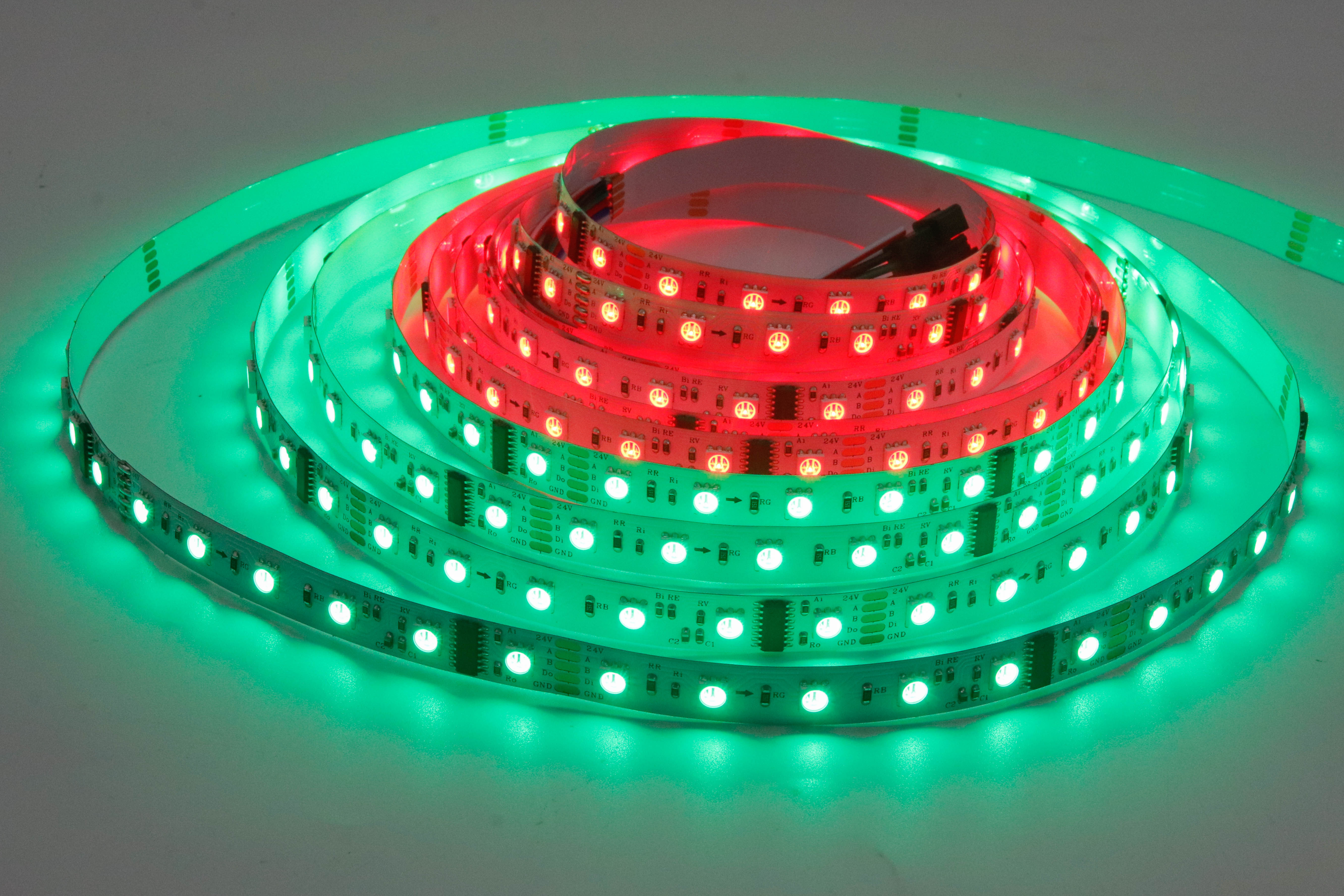

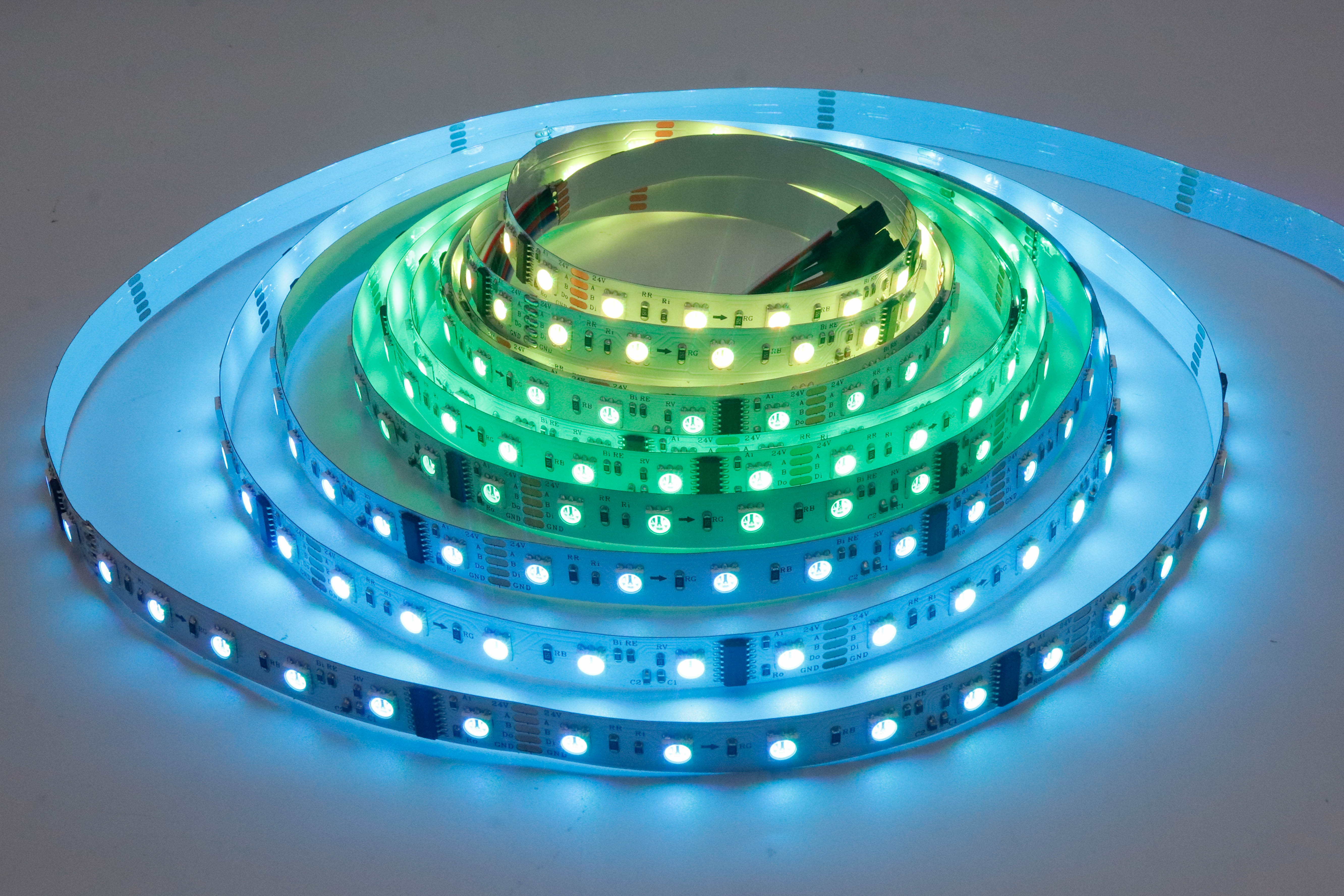

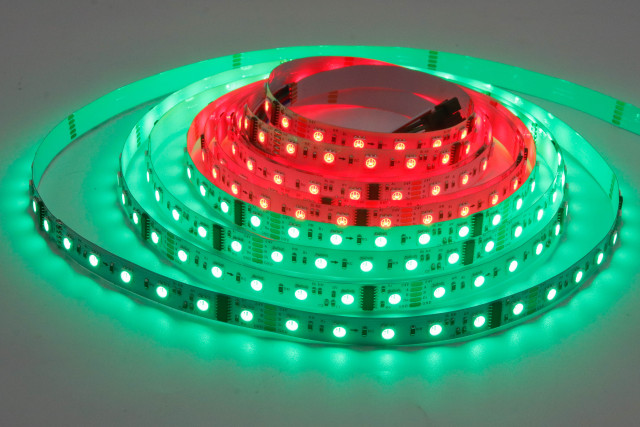

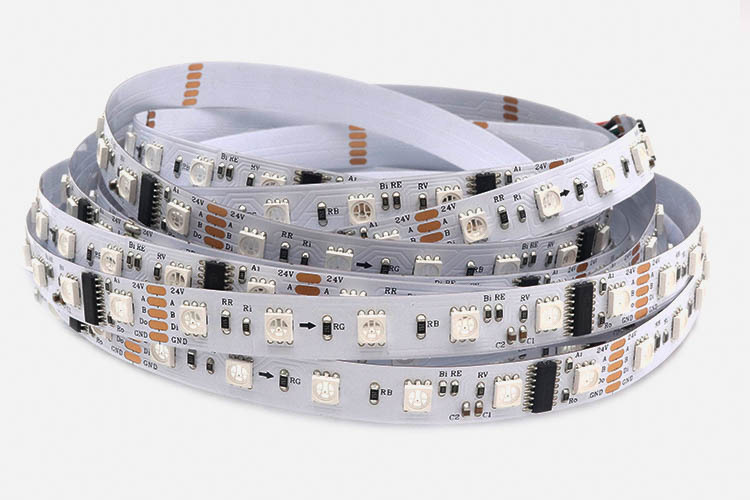

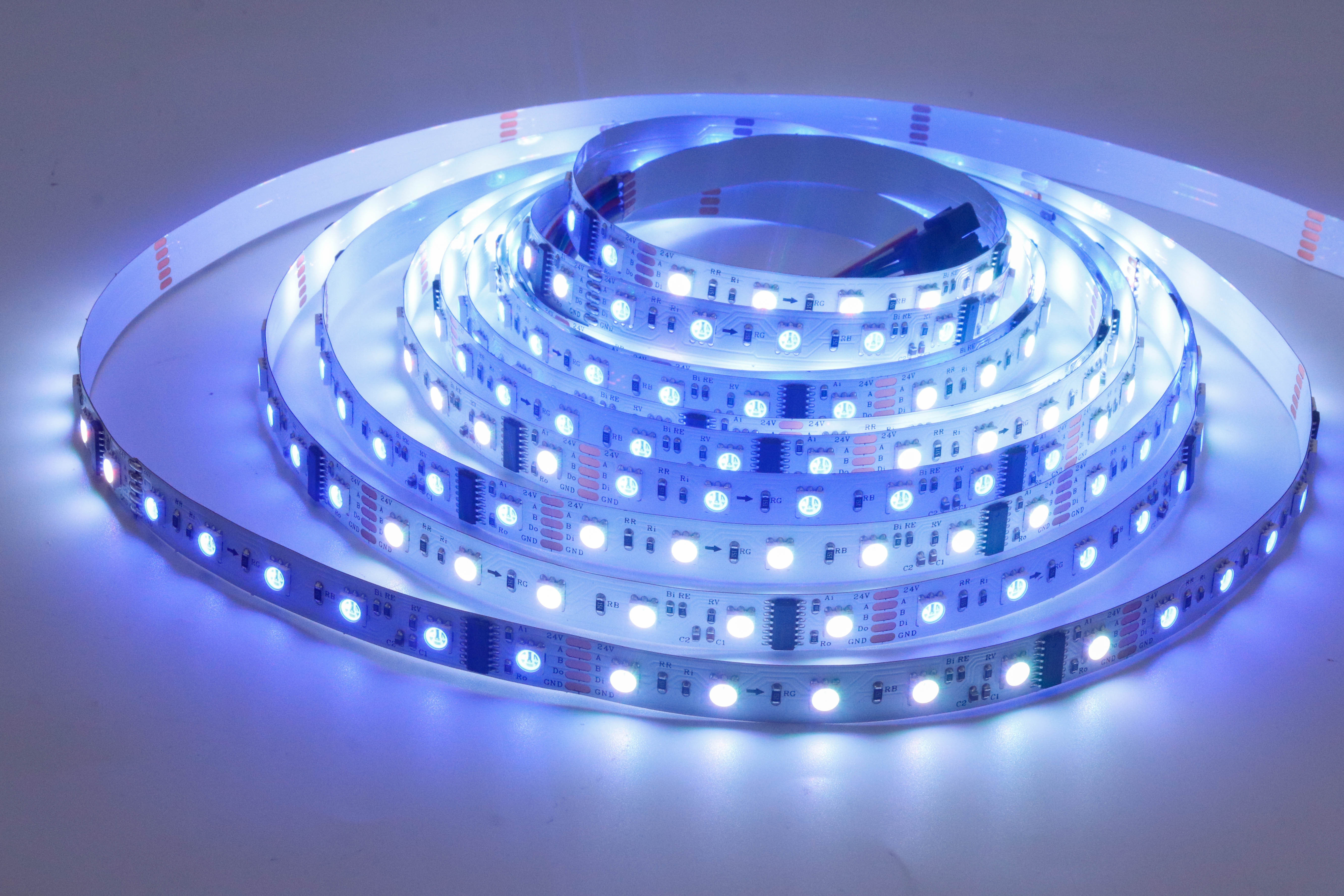

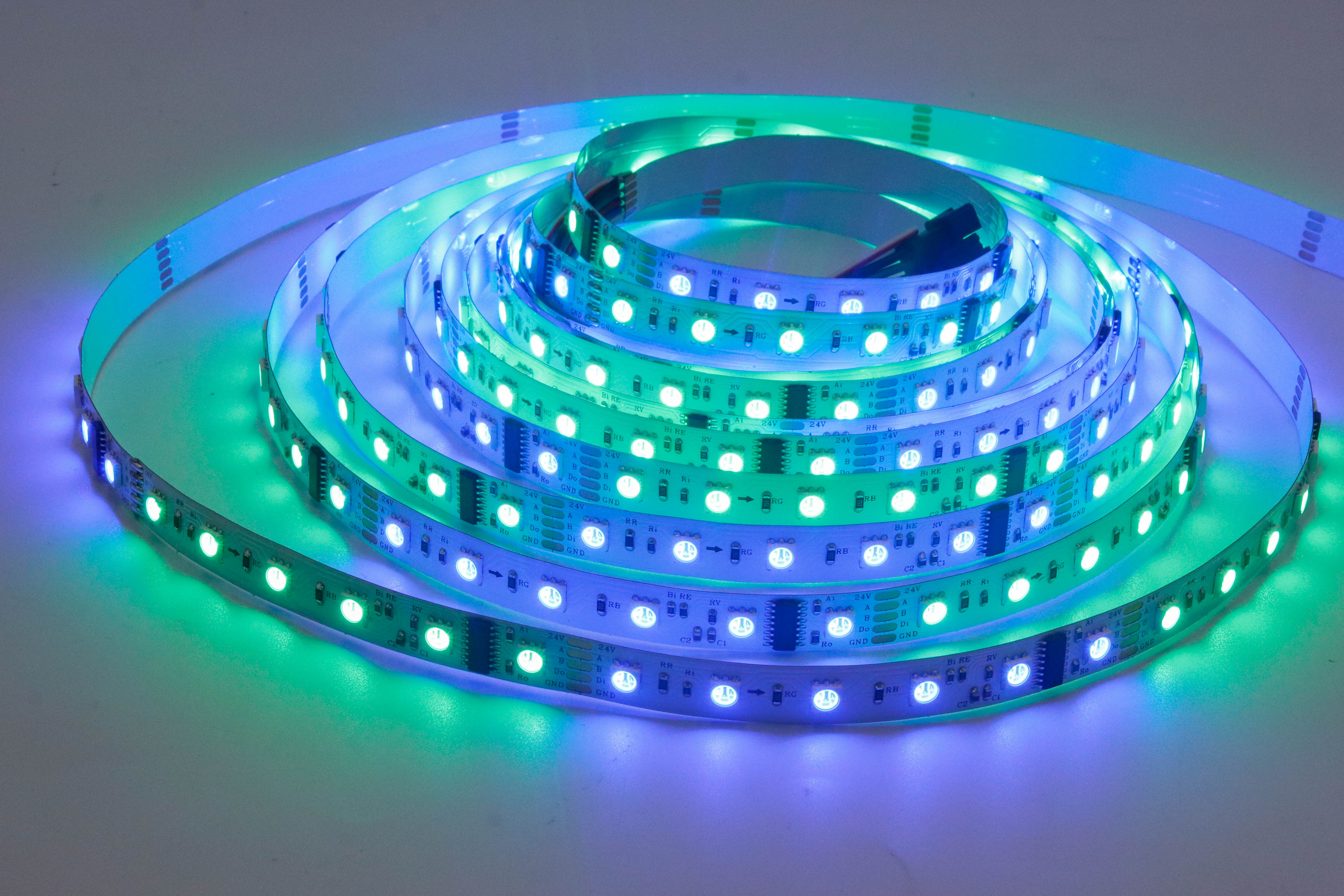

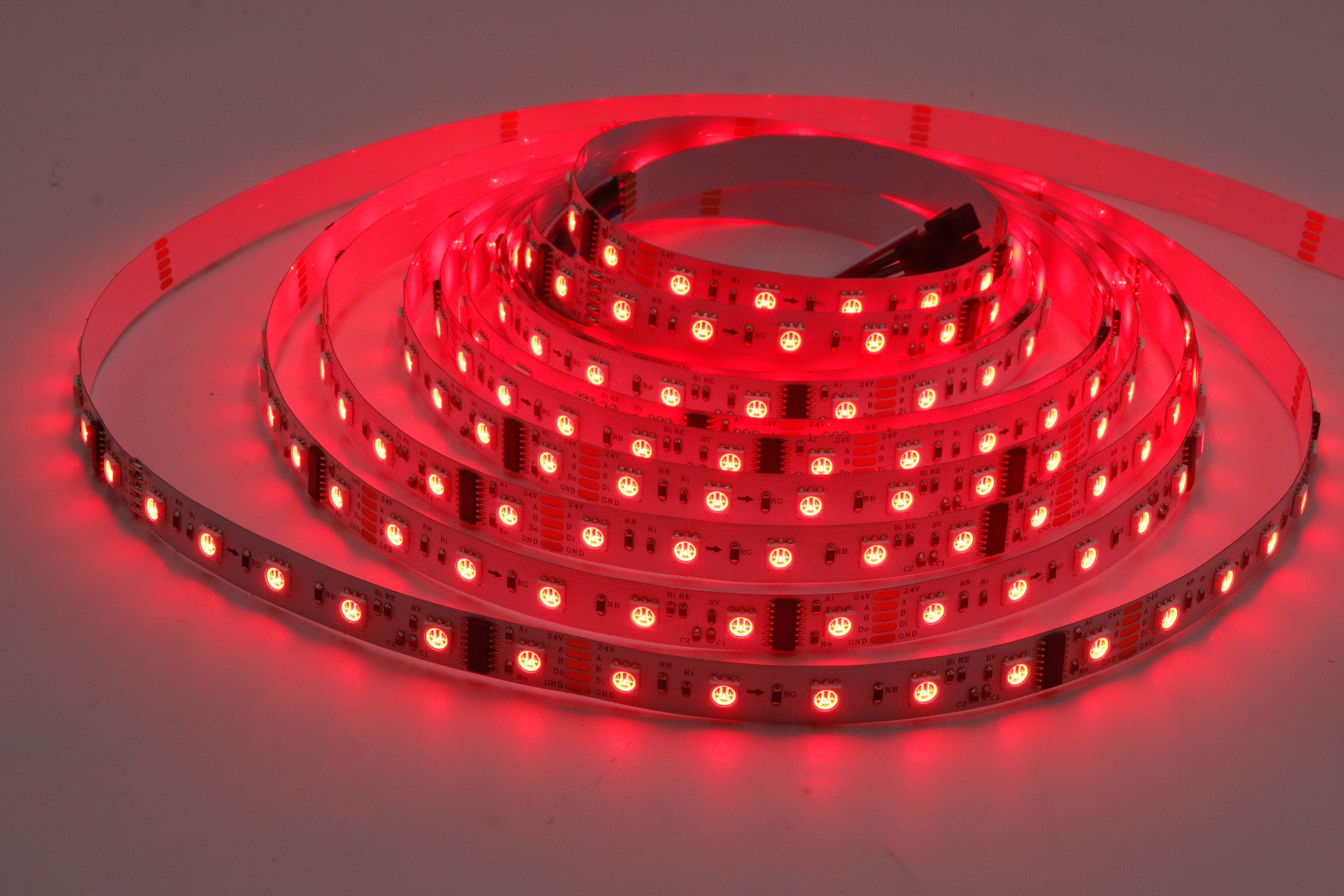

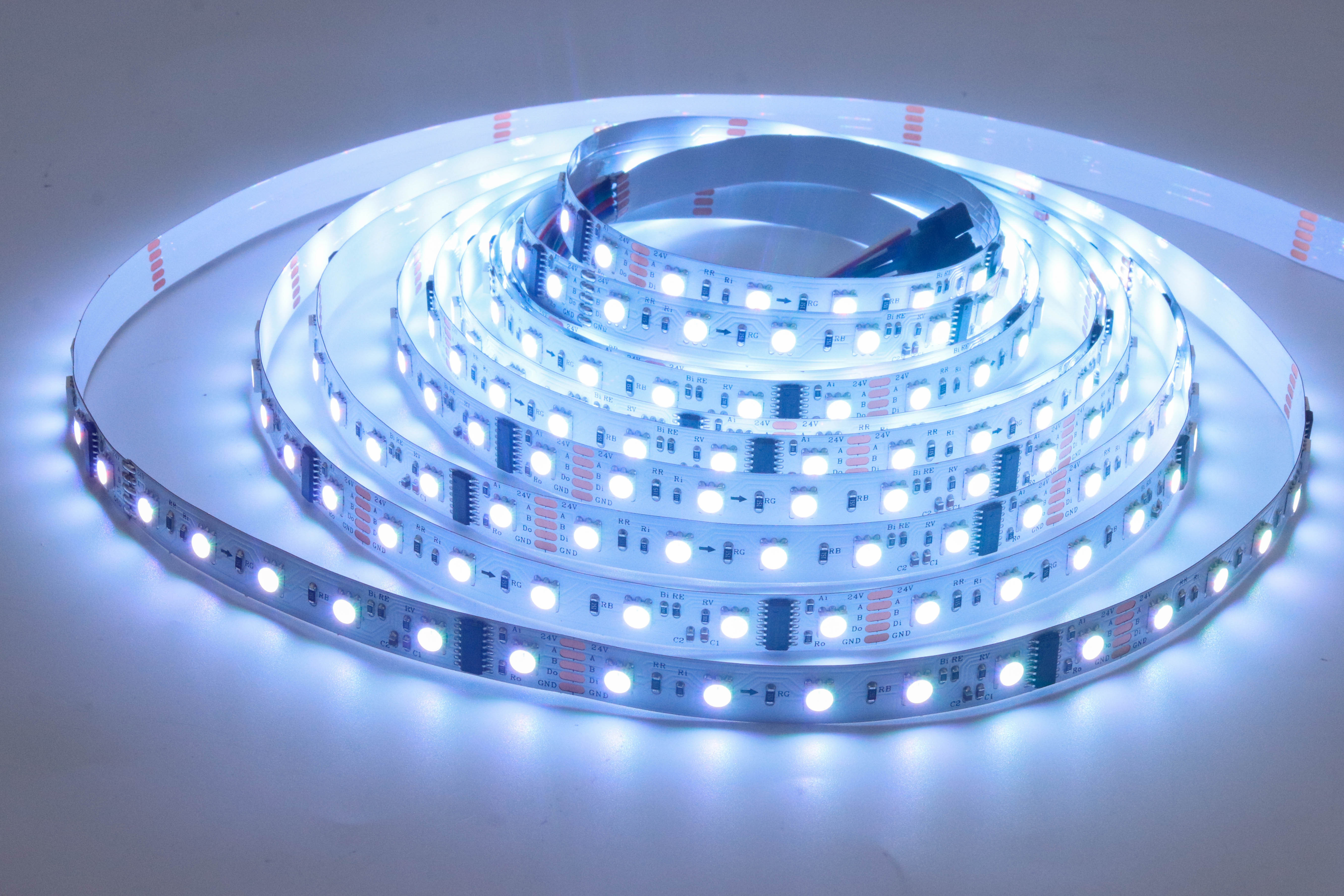

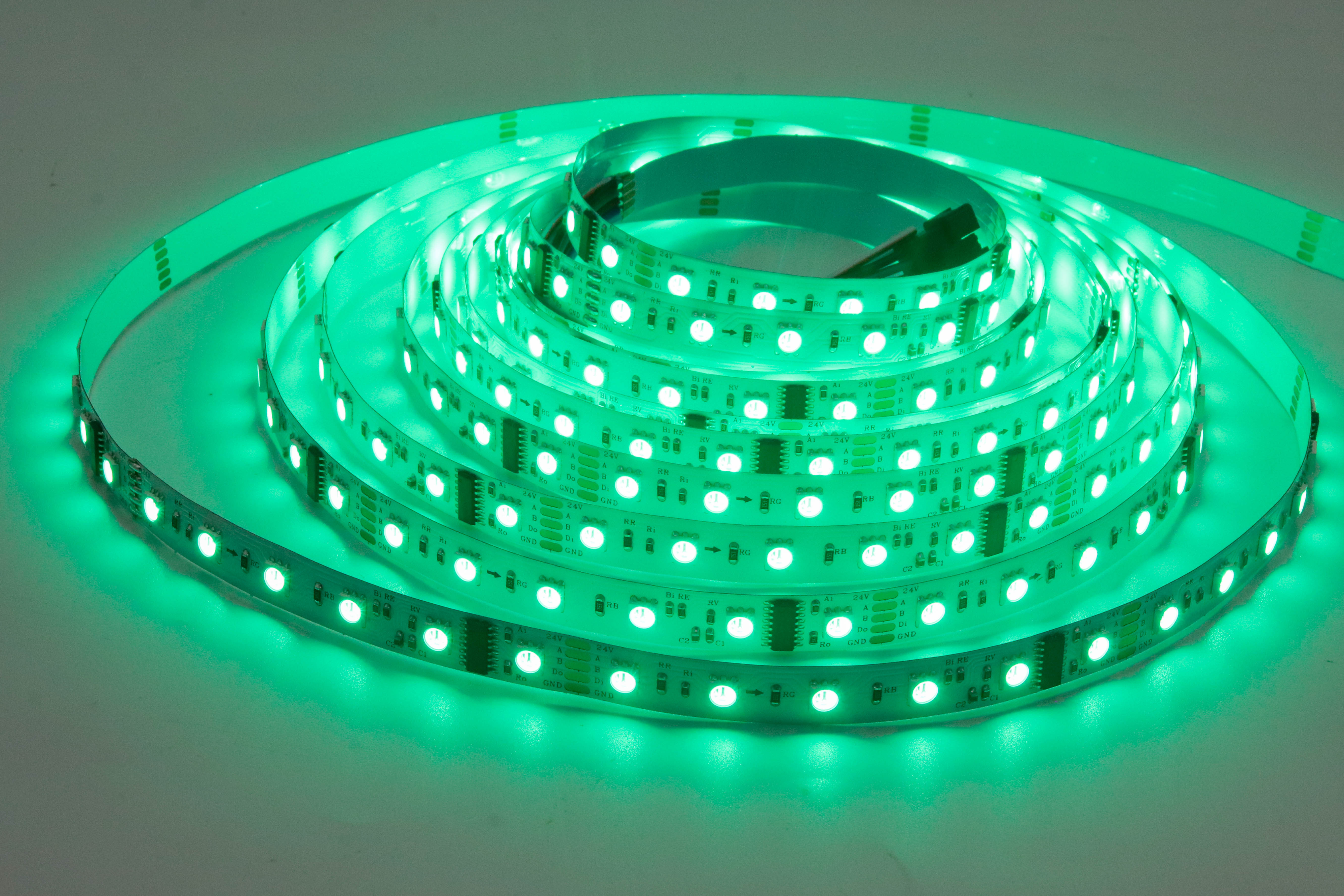

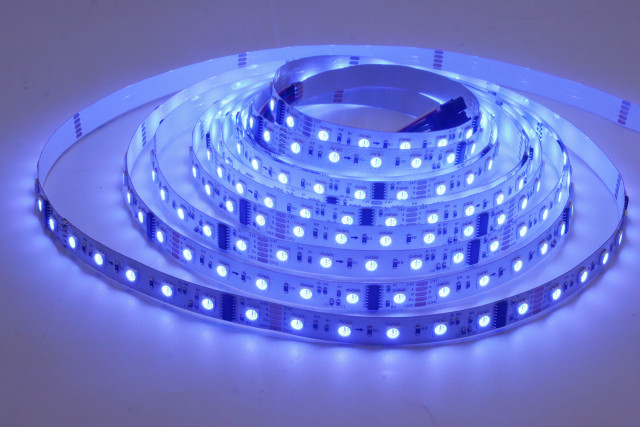

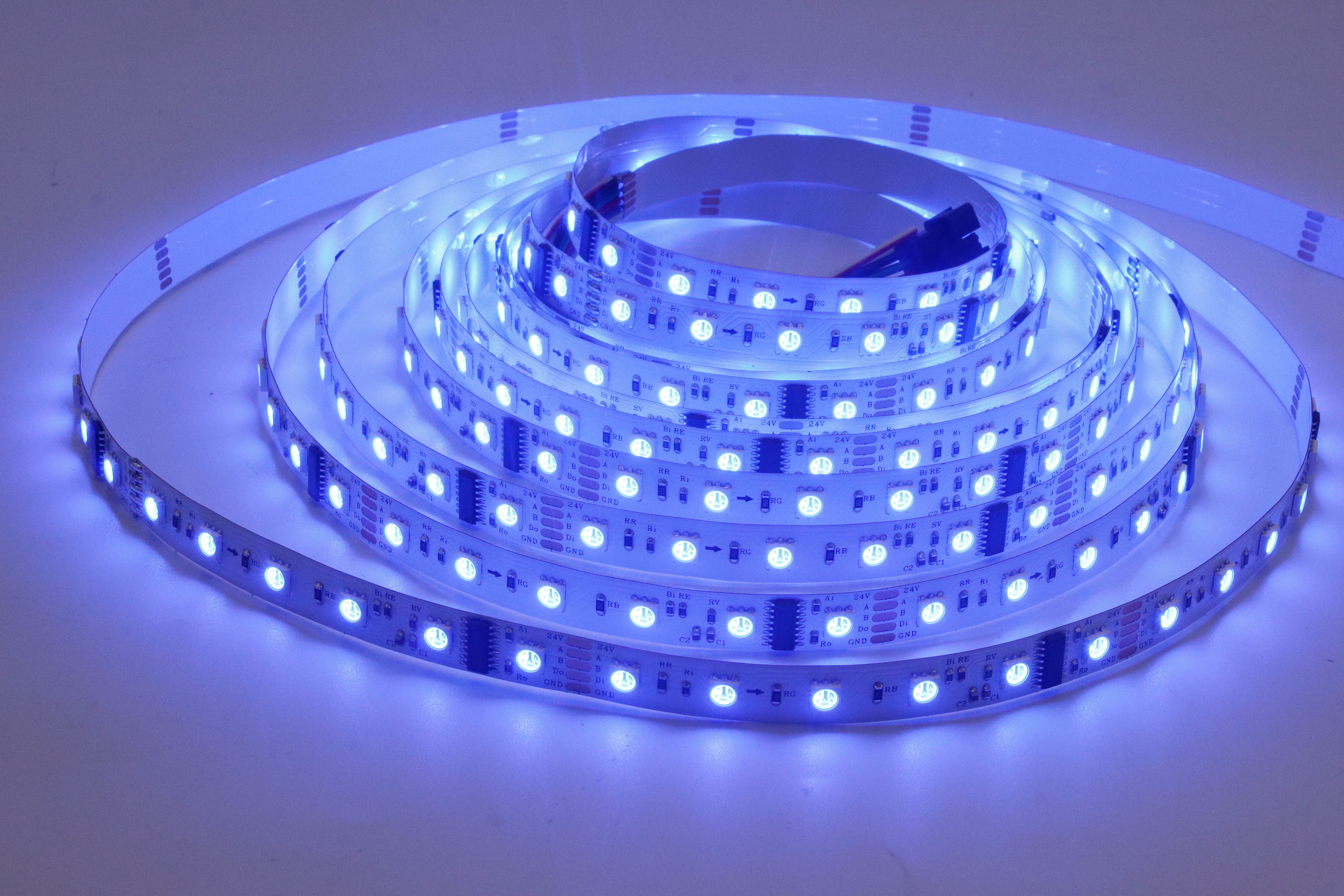

The 24V SM18512P 5050 RGB LED strip is built for professional digital lighting. With 60 high-brightness 5050 RGB LEDs per meter and 10 externally driven pixels per meter (6 LEDs = 1 pixel), it delivers smooth chasing, gradient, and full-color effects. The SM18512P IC supports DMX512-class control and parallel-type signal transmission, so a single pixel fault does not kill the whole run. Running on 24V reduces current and voltage drop, making long architectural runs cleaner and safer. Cut every 100mm, mount in aluminum profiles or coves, and control it from standard DMX/pixel controllers. Ideal for building outlines, stages, bars, retail spaces, and signage backlighting.
SM18512P External DMX-Type IC — 10 pixels/m, 6 LEDs/pixel, enabling group-addressable RGB animation with professional DMX512 workflow.
24V Constant Voltage — lower current than 5V/12V strips, less voltage drop, longer runs with fewer power injections.
Fault-Tolerant Signal Architecture — parallel/differential-style transmission helps the remaining pixels keep working if one IC/pixel is damaged.
High-Density 5050 RGB Output — 60 LEDs/m for bright, smooth color mixing and better visual continuity in coves and façade contours.
Contractor-Friendly Installation — 100mm cut points, 10/12mm FPC, IP20/IP65/IP67 options, 5m/reel, compatible with DMX decoders and pixel controllers.
|
Parameter |
Specification |
|---|---|
|
Model |
SM18512P-5050RGB-60D-24V |
|
LED Type |
SMD 5050 RGB |
|
LED Density |
60 LEDs/m |
|
IC Type |
SM18512P (external IC) |
|
Pixel Density |
10 pixels/m |
|
LEDs per Pixel |
6 LEDs (1 IC drives 6 LEDs) |
|
Input Voltage |
DC 24V |
|
Power |
~14.4–16W/m |
|
Grey Scale |
256 levels/channel |
|
Color |
Full-color RGB |
|
Control |
DMX512-compatible / SM18512P pixel protocol |
|
Signal Feature |
Parallel-type transmission, breakpoint-resistant |
|
Cut Unit |
100 mm (1 pixel / 6 LEDs) |
|
PCB Width |
10mm or 12mm FPC |
|
PCB Color |
White / Black |
|
Reel Length |
5 m/reel |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Working Temp. |
-25°C to +80°C |
|
Lifespan |
30,000–50,000 hrs |
|
Applications |
Cove, building outline, stage, KTV, hotel, retail, signage, façade |
Wiring basics: 24V+ → V+, GND → V-, DATA → controller data line (DMX/A/B depending on decoder).
Power tip: inject 24V every 5 m on long runs; do not exceed controller/power load.
