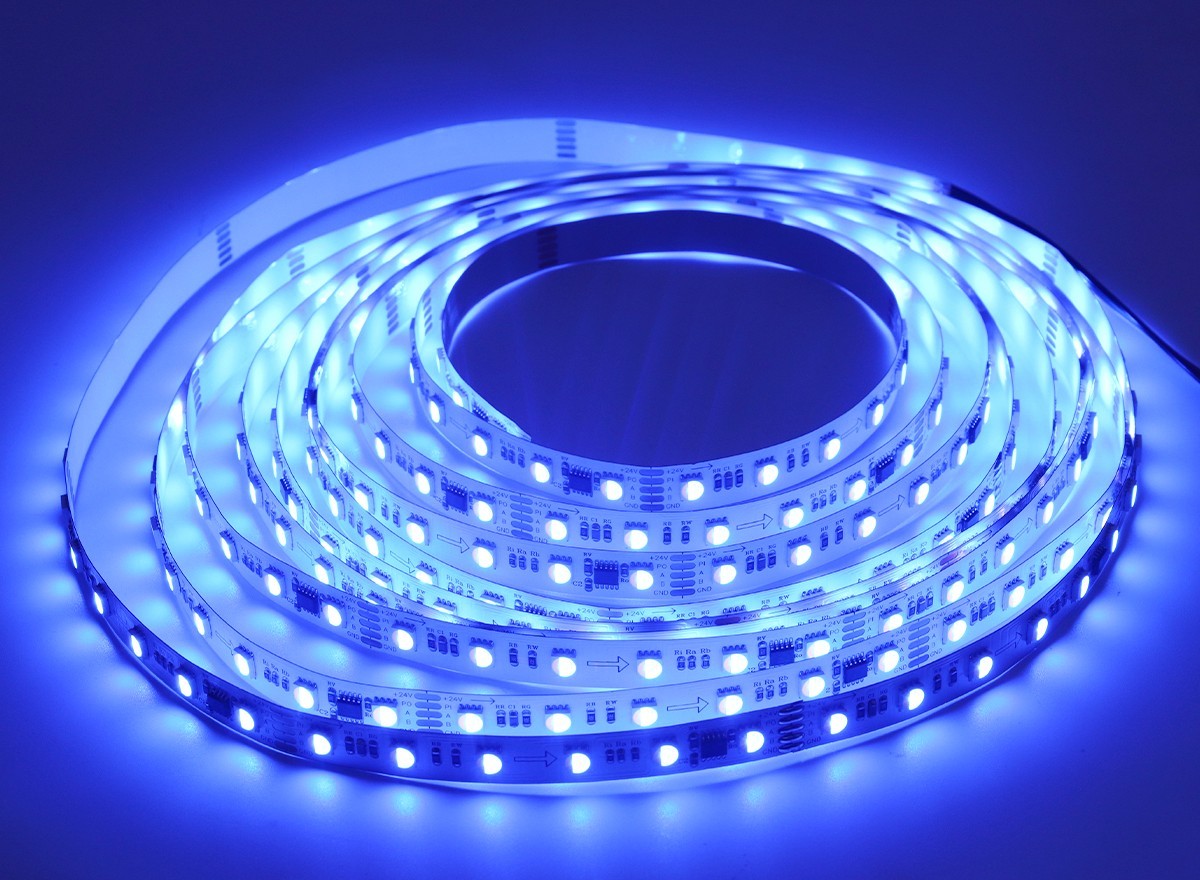

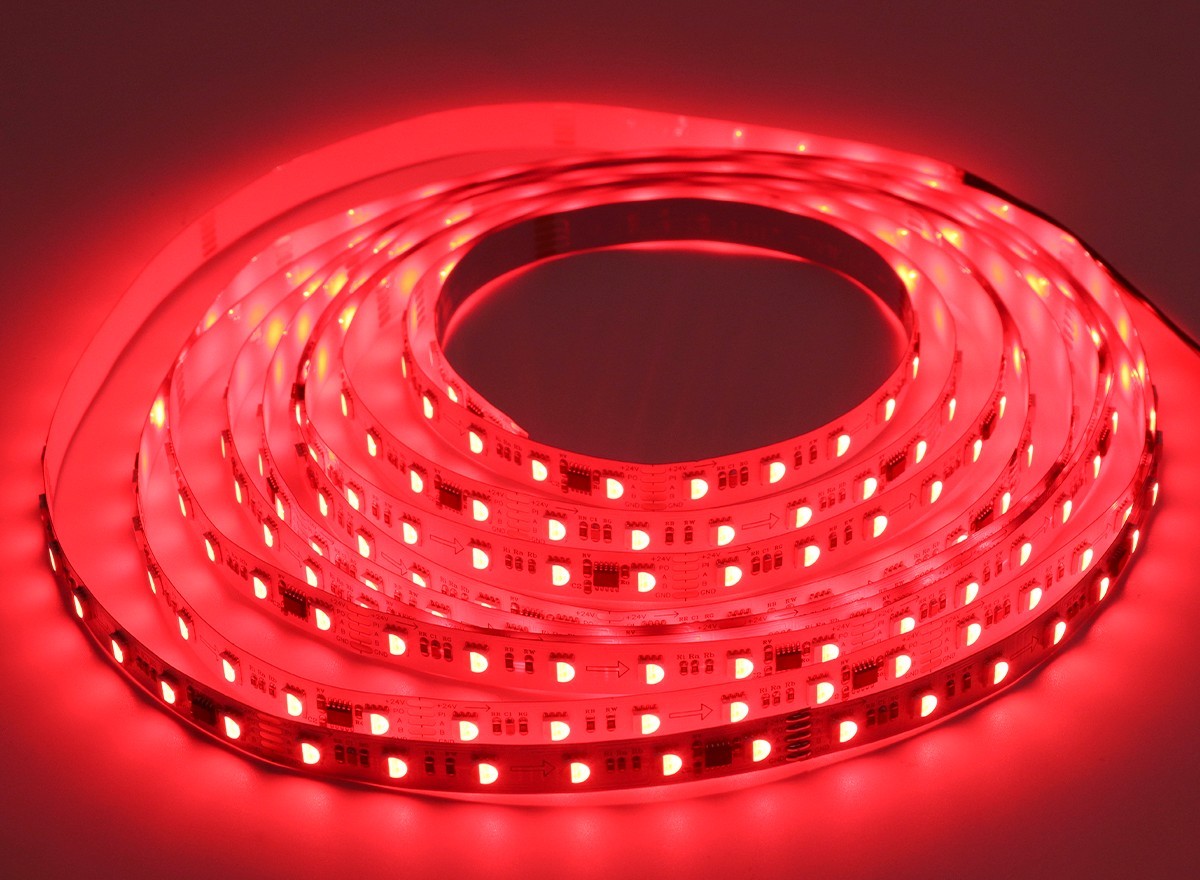

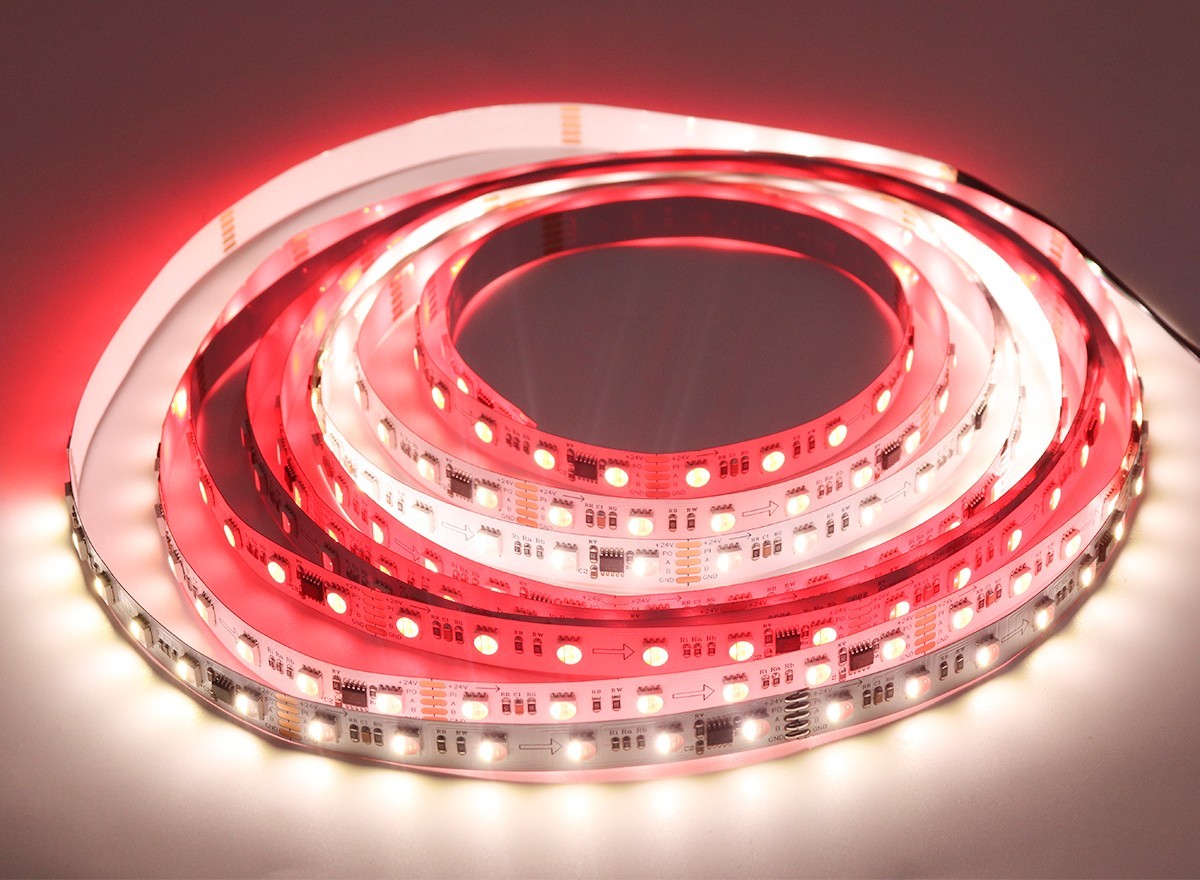

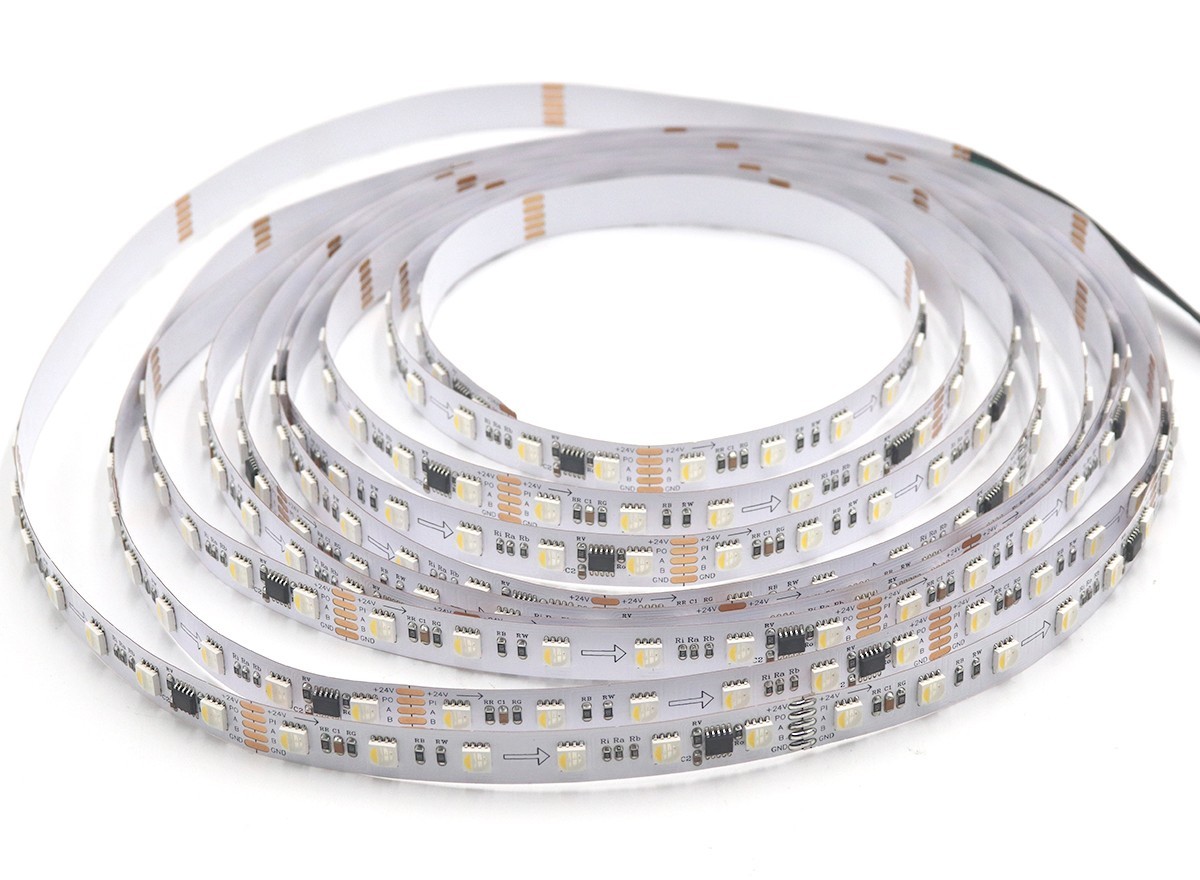

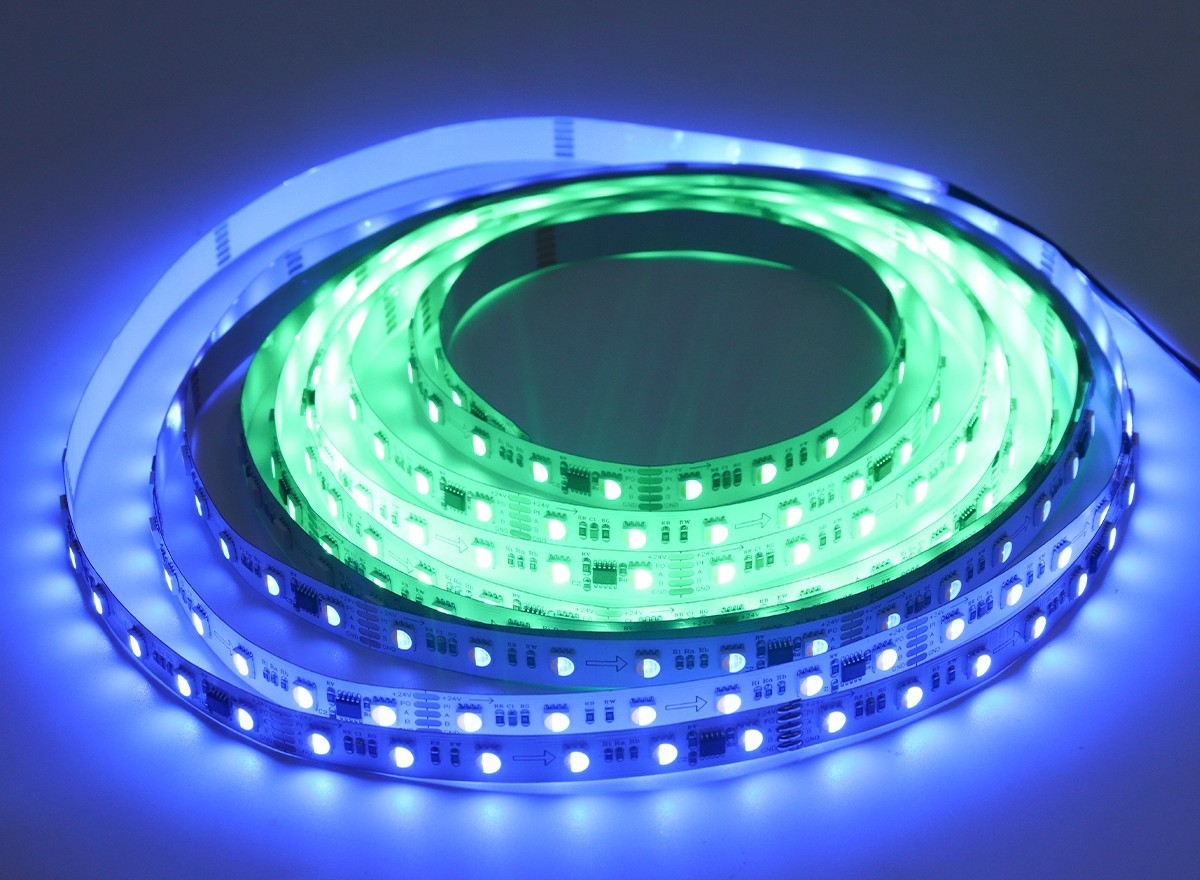

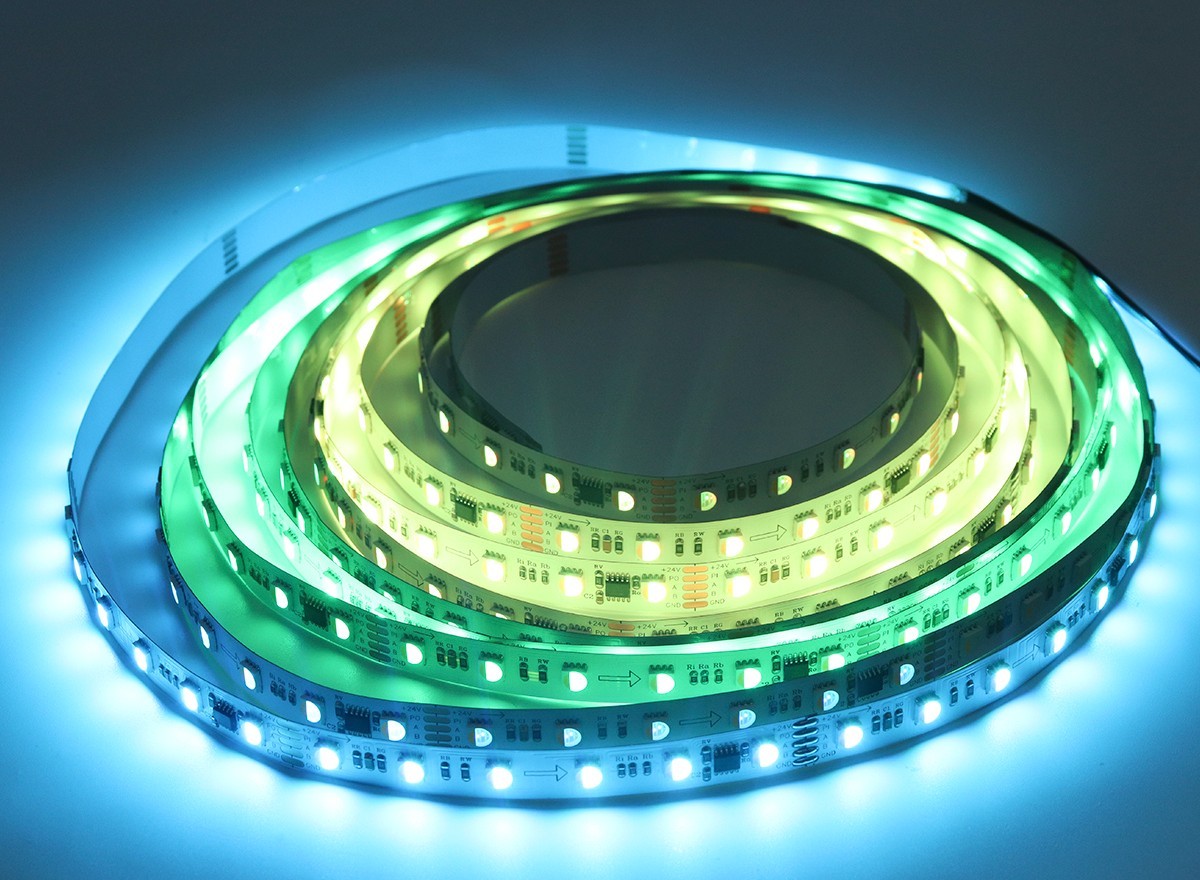

The UCS512AC 5050 RGBW LED Strip delivers 60 high-brightness quad-chip LEDs per meter with 10 DMX512-addressable pixels on safe DC24V. Each UCS512AC IC drives 6 LEDs, enabling vivid RGB color plus independent white for cleaner pastels and true white light. Parallel DMX signal ensures one IC failure won't break the whole run. Flexible 12mm FPC cuts every 100mm, compatible with DMX consoles, Art-Net and MADRIX—ideal for stages, building facades, bars and retail displays.
True RGBW Pixel Control: 10 pixels/m with independent R/G/B/W channels for richer color mixing and real white output.
DMX512 Parallel Signal: Differential A/B signal; breakpoint resume keeps remaining pixels working if one IC fails.
60×5050 RGBW/m: High-output quad-chip LEDs provide bright, uniform light with 120° beam angle.
24V Cut Every 100mm: 6 LEDs/pixel, low voltage drop, easy customization for letters, profiles and fixtures.
Console Compatible: Works with DMX512, Art-Net, MADRIX and standard pixel controllers for pro installations.
|
Item |
Specification |
|---|---|
|
Model |
UCS512AC-5050RGBW-60D-24V |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Qty |
60 LEDs/m |
|
Pixel / IC |
10 pixels/m, 1 UCS512AC controls 6 LEDs |
|
IC Type |
UCS512AC / TM512AC, DMX512, 4-channel |
|
Color |
RGB + 3000K / 4000K / 6000K white optional |
|
Input Voltage |
DC 24V |
|
Power |
19.2 W/m（some factories list 14.4–16 W/m by bin） |
|
Grayscale |
256 levels（65536 available with 16-bit controller） |
|
Cutting Unit |
100 mm / 6 LEDs |
|
PCB Width |
10 mm / 12 mm optional |
|
PCB |
2 oz / 3 oz copper, white / black optional |
|
Beam Angle |
120° |
|
Signal Lines |
24V+, GND, A, B, PI（address write） |
|
Control |
DMX512 / Art-Net / MADRIX（DMX address writing required） |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Lifespan |
30,000–50,000 hrs |
|
Certificate |
CE, RoHS（ETL/EMC/FCC optional by factory） |
