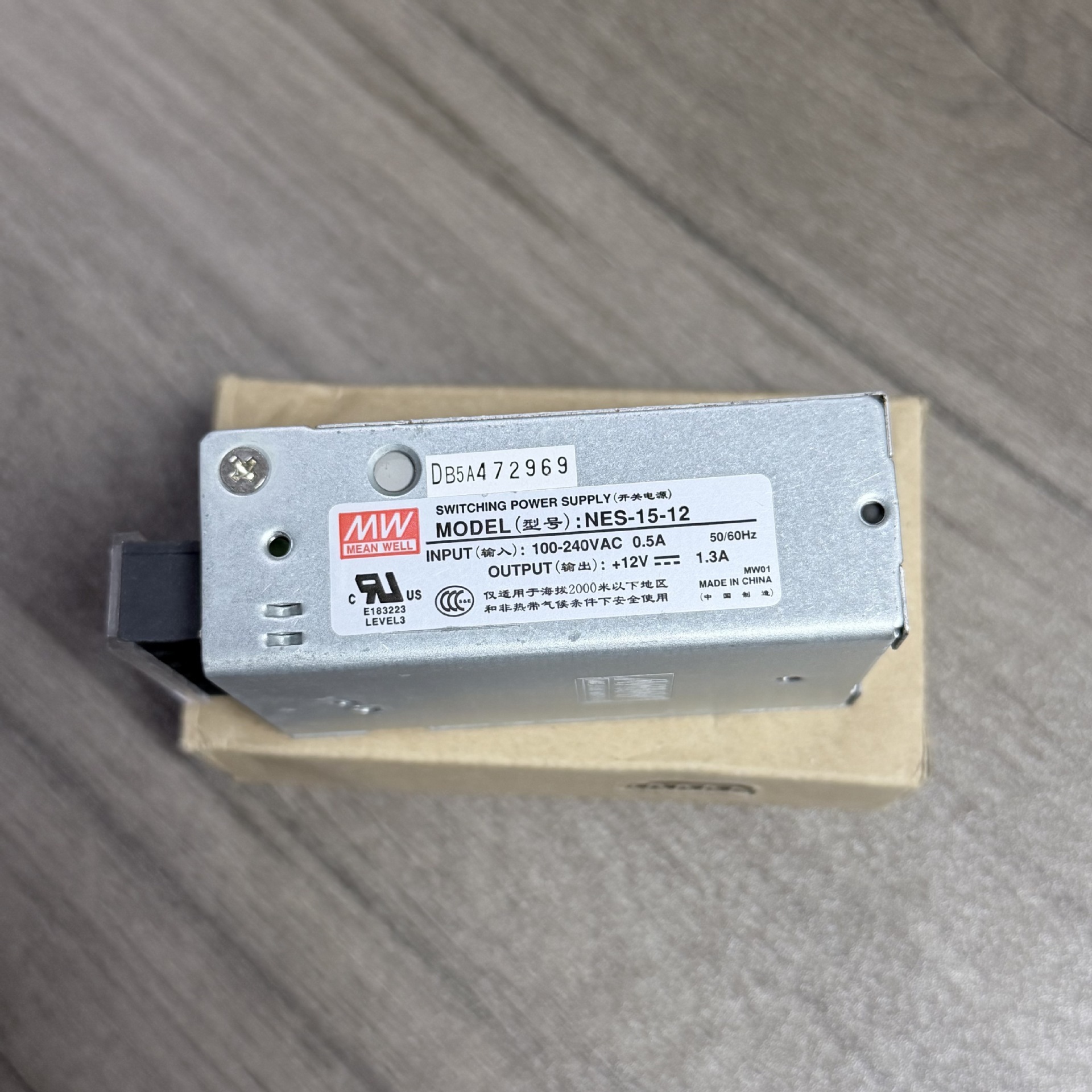

Its compact metal enclosure (78×51×28mm) allows easy installation in tight spaces such as control panels, LED displays, and security systems. Approved by UL, CB, and CCC, the NES-15-12 meets international safety standards. Ideal for automation equipment, CCTV, LED lighting, and more, this power supply offers excellent cost-performance and long-term reliability. Note: This model has been discontinued by the manufacturer; available units are typically from existing stock or compatible alternatives.
Universal AC Input: Wide input range of 85–264VAC, suitable for worldwide applications.
Comprehensive Protection: Built-in safeguards against short circuit, overload, overvoltage, and over temperature.
High Reliability: Industrial-grade design with 81% efficiency and stable 12V/1.3A output.
Compact & Easy to Install: Small metal case (78×51×28mm) fits space-limited enclosures.
Global Safety Certified: Approved by UL, CB, and CCC for international compliance.
|
Item |
Description |
|---|---|
|
Model |
NES-15-12 |
|
Brand |
MEAN WELL |
|
Series |
NES-15 |
|
Power Rating |
15W |
|
Output Voltage |
12V DC |
|
Output Current |
1.3A (max) |
|
Voltage Adjustability |
10.8 – 13.2V |
|
Input Voltage Range |
85 – 264VAC / 120 – 370VDC |
|
Input Frequency |
47 – 63Hz |
|
Efficiency |
81% typical |
|
Ripple & Noise |
≤150mVp-p |
|
Protection |
Short circuit / Overload / Overvoltage / Over temperature |
|
Operating Temp. |
-20°C to +60°C (derating may apply above 40°C) |
|
Safety Approvals |
UL, CB, CCC (GB4943) |
|
Dimensions (L×W×H) |
78 × 51 × 28 mm |
|
Enclosure Type |
Enclosed, metal case |
|
Cooling Method |
Natural convection |
|
Status |
Discontinued (available as stock or compatible substitute) |
|
Typical Applications |
Industrial control, LED lighting, CCTV, access control, automation |
