Product Features
﹞ 12 channels output, the maximum current of 5A /ch for RGB decoder, up to 1440W
﹞ Can be used as stand alone DMX Master controller
﹞ OLED Screen and touch button, more convenient operation
﹞ 27 sence modes built-in, with speed and brightness adjust function
﹞ 3 kinds of optional: DIM, CT, RGB
﹞ 2 kinds of DMX ports: Green teminal, RJ45
﹞ Short-circuit protection,overload protection,over-temperature protection
﹞ Fast self-testing function
﹞ 8 bit / 16 bit resolution optional (master mode support 8 bit only)
﹞ Multiple dimming curve: (0.1~9.9), liner, log
﹞ Meets DMX512/1990,RDM /2009 protocol
﹞ Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
Technical Parameters

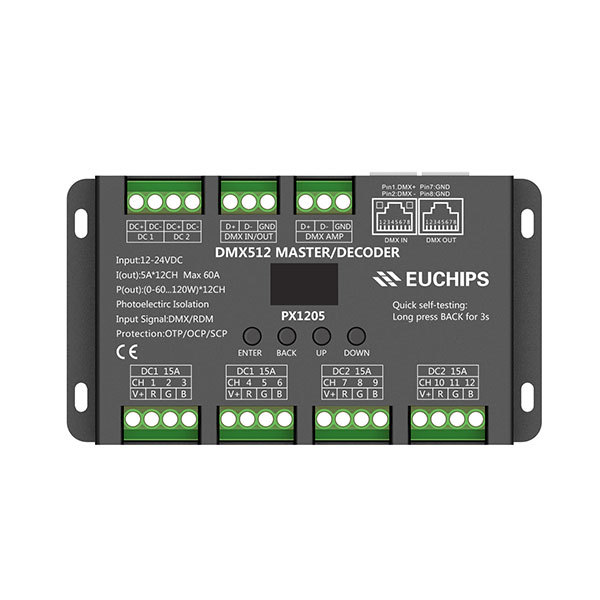

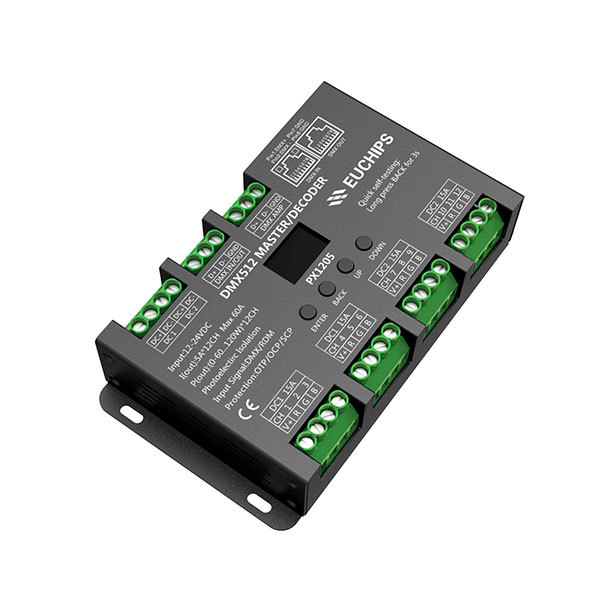

Model : PX1205-OLED
Input Signal : DMX512 1990/RDM 2009
Input Voltage : 12~24V
Output Voltage : 12~24V
Output Current : 5A*12CH MAX. 60A
Output Powet : (0~60W…120W)*5CH MAX. 1440W
Control Mode : DIM/CT/RGB
Dimming Curve : 0.1~9.9/Liner/Log
Grey Level : 8Bit (256 levels) / 16Bit (65536 levels)
Protection : Short-Circuit / Over Load / Over Temperature
Dimension : 164*93*36 mm (L * W * H)
Packing Size : 184* 104*42 mm (L * W * H)
G.W. : 432 g
Operation Temperature : – 20 – 50 ⊥
Relative humidity : 20% – 90% RH
