Feature
﹞ 32 channels output, the maximum current of 4A /ch for RGBW decoder, up to 3072W
﹞ Can be used as stand alone DMX Master controller
﹞ OLED Screen and touch button, more convenient operation
﹞ 27 sence modes built-in, with speed and brightness adjust function
﹞ 4 kinds of optional: DIM, CT, RGB,RGBW
﹞ 3 kinds of DMX ports: Green teminal, RJ45, XLR-5
﹞ Short-circuit protection,overload protection,over-temperature protection
﹞ Fast self-testing function
﹞ 8 bit / 16 bit resolution optional (master mode support 8bit only)
﹞ Multiple dimming curve: (0.1~9.9), liner, log
﹞ Meets DMX512/1990,RDM /2009 protocol
﹞ Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
Technical Parameter

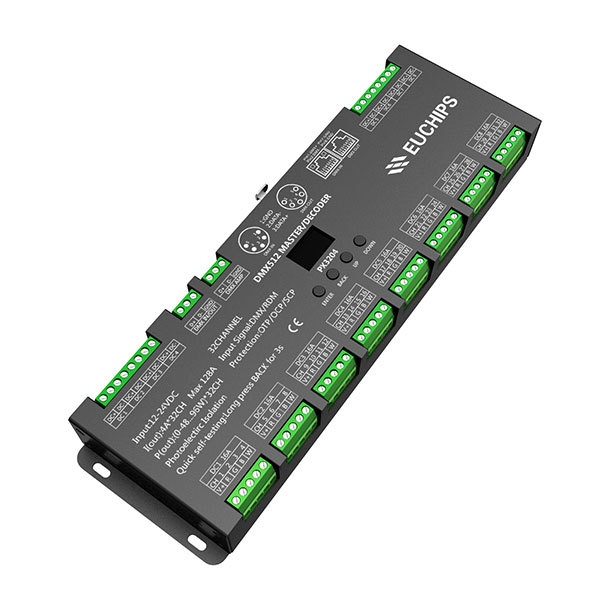

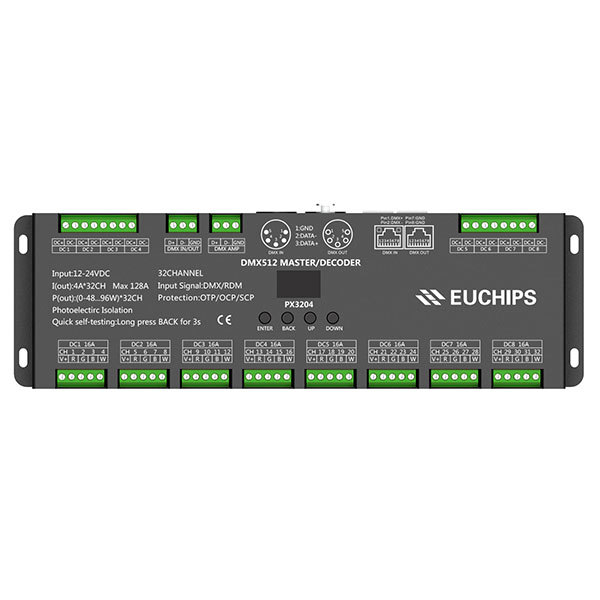

Model: PX3204-OLED
Input Signal: DMX512 1990/RDM 2009
Input Voltage: 12~24V
Output Voltage: 12~24V
Output Current: 4A*32CH MAX. 128A
Output Powet: (0~48W…96W)*32CH MAX. 3072W
Control Mode: DIM/CT/RGB/RGBW
Dimming Curve: 0.1~9.9/Liner/Log
Grey Level: 8Bit (256 levels) / 16Bit (65536 levels)
Protection: Short-Circuit / Over Load / Over Temperature
Dimension: 302*93*36 mm (L * W * H)
Packing Size: 332*104*42 mm (L * W * H)
G.W.: 846 g
Operation Temperature: – 20 – 50 ⊥
Relative humidity : 20% – 90% RH
